Gromelle H5000 Series H-5000 系列 快速接头中国总代理
Gromelle H5000 Series H-5000 系列快速接头代理

EATON Gromelle H5000 系列快速接头设计用于高压流体。不受液压和机械条件的限制。主体尺寸从 1/ 8” 到 2” ，材料为铜、钢和 AISI 316L 不锈钢。 工作压力可达 1000bar/14,500psi 。Our H5000 Series is designed for high pressure applications and is well-adapted to resist hydraulic and mechanical constraints. It is available in sizes from 1/8” to 2”, in brass, steel and AISI 316L stainless steel. Working pressure is up to 1000 bar / 14,500 psi. Eaton Hansen Coupling and Gromelle Hansen and Gromelle Eaton Gromelle Flat Face Quick Disconnect Couplings

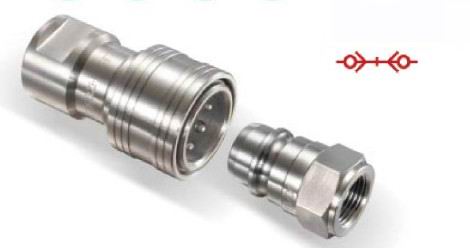

Gromelle H5000 Series H5000 系列快速接头
PDF技术资料下载
H5000 (Steel) Series: Proprietary Profile
H5000 (Brass) Series: Proprietary Profile
H5000 (Stainless Steel) Series: Proprietary Profile

Gromelle H5000 series self-sealing couplings
Eaton H5000 Series Pull to Connect Double Shut-Off Quick Disconnect Couplings
Eaton Hansen Coupling and Gromelle
Hansen and Gromelle
Eaton Gromelle Flat Face Quick Disconnect Couplings

双向关断快速接头
通过向后拉动活动套筒进行连接
球形锁
可选择安全环形锁
防尘帽和防尘塞
压力性能良好

钢接头：
经过热处理的公头和使用高强度钢的母头套筒，保证了卓越的机械和液压性能。
阀的设计提高了接头在断开时的强度。

EATON H-5000 Series H5000 系列快速接头
PDF技术资料下载
H5000 (Steel) Series: Proprietary Profile
H5000 (Brass) Series: Proprietary Profile
H5000 (Stainless Steel) Series: Proprietary Profile

Our H5000 Series is designed for high pressure applications and is well-adapted to resist hydraulic and mechanical constraints. It is available in sizes from 1/ 8” to 2” , in brass, steel and AISI 316L stainless steel. Working pressure is up to 1000 bar / 14,500 psi.

EATON Gromelle 快速接头主要型号：
HA0501100，HA0501200，HA0502100，HA0502200，HA0503100，HA0503200，HA0504100，HA0504200，HA0505100，HA0505200，HD0511100，HD0511200，HD0512100，HD0512200，HD0513100，HD0513200，HD0514100，HD0514200，HD0515100，HD0515200，H15000，HA1501100，HA1501200，HA1502100，HA1502200，HA1503100，HA1503200，HA1504100，HA1504200，HA1505100，HA1505200

材料： 钢（HA产品编号）

黄铜（HL产品编号）

AISI 316L 不锈钢（HZ产品编号）

Gromelle H5000 Series H5000 系列快速接头应用：

液压管路及设备：
车辆、石油、铁路及食品加工工业、钢铁、电子、实验室、农业、公共事业、航空业
流体：
化学品，水，石油产品，液压油，气体，蒸汽及某些酸性物质

HL0500100 HL05001V0 HL05001E0 3.8 -28 1 1.65 0.94 0.83 0.63 42 24 21 16 0.21 97
HL0501100 HL05011V0 HL05011E0 5.7 -19 1 1.97 1.10 0.94 0.75 50 28 24 19 0.30 134
HL0502100 HL05021V0 HL05021E0 7.6 -19 1 2.32 1.34 1.10 0.90 59 34 28 23 0.48 217
HL0503100 HL05031V0 HL05031E0 10.3 -14 1 2.71 1.50 1.22 1.06 69 38 31 27 0.55 249
HL0504100 HL05041V0 HL05041E0 14.2 -14 1 3.50 1.89 1.57 1.38 89 48 40 35 1.40 635
HL0505100 HL05051V0 HL05051E0 1 16.5 1-11 1 3.89 2.05 1.77 1.61 99 52 45 41 1.75 792
HL0506100 HL05061V0 HL05061E0 1 20.5 1-11 1 5.20 2.95 2.44 2.16 132 75 62 55 5.25 2382
HL0507100 HL05071V0 HL05071E0 1 25.8 1-11 1 5.90 3.35 2.95 2.56 150 85 75 65 8.49 3850
HL0509100 HL05091V0 HL05091E0 2
HL0500300 HL05003V0 HL05003E0 3.8 -28 2 1.65 0.94 0.83 0.63 42 24 21 16 0.22 100
HL0501300 HL05013V0 HL05013E0 5.7 -19 2 1.97 1.10 0.94 0.75 50 28 24 19 0.33 148
HL0502300 HL05023V0 HL05023E0 7.6 -19 2 2.32 1.34 1.10 0.90 59 34 28 23 0.55 248
HL0503300 HL05033V0 HL05033E0 10.3 -14 2 2.71 1.50 1.22 1.06 69 38 31 27 0.75 341
HL0504300 HL05043V0 HL05043E0 14.2 -14 2 3.50 1.89 1.57 1.38 89 48 40 35 1.61 732
HL0505300 HL05053V0 HL05053E0 1 16.5 1-11 2 3.89 2.05 1.77 1.61 99 52 45 41 1.97 894
HL0506300 HL05063V0 HL05063E0 1 20.5 1-11 2 5.20 2.95 2.44 2.16 132 75 62 55 5.41 2453
HL0507300 HL05073V0 HL05073E0 1 25.8 1-11 2 5.90 3.35 2.95 2.56 150 85 75 65 8.69 3944
HL0509300 HL05093V0 HL05093E0
HL0500200 HL05002V0 HL05002E0 3.8 -28 3 1.1 0.43 0.72 0.39 0.63 28 11 18.4 10 16 0.06 26
HL0501200 HL05012V0 HL05012E0 5.7 -19 3 1.38 0.56 0.86 0.55 0.75 35 14.2 21.8 14 19 0.09 41
HL0502200 HL05022V0 HL05022E0 7.6 -19 3 1.65 0.75 1.04 0.70 0.90 42 19 26.4 18 23 0.17 77
HL0503200 HL05032V0 HL05032E0 10.3 -14 3 1.97 0.81 1.22 0.94 1.06 50 20.6 31 24 27 0.22 101
HL0504200 HL05042V0 HL05042E0 14.2 -14 3 2.48 1.10 1.58 1.10 1.38 63 27.9 40.2 28 35 0.53 239
HL0505200 HL05052V0 HL05052E0 1 16.5 1-11 3 2.79 1.27 1.87 1.22 1.61 71 32.4 47.5 31 41 0.70 316
HL0506200 HL05062V0 HL05062E0 1 20.5 1-11 3 3.82 1.85 2.49 1.89 2.16 97 46.9 63.2 48 55 2.18 990
HL0507200 HL05072V0 HL05072E0 1 25.8 1-11 3 4.29 2.20 2.94 2.04 2.56 109 56 74.7 52 65 3.64 1650
HL0509200 HL05092V0 HL05092E0
Dust Plugs and Dust Caps
Body Size Socket Dust Plug Part Number Plug Dust Cap Part Number
(in) Anodized Aluminium Anodized Aluminium
HD0510100 HD0510200
HD0511100 HD0511200
HD0512100 HD0512200
HD0513100 HD0513200
HD0514100 HD0514200
1 HD0515100 HD0515200
1 HD0516100 HD0516200
1 HD0517100 HD0517200
2 HD0519100 HD0519200
HZ05001V0 HZ05001E0 3.8 - -28 1 1.65 0.94 0.83 0.63 42 24 21 16 0.19 88
HZ05201V0 HZ05201E0 3.8 -27 - 1 1.65 0.94 0.83 0.63 42 24 21 16 0.19 88
HZ05011V0 HZ05011E0 5.7 - -19 1 1.97 1.10 0.94 0.75 50 28 24 19 0.27 122
HZ05211V0 HZ05211E0 5.7 -18 - 1 1.97 1.10 0.94 0.75 50 28 24 19 0.27 122
HZ05021V0 HZ05021E0 7.6 - -19 1 2.32 1.34 1.10 0.90 59 34 28 23 0.43 197
HZ05221V0 HZ05221E0 7.6 -18 - 1 2.32 1.34 1.10 0.90 59 34 28 23 0.43 197
HZ05031V0 HZ05031E0 10.3 - -14 1 2.71 1.50 1.22 1.06 69 38 31 27 0.50 226
HZ05231V0 HZ05231E0 10.3 -14 - 1 2.71 1.50 1.22 1.06 69 38 31 27 0.50 226
HZ05041V0 HZ05041E0 14.2 - -14 1 3.50 1.89 1.57 1.38 89 48 40 35 1.27 577
HZ05241V0 HZ05241E0 14.2 -14 - 1 3.50 1.89 1.57 1.38 89 48 40 35 1.27 577
HZ05051V0 HZ05051E0 1 16.5 - 1-11 1 3.89 2.05 1.77 1.61 99 52 45 41 1.59 720
HZ05251V0 HZ05251E0 1 16.5 1-11 - 1 3.89 2.05 1.77 1.61 99 52 45 41 1.59 720
HZ05061V0 HZ05061E0 1 20.5 - 1-11 1 5.20 2.95 2.44 2.16 132 75 62 55 4.77 2165
HZ05071V0 HZ05071E0 1 25.8 - 1-11 1 5.90 3.35 2.95 2.56 150 85 75 65 7.72 3500
HZ05091V0 HZ05091E0 2
HZ05003V0 HZ05003E0 3.8 -28 2 1.65 0.94 0.83 0.63 42 24 21 16 0.19 91
HZ05013V0 HZ05013E0 5.7 -19 2 1.97 1.10 0.94 0.75 50 28 24 19 0.27 134
HZ05023V0 HZ05023E0 7.6 -19 2 2.32 1.34 1.10 0.90 59 34 28 23 0.43 225
HZ05033V0 HZ05033E0 10.3 -14 2 2.71 1.50 1.22 1.06 69 38 31 27 0.50 310
HZ05043V0 HZ05043E0 14.2 -14 2 3.50 1.89 1.57 1.38 89 48 40 35 1.27 665
HZ05053V0 HZ05053E0 1 16.5 1-11 2 3.89 2.05 1.77 1.61 99 52 45 41 1.59 813
HZ05063V0 HZ05063E0 1 20.5 1-11 2 5.20 2.95 2.44 2.16 132 75 62 55 4.77 2230
HZ05073V0 HZ05073E0 1 25.8 1-11 2 5.90 3.35 2.95 2.56 150 85 75 65 7.72 3585
HZ05093V0 HZ05093E0
HZ05002V0 HZ05002E0 3.8 - -28 3 1.10 0.43 0.72 0.39 0.63 28 11 18.4 10 16 0.05 23
HZ05202V0 HZ05202E0 3.8 -27 - 3 1.10 0.43 0.72 0.39 0.63 28 11 18.4 10 16 0.05 23
HZ05012V0 HZ05012E0 5.7 - -19 3 1.38 0.56 0.86 0.55 0.75 35 14.2 21.8 14 19 0.08 37
HZ05212V0 HZ05212E0 5.7 -18 - 3 1.38 0.56 0.86 0.55 0.75 35 14.2 21.8 14 19 0.08 37
HZ05022V0 HZ05022E0 7.6 - -19 3 1.65 0.75 1.04 0.70 0.90 42 19 26.4 18 23 0.15 70
HZ05222V0 HZ05222E0 7.6 -18 - 3 1.65 0.75 1.04 0.70 0.90 42 19 26.4 18 23 0.15 70
HZ05032V0 HZ05032E0 10.3 - -14 3 1.97 0.81 1.22 0.94 1.06 50 20.6 31 24 27 0.20 92
HZ05232V0 HZ05232E0 10.3 -14 - 3 1.97 0.81 1.22 0.94 1.06 50 20.6 31 24 27 0.20 92
HZ05042V0 HZ05042E0 14.2 - -14 3 2.48 1.10 1.58 1.10 1.38 63 27.9 40.2 28 35 0.48 217
HZ05242V0 HZ05242E0 14.2 -14 - 3 2.48 1.10 1.58 1.10 1.38 63 27.9 40.2 28 35 0.48 217
HZ05052V0 HZ05052E0 1 16.5 - 1-11 3 2.79 1.27 1.87 1.22 1.61 71 32.4 47.5 31 41 0.63 287
HZ05252V0 HZ05252E0 1 16.5 1-11 - 3 2.79 1.27 1.87 1.22 1.61 71 32.4 47.5 31 41 0.63 287
HZ05062V0 HZ05062E0 1 20.5 - 1-11 3 3.82 1.85 2.49 1.89 2.16 97 46.9 63.2 48 55 1.98 900
HZ05072V0 HZ05072E0 1 25.8 - 1-11 3 4.29 2.20 2.94 2.04 2.56 109 56 74.7 52 65 3.30 1500
HZ05092V0 HZ05092E0
Dust Plugs and Dust Caps
Body Size Socket Dust Plug Part Number Plug Dust Cap Part Number
(in) Anodized Aluminium Anodized Aluminium
HD0510100 HD0510200
HD0511100 HD0511200
HD0512100 HD0512200
HD0513100 HD0513200
HD0514100 HD0514200
1 HD0515100 HD0515200
1 HD0516100 HD0516200
1 HD0517100 HD0517200
2 HD0519100 HD0519200
HA0500100 HA05001V0 HA05001E0 3.8 - -28 - 1 1.65 0.94 0.83 0.63 42 24 21 16 0.19 88
HA0520100 HA05201V0 HA05201E0 3.8 -27 - - 1 1.65 0.94 0.83 0.63 42 24 21 16 0.19 88
HA0530100 HA05301V0 HA05301E0 3.8 - - M10x100 1 1.65 0.94 0.83 0.63 42 24 21 16 0.19 88
HA0501100 HA05011V0 HA05011E0 5.7 - -19 - 1 1.97 1.10 0.94 0.75 50 28 24 19 0.27 122
HA0521100 HA05211V0 HA05211E0 5.7 -18 - - 1 1.97 1.10 0.94 0.75 50 28 24 19 0.27 122
HA0531100 HA05311V0 HA05311E0 5.7 - - M14x150 1 1.97 1.10 0.94 0.75 50 28 24 19 0.27 122
HA0502100 HA05021V0 HA05021E0 7.6 - -19 - 1 2.32 1.34 1.10 0.90 59 34 28 23 0.43 197
HA0522100 HA05221V0 HA05221E0 7.6 -18 - - 1 2.32 1.34 1.10 0.90 59 34 28 23 0.43 197
HA0532100 HA05321V0 HA05321E0 7.6 - - M18x150 1 2.32 1.34 1.10 0.90 59 34 28 23 0.43 197
HA0503100 HA05031V0 HA05031E0 10.3 - -14 - 1 2.71 1.50 1.22 1.06 69 38 31 27 0.50 226
HA0523100 HA05231V0 HA05231E0 10.3 -14 - - 1 2.71 1.50 1.22 1.06 69 38 31 27 0.50 226
HA0533100 HA05331V0 HA05331E0 10.3 - - M22x150 1 2.71 1.50 1.22 1.06 69 38 31 27 0.50 226
HA0504100 HA05041V0 HA05041E0 14.2 - -14 - 1 3.50 1.89 1.57 1.38 89 48 40 35 1.27 577
HA0524100 HA05241V0 HA05241E0 14.2 -14 - - 1 3.50 1.89 1.57 1.38 89 48 40 35 1.27 577
HA0534100 HA05341V0 HA05341E0 14.2 - - M27x150 1 3.50 1.89 1.57 1.38 89 48 40 35 1.27 577
HA0505100 HA05051V0 HA05051E0 1 16.5 - 1-11 - 1 3.89 2.05 1.77 1.61 99 52 45 41 1.59 720
HA0525100 HA05251V0 HA05251E0 1 16.5 1-11 - - 1 3.89 2.05 1.77 1.61 99 52 45 41 1.59 720
- HA05061V0 HA05061E0 1 20.5 - 1-11 - 1 5.20 2.95 2.44 2.16 132 75 62 55 4.77 2165
- HA05071V0 HA05071E0 1 25.8 - 1-11 - 1 5.90 3.35 2.95 2.56 150 85 75 65 7.72 3500
- HA05091V0 HA05091E0
HA0500300 HA05003V0 HA05003E0 3.8 - -28 - 2 1.65 0.94 0.83 0.63 42 24 21 16 0.19 91
HA0520300 HA05203V0 HA05203E0 3.8 -27 - - 2 1.65 0.94 0.83 0.63 42 24 21 16 0.19 91
HA0530300 HA05303V0 HA05303E0 3.8 - - M10x100 2 1.65 0.94 0.83 0.63 42 24 21 16 0.19 91
HA0501300 HA05013V0 HA05013E0 5.7 - -19 - 2 1.97 1.10 0.94 0.75 50 28 24 19 0.27 134
HA0521300 HA05213V0 HA05213E0 5.7 -18 - - 2 1.97 1.10 0.94 0.75 50 28 24 19 0.27 134
HA0531300 HA05313V0 HA05313E0 5.7 - - M14x150 2 1.97 1.10 0.94 0.75 50 28 24 19 0.27 134
HA0502300 HA05023V0 HA05023E0 7.6 - -19 - 2 2.32 1.34 1.10 0.90 59 34 28 23 0.43 225
HA0522300 HA05223V0 HA05223E0 7.6 -18 - - 2 2.32 1.34 1.10 0.90 59 34 28 23 0.43 225
HA0532300 HA05323V0 HA05323E0 7.6 - - M18x150 2 2.32 1.34 1.10 0.90 59 34 28 23 0.43 225
HA0503300 HA05033V0 HA05033E0 10.3 - -14 - 2 2.71 1.50 1.22 1.06 69 38 31 27 0.50 310
HA0523300 HA05233V0 HA05233E0 10.3 -14 - - 2 2.71 1.50 1.22 1.06 69 38 31 27 0.50 310
HA0533300 HA05333V0 HA05333E0 10.3 - - M22x150 2 2.71 1.50 1.22 1.06 69 38 31 27 0.50 310
HA0504300 HA05043V0 HA05043E0 14.2 - -14 - 2 3.50 1.89 1.57 1.38 89 48 40 35 1.27 665
HA0524300 HA05243V0 HA05243E0 14.2 -14 - - 2 3.50 1.89 1.57 1.38 89 48 40 35 1.27 665
HA0534300 HA05343V0 HA05343E0 14.2 - - M27x150 2 3.50 1.89 1.57 1.38 89 48 40 35 1.27 665
HA0505300 HA05053V0 HA05053E0 1 16.5 - 1-11 - 2 3.89 2.05 1.77 1.61 99 52 45 41 1.59 813
HA0525300 HA05253V0 HA05253E0 1 16.5 1-11 - - 2 3.89 2.05 1.77 1.61 99 52 45 41 1.59 813
- HA05063V0 HA05063E0 1 20.5 - 1-11 - 2 5.20 2.95 2.44 2.16 132 75 62 55 4.77 2230
- HA05073V0 HA05073E0 1 25.8 - 1-11 - 2 5.90 3.35 2.95 2.56 150 85 75 65 7.72 3585
- HA05093V0 HA05093E0 2
HA0500200 HA05002V0 HA05002E0 3.8 - -28 - 3 1.10 0.43 0.72 0.39 0.63 28 11 18.4 10 16 0.05 23
HA0520200 HA05202V0 HA05202E0 3.8 -27 - - 3 1.10 0.43 0.72 0.39 0.63 28 11 18.4 10 16 0.05 23
HA0530200 HA05302V0 HA05302E0 3.8 - - M10x100 3 1.10 0.43 0.72 0.39 0.63 28 11 18.4 10 16 0.05 23
HA0501200 HA05012V0 HA05012E0 5.7 - -19 - 3 1.38 0.56 0.86 0.55 0.75 35 14.2 21.8 14 19 0.08 37
HA0521200 HA05212V0 HA05212E0 5.7 -18 - - 3 1.38 0.56 0.86 0.55 0.75 35 14.2 21.8 14 19 0.08 37
HA0531200 HA05312V0 HA05312E0 5.7 - - M14x150 3 1.38 0.56 0.86 0.55 0.75 35 14.2 21.8 14 19 0.08 37
HA0502200 HA05022V0 HA05022E0 7.6 - -19 - 3 1.65 0.75 1.04 0.7 0.90 42 19 26.4 18 23 0.15 70
HA0522200 HA05222V0 HA05222E0 7.6 -18 - - 3 1.65 0.75 1.04 0.7 0.90 42 19 26.4 18 23 0.15 70
HA0532200 HA05322V0 HA05322E0 7.6 - - M18x150 3 1.65 0.75 1.04 0.7 0.90 42 19 26.4 18 23 0.15 70
HA0503200 HA05032V0 HA05032E0 10.3 - -14 - 3 1.97 0.81 1.22 0.94 1.06 50 20.6 31 24 27 0.20 92
HA0523200 HA05232V0 HA05232E0 10.3 -14 - - 3 1.97 0.81 1.22 0.94 1.06 50 20.6 31 24 27 0.20 92
HA0533200 HA05332V0 HA05332E0 10.3 - - M22x150 3 1.97 0.81 1.22 0.94 1.06 50 20.6 31 24 27 0.20 92
HA0504200 HA05042V0 HA05042E0 14.2 - -14 - 3 2.48 1.10 1.58 1.10 1.38 63 27.9 40.2 28 35 0.48 217
HA0524200 HA05242V0 HA05242E0 14.2 -14 - - 3 2.48 1.10 1.58 1.10 1.38 63 27.9 40.2 28 35 0.48 217
HA0534200 HA05342V0 HA05342E0 14.2 - - M27x150 3 2.48 1.10 1.58 1.10 1.38 63 27.9 40.2 28 35 0.48 217
HA0505200 HA05052V0 HA05052E0 1 16.5 - 1-11 - 3 2.79 1.27 1.87 1.22 1.61 71 32.4 47.5 31 41 0.63 287
HA0525200 HA05252V0 HA05252E0 1 16.5 1-11 - - 3 2.79 1.27 1.87 1.22 1.61 71 32.4 47.5 31 41 0.63 287
- HA05062V0 HA05062E0 1 20.5 - 1-11 - 3 3.82 1.85 2.49 1.89 2.16 97 46.9 63.2 48 55 1.98 900
- HA05072V0 HA05072E0 1 25.8 - 1-11 - 3 4.29 2.20 2.94 2.04 2.56 109 56 74.7 52 65 3.30 1500
- HA05092V0 HA05092E0 2
Dust Plugs and Dust Caps
Body Size Socket Dust Plug Part Number Plug Dust Cap Part Number
(in) Anodized Aluminium Anodized Aluminium
HD0510100 HD0510200
HD0511100 HD0511200
HD0512100 HD0512200
HD0513100 HD0513200
HD0514100 HD0514200
1 HD0515100 HD0515200
1 HD0516100 HD0516200
1 HD0517100 HD0517200
2 HD0519100 HD0519200
