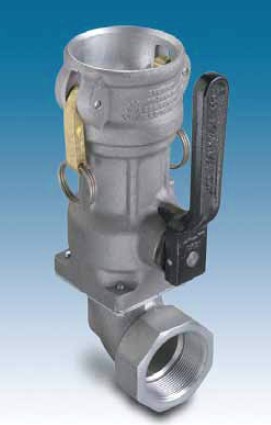

Kamvalok 1700ESL 和1700ES系列输送用接头



OPW输送系列的干式快换接头主要用于输送石油、溶剂和化学制品的采用车载泵送装置的多隔室运输槽车。OPW输送用系列的干式快换接头被公认为本行业的标准产品,主要用于输送石油、溶剂和化学制品的采用车载泵送装置的多隔室运输槽车。

Kamvalok 1700ESL 和1700ES系列输送用接头特点

- 提供2”规格
- 铝合金材质
- 可配或不配AutolokTM自锁臂
- 配 有Snap-on主密封的提升阀密封缸。
- 简单凸轮—滑槽设计,带控制杆
- 全方位操作—阴端接头可以连接到阳端接头的任何方向
- 制造符合最高设计、材料和施工质量标准

Kamvalok 1700ESL 和1700ES系列输送用接头优点

- 防止跑料—有助于减少危险性物料输送过程中因连接/脱卸而产生的跑料风险
- Autolok?自锁臂—配备的自动锁定机械装置可以提供额外的防护功能,连接时当发出清脆的咔哒声时表明该锁定装置已就位。只需要拉动锁紧环即可打开,解除锁定。
- 全封闭回路装卸操作功能—使用OPW 2173N油气回收干式快换接头,能够将有害液体和气相物料封闭在管线中,防止其进入环境中,从而保护人民免受伤害、财产受到损失。
- 双重保护—OPW Kamvaloks?提供从阳端接头和阴端接头两个方向进行自动关闭切断的功能。
- 使用方便—简单的连接/脱卸设计和杠杆操作的内部提升阀结构确保了部件的自由动作和平稳操作。



选购指南:
90°弯管/旋转接头

产品系列号
口径规格、描述
1711ES-0200
2” 铝合金, 缩醛塑料, Buna-N 密封
1712ES-0200
2” 铝合金, 缩醛塑料, 氟橡胶密封
1714ES-0020
2” 铝合金, 缩醛塑料, EPDM密封

下面产品或应用都成功使用了Kamvalok接头

Chemical Application
Acetone? Tank Cars?
Acrylates? In Plant
Acrylic Acid
Tank Truck
Acrylonitrile
Tank Cars
Acrylonitrile, MMA, Butyl Acrylate
?
Allyl Chloride
?
Allyl Lites
?
Amines (Various)
Tank Truck
Anthranilic Acid (AA)
Tank Cars
Anthranilic Acid (AA)
Tank Truck
Automotive Paint
In Plant
Benzene
Tank Cars
Benzene
Tank Truck
Butyl Acrylate
Tank Trucks
Butyl Acrylate, Acrylic Acid, Acrylic Monomers
?
C5 Raffinate
Tank Truck
Crude Acetone?
Tank Truck
Crude MBA
Tank Truck?
CTLO (coal tar light oil) Tank Cars?
Cumene? Tank Truck?
DCDP? Tank Truck?
Diesel Exhaust Fluid (DEF)? Totes?
Dow Therm Tank Trucks?
Enserv? Totes/trucks?
Epichlorohydrin? Tank Cars?
Ethelyne Oxide
Rail Car?
Ethyl Acrylate? Tank Cars?
Ethyl Acrylate? Tank Truck?
Ethylene Oxide (EO)? Tank Cars?
Flex Caustic? Tank Truck?
Glycol (deicing fluids)? Tank Trucks?
Hydrogen Peroxide? Rail Car?
Isoprene? Tank Truck?
Isopropyl Alcohol? Tank Truck?
Light Paralysis Oil
Tank Truck?
LRO? Tank Truck?
Lubricating Oils? Tank Trucks?
Methanol? Rail Car?
Mixed Alcohol? Tank Truck?
Monochloroacetic Acid, 80% Solution (MCAA)? ?
Nitirc Acid? Tank Truck?
Paralysis? Tank Truck
Peperzine? Tank Truck
Piperylene? Tank Truck
Polyol? Rail Car
Propylene
Tank Cars?
Propylene Oxide (PO)? Tank Truck?
Propylene Oxide (PO)? Rail Car?
RTBA? Tank Truck?
Sour Gasoline? Tank Cars?
Spent Caustic? Tank Truck?
Styrene?? Tank Truck?
Styrene?? Rail Car?
Sulfuric Acid (H2SO4), virgin 96%? Tank Truck?
Tebol 99
Tank Truck?
Telene (tobacco herbicide)? Totes/trucks?
Telone II? ?
Tert-Butyl Hydroperoxide (TBHP)? Tank Truck?
Trichlorobenzoic (TBA) Acetone? Tank Truck?
Trichlorobenzoic (TBA) Heavies? Tank Truck?
WFE Distillate? Tank Truck?
WFE Feed? Tank Truck?
WFE Heavies? Tank Truck?
