D2000系列干式快换接头

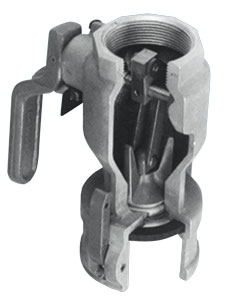

D2000™ Actuator Series Dry Disconnect Coupler

OPW D2000系列执行机构是专为只需要从一个流动方向进行自动关闭的应用用途而设计的。用于油气回收和自吸泵送类的用途特别适用。The OPW Kamvalok D2000 Actuator Series is designed for those applications that require automatic closure from only one flow direction. Ideal for vapor recovery and suction pump applications.




D2000™ Actuator Series Dry Disconnect Coupler_PDF下载



优点

- 使用方便—采用杠杆操纵的单一提升阀结构使开关操作十分平滑、方便
- 可靠性和耐用性—采用高强度铝合金或不锈钢结构材质(耐腐蚀强度可与304不锈钢相比)
- 漏液量最少的脱卸阀门—便于清洗,使用方便,结构优良,成本低廉



特性

单一提升阀设计结构
可提供不锈钢或铝合金两种材质—密封材料则包括Buna-N、Viton、EPT、Teflon和Chemraz等许多种。
凸轮和滑槽结构—可采用360°的对接取向,联接和脱卸十分平滑和方便
能与Kanvalok阳端接头兼容使用

OPW D2000 Actuator Series Ordering Specifications

Stainless Steel D2000? Couplers - Female NPT

产品型号
Size/Description
2271D-SS15 1-1/2" Stainless Steel, Buna Seals
2271D-SS20 2" Stainless Steel, Buna Seals
2272D-SS15 1-1/2" Stainless Steel, Viton? Seals
2272D-SS20 2" Stainless Steel, Viton? Seals
2274D-SS15 1-1/2" Stainless Steel, EPT Seals
2274D-SS20 2" Stainless Steel, EPT Seals
2275D-SS15 1-1/2" Stainless Steel, Teflon? & Kalrez? Seals
2275D-SS20 2" Stainless Steel, Teflon? & Kalrez? Seals

Aluminum D2000 Couplers - Female NPT

产品型号
Size/Description
2261D-AL15 1-1/2" Aluminum, Buna Seals
2261D-AL20 2" Aluminum, Buna Seals
2262D-AL15 1-1/2" Aluminum, Viton? Seals
2262D-AL20 2" Aluminum, Viton? Seals
2264D-AL15 1-1/2" Aluminum, EPT Seals
2264D-AL20 2" Aluminum, EPT Seals
2265D-AL15 1-1/2" Aluminum, Teflon? Silicone Seals
2265D-AL20 2" Aluminum, Teflon? Silicone Seals
