OPW一次油气回收接头 OPW一次油气回收自封接头及盖


OPW 1611AV 3"x4" Vapor Recovery Adaptor - Aluminum 1711T Vapor Recovery Cap
OPW油气回收密封快速接头

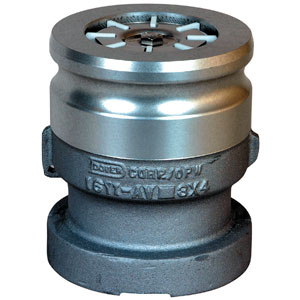

1611 Series Vapor Recovery Adaptors

OPW 1611AV 油气回收密封快速接头用于油气回收管端口,具有自密封效果,只有使用OPW 633CV-AL4030连接才能顶开密封口,保持气相管路连通。1611系列最大工作压力10PSI,安装尺寸3"。The OPW 1611AV and 1611AVB are poppeted adaptors, designed to mate with a vapor recovery elbow, for returning gasoline vapor to the tank truck during a fuel delivery to an underground tank.

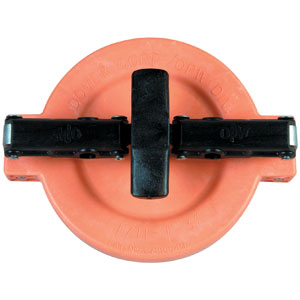

OPW 1711T油气回收密封盖

OPW 1711T油气密封盖用于OPW 1611AV,1611AVB,1611VR接头,防止油气挥发和水、灰尘和杂质进入快速接头和进入油罐。1711T密封盖用DURATUFF结构防止生锈。1711T可加锁。



Ordering Specifications

Part No.
Elbow Size
Riser Thread
Weight
Description
in. mm in. mm lbs. kg
1611AV-1605 3 76 3 76 2.91 1.32 Clear Anodized Aluminum
1611AV-1620 3 76 4 102 3.25 1.48 Clear Anodized Aluminum
1611AVB-1625 3 76 4 102 7.97 3.62 Cast Bronze

Dimensions

Product Combinations H-Total Installed Height

In. mm
61VSA & 1711T 6-3/8 162
61VSA & 1711LPC 5-3/8 137
1611AV & 1711T 6-1/4 159
1611AV & 1711LPC 5-1/4 133
61SALP & 634TT 4-3/8 111
61SALP & 634LPC 4-7/8 124
633T & 634TT 4-1/2 114
633T & 634LPC 3-1/2 89

Replacement Parts

Key
Part No.
Description
1 C02642M Bridge Guide
Not Shown H15294M Screw (3") (76mm)
2 H04145M Gasket (3") (76mm)
Gasket (3" x 4")
(76 x 102mm)
H04150M
3 H08989M Spring
61VSA-KIT Complete Replacement Kit
