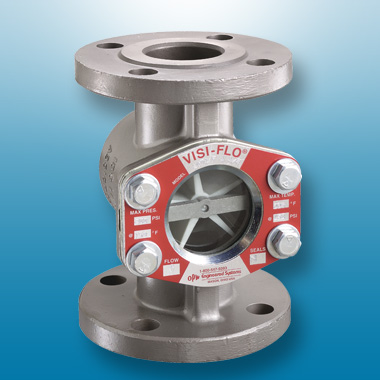

OPW VISI-FLO® 1500 Series Sight Flow Indicators
OPW VISI-FLO 1500 系列可视流量指示器

OPW工程系统公司提供对作业中的流体进行监控、检测和显示的产品。无论客户是监控石石油产品、液化气体、溶剂,或是危险的、腐蚀性化学品,OPW的仪器及配件都将帮助客户控制这些流体。OPW提供完整系列的可视流量指示器,包括流行的VISI-FLO系列。OPW可视流量指示器提供了一种快速、可靠和便宜的途径,通过该途径可以核对流速和流向,以及监控流体管线中颜色和澄清度。OPW可视流量指示器各种尺寸、形式和材质可用于广泛的工业应用中,所有OPW可视流量指示器都通过了1.5倍的额定压力测试,从而确保其在恶劣的使用环境中拥有大的可靠性。

OPW工程系统公司具有60多年视镜器的生产经验。在多年的产品设计和制造过程中,我们进行了多次技术革新,使得VISI-FLO成为市场上响亮的视镜流量指示器的产品品牌。VISI-FLO的产品有两个系列:标准1400系列和1500高压、高温系列。OPW 1500 Series VISI-FLO are designed for applications with a maximum operating pressure of up to 400 PSIG and/or temperatures up to 350F (177C)*. * Special high temperature seals are available; consult factory for details.


OPW VISI-FLO® Sight Flow Indicators 可视流量指示器 PDF


Standard Features
Exclusive 3-Year “No-Leak” Guarantee – VISI-FLO’s innovative radial seal creates a constant and uninterrupted sealing force between the body and outside diameter of the glass lens. This sealing method provides a longer lasting and better seal than conventional flat seals.

Maintenance-Free Design – VISI-FLO’s unique, bolt-on-body design requires no special maintenance or torquing sequence be followed to prevent leaks. This results in a safer, more reliable sight flow indicator than those units using tie rods to fasten lens and seal to body. Dimensionally Interchangeable – “FJP” Flanged VISI-FLO?s feature end-to-end dimensions that match Jacoby-Tarbox and Penberthy and other manufacturers’ units. “FJP” units are available in 3/4", 2", 3", and 4".

Shipment Within 48 Hours on Most Items
Rated for Vacuum Service- up to 635 mm (25”) at 85.5% vacuum. This equates to 12.3 PSI vacuum.


独有的三年“不泄露”担保
VISI-FLO的创新性径向密封设计为壳体和玻璃视镜的外径之间提供了恒定的、不间断的密封力。与传统平面密封(通常带拉杆设计)相比,上述密封方法提供了持续时间更长、密封效果更佳的密封性能。

无需维护
VISI-FLO独有的螺栓紧固壳体设计无需专门的维护或扭转工序。因此与使用拉杆来紧固视镜和密封壳体的产品相比,上述设计更安全、更可靠。
