Ty-Rap® Multi-Lok不锈钢自锁电缆扎带



火灾危害腐蚀性环境极端温度对于很多电缆捆扎 应用而言,塑料扎带显然是不适用的,甚至是非常危险的。 这就是我们开发Multi-Lok 不锈钢电缆扎带的原因所在。该扎带可防止火、紫外紫外线或极端温度的损害,而且耐腐蚀,可为您提 供安全、稳固、省心的支撑。




Ty-Rap® Multi-Lok不锈钢自锁电缆扎带
PDF技术资料

火灾危害——腐蚀性环境——极端温度——对于很多电缆捆扎 应用而言,塑料扎带显然是不适用的,甚至是非常危险的。 这就是我们开发Multi-Lok 不锈钢电缆扎带的原因所在。该扎带 可防止火、紫外线或极端温度的损害,而且耐腐蚀,可为您提 供安全、稳固、省心的支撑。

通过手动方式或通贝电缆扎带拉紧器或拉紧钩即可快捷地安装Multi-Lok 不锈钢电缆扎带。该扎带具有一个独特的、支撑超过200 lb 重量的自锁式多锁系统。 尼龙II 涂层为无卤素、无毒性黑色涂层。这种耐候性涂层不受 紫外线影响,增加扎带耐腐蚀、化学品和风化的能力。另外, 不锈钢卷带消除了尖锐的边缘。因此,Ty-Rap Multi-Lok 不锈钢 自锁电缆扎带绝对是您的优先之选。



Fastening Products

Stainless Steel Cable Ties and Accessories Stainless Steel Cable Ties and Accessories After wrapping the object to be tied, insert the free end of the tie through the buckle and into the tool.

. The tail is formed into a fold lock behind the buckle . The tool forces a dimple in the band into a hole in the buckle Squeeze the handle of the tool to create the dual lock and cut off the tail. The cable tie forms a low-profile dual lock.

Dual Lock

Thomas & Betts has a complete package of stainless steel cable ties and accessories that are easy to apply and superior in quality. These products have been designed for tying, lashing and identification applications in demanding environments such as boiler rooms, chemical plants, refin eries, pulp/paper mills, shipyards and offshore oil platforms. They are made of a variety of high-quality stainless steel materials which offer excellent corrosion resistance, high temperature and durability charac teristics. There is also a variety of high-quality installation and identification tools to complete your cable tie accessory needs.

For cable bundling, I.D. tags and other general bundling applications – especially in hazardous environments – Thomas & Betts Stainless Steel Cable Ties provide a strong, safe, permanent installation with a unique, dual lock.

The Type 304 stainless steel ties are completely fireproof – no toxic fumes, no sagging cables. They are extremely resistant to corrosion and UV light, with the ability to withstand the harshest temperature extremes. Yet they are surprisingly economical.

The low-profile ties are fast and easy to apply. A quick squeeze of the installation tool forms two strong locks– a dimple lock and a fold lock. Their two-piece configuration adds to its versatility. Available in standard lengths to wrap bundle diameters from 1 to 10 inches, Thomas & Betts Stainless Steel Cable Ties can be supplied in other lengths on special order.

Low-profile Thomas & Betts Stainless Steel Ties are fireproof and resist corrosion, UV light and extreme weather conditions for safe, permanent cable bundling.

Installation Hand Tool
The installation hand tool is a lightweight, pocket size hand tool which quickly and easily applies the stainless steel cable ties. To use, simply separate the pull-up handle from the body, push the release lever down and insert the clamp tail as far as possible. Squeeze the pull-up handle until the band is tight. Finally, move the pull-up handle to the locking/cut-off position by moving it away from the body as far as it will go. Then squeeze to form the dual lock and cut off the excess tail.

Catalogue Number System

CABLE TIE TYPE

SS = Two-piece solid stainless steel cable tie, Type 304
TYS = Multi-lock stainless steel cable tie, Type 316
SSR = Reusable stainless steel cable tie, Type 200/300
SSH = Heavy-duty stainless steel clamp, Type 201
TS = Roller bar locking stainless steel cable tie, Type 302/304
LS = Ball locking stainless steel cable tie, Type 302/304/316

Cat. No. For Bundle Dia.
of (in./mm)
Tensile Strength
(lb./N)
Width
(in./mm)
Length
(in./mm)
Weight
(lb./kg)
SS10-2502/51 200/890 0.25/6.35 10.0/254 1.1/4.89
SS17-2504/101 200/890 0.25/6.35 16.5/419 1.8/8.00
Bundle Diameter Tensile Strength Width Length Weight
信德迈科技(北京)有限公司 北京朝阳区望京SOHO-T1-C座2115室PO 100102

C22

Tel: 010-8428 2935 Fax: 010-8428 8762 Email:sales@cnmec.biz


Fastening Products
Strong, slip-free ties with a
Stainless Steel Cable Ties and Accessories
SS – Two-Piece Solid
. Low-profile, single wrap ties . No slipping
Fastening Products
Strong, slip-free ties with a
Stainless Steel Cable Ties and Accessories
SS – Two-Piece Solid
. Low-profile, single wrap ties . No slipping
unique dual lock . Dual locking mechanism



Mini Tie Installation Tool

Perfect for mini-sized
stainless steel ties

. Pocket-sized, light weight
. Applies mini-size stain
less steel ties
Cat. No.
For Bundle
Dia. of
(in./mm)
Tensile
Strength
(lb./N)
Width
(in./mm)
Length
(in./mm)
Weight
(lb./kg)
Std.
Pkg.
Mini Stainless Steel Cable Ties
SS7-180 1/25
100/444.8 0.18/4.5
6.5/165 0.70/0.32
100
SS10-180 2/51 10.0/254 0.90/0.41
SS16-180 4/102 16.0/406 1.40/0.64
SS23-180 6/152 22.5/572 1.85/0.84
SS29-180 8/203 29.0/737 2.35/1.07
Standard Stainless Steel Cable Ties
SS10-250 2/51
250/1,112 0.25/6.35
10.0/254 1.10/0.50
100
SS17-250 4/102 16.5/419 1.80/0.82
SS23-250 6/152 22.5/572 2.50/1.13
SS29-250 8/203 29.0/737 3.20/1.45
SS35-250 10/254 35.0/889 3.80/1.72
304 Stainless Steel
0.015 in. (0.38mm) Thickness
NOTE: Other lengths available on special request.
Add suffix -316 for 316 Stainless Steel.
Standard Tie Installation Tool

Pocket-sized hand tool
for quick and easy cable
tie installations

. Lightweight
. Applies standard-size
stainless steel ties
Cat. No. Description Weight
(lb./kg)
Std.
Pkg.
WTA290
Hand tool to apply mini stainless steel cable ties;
easy-to-use tool applies tension, locks tie with the dual
lock, and cuts off band flush with top surface of buckle
1.17/0.53 1

Cat. No. Description Weight
(lb./kg)
Std.
Pkg.
WTA250
Hand tool to apply standard stainless steel cable ties;
easy-to-use tool applies tension, locks tie with the dual
lock, and cuts off band flush with top surface of buckle
1.17/0.53 1

www.tnb.caC23

Fastening Products
Strong — holds in excess of 200 lb. —
Stainless Steel Cable Ties and Accessories
TYS – Multi-Lok. Self-Locking
Fastening Products
Strong — holds in excess of 200 lb. —
Stainless Steel Cable Ties and Accessories
TYS – Multi-Lok. Self-Locking
and self locking

. Corrosion-resistant, providing a
safe, strong, worry-free hold
. Unique, self-locking, multiple–
locking system holds in excess of 200 lb.
. Manufactured from Type 316
stainless steel
. Available in two widths and various
lengths
Cat. No.
Tensile
Strength
(lb./N)
Width
(in./mm)
Length
(in./mm)
Weight
(lb./kg)
Std.
Pkg.
Type 316 Stainless Steel – Uncoated
TYS6-280
250/1,112
0.28/7.00
6/150 0.66/0.30
100
TYS9-280 9/225 0.99/0.45
TYS12-280 12/300 1.32/0.60
TYS18-280 18/450 1.76/0.80
TYS24-280 24/610 2.64/1.20
TYS6-470
0.47/12.00
6/150 1.10/0.50
TYS9-470 9/225 1.65/0.75
TYS12-470 12/300 2.20/1.00
TYS18-470 18/450 2.97/1.35
TYS24-470 24/610 4.29/1.95
0.010 in. (0.245mm) Thickness

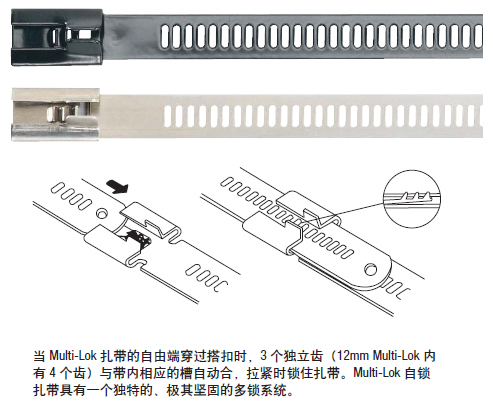

How it works:

As the free end of the
Multi-Lok. tie passes
through the buckle, three
separate teeth (four teeth
in the 12 mm Multi-Lok.)
mesh with corresponding
slots in the band,
automatically locking the
tie as it is being tensioned.

. Nylon 11 weather-resistant coating is
unaffected by UV sunlight, resistant to
corrosion, chemicals, weathering and
protects cable insulation
. Coated with halogen-free,
non-toxic black nylon 11
Cat. No.
Tensile
Strength
(lb./N)
Width
(in./mm)
Length
(in./mm)
Weight
(lb./kg)
Std.
Pkg.
Type 316 Stainless Steel – Nylon 11 Coated
TYS6-280C250/1,112
0.28/7.00
6/150 0.66/0.30
100
TYS9-280C9/225 0.99/0.45
TYS12-280C12/300 1.32/0.60
TYS18-280C18/450 1.76/0.80
TYS24-280C24/610 2.64/1.20
TYS6-470C0.47/12.00
6/150 1.10/0.50
TYS9-470C9/225 1.65/0.75
TYS12-470C12/300 2.20/1.00
TYS18-470C18/450 2.97/1.35
TYS24-470C24/610 4.29/1.95
0.010 in. (0.245mm) Thickness
www.tnb.caC24

Fastening Products
Ties to use and reuse with quickness and ease!
Stainless Steel Cable Ties and Accessories
SSR – Reusable
Fastening Products
Ties to use and reuse with quickness and ease!
Stainless Steel Cable Ties and Accessories
SSR – Reusable
. Made of high-strength, corrosion-resistant 200/300 Series
stainless steel
. Coated with a non-toxic, halogen-free, low-smoke Nylon 11,
protecting cables from damage or interference due to direct
contact with the stainless steel
. Nylon 11 is also chemical and weather-resistant, UV-protective,
extremely flexible at low temperature, user-friendly on installer’s
hands and easy on bundles
. Unique buckle design for quick, easy application and re-use
1. Insert cable tie tail through holding tabs and locking emboss.
2. Bend cable tie tail up.
3. Insert cable tie tail back through holding tabs, creating as tight a
bend as possible. For increased tensile strength follow steps #4 and #5.
4. Bend cable tie tail up.
5. Fold cable tie tail over holding tabs.
Cat. No.
Tensile
Strength
(lb./N)
Width
(in./mm)
Length
(in./mm)
Weight
(lb./kg)
Std.
Pkg.
Reusable Stainless Steel Cable Ties – Coated
SSR6-250C
75/333.60 0.25/6.35
6/152 1.4/0.64
100
SSR9-250C 9/229 1.8/0.82
SSR12-250C 12/305 2.1/0.95
SSR18-250C 18/457 3.0/1.36
SSR24-250C 24/610 3.7/1.68
SSR6-375C 6/152 1.8/0.82
SSR9-375C
100/444.80 0.38/9.53
9/229 2.0/0.91
SSR12-375C 12/305 3.1/1.41
SSR18-375C 18/457 4.4/2.00
SSR24-375C 24/610 6.6/2.99
SSR30-375C 30/762 7.0/3.18
SSR36-375C 36/914 8.3/3.76
WTAE200 WTAE201 DAS250
Cable Tie Tensioner Tensioning Hook Pistol Grip Tensioning Tool
(WTAE tools for use with type TYS – TYS C Series Cable ties)

Cat. No. Description Weight (lb./kg) Std. Pkg.
Tensioning Tools
WTAE200 Cable Tie Tensioner: For tensioning Reusuable Ties and Multi-Lok. Ties 0.6/0.27
1WTAE201 Tensioning Hook: For tensioning Reusuable Ties and Multi-Lok. Ties 0.1/0.05
DAS250 Pistol Grip Tensioning Tool: For installing Multi-Lok. , Ball Lock, & Roller Bar Lock SS Ties 1.0/0.45
www.tnb.caC25

Fastening Products
Pre-assembled for single or double wrapping!
Cat. No.
Max. Dia.
Once Around
(in./mm)
Max. Dia.
Twice Around
(in./mm)
Total Length
(in./mm)
Tensile Strength
Single Wrap
(lb./N)
Band Width
(in./mm)
Band
Thickness
(in./mm)
Weight
(lb./kg) Std. Pkg.
Heavy-Duty Free-End Stainless Steel Clamps — Type 201
SSH10-250 2/50 – 10/25
450/2002 0.25/6.35 0.02/0.51
2.2/1.00
100
SSH16-250 3.5/88 1.5/38 16/40 3.1/1.41
SSH18-500 4/101 2/50 18/45 1,400/6228 0.5/12.70 0.03/0.76 10.5/4.76
SSH21-625 5/127 2.5/63 21/53 1,700/7562 0.63/15.88 0.03/0.76 15.1/6.85
SSH31-500 8/203 4/101 31/78 1,400/6228 0.5/12.70 0.03/0.76 4.7/2.13 25
SSH34-250 9/228 4.5/114 34/86 450/2002 0.25/6.35 0.02/0.51 5.6/2.54 100
SSH37-750 10/254 5/127 37/93 2,000/8896 0.75/19.05
0.03/0.76
7.6/3.45
25
SSH44-375 12/304 6/152 44/112 900/4003 0.38/9.53 3.6/1.69
SSH50-750 14/355 7/177 50/127 2,000/8896 0.75/19.05 9.7/4.40
SSH56-625 16/406 8/203 56/142 1,700/7562 0.63/15.88 9.0/4.08
SSH62-750 18/457 9/228 62/157 2,000/8896 0.75/19.05 11.6/5.26
SSH69-625 20/508 10/254 69/175 1,700/7562 0.63/15.88 10.7/4.86
Stainless Steel Cable Ties and Accessories
SSH – Heavy-Duty Clamp
. Double-wrapped clamps provide extra strength
. Available in various lengths, widths, and thicknesses
Fastening Products
Pre-assembled for single or double wrapping!
Cat. No.
Max. Dia.
Once Around
(in./mm)
Max. Dia.
Twice Around
(in./mm)
Total Length
(in./mm)
Tensile Strength
Single Wrap
(lb./N)
Band Width
(in./mm)
Band
Thickness
(in./mm)
Weight
(lb./kg) Std. Pkg.
Heavy-Duty Free-End Stainless Steel Clamps — Type 201
SSH10-250 2/50 – 10/25
450/2002 0.25/6.35 0.02/0.51
2.2/1.00
100
SSH16-250 3.5/88 1.5/38 16/40 3.1/1.41
SSH18-500 4/101 2/50 18/45 1,400/6228 0.5/12.70 0.03/0.76 10.5/4.76
SSH21-625 5/127 2.5/63 21/53 1,700/7562 0.63/15.88 0.03/0.76 15.1/6.85
SSH31-500 8/203 4/101 31/78 1,400/6228 0.5/12.70 0.03/0.76 4.7/2.13 25
SSH34-250 9/228 4.5/114 34/86 450/2002 0.25/6.35 0.02/0.51 5.6/2.54 100
SSH37-750 10/254 5/127 37/93 2,000/8896 0.75/19.05
0.03/0.76
7.6/3.45
25
SSH44-375 12/304 6/152 44/112 900/4003 0.38/9.53 3.6/1.69
SSH50-750 14/355 7/177 50/127 2,000/8896 0.75/19.05 9.7/4.40
SSH56-625 16/406 8/203 56/142 1,700/7562 0.63/15.88 9.0/4.08
SSH62-750 18/457 9/228 62/157 2,000/8896 0.75/19.05 11.6/5.26
SSH69-625 20/508 10/254 69/175 1,700/7562 0.63/15.88 10.7/4.86
Stainless Steel Cable Ties and Accessories
SSH – Heavy-Duty Clamp
. Double-wrapped clamps provide extra strength
. Available in various lengths, widths, and thicknesses
Type 201 Stainless Steel
Other Free-End Clamp sizes and metals are available on special order.

Apply tension, cut and secure with confidence!

WTJ020 WTC075

Lightweight pocket-sized toll to install 1/4 in. and Designed to install 1/4 in. to 5/8 in. wide Free-End
3/8 in. wide Free-End Clamps. This tool also applies Clamps. The lightweight, rachet-action tool tension
tension and has a built-in cutter. cuts and secures the buckle tab.

WTC001

A drop-forged tool with tensioning capability
to do all 1/4 in. to 3/4 in. Free-End Clamp
sizes.

Cat. No. Description Weight (lb./kg) Std. Pkg.
Installation Tools
WTJ020 Compact Free End Stainless Steel Cable Tie Installion Tool for 1/4 in. to 3/8 in. sizes 1.1/0.50
1WTC075 Pistol Grip Free End Stainless Steel Cable Tie Installation Tool for 1/4 in. to 5/8 in. sizes 2.6/1.18
WTC001 Free End Stainless Steel Cable Tie Installation Tool for all sizes 4.4/2.00
www.tnb.caC26

Fastening Products
Cat. No. Width
(in./mm)
Length
(in./mm)
Thickness
(in./mm)
Max. Dia.
Single Wrap
(in./mm)
Max. Dia.
Double Wrap
(in./mm)
Specifications for Stainless Steel Ties
SS7-180 –
0.18/4.50
6.5/165
0.02/0.51
1.7/43 (single
wrap
only)
SS10-180 – 10/254 2.8/71
SS16-180 – 16/406 4.7/119
SS23-180 – 22.5/572 6/152 –
SS29-180 – 29.0/737 8/203 –
SS10-250 –
0.25/6.35
10/254 2.1/153
(single
wrap
only)
SS17-250 – 16.5/419 4.3/109
SS23-250 – 22.5/572 6.5/165
SS29-250 – 29/737 8.5/215
SS35-250 – 35/889 10.5/265
SSR6-250C –
0.25/6.35
6/152 1.5/38 N/A
SSR9-250C – 9/229 2.5/63 1.1/28
SSR12-250C – 12/305 3.4/86 1.5/38
SSR18-250C – 18/457 5.4/137 2.5/64
SSR24-250C – 24/610 7.3/185 3.5/89
SSR6-375C –
0.38/9.53
6/152 1.5/38 N/A
SSR9-375C – 9/229 2.5/63 1.1/28
SSR12-375C – 12/305 3.4/86 1.5/38
SSR18-375C – 18/457 5.4/137 2.5/64
SSR24-375C – 24/610 7.3/185 3.5/89
SSR30-375C – 30/762 9.1/231 4.4/112
SSR36-375C – 36/914 11.0/280 5.3/135
Uncoated Nylon 11 Coated
TYS6-280 TYS6-280C
0.28/7.00
6/152
0.01/0.25
1.9/48
(single
wrap
only)
TYS9-280 TYS9-280C 9/229 2.8/71
TYS12-280 TYS12-280C 12/305 3.8/96
TYS18-280 TYS18-280C 18/457 5.7/144
TYS24-280 TYS24-280C 24/610 7.6/193
TYS6-470 TYS6-470C
0.47/12.00
6/152 1.9/48
TYS9-470 TYS9-470C 9/229 2.8/71
TYS12-470 TYS12-470C 12/305 3.8/96
TYS18-470 TYS18-470C 18/457 5.7/144
TYS24-470 TYS24-470C 24/610 7.6/193
SSH10-250 –
0.25/6.35
10/250
0.02/0.51
2.0/50 N/A
SSH16-250 – 16/400 3.5/88 1.5/38
SSH19-250 – 19/480 5.0/127 2.5/64
SSH27-250 – 27/680 70/177 3.5/89
SSH34-250 – 34/860 9.0/228 4.5/114
SSH16-375 –
0.38/9.53
16/400
0.03/0.76
3.5/88 1.5/38
SSH44-375 – 44/1,120 12.0/304 6.0/152
SSH18-500 –
0.5/12.70
18/460 4.0/101 2.0/5.0
SSH31-500 – 31/780 8.0/203 4.0/101
SSH21-625 –
0.63/15.88
21/530 5.0/127 2.5/64
SSH56-625 – 56/1,420 16.0/406 8.0/203
SSH69-625 – 69/1,750 20.0/508 10.0/254
SSH24-750 –
0.75/19.05
24/600 6.0/152 3.0/76
SSH37-750 – 37/940 10.0/254 5.0/127
SSH50-750 – 50/1,270 14.0/355 7.0/177
SSH62-750 – 62/1,570 18.0457 9.0/228
Stainless Steel Cable Ties and Accessories
Specifications
Fastening Products
Cat. No. Width
(in./mm)
Length
(in./mm)
Thickness
(in./mm)
Max. Dia.
Single Wrap
(in./mm)
Max. Dia.
Double Wrap
(in./mm)
Specifications for Stainless Steel Ties
SS7-180 –
0.18/4.50
6.5/165
0.02/0.51
1.7/43 (single
wrap
only)
SS10-180 – 10/254 2.8/71
SS16-180 – 16/406 4.7/119
SS23-180 – 22.5/572 6/152 –
SS29-180 – 29.0/737 8/203 –
SS10-250 –
0.25/6.35
10/254 2.1/153
(single
wrap
only)
SS17-250 – 16.5/419 4.3/109
SS23-250 – 22.5/572 6.5/165
SS29-250 – 29/737 8.5/215
SS35-250 – 35/889 10.5/265
SSR6-250C –
0.25/6.35
6/152 1.5/38 N/A
SSR9-250C – 9/229 2.5/63 1.1/28
SSR12-250C – 12/305 3.4/86 1.5/38
SSR18-250C – 18/457 5.4/137 2.5/64
SSR24-250C – 24/610 7.3/185 3.5/89
SSR6-375C –
0.38/9.53
6/152 1.5/38 N/A
SSR9-375C – 9/229 2.5/63 1.1/28
SSR12-375C – 12/305 3.4/86 1.5/38
SSR18-375C – 18/457 5.4/137 2.5/64
SSR24-375C – 24/610 7.3/185 3.5/89
SSR30-375C – 30/762 9.1/231 4.4/112
SSR36-375C – 36/914 11.0/280 5.3/135
Uncoated Nylon 11 Coated
TYS6-280 TYS6-280C
0.28/7.00
6/152
0.01/0.25
1.9/48
(single
wrap
only)
TYS9-280 TYS9-280C 9/229 2.8/71
TYS12-280 TYS12-280C 12/305 3.8/96
TYS18-280 TYS18-280C 18/457 5.7/144
TYS24-280 TYS24-280C 24/610 7.6/193
TYS6-470 TYS6-470C
0.47/12.00
6/152 1.9/48
TYS9-470 TYS9-470C 9/229 2.8/71
TYS12-470 TYS12-470C 12/305 3.8/96
TYS18-470 TYS18-470C 18/457 5.7/144
TYS24-470 TYS24-470C 24/610 7.6/193
SSH10-250 –
0.25/6.35
10/250
0.02/0.51
2.0/50 N/A
SSH16-250 – 16/400 3.5/88 1.5/38
SSH19-250 – 19/480 5.0/127 2.5/64
SSH27-250 – 27/680 70/177 3.5/89
SSH34-250 – 34/860 9.0/228 4.5/114
SSH16-375 –
0.38/9.53
16/400
0.03/0.76
3.5/88 1.5/38
SSH44-375 – 44/1,120 12.0/304 6.0/152
SSH18-500 –
0.5/12.70
18/460 4.0/101 2.0/5.0
SSH31-500 – 31/780 8.0/203 4.0/101
SSH21-625 –
0.63/15.88
21/530 5.0/127 2.5/64
SSH56-625 – 56/1,420 16.0/406 8.0/203
SSH69-625 – 69/1,750 20.0/508 10.0/254
SSH24-750 –
0.75/19.05
24/600 6.0/152 3.0/76
SSH37-750 – 37/940 10.0/254 5.0/127
SSH50-750 – 50/1,270 14.0/355 7.0/177
SSH62-750 – 62/1,570 18.0457 9.0/228
Stainless Steel Cable Ties and Accessories
Specifications
Mini Stainless
Steel Cable Ties

Standard Stainless
Steel Cable Ties

Reusable Stainless
Steel Cable Ties

Multi-Lok. Ties — Uncoated

Multi-Lok. Ties — Coated

Free-End Clamps
www.tnb.caC27

Fastening Products
Cat. No. Stainless Steel
Type
Coating or
Finish
Min. Loop
Tensile Strength Single
Wrap (lb./N)
Min. Loop
Tensile Strength Double
Wrap (lb./N)
Application Tools
Used
Max. Dia.
Single Wrap (in./mm)
Specifications for Stainless Steel Ties (cont’d)
SS7-180
304 Dull to Bright
100/445
(single wrap only)
WTA290
. Wire/cable bundling
. I.D. tagging
SS10-180
SS16-180
SS23-180
SS29-180
SS10-250
200/890 WTA250
SS17-250
SS23-250
SS29-250
SS35-250
SSR6-250C
200/300
Nylon 11 Coated
(Uncoated or other
colours available on
special order)
75/334 300/1,334
WTAE200
. Reusable
. Cable bundling
. Oil rigs
. Telecommunications
towers
. Hazardous and corrosive
environments
. Cable trays
SSR9-250C
SSR12-250C
SSR18-250C
SSR24-250C
SSR6-375C
100/445 500/2,224
SSR9-375C WTAE201
SSR12-375C
WTC075
SSR18-375C
SSR24-375C
SSR30-375C
SSR36-375C
Uncoated Nylon 11 Coated (cont’d)
TYS6-280 TYS6-280C
316 Uncoated or Nylon 11
Coated Black 250/1,112 (single wrap only)
WTAE200
. Self-locking
. Cable bundling
. Hazardous and corrosive
environments
TYS9-280 TYS9-280C
TYS12-280 TYS12-280C
TYS18-280 TYS18-280C
TYS24-280 TYS24-280C WTAE201
TYS6-470 TYS6-470C
WTC075
TYS9-470 TYS9-470C
TYS12-470 TYS12-470C
TYS18-470 TYS18-470C
TYS24-470 TYS24-470C
SSH10-250
201 Bright
450/2,002 1,200/5,338 WTJ020
WTC075
WTC001
. Industrial hoses
. Cable bundling
. High strength
SSH16-250
SSH19-250
SSH27-250
SSH34-250
SSH16-375
900/4,003 2,400/10,675SSH44-375
WTC075
WTC001
SSH18-500
1,400/6,227 3,300/14,678SSH31-500
SSH21-625
1,700/7,562 4,000/17,792SSH56-625
SSH69-625
WTC001
SSH24-750
2,000/8,896 5,000/22,240SSH37-750
SSH50-750
SSH62-750
Specifications (cont’d)
Fastening Products
Cat. No. Stainless Steel
Type
Coating or
Finish
Min. Loop
Tensile Strength Single
Wrap (lb./N)
Min. Loop
Tensile Strength Double
Wrap (lb./N)
Application Tools
Used
Max. Dia.
Single Wrap (in./mm)
Specifications for Stainless Steel Ties (cont’d)
SS7-180
304 Dull to Bright
100/445
(single wrap only)
WTA290
. Wire/cable bundling
. I.D. tagging
SS10-180
SS16-180
SS23-180
SS29-180
SS10-250
200/890 WTA250
SS17-250
SS23-250
SS29-250
SS35-250
SSR6-250C
200/300
Nylon 11 Coated
(Uncoated or other
colours available on
special order)
75/334 300/1,334
WTAE200
. Reusable
. Cable bundling
. Oil rigs
. Telecommunications
towers
. Hazardous and corrosive
environments
. Cable trays
SSR9-250C
SSR12-250C
SSR18-250C
SSR24-250C
SSR6-375C
100/445 500/2,224
SSR9-375C WTAE201
SSR12-375C
WTC075
SSR18-375C
SSR24-375C
SSR30-375C
SSR36-375C
Uncoated Nylon 11 Coated (cont’d)
TYS6-280 TYS6-280C
316 Uncoated or Nylon 11
Coated Black 250/1,112 (single wrap only)
WTAE200
. Self-locking
. Cable bundling
. Hazardous and corrosive
environments
TYS9-280 TYS9-280C
TYS12-280 TYS12-280C
TYS18-280 TYS18-280C
TYS24-280 TYS24-280C WTAE201
TYS6-470 TYS6-470C
WTC075
TYS9-470 TYS9-470C
TYS12-470 TYS12-470C
TYS18-470 TYS18-470C
TYS24-470 TYS24-470C
SSH10-250
201 Bright
450/2,002 1,200/5,338 WTJ020
WTC075
WTC001
. Industrial hoses
. Cable bundling
. High strength
SSH16-250
SSH19-250
SSH27-250
SSH34-250
SSH16-375
900/4,003 2,400/10,675SSH44-375
WTC075
WTC001
SSH18-500
1,400/6,227 3,300/14,678SSH31-500
SSH21-625
1,700/7,562 4,000/17,792SSH56-625
SSH69-625
WTC001
SSH24-750
2,000/8,896 5,000/22,240SSH37-750
SSH50-750
SSH62-750
Specifications (cont’d)
Ty-Rap. Stainless Steel Cable Ties have passed a variety of mechanical, environmental, and electrical tests. Other data can be made available upon request. S.S. Series also available in (316) Stainless.

www.tnb.caC28

Fastening Products
Stainless Steel Cable Ties and Accessories
Tools and Accessories
Fastening Products
Stainless Steel Cable Ties and Accessories
Tools and Accessories
Boiler rooms, shipyards, or off-shore oil platforms —
a match for any severe environment!

. Stainless steel strap cable ties have been
designed for high-temperature applications
and for use in areas of harsh, corrosive environments
. Rated at 200-lb. tensile strength
. Smooth edges protect both the cable insulation
Body Width

Max. Wire

Tensile Strength

Cat. No.

Length (in.)

Std. Pkg.

(in.)

Bundle Dia. (in.)

(lb.)

Ty-Rap. Stainless Steel Strap Cable Ties

0.310

10.65

2

200

100

TYS8

0.310

14.65

4

200

50

TYS14

0.310

22.65

6

200

50

TYS22

0.310
28.65
8

200

50

TYS28

and the installer
Note: Use WT3S Tool for tensioning
Cannot be coated with any covering material
Made of 316 stainless steel

A perfect mate with cable ties
for tensioning

1,000-ft. reel to cut your desired length!

WT3S

DAS250
Cat. No. Description Width
(in./mm)
Tensile
Strength
(lb./N)
Std.
Pkg.
Ty-Rap. Stainless Steel Strapping on a Reel
TYS1000 1,000-ft. of strap, 2 reels of 500 ft. each 0.31/7.87 200/889.60 1
Stainless steel ties of virtually any length can be produced from the 1,000-ft. reel in
combination with the matching head.
Note: Use WT3S tool for tensioning and cutoff
Cat. No. Description Std.
Pkg.
Ty-Rap. Stainless Steel Cable Tie Installation Tools
WT3S Installs strapping ties
1
DAS250 Installs Multi-Lok., ball lock, and roller bar lock stainless
steel ties
Lockable heads for stainless steel strapping

Long-lasting anchor hold

Cat. No. Description Std.
Pkg.
Ty-Rap. Stainless Steel Strapping Locking Heads
TYS5200H Heads only for stainless strapping 50
Cat. No. Description Std.
Pkg.
Ty-Rap. Stainless Steel Mounting Base
TCS25 Mounting bases for stainless steel ties 50
www.tnb.caC29

Fastening Products
Identify cable bundles with permanent,
stainless steel imprintable tags
Cat. No. Width
(in./mm)
Length
(in./mm)
Weight
(lb./N) Std. Pkg.
I.D. Tagging System
SSID100 0.75/19.05 2.0/50.80 0.5/2.22
100SSID101 1.50/38.10 2.5/63.50 1.2/5.34
SSID102 0.75/19.05 3.5/88.90 0.8/3.56
Cat. No. Description
Weight
lb. kg
S.S. Tape Embossing System
WTID400 Hand-held tool for embossing S.S. I.D. Tap 2.57 1.17
WTID405 Replacement S.S. tape (21’ long. 1/2” wide) 0.18 0.01
Stainless Steel Cable Ties and Accessories
S.S. Tape Embossing System
Fastening Products
Identify cable bundles with permanent,
stainless steel imprintable tags
Cat. No. Width
(in./mm)
Length
(in./mm)
Weight
(lb./N) Std. Pkg.
I.D. Tagging System
SSID100 0.75/19.05 2.0/50.80 0.5/2.22
100SSID101 1.50/38.10 2.5/63.50 1.2/5.34
SSID102 0.75/19.05 3.5/88.90 0.8/3.56
Cat. No. Description
Weight
lb. kg
S.S. Tape Embossing System
WTID400 Hand-held tool for embossing S.S. I.D. Tap 2.57 1.17
WTID405 Replacement S.S. tape (21’ long. 1/2” wide) 0.18 0.01
Stainless Steel Cable Ties and Accessories
S.S. Tape Embossing System
. Apply Type 304 stainless steel tags
with stainless steel cable ties
. Easy-to-use — slip a tie through
the slots in the tag and fasten with
the installaton tool
. Works with 1.4 in. wide ties
. 0.015 in. Thickness
Packaging Quantity: 100/box
Note: Customized pre-embossed tags are available.
Please consult Regional Sales Office for details.
Add suffix (316) for 316 Stainless Steel.

No second guessing — quickly and
accurately position I.D. tags!

. Imprint Thomas & Betts stainless
steel I.D. tags
. Includes special tag holder for
secure positioning and a 3/32 in.
character imprinting wheel,
standard (no substitutions
allowed)
Cat. No. Description Weight
(lb./N)
I.D. Tagging System
WTID200 I.D. Tag Imprinter 29.5/131.2
WTID290 3/32 in. Character Imprinting Wheel

WTID281 1/8 in. Character Imprinting Wheel
WTID283 3/16 in. Character Imprinting Wheel
WTID204 (Kit) WTID200 and WTID283
Packaging Quantity: 1/box
www.tnb.caC30

Fastening Products
Stainless Steel Cable Ties and Accessories
LS - Heavy-Duty Ball-Lock Mechanism Engineered to withstand the harshest
environments!
Stainless Steel Cable Ties and Accessories
LS - Heavy-Duty Ball-Lock Mechanism Engineered to withstand the harshest
environments!
YLS-7.9-200BC

LS-4.6-200A

These one-piece, self-locking stainless steel cable ties offer quick and easy
installation — no crimping or folding required — and a strong, reliable lock.
Choose among a variety of sizes and materials to meet all of your wire and cable
bundling needs, even in the most extreme environments.

Safer, Stronger, Faster



Tooling
LS-4.6-200A LS-4.6-200B YLS-4.6-200BC 7.9/201 2.0/51
200/444.8
50 DAS-250, CT6, CT3
LS-4.6-360A LS-4.6-360B YLS-4.6-360BC 14.2/360 4.0/102
LS-4.6-520A LS-4.6-520B YLS-4.6-520BC 20.5/520 0.18/4.6 6.0/152
LS-4.6-680A LS-4.6-680B YLS-4.6-680BC 26.7/679 8.0/203
LS-4.6-840A LS-4.6-840B – 33.0/838 10.0/254
LS-7.9-200A LS-7.9-200B YLS-7.9-200BC 7.9/201 2.0/51
450/1112.0
LS-7.9-360A LS-7.9-360B YLS-7.9-360BC 14.2/360 4.0/102
LS-7.9-520A LS-7.9-520B YLS-7.9-520BC 20.5/520 6.0/152
LS-7.9-680A LS-7.9-680B YLS-7.9-680BC 26.7/679
0.31/7.9
8.0/203
LS-7.9-840A LS-7.9-840B – 33.0/838 10.0/254
LS-7.9-1010A LS-7.9-1010B – 41.3/1050 12.5/318

Fastening Products
Cat. No. Width

Specifications for Stainless Steel Ties
SS7-180
SS10-180 – 10/254 2.8/71
SS16-180 – 16/406 4.7/119
SS23-180 – 22.5/572 6/152 –
SS29-180 – 29.0/737 8/203 –
SS10-250 –
0.25/6.35
10/254 2.1/153
(single
wrap
only)
SS17-250 – 16.5/419 4.3/109
SS23-250 – 22.5/572 6.5/165
SS29-250 – 29/737 8.5/215
SS35-250 – 35/889 10.5/265
SSR6-250C –
0.25/6.35
6/152 1.5/38 N/A
SSR9-250C – 9/229 2.5/63 1.1/28
SSR12-250C – 12/305 3.4/86 1.5/38
SSR18-250C – 18/457 5.4/137 2.5/64
SSR24-250C – 24/610 7.3/185 3.5/89
SSR6-375C –
0.38/9.53
6/152 1.5/38 N/A
SSR9-375C – 9/229 2.5/63 1.1/28
SSR12-375C – 12/305 3.4/86 1.5/38
SSR18-375C – 18/457 5.4/137 2.5/64
SSR24-375C – 24/610 7.3/185 3.5/89
SSR30-375C – 30/762 9.1/231 4.4/112
SSR36-375C – 36/914 11.0/280 5.3/135
Uncoated Nylon 11 Coated
TYS6-280 TYS6-280C
0.28/7.00
6/152
0.01/0.25
1.9/48
(single
wrap
only)
TYS9-280 TYS9-280C 9/229 2.8/71
TYS12-280 TYS12-280C 12/305 3.8/96
TYS18-280 TYS18-280C 18/457 5.7/144
TYS24-280 TYS24-280C 24/610 7.6/193
TYS6-470 TYS6-470C
0.47/12.00
6/152 1.9/48
TYS9-470 TYS9-470C 9/229 2.8/71
TYS12-470 TYS12-470C 12/305 3.8/96
TYS18-470 TYS18-470C 18/457 5.7/144
TYS24-470 TYS24-470C 24/610 7.6/193
SSH10-250 –
0.25/6.35
10/250
0.02/0.51
2.0/50 N/A
SSH16-250 – 16/400 3.5/88 1.5/38
SSH19-250 – 19/480 5.0/127 2.5/64
SSH27-250 – 27/680 70/177 3.5/89
SSH34-250 – 34/860 9.0/228 4.5/114
SSH16-375 –
0.38/9.53
16/400
0.03/0.76
3.5/88 1.5/38
SSH44-375 – 44/1,120 12.0/304 6.0/152
SSH18-500 –
0.5/12.70
18/460 4.0/101 2.0/5.0
SSH31-500 – 31/780 8.0/203 4.0/101
SSH21-625 –
0.63/15.88
21/530 5.0/127 2.5/64
SSH56-625 – 56/1,420 16.0/406 8.0/203
SSH69-625 – 69/1,750 20.0/508 10.0/254
SSH24-750 –
0.75/19.05
24/600 6.0/152 3.0/76
SSH37-750 – 37/940 10.0/254 5.0/127
SSH50-750 – 50/1,270 14.0/355 7.0/177
SSH62-750 – 62/1,570 18.0457 9.0/228
Stainless Steel Cable Ties and Accessories
Specifications
Fastening Products
Cat. No. Width
(in./mm)
Length
(in./mm)
Thickness
(in./mm)
Max. Dia.
Single Wrap
(in./mm)
Max. Dia.
Double Wrap
(in./mm)
Specifications for Stainless Steel Ties
SS7-180 –
0.18/4.50
6.5/165
0.02/0.51
1.7/43 (single
wrap
only)
SS10-180 – 10/254 2.8/71
SS16-180 – 16/406 4.7/119
SS23-180 – 22.5/572 6/152 –
SS29-180 – 29.0/737 8/203 –
SS10-250 –
0.25/6.35
10/254 2.1/153
(single
wrap
only)
SS17-250 – 16.5/419 4.3/109
SS23-250 – 22.5/572 6.5/165
SS29-250 – 29/737 8.5/215
SS35-250 – 35/889 10.5/265
SSR6-250C –
0.25/6.35
6/152 1.5/38 N/A
SSR9-250C – 9/229 2.5/63 1.1/28
SSR12-250C – 12/305 3.4/86 1.5/38
SSR18-250C – 18/457 5.4/137 2.5/64
SSR24-250C – 24/610 7.3/185 3.5/89
SSR6-375C –
0.38/9.53
6/152 1.5/38 N/A
SSR9-375C – 9/229 2.5/63 1.1/28
SSR12-375C – 12/305 3.4/86 1.5/38
SSR18-375C – 18/457 5.4/137 2.5/64
SSR24-375C – 24/610 7.3/185 3.5/89
SSR30-375C – 30/762 9.1/231 4.4/112
SSR36-375C – 36/914 11.0/280 5.3/135
Uncoated Nylon 11 Coated
TYS6-280 TYS6-280C
0.28/7.00
6/152
0.01/0.25
1.9/48
(single
wrap
only)
TYS9-280 TYS9-280C 9/229 2.8/71
TYS12-280 TYS12-280C 12/305 3.8/96
TYS18-280 TYS18-280C 18/457 5.7/144
TYS24-280 TYS24-280C 24/610 7.6/193
TYS6-470 TYS6-470C
0.47/12.00
6/152 1.9/48
TYS9-470 TYS9-470C 9/229 2.8/71
TYS12-470 TYS12-470C 12/305 3.8/96
TYS18-470 TYS18-470C 18/457 5.7/144
TYS24-470 TYS24-470C 24/610 7.6/193
SSH10-250 –
0.25/6.35
10/250
0.02/0.51
2.0/50 N/A
SSH16-250 – 16/400 3.5/88 1.5/38
SSH19-250 – 19/480 5.0/127 2.5/64
SSH27-250 – 27/680 70/177 3.5/89
SSH34-250 – 34/860 9.0/228 4.5/114
SSH16-375 –
0.38/9.53
16/400
0.03/0.76
3.5/88 1.5/38
SSH44-375 – 44/1,120 12.0/304 6.0/152
SSH18-500 –
0.5/12.70
18/460 4.0/101 2.0/5.0
SSH31-500 – 31/780 8.0/203 4.0/101
SSH21-625 –
0.63/15.88
21/530 5.0/127 2.5/64
SSH56-625 – 56/1,420 16.0/406 8.0/203
SSH69-625 – 69/1,750 20.0/508 10.0/254
SSH24-750 –
0.75/19.05
24/600 6.0/152 3.0/76
SSH37-750 – 37/940 10.0/254 5.0/127
SSH50-750 – 50/1,270 14.0/355 7.0/177
SSH62-750 – 62/1,570 18.0457 9.0/228
Stainless Steel Cable Ties and Accessories
Specifications
Mini Stainless
Steel Cable Ties

Standard Stainless
Steel Cable Ties

Reusable Stainless
Steel Cable Ties

Multi-Lok. Ties — Uncoated

Multi-Lok. Ties — Coated

Free-End Clamps
www.tnb.caC27

Fastening Products
Cat. No. Stainless Steel
Type
Coating or
Finish
Min. Loop
Tensile Strength Single
Wrap (lb./N)
Min. Loop
Tensile Strength Double
Wrap (lb./N)
Application Tools
Used
Max. Dia.
Single Wrap (in./mm)
Specifications for Stainless Steel Ties (cont’d)
SS7-180
304 Dull to Bright
100/445
(single wrap only)
WTA290
. Wire/cable bundling
. I.D. tagging
SS10-180
SS16-180
SS23-180
SS29-180
SS10-250
200/890 WTA250
SS17-250
SS23-250
SS29-250
SS35-250
SSR6-250C
200/300
Nylon 11 Coated
(Uncoated or other
colours available on
special order)
75/334 300/1,334
WTAE200
. Reusable
. Cable bundling
. Oil rigs
. Telecommunications
towers
. Hazardous and corrosive
environments
. Cable trays
SSR9-250C
SSR12-250C
SSR18-250C
SSR24-250C
SSR6-375C
100/445 500/2,224
SSR9-375C WTAE201
SSR12-375C
WTC075
SSR18-375C
SSR24-375C
SSR30-375C
SSR36-375C
Uncoated Nylon 11 Coated (cont’d)
TYS6-280 TYS6-280C
316 Uncoated or Nylon 11
Coated Black 250/1,112 (single wrap only)
WTAE200
. Self-locking
. Cable bundling
. Hazardous and corrosive
environments
TYS9-280 TYS9-280C
TYS12-280 TYS12-280C
TYS18-280 TYS18-280C
TYS24-280 TYS24-280C WTAE201
TYS6-470 TYS6-470C
WTC075
TYS9-470 TYS9-470C
TYS12-470 TYS12-470C
TYS18-470 TYS18-470C
TYS24-470 TYS24-470C
SSH10-250
201 Bright
450/2,002 1,200/5,338 WTJ020
WTC075
WTC001
. Industrial hoses
. Cable bundling
. High strength
SSH16-250
SSH19-250
SSH27-250
SSH34-250
SSH16-375
900/4,003 2,400/10,675SSH44-375
WTC075
WTC001
SSH18-500
1,400/6,227 3,300/14,678SSH31-500
SSH21-625
1,700/7,562 4,000/17,792SSH56-625
SSH69-625
WTC001
SSH24-750
2,000/8,896 5,000/22,240SSH37-750
SSH50-750
SSH62-750
Specifications (cont’d)
Fastening Products
Cat. No. Stainless Steel
Type
Coating or
Finish
Min. Loop
Tensile Strength Single
Wrap (lb./N)
Min. Loop
Tensile Strength Double
Wrap (lb./N)
Application Tools
Used
Max. Dia.
Single Wrap (in./mm)
Specifications for Stainless Steel Ties (cont’d)
SS7-180
304 Dull to Bright
100/445
(single wrap only)
WTA290
. Wire/cable bundling
. I.D. tagging
SS10-180
SS16-180
SS23-180
SS29-180
SS10-250
200/890 WTA250
SS17-250
SS23-250
SS29-250
SS35-250
SSR6-250C
200/300
Nylon 11 Coated
(Uncoated or other
colours available on
special order)
75/334 300/1,334
WTAE200
. Reusable
. Cable bundling
. Oil rigs
. Telecommunications
towers
. Hazardous and corrosive
environments
. Cable trays
SSR9-250C
SSR12-250C
SSR18-250C
SSR24-250C
SSR6-375C
100/445 500/2,224
SSR9-375C WTAE201
SSR12-375C
WTC075
SSR18-375C
SSR24-375C
SSR30-375C
SSR36-375C
Uncoated Nylon 11 Coated (cont’d)
TYS6-280 TYS6-280C
316 Uncoated or Nylon 11
Coated Black 250/1,112 (single wrap only)
WTAE200
. Self-locking
. Cable bundling
. Hazardous and corrosive
environments
TYS9-280 TYS9-280C
TYS12-280 TYS12-280C
TYS18-280 TYS18-280C
TYS24-280 TYS24-280C WTAE201
TYS6-470 TYS6-470C
WTC075
TYS9-470 TYS9-470C
TYS12-470 TYS12-470C
TYS18-470 TYS18-470C
TYS24-470 TYS24-470C
SSH10-250
201 Bright
450/2,002 1,200/5,338 WTJ020
WTC075
WTC001
. Industrial hoses
. Cable bundling
. High strength
SSH16-250
SSH19-250
SSH27-250
SSH34-250
SSH16-375
900/4,003 2,400/10,675SSH44-375
WTC075
WTC001
SSH18-500
1,400/6,227 3,300/14,678SSH31-500
SSH21-625
1,700/7,562 4,000/17,792SSH56-625
SSH69-625
WTC001
SSH24-750
2,000/8,896 5,000/22,240SSH37-750
SSH50-750
SSH62-750
Specifications (cont’d)
Ty-Rap. Stainless Steel Cable Ties have passed a variety of mechanical, environmental, and electrical tests. Other data can be made available upon request. S.S. Series also available in (316) Stainless.









美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology


地址:北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编:100102
电话:010-8428 2935, 8428 9077, 8428 3983
手机:139 101 22694
Http://www.cnmec.biz
E-mail:sales@cnmec.biz
传真:010-8428 8762


京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
