Ty-Rap® 涤纶涂层不锈钢球锁电缆扎带

产品介绍

安全且易于安装！专为持续暴露于盐雾、日晒、汽油及化学品的特殊环境而设计。 不锈钢具有优异的强度、耐久性和耐腐蚀性。但是对于最恶劣的环境，比如海上钻井平台、 炼油、造船和化工厂等，不锈钢仍需要一层保护层。这也就是Ty-Rap不锈钢电缆扎带增加保护涂层的根本原因。与标准型Ty-Rap 不锈钢球锁扎带一样，这些新型扎带具有易于安装、低剖面、安全的球锁机制等优点。但其表面覆有坚固的涤纶涂层，防止盐水、湿气、化学品和紫外线辐射的损害。即便在最恶劣的环境下，也可放心使用这些Ty-Rap 坚固扎带。

Ty-Rap® 涤纶涂层不锈钢球锁电缆扎带
PDF技术资料

产品特性

- 316（航海级）不锈钢结构保证了优异的强度和耐久性。
- 完整的涤纶涂层耐腐蚀、紫外线辐射、极端温度、化学物、冲击、磨损，防止裂纹。
- 与传统槽钢相比，不锈钢扎带无尖锐边缘。
- 低烟、无卤涤纶涂层进一步保证了人员安全
- 尖尾包装快速简单安装
- 楔形头部内的低剖面球将扎带安全锁入位置
- 广泛的操作温度范围：40° F 到 302° F（-40° C 到150°C）
- 认证/ 标准：Lloyds、DNV、GL、CE 和RoHS产品

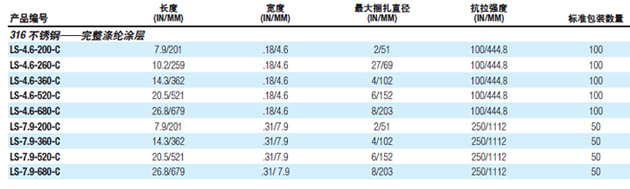

THOMAS & BETTS LS-4.6-200-C CBL TI 316 SST 100LB 8 BALL LK COAT
Thomas & Betts LS-4.6-200-C
316 Grade Stainless Steel — Fully Polyester Coated
LS-4.6-200-C 7.9/201 .18/4.6 2/51 100/444.8 100
ls-4.6-260-c 10.2/259 .18/4.6 27/69 100/444.8 100
LS-4.6-360-C 14.3/362 .18/4.6 4/102 100/444.8 100
LS-4.6-520-C 20.5/521 .18/4.6 6/152 100/444.8 100
LS-4.6-680-C 26.8/679 .18/4.6 8/203 100/444.8 100
LS-7.9-200-C 7.9/201 .31/7.9 2/51 250/1112 50
LS-7.9-360-C 14.3/362 .31/7.9 4/102 250/1112 50
LS-7.9-520-C 20.5/521 .31/7.9 6/152 250/1112 50
LS-7.9-680-C 26.8/679 .31/ 7.9 8/203 250/1112 50

Ty-Rap High-Performance Stainless Steel Cable Ties

Fastening Systems — Ty-Rap High-Performance Cable Ties, Tools & Accessories Stainless steel offers excellent strength, durability and corrosion-resistance properties. But to stand up to
the harshest environments in the world, such as those found on offshore drilling rigs, petroleum refineries, shipyards and chemical processing plants, even stainless steel needs an added layer of protection. That’s why Ty-Rap has added coated ties to its line of stainless steel cable ties. These new ties offer the same easy-to-install, low-profile, secure ball-lock mechanism as standard Ty-Rap stainless steel ball-lock ties, but they’re fully coated with a layer of rugged polyester to seal out salt, moisture, chemicals and UV radiation. Put these Ty-Rap tough ties to the test against the elements in your harshest applications!
Safe and easy to install! Designed for continuous exposure to salt spray, sunlight, petroleum and chemicals! Ty-Rap Polyester-Coated Stainless Steel Ball-Lock Cable Ties

Stainless Steel Cable Ties

信德迈科技(北京)有限公司 北京朝阳区望京SOHO-T1-C座2115室PO 100102
Tel: 010-8428 2935

Fax: 010-8428 8762 Email:sales@cnmec-biz

www-tnb-com

Stainless Steel Cable Ties
Designed for continuous exposure to salt spray, sunlight, petroleum and chemicals!
Stainless steel offers excellent strength, durability and corrosion-resistance properties- But to stand up to the harshest environments in the world, such as those found on offshore drilling rigs, petroleum refineries, shipyards and chemical processing plants, even stainless steel needs an added layer of protection- That’s why Ty-Rap- has added coated ties to its line of stainless steel cable ties- These new ties offer the same easy-to-install, low-profile, secure ball-lock mechanism as standard Ty-Rap stainless steel ball-lock ties, but they’re fully coated with a layer of rugged polyester to seal out
salt, moisture, chemicals and UV radiation- Put these Ty-Rap- tough ties to the test against the elements in your harshest applications! Ty-Rap- Polyester-Coated Stainless Steel Ball-Lock Cable Ties

- 316 grade (marine-grade) stainless steel construction for strength and durability
- Fully coated with polyester to resist corrosion, UV radiation, temperature extremes, chemicals, impact, abrasion and cracking
- No sharp edges — easier on installer’s hands than bare steel
- Low-smoke, halogen-free polyester coating offers added personnel safety
- Pointed tail enables fast, easy insertion
- Low-profile ball in wedge-shaped head locks tie securely in place
- Wide operating temperature range of -40- F to 302- F (-40- C to 150- C)
- Certifications/Standards: Lloyds

Register, DNV, GL, CE, RoHS
Max- Tensile Max- Tensile
Ty-Rap- Polyester-Coated Stainless Steel Ball-Lock Cable Ties
Cat- Length Width Bundle Dia- Strength Std- Pkg- UPC
Number (in/mm) (in/mm) (in/mm) (lbs/N) Qty- Number

316 Grade Stainless Steel – Fully Polyester Coated
LS-4-6-200-C 7-9/201 -18/4-6 2/51 100/444-8 100 786209-87672
LS-4-6-360-C 14-3/362 -18/4-6 4/102 100/444-8 100 786209-87675
LS-4-6-520-C 20-5/521 -18/4-6 6/152 100/444-8 100 786209-87677
LS-4-6-680-C 26-8/679 -18/4-6 8/203 100/444-8 100 786209-87679
LS-7-9-200-C 7-9/201 -31/7-9 2/51 250/1112 50 786209-87681
LS-7-9-360-C 14-3/362 -31/7-9 4/102 250/1112 50 786209-87683
LS-7-9-520-C 20-5/521 -31/7-9 6/152 250/1112 50 786209-87685
LS-7-9-680-C 26-8/679 -31/ 7-9 8/203 250/1112 50 786209-87687

2
www-tnb-com
United States Canada Technical Services
Tel: 901-252-8000 Tel: 450-347-5318 Tel: 888-862-3289
Fax: 901-252-1354 Fax: 450-347-1976


Stainless Steel Cable Ties
Ball-Lock Ties
-Polyester-coated 316
grade (marine-grade)
stainless steel
-Uncoated 302/304
grade stainless steel
-Uncoated 316 grade
(marine-grade)
stainless steel
Roller-Locking Ties
-Uncoated 302/304 grade stainless steel
-Uncoated 316 grade (marine-grade) stainless steel
Dual-Lock Ties
-Uncoated 304 grade stainless steel
-Also available in uncoated 316 grade stainless steel
Re-Usable Ties
-Nylon 11-coated 200/300 series stainless steel
-Also available in nylon 11-coated 316 grade
stainless steel
Free-End Clamps
-Uncoated 201 grade stainless steel
Multi-Lok Stainless Steel Self-Locking Ties
-Nylon coated 316 grade stainless steel
-Uncoated 316 grade stainless steel
Stainless Steel Strap Ties
-Uncoated 316 grade stainless steel
Engineered T y-Rap - T ough to Withstand the
W orld’ s Harshest Environments!
Now AvailablePolyester-Coated 316Grade Stainless Steel —
Ideal for Offshore DrillingApplications!
Stainless Steel Cable Ties
Ball-Lock Ties
-Polyester-coated 316
grade (marine-grade)
stainless steel
-Uncoated 302/304
grade stainless steel
-Uncoated 316 grade
(marine-grade)
stainless steel
Roller-Locking Ties
-Uncoated 302/304 grade stainless steel
-Uncoated 316 grade (marine-grade) stainless steel
Dual-Lock Ties
-Uncoated 304 grade stainless steel
-Also available in uncoated 316 grade stainless steel
Re-Usable Ties
-Nylon 11-coated 200/300 series stainless steel
-Also available in nylon 11-coated 316 grade
stainless steel
Free-End Clamps
-Uncoated 201 grade stainless steel
Multi-Lok Stainless Steel Self-Locking Ties
-Nylon coated 316 grade stainless steel
-Uncoated 316 grade stainless steel
Stainless Steel Strap Ties
-Uncoated 316 grade stainless steel
Engineered T y-Rap - T ough to Withstand the
W orld’ s Harshest Environments!
Now AvailablePolyester-Coated 316Grade Stainless Steel —
Ideal for Offshore DrillingApplications!

TF4
www-tnb-comTF4
www-tnb-com
Applications
Tough Ties for Rough Environments…
Offshore Drilling Petrochemical Processing

Shipbuilding Washdown Areas

Food and Beverage Processing Pharmaceutical Processing

Stainless Steel Cable Ties
Ty-Rap- Uncoated Stainless Steel Ball-Lock Cable Ties Ty-Rap- Uncoated Stainless Steel Ball-Lock Cable Ties
Max- Tensile

Ideal for high temperatures and harsh environments-

- Available in 302/304 and 316 grade stainless steel construction

- Self-locking with no crimping or folding required for fast, easy installation

- Low-profile head — -20" max-

- -18" width offers 100 lbs- tensile strength

- -31" width offers 250 lbs- tensile strength

- Six standard lengths plus custom lengths available on request

Ty-Rap- Stainless Steel Ball-Lock Cable Ties
Cat- Length Width Bundle Dia- Strength Std- Pkg- UPC
Number (in/mm) (in/mm) (in/mm) (lbs/N) Qty- Number

302/304 Grade Stainless Steel — Uncoated
LS-4-6-200A 7-9/201 -18/4-6 2/51 100/444-8 100 786210-24215
LS-4-6-360A 14-2/360 -18/4-6 4 /102 100/444-8 100 786210-24216
LS-4-6-520A 20-5/520 -18/4-6 6/152 100/444-8 100 786210-24217
LS-4-6-680A 26-7/679 -18/4-6 8/203 100/444-8 100 786210-24218
LS-4-6-840A 33-0/838 -18/4-6 10/254 100/444-8 100 786210-24219
LS-7-9-200A 7-9/201 -31/7-9 2/51 250/1112 50 786210-24220
LS-7-9-360A 14-2/360 -31/7-9 4/102 250/1112 50 786210-24221
LS-7-9-520A 20-5/520 -31/7-9 6/152 250/1112 50 786210-24222
LS-7-9-680A 26-7/679 -31/7-9 8/203 250/1112 50 786210-24223
LS-7-9-840A 33-0/838 -31/7-9 10/254 250/1112 50 786210-24224
LS-7-9-1010A 41-3/1050 -31/7-9 12-5/318 250/1112 50 786210-24225

316 Grade Stainless Steel — Uncoated
LS-4-6-200B 7-9/201 -18/4-6 2/51 100/444-8 100 786210-24227
LS-4-6-360B 14-2/360 -18/4-6 4 /102 100/444-8 100 786210-24228
LS-4-6-520B 20-5/520 -18/4-6 6/152 100/444-8 100 786210-24229
LS-4-6-680B 26-7/679 -18/4-6 8/203 100/444-8 100 786210-24230
LS-4-6-840B 33-0/838 -18/4-6 10/254 100/444-8 100 786210-24231
LS-7-9-200B 7-9/201 -31/7-9 2/51 250/1112 50 786210-24233
LS-7-9-360B 14-2/360 -31/7-9 4/102 250/1112 50 786210-24232
LS-7-9-520B 20-5/520 -31/7-9 6/152 250/1112 50 786210-24234
LS-7-9-680B 26-7/679 -31/7-9 8/203 250/1112 50 786210-24235
LS-7-9-840B 33-0/838 -31/7-9 10/254 250/1112 50 786210-24236
LS-7-9-1010B 41-3/1050 -31/7-9 12-5/318 250/1112 50 786210-24237

Stainless Steel Cable Ties
Ty-Rap- Stainless Steel Roller-Locking Cable Ties
Stainless Steel Cable Ties
Ty-Rap- Stainless Steel Roller-Locking Cable Ties
Spring-tension head ensures snug, secure fit-

- Available in 302/304 and 316 grade stainless steel construction
- Round edges and smooth surfaces for fast, safe hand installation
- -18" width offers 150 lbs- tensile strength
- Five standard lengths plus custom lengths available
How It Works

Insert the tail into the buckle-
The internal locking bar rolls freely
as the tie is tightened-

Once the proper tension is reached,
the tool automatically cuts off the tail-
The bar then wedges into the buckle,
locking it tightly against both the top
and bottom of the band-

Unique Spring-Tension Head Design
provides extra-snug fit where bundle
tightness is critical-

Ty-Rap- Stainless Steel Roller-Locking Cable Ties
Max- Tensile
Cat-
Number
Length
(in/mm)
Width
(in/mm)
Bundle Dia-
(in/mm)
Strength
(lbs/N)
Std- Pkg-
Qty-
UPC
Number
302/304 Grade Stainless Steel
TS-4-6-200A 8-8/222-9 0-18/4-6 2/50-8 150/667-20 100 786210-39374

TS-4-6-360A 15-3/388-0 0-18/4-6 4/101-6 150/667-20 100 786210-39375
TS-4-6-520A 21-3/540-4 0-18/4-6 6/152-4 150/667-20 100 786210-39377

TS-4-6-680A 27-8/705-5 0-18/4-6 8/203-2 150/667-20 100 786210-39379
TS-4-6-840A 33-8/857-9 0-18/4-6 10/254-0 150/667-20 100 786210-39380
316 Grade Stainless Steel

TS-4-6-200B 8-8/222-9 0-18/4-6 2/50-8 150/667-20 100 786210-39381

TS-4-6-360B 15-3/388-0 0-18/4-6 4/101-6 150/667-20 100 786210-39382
TS-4-6-520B 21-3/540-4 0-18/4-6 6/152-4 150/667-20 100 786210-39383

TS-4-6-680B 27-8/705-5 0-18/4-6 8/203-2 150/667-20 100 786210-39384
TS-4-6-840B 33-8/857-9 0-18/4-6 10/254-0 150/667-20 100 786210-39385

www-tnb-com

Stainless Steel Cable Ties
Ty-Rap- Dual-Lock Stainless Steel Cable Ties
Stainless Steel Cable Ties
Ty-Rap- Dual-Lock Stainless Steel Cable Ties
Strong and slip-free with a unique dual lock-

-
304 grade stainless steel construction
-
Two-piece design
-
Fast, easy installation
-
Mini ties (-18" wide) offer 100 lbs- tensile strength
-
Standard ties (-25" wide) offer 200 lbs- tensile strength
-
Also available in 316 grade stainless steel (to order,
add -316 suffix to catalog number)
After wrapping the object to be tied,
insert the free end of the tie through
the buckle and into the tool-

Squeeze the handle of the tool
to create the dual lock and cut off
the tail- The cable tie forms
a low-profile dual lock-

The tail is formed into a fold lock
behind the buckle- The tool forces
a dimple in the band into
a hole in the buckle-

Ty-Rap- Dual-Lock Stainless Steel Cable Ties
Cat- Number
For Bundle
Diameter of
in/mm
Tensile
Strength
lbs/N
Width
in/mm
Length
in/mm
Weight
lbs/kg
Std-
Pkg- Qty-
UPC
Number
Mini Stainless Steel Cable Ties
SS7-180 1/25 100/444-8 -18/4-5 6-5/165 -70/-32 100 786210-91487

SS10-180 2/51 100/444-8 -18/4-5 10-0/254 -90/-41 100 786210-91488
SS16-180 4/102 100/444-8 -18/4-5 16-0/406 1-40/-64 100 786210-91489

SS23-180 6//152 100/444-8 -18/4-5 22-5/572 1-85/-84 100 786210-04153
SS29-180 8/203 100/444-8 -18/4-5 29-0/737 2-35/1-07 100 786210-04152
Standard Stainless Steel Cable Ties

SS10-250 2/51 200/890 -25/6-35 10-0/254 1-10/-50 100 786210-91491

SS17-250 4/101 200/890 -25/6-35 16-5/419 1-80/-82 100 786210-91492
SS23-250 6/152 200/890 -25/6-35 22-5/572 2-50/1-13 100 786210-91493

SS29-250 8/203 200/890 -25/6-35 29-0/737 3-20/1-45 100 786210-91494
SS35-250 10/254 200/890 -25/6-35 35-0/ 889 3-80/1-72 100 786210-10478

304 Stainless Steel
-015" (-38mm) Thickness
NOTE: Other lengths available on special request-
Add suffix -316 for 316 Stainless Steel-

United States

Stainless Steel Cable Ties
Ty-Rap Re-Usable Stainless Steel Cable Ties
Stainless Steel Cable Ties
Ty-Rap Re-Usable Stainless Steel Cable Ties
Ties to use and re-use with quickness and ease!

-
200/300 series stainless steel construction
-
Fully coated in non-toxic, halogen-free low-smoke Nylon 11
for extra corrosion resistance
-
Unique buckle design for easy application and re-use
-
May be double-wrapped for additional tensile strength
-
Also available in 316 grade stainless steel (to order,
add -316 suffix to catalog number)
1 2 3 4 5
Insert cable tie tail Bend cable tie tail up Insert cable tie tail back For increased tensile strength follow steps #4 and #5
through holding tabs
and locking emboss
through holding tabs,
creating as tight a bend
*Patent Pending
as possible Bend cable tie tail up Fold cable tie tail over
holding tabs

Ty-Rap Re-Usable Stainless Steel Cable Ties
Cat-
Number
Tensile
Strength
(lbs/N)
Width
(in/mm)
Length
(in/mm)
Weight
(lbs/kg)
Std- Pkg-
Qty-
UPC
Number
SSR6-250C 75/333-60 -25/6-35 6/152 1-4/-64 100 786210-91496

SSR9-250C 75/333-60 -25/6-35 9/229 1-8/-82 100 786210-91497
SSR12-250C 75/333-60 -25/6-35 12/305 2-1/-95 100 786210-91498

SSR18-250C 75/333-60 -25/6-35 18/457 3-0/1-36 100 786210-91499
SSR24-250C 75/333-60 -25/6-35 24/610 3-7/1-68 100 786210-91513

SSR6-375C 100/444-80 -38/9-53 6/152 1-8/-82 100 786210-91514
SSR9-375C 100/444-80 -38/9-53 9/229 2-0/-91 100 786210-91515

SSR12-375C 100/444-80 -38/9-53 12/305 3-1/1-41 100 786210-91516
SSR18-375C 100/444-80 -38/9-53 18/457 4-4/2-00 100 786210-91517

SSR24-375C 100/444-80 -38/9-53 24/610 6-6/2-99 100 786210-91518
SSR30-375C 100/444-80 -38/9-53 30/762 7-0/3-18 100 786210-91519
SSR36-375C 100/444-80 -38/9-53 36/914 8-3/3-76 100 786210-91523

Material: 200/300 Series Stainless Steel
-015" (-38mm) metal thickness; -045" (1-1mm) coated thickness
NOTE: This product may be double-wrapped for additional tensile strength-

For additional colors and uncoated ties, consult Thomas & Betts Customer Service for pricing and availability-
For 316 Stainless Steel, add suffix -316 after catalog number- Consult Customer Service for availability-

www-tnb-com

Stainless Steel Clamps & Cable Ties
Multi-Lok Stainless Steel Self-Locking Cable Ties
Fire hazards — corrosive environments — temperature
Stainless Steel Clamps & Cable Ties
Multi-Lok Stainless Steel Self-Locking Cable Ties
Fire hazards — corrosive environments — temperature
extremes — for many cable bundling applications, plastic
ties are simply inadequate–or even dangerous-

That’s why we developed stainless steel Multi-Lok Ties- Unaffected by fire, UV or extreme temperatures, corrosion-resistant Multi-Lok Ties provide a safe, strong, worry-free hold-

Quickly and easily applied by hand or with the Thomas & Betts Cable Tie Tensioner or Tensioning hook, Multi-Lok Ties feature a unique, self-locking, multiple-locking system that holds in excess of 200 lbs-

Multi-Lok Ties are manufactured from Type 316 stainless steel and are available either uncoated or coated with halogen-free, non-toxic black Nylon 11- This weather-resistant coating is unaffected by UV sunlight- This adds resistance to corrosion, chemicals, and weathering- Ties are available in two widths and various lengths-

As the free end of the Multi-Lok tie passes through the buckle, three separate teeth (four teeth in the 12mm Multi-Lok) mesh with corresponding slots in the band automatically locking the tie as it is being tensioned- Self-locking Multi-Lok Ties feature an extremely strong, unique multiple locking system-

Type 316 Stainless Steel–Nylon 11 Coated
Cat- Number
Tensile Strength
lbs in
Width
mm in
Length
mm lbs
Weight
kg
UPC
Number
TYS6-280C 250 -276 7 6 150 -66 -30 786210-91533
TYS9-280C 250 -276 7 9 225 -99 -45 786210-91534
TYS12-280C 250 -276 7 12 300 1-32 -60 786210-91535
TYS18-280C 250 -276 7 18 450 1-76 -80 786210-91536
TYS24-280C 250 -276 7 24 610 2-64 1-20 786210-81537
TYS6-470C 250 -472 12 6 150 1-10 -50 786210-91538
TYS9-470C 250 -472 12 9 225 1-65 -75 786210-91539
TYS12-470C 250 -472 12 12 300 2-20 1-00 786210-91540
TYS18-470C 250 -472 12 18 450 2-97 1-35 786210-91541
TYS24-470C 250 -472 12 24 610 4-29 1-95 786210-91542

Packaging Quantity: 100/bag
-010" (-245mm) Thickness

Type 316 Stainless Steel–Uncoated
Cat- Number
Tensile Strength
lbs in
Width
mm in
Length
mm lbs
Weight
kg
UPC
Number
TYS6-280 250 -276 7 6 150 -66 -30 786210-91543
TYS9-280 250 -276 7 9 225 -88 -40 786210-91544
TYS12-280 250 -276 7 12 300 1-21 -55 786210-91545
TYS18-280 250 -276 7 18 450 1-98 -90 786210-91546
TYS24-280 250 -276 7 24 610 2-64 1-20 786210-91547
TYS6-470 250 -472 12 6 150 1-10 -50 786210-91548
TYS9-470 250 -472 12 9 225 1-65 -75 786210-91549
TYS12-470 250 -472 12 12 300 2-20 1-00 786210-91551
TYS18-470 250 -472 12 18 450 3-19 1-45 786210-91553
TYS24-470 250 -472 12 24 610 4-29 1-95 786210-91561
Packaging Quantity: 100/bag
-010" (-245mm) Thickness
United States Canada Technical Services
Tel: 901-252-8000 Tel: 450-347-5318 Tel: 888-862-3289
Fax: 901-252-1354 Fax: 450-347-1976

9
www-tnb-com

Stainless Steel Clamps & Cable Ties
Ty-Rap- Free-End Stainless Steel Clamps
Stainless Steel Clamps & Cable Ties
Ty-Rap- Free-End Stainless Steel Clamps
Pre-assembled for single or double wrapping-

-
201 grade stainless steel construction
-
Double-wrapped clamps provide extra strength
-
Available in various lengths, widths and thicknesses
Ty-Rap- Free-End Stainless Steel Clamps
Cat- Number
Max- Dia-
Once Around
in/mm
Max- Dia
Twice Around
in/mm
Length
in/mm
Tensile Strength
Single Wrap
lbs/N
Band Width
in/mm
Band
Thickness
in/mm
Weight
lbs/kg
Std-
Pkg- Qty-
UPC
Number
SSH10-250 2/50 — 10/25 450/2002 -25/6-35 -02/-51 2-2/1-00 100 786210-91562

SSH16-250 3-5/88 1-5/38 16/40 450/2002 -25/6-35 -02/-51 3-1/1-41 100 786210-91563
SSH16-375 3-5/88 1-5/38 16/40 900/4003 -38/9-53 -03/-63 6-2/2-81 100 786210-91564

SSH18-500 4/101 2/50 18/45 1,400/6228 -5/12-70 -03/-76 10-5/4-76 100 786210-91565
SSH19-250 5/127 2-5/63 19/48 450/2002 -25/6-35 -02/-51 3-5/1-59 100 786210-05647

SSH21-625 5/127 2-5/63 21/53 1,700/7562 -63/15-88 -03/-76 15-1/6-85 100 786210-91567
SSH24-750 6/152 3/76 24/60 2,000/8896 -75/19-05 -03/-76 10-9/4-94 50 786210-91568
SSH27-250 7/177 3-5/88 27/68 450/2002 -25/6-35 -02/-51 4-6/2-09 100 786210-91569
SSH31-500 8/203 4/101 31/78 1,400/6228 -5/12-70 -03/-76 4-7/2-13 25 786210-91571
SSH34-250 9/228 4-5/114 34/86 450/2002 -25/6-35 -02/-51 5-6/2-54 100 786210-91572
SSH37-750 10/254 5/127 37/93 2,000/8896 -75/19-05 -03/-76 7-6/3-45 25 786210-91573
SSH44-375 12/304 6/152 44/112 900/4003 -38/9-53 -03/-76 3-6/1-69 25 786210-91574
SSH50-750 14/355 7/177 50/127 2,000/8896 -75/19-05 -03/-76 9-7/4-40 25 786210-91576
SSH56-625 16/406 8/203 56/142 1,700/7562 -63/15-88 -03/-76 9-0/4-08 25 786210-91578
SSH62-750 18/457 9/228 62/157 2,000/8896 -75/19-05 -03/-76 11-6/5-26 25 786210-91579
SSH69-625 20/508 10/254 69/175 1,700/7562 -63/15-88 -00/-76 10-7/4-86 25 786210-91581
Type 201 Stainless Steel
Other Free-End Clamp sizes and metals are available on special order-

Ty-Rap- Stainless Steel Strap Cable Ties

Boiler rooms, shipyards, or off-shore oil platforms —
a match for any severe environment!

-
Stainless steel strap cable ties have been designed
for high-temperature applications and for use in areas
of harsh, corrosive environments
-
Rated at 200-lb- tensile strength
-
Smooth edges protect both the cable insulation and the installer
Ty-Rap- Stainless Steel Strap Cable Ties
Cat- Number
Body
Width
in/mm
Length
in/mm
Max- Wire
Bundle Dia-
in/mm
Tensile
Strength
lbs/N
Std-
Pkg- Qty-
UPC
Number
TYS8
TYS14
TYS22
TYS28
-31/7-87
-31/7-87
-31/7-87
-31/7-87
10-65/270-51
14-65/372-11
22-65/575-31
28-65/727-71
2/50-80
4/101-60
6/152-40
8/203-20
200/889-60
200/889-60
200/889-60
200/889-60
100
50
50
50
786210-80684
786210-80505
786210-80683
786210-80506

NOTE: Use WT3S Tool for tensioning
Cannot be coated with any covering material
Made of 316 stainless steel

www-tnb-com
United States

Canada

Stainless Steel Strapping, Locking Heads & Base
Stainless Steel Strapping on a Reel
Stainless Steel Strapping, Locking Heads & Base
Stainless Steel Strapping on a Reel
1,000-ft- reel to cut your desired length!

Stainless Steel Strapping on a Reel
Cat- Number Description
Width
in/mm
Strength
lbs/N
Std-
Pkg- qty-
UPC
Number
TYS1000 1,000 ft- of strap, 2 reels of 500 ft- each -31/7-87 200/889-60 1 786210-86952

Stainless steel ties of virtually any length can be produced from the 1,000-ft- reel in combination with the matching head-
NOTE: Use WT3S tool for tensioning

Stainless Steel Strapping Locking Heads

Lockable heads for stainless steel strapping-

Stainless Steel Strapping on a Reel
Std- UPC
Cat- Number Description Pkg- Qty- Number
TYS5200H Heads only for stainless strapping 50 786210-82697

Stainless Steel Mounting Base

Long-lasting anchor hold-

Stainless Steel Mounting Base
Std- UPC
Cat- Number Description Pkg- Qty- Number
TCS25 Mounting base for stainless steel ties 50 786210-81356

United States

Canada

Stainless Steel I-D- Tags
I-D- Tagging System
Weight Std-
Width Length per 100 Pkg- UPC
Cat- Number in/mm in/mm lbs/N Qty- Number
SSID101 1-50/ 2-5/ 1-2/ 100 786210-91525
38-10 63-50 5-34
SSID102 -75/ 3-5/ 0-8/ 100 786210-91532
19-05 88-90 3-56
Packaging Quantity: 100/box
NOTE: Customized pre-embossed tags are available- Please consult Technical
Service for details-
Add suffix (316) for 316 Stainless Steel-
I-D- Tag Imprinter
Weight UPC
Cat- Number Description lbs/N Number
WTID200 I-D- Tag Imprinter 29-5/131-2 786210-91586
WTID290 3-32" Character — 786210-16047
Imprinting Wheel
WTID283 3-16" Character — 786210-16045
Imprinting Wheel
Packaging Quantity: 1/box
Identify cable bundles with permanent,
stainless steel imprintable tags-
- Apply Type 304 stainless steel tags
with stainless steel cable ties
- Easy-to-use — slip a tie through the slots
in the tag and fasten with the installation tool
- Works with 1-4" wide ties
- -015" Thickness
I-D- Tagging System
No second guessing — quickly
and accurately position
I-D- tags!
- Imprint Thomas & Betts
stainless steel I-D- tags
- Includes special tag holder
for secure positioning
and a 3-32" character
imprinting wheel,
standard (no
substitutions
allowed)
I-D- Tag Imprinter
Stainless Steel I-D- Tags
I-D- Tagging System
Weight Std-
Width Length per 100 Pkg- UPC
Cat- Number in/mm in/mm lbs/N Qty- Number
SSID101 1-50/ 2-5/ 1-2/ 100 786210-91525
38-10 63-50 5-34
SSID102 -75/ 3-5/ 0-8/ 100 786210-91532
19-05 88-90 3-56
Packaging Quantity: 100/box
NOTE: Customized pre-embossed tags are available- Please consult Technical
Service for details-
Add suffix (316) for 316 Stainless Steel-
I-D- Tag Imprinter
Weight UPC
Cat- Number Description lbs/N Number
WTID200 I-D- Tag Imprinter 29-5/131-2 786210-91586
WTID290 3-32" Character — 786210-16047
Imprinting Wheel
WTID283 3-16" Character — 786210-16045
Imprinting Wheel
Packaging Quantity: 1/box
Identify cable bundles with permanent,
stainless steel imprintable tags-
- Apply Type 304 stainless steel tags
with stainless steel cable ties
- Easy-to-use — slip a tie through the slots
in the tag and fasten with the installation tool
- Works with 1-4" wide ties
- -015" Thickness
I-D- Tagging System
No second guessing — quickly
and accurately position
I-D- tags!
- Imprint Thomas & Betts
stainless steel I-D- tags
- Includes special tag holder
for secure positioning
and a 3-32" character
imprinting wheel,
standard (no
substitutions
allowed)
I-D- Tag Imprinter
SSID100 -75/ 2-0/ 0-5/ 100 786210-91524
19-05 50-80 2-22

WTID281 1-8" Character — 786210-16046
Imprinting Wheel

WTID204 (Kit) WTID200 — 786210-73992
and WTID 283

Thomas & Betts S-S- I-D- Tag Strips/Carriers

Thomas & Betts S-S- I-D- Tag Strips/Carriers
Cat- Number Description
Length
In/mm
Width
In/mm
Wt- per
100 lbs
Std-
Pkg- Qty-
UPC
Number
ER043 6-Character Carrier 3-64/92-46 -38/9-65 -73 100 786210-09870

ER044 10-Character Carrier 5-14/130-56 -38/9-65 1-25 100 786210-09871
ER045 16-Character Carrier 7-39/187-71 -38/9-65 1-47 100 786210-09872

ER050 Short Strip 4-25/107-95 -38/9-65 -98 100 786210-09873
ER051 Medium Strip 5-75/146-05 -38/9-65 1-33 100 786210-09874

ER052 Long Strip 8-00/203-20 -38/9-65 1-85 100 786210-09875
ER060 I-D- Tag Kit — — — 1 786210-09876

12
www-tnb-com
I-D- Tag Kit contains 50 of each letter, number, symbol, carrier, and strip in a handy carrying case-
United States

Canada

Stainless Steel I-D- Tags
Thomas & Betts Stainless Steel I-D- Tags
Stainless Steel I-D- Tags
Thomas & Betts Stainless Steel I-D- Tags
Letters, numbers, and symbols — create easy-to-use
custom identifications!

-
Slip tags over carriers or strips (below) and attach to your
cable or hose with a variety of Thomas & Betts Stainless
Steel Cable Ties
Thomas & Betts Stainless Steel I-D- Tags
Cat- Number Description
Length
in/mm
Width
in/mm
Wt- per
100
Std-
Pkg- Qty
UPC
Number
ER010 A -45/2-00 -38/1-69 -31 100 786210-09833
ER011 B -45/2-00 -38/1-69 -31 100 786210-09835
ER012 C -45/2-00 -38/1-69 -31 100 786210-09834
ER013 D -45/2-00 -38/1-69 -31 100 786210-09836
ER014 E -45/2-00 -38/1-69 -31 100 786210-09837
ER015 F -45/2-00 -38/1-69 -31 100 786210-09838
ER016 G -45/2-00 -38/1-69 -31 100 786210-09839
ER017 H -45/2-00 -38/1-69 -31 100 786210-09840
ER018 I -45/2-00 -38/1-69 -31 100 786210-09841
ER019 J -45/2-00 -38/1-69 -31 100 786210-09842
ER020 K -45/2-00 -38/1-69 -31 100 786210-09843
ER021 L -45/2-00 -38/1-69 -31 100 786210-09844
ER022 M+W -45/2-00 -38/1-69 -31 100 786210-09845
ER023 N -45/2-00 -38/1-69 -31 100 786210-09846
ER024 O -45/2-00 -38/1-69 -31 100 786210-09847
ER025 P -45/2-00 -38/1-69 -31 100 786210-09848
ER026 Q -45/2-00 -38/1-69 -31 100 786210-09849
ER027 R -45/2-00 -38/1-69 -31 100 786210-09850
ER028 S -45/2-00 -38/1-69 -31 100 786210-09851
ER029 T -45/2-00 -38/1-69 -31 100 786210-09852
ER030 U -45/2-00 -38/1-69 -31 100 786210-09853
ER031 V -45/2-00 -38/1-69 -31 100 786210-09854
ER032 X -45/2-00 -38/1-69 -31 100 786210-09855
ER033 Y -45/2-00 -38/1-69 -31 100 786210-09856
ER034 Z -45/2-00 -38/1-69 -31 100 786210-09857
ER018 1 -45/2-00 -38/1-69 -31 100 786210-09841
ER037 2 -45/2-00 -38/1-69 -31 100 786210-09860
ER038 3 -45/2-00 -38/1-69 -31 100 786210-09861
ER039 4 -45/2-00 -38/1-69 -31 100 786210-09862
ER040 5 -45/2-00 -38/1-69 -31 100 786210-09863
ER041 6 -45/2-00 -38/1-69 -31 100 786210-09864
ER021 7 -45/2-00 -38/1-69 -31 100 786210-09844
ER042 8 -45/2-00 -38/1-69 -31 100 786210-09865
ER041 9 -45/2-00 -38/1-69 -31 100 786210-09864
ER024 0 -45/2-00 -38/1-69 -31 100 786210-09847
ER035 Minus/Hyphen (-) -45/2-00 -38/1-69 -31 100 786210-09858
ER036 Blank ( ) -45/2-00 -38/1-69 -31 100 786210-09859
ER046 Plus (+) -45/2-00 -38/1-69 -31 100 786210-09866
ER047 Earth () -45/2-00 -38/1-69 -31 100 786210-09867
ER048 Sine (~) -45/2-00 -38/1-69 -31 100 786210-09869
ER049 Slash (/) -45/2-00 -38/1-69 -31 100 786210-09868
Character size: -218" Material: -025" 316 stainless steel

Mini Tie Installation Tool

Perfect for mini-sized dual lock stainless steel ties-

- Pocket-sized, lightweight
- Installs mini-size stainless steel ties
Tools
The Right Tools Make Installing Ty-Rap- Stainless Steel Cable Ties a Cinch!
Weight Std- UPC
Cat- Number Description lbs/kg Pkg- Qty- Number

WTA290 Hand tool to apply mini stainless steel cable ties; easy-to-use 1-17/-53 1 786210-10481
tool applies tension, locks tie with the dual lock, and cuts off
band flush with top surface of buckle

Standard Tie Installation Tool

Pocket-sized hand tool for quick and easy dual lock
cable tie installations-

- Lightweight
- Installs standard-size stainless steel ties
Weight Std- UPC
Cat- Number Description lbs/kg Pkg- Qty- Number

WTA250 Hand tool to apply standard stainless steel cable ties; 1-17/-53 1 786210-91584
easy-to-use tool applies tension, locks tie with the dual
lock, and cuts off band flush with top surface of buckle

Tensioning Tools

Quality stainless steel tools for tensioning and installing-

WTAE200
Cable Tie Tensioner

Cat- Number Description lbs/kg Pkg- Qty- Number

WTAE201Tensioning Hook

DAS250
Pistol Grip Tensioning Tool
Weight Std- UPC

WTAE200 Cable Tie Tensioner, For tensioning Reusable Ties and Multi-Lok Ties -6/-27 1 786210-91588
WTAE201 Tensioning Hook, For tensioning Reusable Ties and Multi-Lok Ties -1/-05 1 786210-91589

DAS250 Pistol Grip Tensioning Tool, For installing Multi-Lok, Ball Lock, 1-0/-45 1 786210-35010
& Roller Bar Lock SS Ties

14
www-tnb-com
United States Canada Technical Services
Tel: 901-252-8000 Tel: 450-347-5318 Tel: 888-862-3289
Fax: 901-252-1354 Fax: 450-347-1976


Tools
Installation Tools
Apply tension, cut and secure with confidence!
Tools
Installation Tools
Apply tension, cut and secure with confidence!
WTC001 WTC075 WTJ020
A drop-forged tool with tensioning Designed to install 1-4" to 5-8" wide Lightweight pocket-sized toll to
capability to do all 1-4" to 3-4" Free-End Clamps- The lightweight, install 1-4" and 3-8" wide Free-End
Free-End Clamp sizes- ratchet-action tool tension cuts Clamps- This tool also applies
and secures the buckle tab- tension and has a built-in cutter-

Weight Std- UPC
Cat- Number Description lbs/kg Pkg- Qty- Number

WTJ020 Compact Free End Stainless Steel Cable 1-1/-50 1 786210-91591
Tie Installation Tool for 1-4" to 3-8" sizes

WTC075 Pistol Grip Free End Stainless Steel Cable 2-6/1-18 1 786210-91595
Tie Installation Tool for 1-4" to 5-8" sizes

WTC001 Free End Stainless Steel Cable Tie 4-4/2-00 1 786210-91593
Installation Tool For All Sizes

Ty-Rap- Installation Tool — Deltec & Stainless Steel

Makes tie installation easy!

- Installs stainless steel ties
Tie body Std- UPC
Cat- Number Description Width In-/mm- pkg- qty- Number

WT3S Stainless Steel Installation Tool up to -50/12-70 1 786210-81604

Thomas & Betts通贝扎带北方区
授权代理商：

信德迈科技(北京)有限公司 CNMEC Technology
地址：北京朝阳区望京SOHO-T1-C座2115室
邮编：100102
电话：010 - 8428 2935，8428 9077
手机：13910962635
传真：010 - 8428 8762
Email：sales@cnmec-biz
Http://www.cnmec.biz
