EATON Hansen Gromelle H15000 Poppet Couplings
EATON Hansen HA15000系列快速接头
EATON HANSEN H15000 系列是通用的液压接头。主体尺寸从 1/ 4” 到 1” ，材料为钢。它满足 ISO 7241-1 系列 A 标准。工作压力从 200 到 315bar/2,900 到 4,600psi 。H-15000 Series which is designed for general purpose hydraulic service. Available in sizes from 1/ 4” to 1” , in steel, it meets the ISO 7241-1 Series A standard. Working pressure is from 200 to 315 bar / 2,900 to 4,600 psi. HA 15000系列产品符合ISO 7241-1A的生产标准.HA15000系列具有出众的流量及运行能力.HA15000系列也是一款常规双向液压接头.应用领域包括移动设备,工厂,建筑设备,农业,保养和维修.
EATON Hansen Gromelle H15000 Poppet Couplings
液压快速接头资料下载
技术特性
- 双向关断
- 通过向后拉动活动套筒进行连接
- 球形锁
- 满足ISO7241-1 A系列标准
- 1/2‘’尺寸接头用于插拔形式（双向运动套筒、夹板安装）
- 防尘帽和防尘塞
欧洲标准指南
- 我们的H15000系列快速接头通径均不大于25mm，是按照欧洲压力设备指令97/23 EC条款3.3中的规定设计和制造的。
应用
- 液压线路和设备
- 农业
- 公共事业
- 液压流体
材质
- 主体：镀锌钢， 重铬酸盐
- 套筒：镀锌钢 重 铬酸盐
- 阀：镀锌钢 重 铬酸盐
- 弹簧：钢或不锈钢
- 钢球：不锈钢
- 密封圈：丁晴橡胶
外形轮廓 互换性 |
H15000
ISO 7241-1 A 标准 |
通径 |
5.3-16.9mm |
最大工作压力 |
根据尺寸要求,200-315bar (2900-4565 psi ) |
材料 |
镀锌钢
密封件：丁晴橡胶或氟橡胶 |
技术数据 |
球锁
手动连接
通径1/2有推挽式（防拉断）可选 |
应用 |
液压回路和设备
农业和公共建设工程
液压流体 |

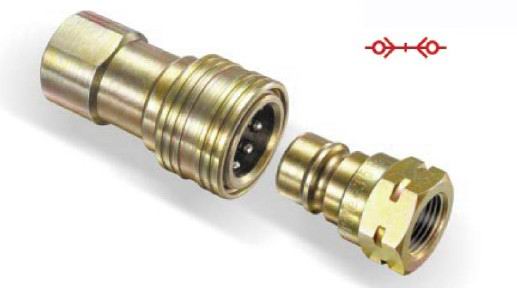

This Two-Way Coupling Series is designed for general purpose hydraulic and fluid transfer and conforms to the dimensional requirements of ISO 7241-1 Series A. This slim profile design features a ball lock; manual connect and disconnect; poppet valving; and zinc plated steel construction. The end connections are NPTF and BSPP and a push-to-connect socket design is available for bulkhead mounting.
|
HA-15000 Series |
|
Product |
Nominal Diameter |
Thread Detail |
Part # |
Notes |
Dust Plugs / Caps |
|
Socket |
1/4" |
1/4-18 NPTF |
HA1521100 |
|
HP1511100 |
|
Socket |
1/4" |
1/4-19 BSPP |
HA1501100 |
|
HP1511100 |
|
Socket |
3/8" |
3/8-18 NPTF |
HA1522100 |
|
HP1512100 |
|
Socket |
3/8" |
3/8-19 BSPP |
HA1502100 |
|
HP1512100 |
|
Socket |
1/2" |
1/2-14 NPTF |
HA1523100 |
|
HP1513100 |
|
Socket |
1/2" |
1/2-14 BSPP |
HA1503100 |
|
HP1513100 |
|
Socket |
1/2" |
1/2-14 NPTF |
HA1523600 |
Push to connect socket |
HP1513100 |
|
Socket |
1/2" |
1/2-14 BSPP |
HA1503600 |
Push to connect socket |
HP1513100 |
|
Socket |
3/4" |
3/4-14 NPTF |
HA1524100 |
|
HP1514200 |
|
Socket |
3/4" |
3/4-14 BSPP |
HA1504100 |
|
HP1514200 |
|
Socket |
1" |
1-11 1/2 NPTF |
HA1525100 |
|
HP1515200 |
|
Socket |
1" |
1-11 BSPP |
HA1505100 |
|
HP1515200 |
|
Plug |
1/4" |
1/4-18 NPTF |
HA1521200 |
|
HP1511200 |
|
Plug |
1/4" |
1/4-19 BSPP |
HA1501200 |
|
HP1511200 |
|
Plug |
3/8" |
3/8-18 NPTF |
HA1522200 |
|
HP1512200 |
|
Plug |
3/8" |
3/8-19 BSPP |
HA1502200 |
|
HP1512200 |
|
Plug |
1/2" |
1/2-14 NPTF |
HA1523200 |
|
HP1513200 |
|
Plug |
1/2" |
1/2-14 BSPP |
HA1503200 |
|
HP1513200 |
|
Plug |
3/4" |
3/4-14 NPTF |
HA1524200 |
|
HP1514200 |
|
Plug |
3/4" |
3/4-14 BSPP |
HA1504200 |
|
HP1514200 |
|
Plug |
1" |
1-11 1/2 NPTF |
HA1525200 |
|
HP1515200 |
|
Plug |
1" |
1-11 BSPP |
HA1505200 |
|
HP1515200 |
|
