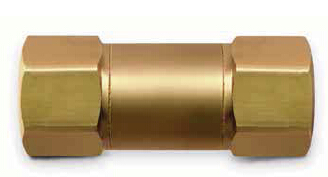

【EATON Hansen FS系列流量传感器】

EATON Hansen FS系列流量传感器在软管破裂时保护人员和财产安全。流量传感器用于和压缩空气一起使用。Eaton’s Flow Sensor Series is designed to protect personnel and property in case of hose failure in compliance with Federal Safety Regulations. Flow Sensors are intended for use with compressed air.

Eaton’s Flow Sensor Series

EATON Hansen FS系列流量传感器产品特性:

1、软管破裂时自动切断气流
2、减少软管突然跳动可能引起的伤害及损害
3、故障修正后自动重新设定
4、压力等级为250psid（全尺寸）
5、低压降,所有流量传感器在80%切断流量时的压降大约2psid
6、可以在任何方向运行
7、紧凑型设计、经济、抗干扰

标准材料：黄铜
主体尺寸：1/4”、3/8”、1/2”、3/4”、1”、1-1/2”

Manufacturer: Hansen Couplings

The Hansen Flow Sensor is designed to protect personnel and property in case of hose failure, which is in compliance with Federal Safety Regulations, and is intended for use with compressed air. The device automatically shuts off air flow to ruptured hose, which reduces the risk of injury or damage from hose whip. The compact design is economical and tamper-resistant and can operate in any orientation. The devise has a 250 psig pressure rating and a low pressure drop, and automatically resets after failure correction

Features:

Automatically shuts off air flow to ruptured hose
Reduces risk of injury or damage from hose whip
Automatically resets after failure correction
250 psig pressure rating (all sizes)
Low pressure drop
Operates in any orientation
Compact design, economical, tamper-resistant

Standard Materials:

Brass body
Acetal valve (1/4" - 1")
Brass valve (1 1/2 ")
Stainless steel valve spring

Hansen流量传感器安装方法实例：

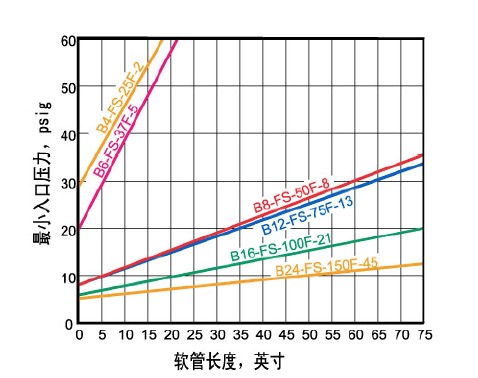

流量数据-下图显示的是各种长度软管的最小入口压力。每一款流量传感器在特定入口压力都有一个断流流量。软管长度和管件尺寸对于单向阀的正常运作至关重要。比如：对于B8-FS-50F-8流量传感器，软管内径必须为 1/2 ''，必须使用1/2''管道螺纹的管件。30英尺长得软管需要至少20psig的入口压力；50英尺长的软管需要至少28psig的入口压力;75英尺长的软管需要至少36psig的入口压力。入口压力低于下表曲线现实的数值将导致在软管故障时的保护无法保证。阀门只在特定入口压力下流量超过限值时切断。

如果软管超过75英尺，美75英尺部分都必须安装一个1/2''或更大的流量传感器，并且必须相应提高入口压力来保证流量传感器的正常运作，以确保安全。

Eaton’s Flow Sensor Series is designed to protect personnel and property in case of hose failure in compliance with Federal Safety Regulations. Flow Sensors are intended for use with compressed air.

B4FS25F2 ,1/4 1/4-18 NPTF 16 18 20 22 23 25 26 27 2.14 0.75 54.36 19.05
B6FS37F5 ,3/8 3/8-18 NPTF 41 46 50 55 59 63 66 69 2.50 0.88 63.50 22.35
B8FS50F8 ,1/2 1/2-14 NPTF 65 73 80 87 93 99 704 109 3.12 1.06 79.25 26.92
B12FS75F13 ,3/4 3/4-14 NPTF 105 118 130 141 152 161 169 177 3.68 1.38 93.47 35.05
B16FS100F21 ,1 1-11 1/2 NPTF 170 191 210 227 245 260 273 286 4.59 1.75 116.59 44.45
B24FS150F45 ,1 1/2 1 1/2-11 1/2 NPTF 365 410 450 489 525 557 586 615 5.86 2.50 148.84 63.50
