Kopex-Ex Ex d e unarmoured compound barrier flameproof cable gland
ATEX/IECEx Metallic cable glands for non-armoured cable offering a compound barrier seal for Ex e and Ex d applications
Kopex-Ex Ex d e unarmoured compound barrier flameproof cable gland
Features
- Compound barrier inner seal with outer compression seal
- Wide cable clamping range
- Good corrosion resistance
- Suitable for use in Zones 1, 2, 21 & 22
- Safe operating temperature range: -60 to +100°C (-76 to +212°F)
- IP66 rated
Material
- Nickel plated brass or Stainless steel 316L
- Chloroprene or Silicone Seals
Suitable for cable types
Applications
- Suitable for Ex d Ex e and Ex tb applications
- Gas zones 1, 2 and dust zones 21, 22
- Control panels and junction boxes
- Light fixture ?& housings
- Power distribution
- Machine building
Product Approvals
- EN/IEC 60079-0, 60079-1, 60079-7, 60079-31
- EN 62444
- RoHS 2011/65/EU
- WEEE 2002/96/EC
- LVD 2014/35/EU
- UL514B
- UL2225 Class and Zone
- DNV Marine Type Approval

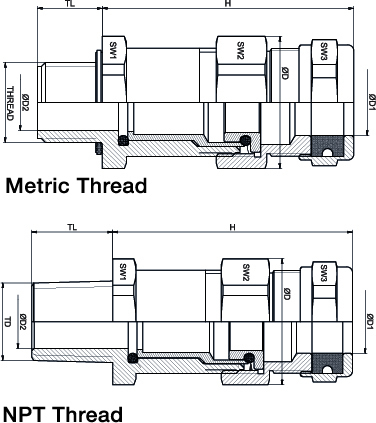

- Metric thread
| Part no |
Thread (metric) |
Cable range (mm) (min-max) |
Nominal dimensions (mm) |
| H |
TL |
?D |
?D1 |
?D2 |
SW1 |
SW2 |
SW3 |
| EXN04MC4 |
M20 |
8.5 - 16.0 |
62.0 |
16.0 |
33.0 |
16.5 |
14.0 |
30.0 |
30.0 |
30.0 |
| EXN05MC4 |
M25 |
16.0 - 21.0 |
62.8 |
16.0 |
37.0 |
21.5 |
18.5 |
34.0 |
34.0 |
34.0 |
| EXN06MC4 |
M32 |
16.0 - 26.0 |
68.5 |
16.0 |
45.0 |
26.5 |
25.6 |
42.0 |
42.0 |
40.0 |
| EXN07MC4 |
M40 |
29.0 - 41.0 |
75.1 |
16.0 |
66.0 |
41.5 |
33.0 |
50.0 |
60.0 |
60.0 |
| EXN08MC4 |
M50 |
33.0 - 48.0 |
82.7 |
16.0 |
77.0 |
48.5 |
43.0 |
60.0 |
70.0 |
75.0 |
| EXN09MC4 |
M63 |
36.0 - 52.0 |
96.0 |
16.0 |
77.0 |
52.5 |
52.0 |
70.0 |
70.0 |
74.0 |
- NPT thread
| Part No |
Thread (NPT) |
Cable range (in) (min-max) |
Nominal dimensions (in) |
| H |
TL |
?D |
?D1 |
?D2 |
SW1 |
SW2 |
SW3 |
| EXN04AC4 |
1/2” |
0.334 - 0.629 |
2.440 |
0.826 |
1.299 |
0.649 |
0.551 |
1.181 |
1.181 |
1.181 |
| EXN05AC4 |
3/4” |
0.629 - 0.826 |
2.472 |
0.826 |
1.456 |
0.846 |
0.728 |
1.338 |
1.338 |
1.338 |
| EXN06AC4 |
1” |
0.629 - 1.023 |
2.696 |
1.023 |
1.771 |
1.043 |
1.007 |
1.653 |
1.653 |
1.574 |
| EXN07AC4 |
1 1/4” |
1.141 - 1.614 |
2.956 |
1.102 |
2.598 |
1.633 |
1.299 |
1.968 |
2.362 |
2.362 |
| EXN08AC4 |
1 1/2” |
1.299 - 1.889 |
3.255 |
1.102 |
3.031 |
1.909 |
1.692 |
2.362 |
2.755 |
2.952 |
| EXN09AC4 |
2” |
1.417 - 2.047 |
3.779 |
1.102 |
3.031 |
2.066 |
2.047 |
2.755 |
2.755 |
2.913 |
|
