Kopex C6 Series系列防爆电缆戈兰
Kopex C6 Series? Ex d e Single compression EMC metric cable gland?

ATEX/IECEx Metallic cable glands for circular shielded or screened non-armoured cable offering a multiple range seal configuration.

Features

  • Multiple layered seals for wide clamping range
  • Good corrosion resistance
  • Multiple screening contacts for increased continuity
  • Safe operating temperature range: -40°C to +80°C (-20°F to?+212°F)
  • IP66 and IP68 (5 bar 30 mins) rating

Material

  • Nickel plated brass or Stainless steel 316L
  • Chloroprene seals

Suitable for cable types

  • Braided Screened
  • Coax
  • Tape shielded?

Applications

  • Suitable for Ex d Ex e and Ex tb applications
  • Gas zones 1, 2 and dust zones 21, 22
  • Control panels and instrumentation
  • Speed controllers and sensors?

Product Approvals

  • EN/IEC 60079-0, 60079-1, 60079-7, 60079-31
  • EN 62444
  • RoHS 2011/65/EU
  • WEEE 2002/96/EC
  • LVD 2014/35/EU
  • DNV Marine Type Approval



–C6 Metric
Bold numbers are metric, Italic numbers are inches.
Note: Product must be installed in accordance with applicable national and local electrical codes.

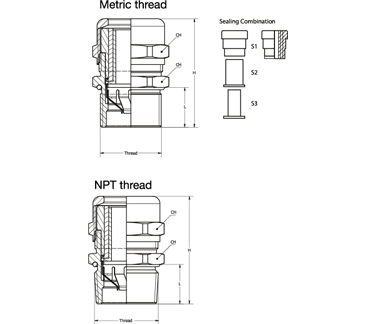

Part no Metric thread Cable range Nominal dimensions (mm/in)
Min. (mm/in) Max. (mm/in) A min B min C min W1 W2
EXN03MSC6 M16x1.5 4.0 8.0 16.0 28.5 22.0 20.0 20.0
0.157 0.315 0.63 1.122 0.866 0.787 0.787
EXN03MMC6 M16x1.5 4.0 8.0 16.0 28.5 24.5 22.0 22.0
0.157 0.315 0.63 1.122 0.965 0.866 0.866
EXN04MMC6 M20x1.5 4.0 12.0 18.0 27.0 24.5 22.0 22.0
0.157 0.472 0.709 1.063 0.965 0.866 0.866
EXN05MMC6 M25x1.5 10.0 18.0 16.0 30.5 31.0 28.0 28.0
0.394 0.709 0.63 1.201 1.22 1.102 1.102
EXN06MMC6 M32x1.5 14.0 24.0 19.0 33.0 39.0 35.0 35.0
0.551 0.945 0.748 1.299 1.535 1.378 1.378
EXN07MMC6 M40x1.5 22.0 32.0 20.0 40.5 49.5 45.0 45.0
0.866 1.26 0.787 1.594 1.949 1.772 1.772
EXN08MMC6 M50x1.5 26.0 35.0 20.0 43.5 61.0 55.0 50.0
1.024 1.378 0.787 1.713 2.402 2.165 1.969
EXN09MMC6 M63x1.5 35.0 45.0 20.0 43.5 70.0 68.0 64.0
1.378 1.772 0.787 1.713 2.756 2.677 2.52





– C6 NPT
Bold numbers are metric, Italic numbers are inches.
Note: Product must be installed in accordance with applicable national and local electrical codes.



Part no NPT
thread		 Cable range Nominal dimensions (mm/in)
Min. (mm/in) Max. (mm/in) A min B min C min W1 W2
EXN03ASC6 3/8” 4.0 8.0 16.0 28.5 22.0 20.0 20.0
0.157 0.315 0.63 1.122 0.866 0.787 0.787
EXN03AMC6 3/8” 4.0 8.0 18.0 28.5 24.5 22.0 22.0
0.157 0.315 0.709 1.122 0.965 0.866 0.866
EXN04AMC6 1/2” 4.0 12.0 18.0 27.0 24.5 22.0 22.0
0.157 0.472 0.709 1.063 0.965 0.866 0.866
EXN05AMC6 3/4” 10.0 18.0 20.0 30.5 31.0 28.0 28.0
0.394 0.709 0.787 1.201 1.22 1.102 1.102
EXN06AMC6 3/4” 14.0 24.0 20.0 33.0 39.0 35.0 35.0
0.551 0.945 0.787 1.299 1.535 1.378 1.378
EXN07AMC6 1” 22.0 32.0 20.0 40.5 49.5 45.0 45.0
0.866 1.26 0.787 1.594 1.949 1.772 1.772
EXN08AMC6 1 1/4” 26.0 35.0 20.0 43.5 61.0 55.0 50.0
1.024 1.378 0.787 1.713 2.402 2.165 1.969
EXN09AMC6 1 1/2” 35.0 45.0 20.0 43.5 70.0 68.0 64.0
1.378 1.772 0.787 1.713 2.756 2.677 2.52
