Kopex EXCG Series Ex e Nylon cable gland
ATEX/IECEx Nylon cable gland for Ex e applications
Features
- Low profile cable glands
- Wide cable clamping range
- Corrosion resistant
- Increased safety “e” and intrinsic safety “i”
- Safe operating temperature range: -40oC to +80°C (-40°F to +176°F)
- IP66 - IP68 rating (5-Bar 30 mins)
- NEMA 4
Material
- Halogen free nylon construction
- Chloroprene seals
Suitable for cable types
Applications
- Suitable for Ex e, Ex tb and Ex ia applications
- Gas zones 1, 2 and dust zones 21, 22
- Control panels and junction boxes
- Light fixture ?& housings
- Machine building
Product approvals
- EN/IEC 60079-0, 60079-7, 60079-31
- EN 62444
- RoHS 2011/65/EU
- WEEE 2002/96/EC
- LVD 2014/35/EU
- DNV Marine Type Approval
+ EXCG Series (Metric)
| Part No. |
Metric Thread Size |
Cable Diameter Range (min-ma ) |

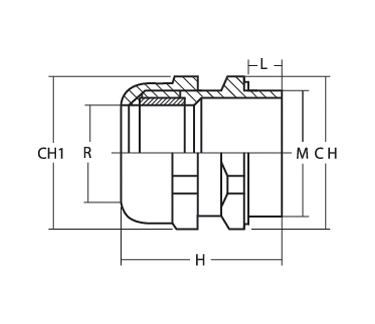

Cable Gland Dimensions (mm) |
| L |
H Min |
CH |
CH1 |
| EXCGM20S |
20 |
6-12 |
10 |
40 |
24 |
24 |
| EXCGM20SL |
20 |
6-12 |
15 |
45 |
24 |
24 |
| EXCGM20M |
20 |
10-14 |
10 |
42 |
27 |
27 |
| EXCGM20ML |
20 |
10-14 |
15 |
50 |
27 |
27 |
| EXCGM25S |
25 |
13-18 |
10 |
47 |
33 |
33 |
| EXCGM25SL |
25 |
13-18 |
15 |
50 |
33 |
33 |
| EXCGM25M |
25 |
11-17 |
8 |
42.5 |
29 |
29 |
| EXCGM32S |
32 |
15-21 |
10 |
50 |
36 |
36 |
| EXCGM32SL |
32 |
18-25 |
15 |
68 |
42 |
42 |
| EXCGM40S |
40 |
19-28 |
10 |
55 |
46 |
46 |
| EXCGM40M |
40 |
22-32 |
18 |
68 |
53 |
53 |
| EXCGM50S |
50 |
30-38 |
18 |
73 |
60 |
60 |
| EXCGM63S |
63 |
34-44 |
18 |
74 |
65 |
65 |
+ EXCG Series (NPT)
| Part No. |
NPT Thread Size (inch) |
Cable Diameter Range (min-ma ) |
Cable Gland Dimensions (mm) |
| L |
H Min |
CH |
CH1 |
| EXCG050S |
1/2” |
6-12 |
15 |
45 |
24 |
24 |
| EXCG050M |
1/2” |
10-14 |
15 |
47 |
27 |
27 |
| EXCG075S |
3/4” |
13-18 |
15 |
50 |
33 |
33 |
| EXCG100S |
1” |
18-25 |
18 |
58 |
42 |
42 |
|
