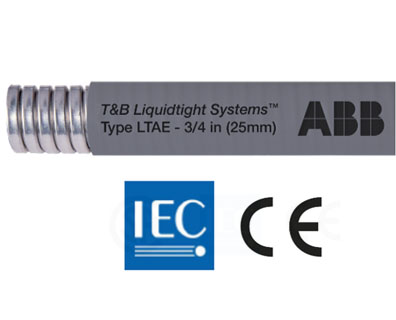

Thomas & Betts Type LTAE – Aluminum, CE Certified
Liquid-tight flexible metallic conduit
Aluminum, CE compliant liquid-tight flexible metallic conduits provide excellent performance in corrosive environments and installations where lightweight wireway is required
Features & benefits:
Designed to meet UL 360 ID/OD dimension requirements
Full compliance to IEC 61386-1, -23 requirements, CE Certified
Trade sizes from 3/8 to 6” (12mm to 155mm)
Coordinated performance with Series 5200AL Fittings
NEMA & IP ingress protection ratings aligned with industrial enclosures
Smooth extruded jackets provide best performance with fittings
Thomas & Betts Type LTAE – Aluminum, CE Certified
Liquid-tight flexible metallic conduit
Applications:
Aluminum liquid-tight flexible metallic conduit for use in corrosive environments
Applications with light weight requirements, 40-50% lighter that typical steel construction
Used extensively in applications where flexibility is necessary for motion, vibration and bending
The inherant sunlight resistance of PVC enables this product to be used in outdoor applications
Liquid-tight applications against water, oils, cutting fluids, mild acids
For use in electrical circuits up to 1,000 V
Construction / Material / Finish:
Aluminum Core
PVC (Polyvinyl Chloride) extruded smooth jacket
Flame retardent and sunlight UV resistant
Ink jet printed ratings and technical information
Full range of trade sizes from 3/8 to 6” (12 to 155mm)
3/8 to 1-1/4”, square lock design
1-1/2” to 6”, fully interlocked design
Colors: Machine tool gray standard, black optional
Part No. |
Package Length |
Trade Size |
Materials |
Feet |
Meters |
UL |
CSA |
ISO/BS EN |
Core |
Jacket |
Color |
LTAES01G-C |
100 |
30 |
3/8" |
12mm |
16mm |
Aluminum |
PVC |
Gray |
LTAES02G-C |
100 |
30 |
1/2" |
16mm |
20mm |
Aluminum |
PVC |
Gray |
LTAES03G-C |
100 |
30 |
3/4" |
21mm |
25mm |
Aluminum |
PVC |
Gray |
LTAES04G-C |
100 |
30 |
1" |
27mm |
32mm |
Aluminum |
PVC |
Gray |
LTAES05G-B |
50 |
15 |
1-1/4" |
35mm |
40mm |
Aluminum |
PVC |
Gray |
LTAES06G-B |
50 |
15 |
1-1/2" |
41mm |
50mm |
Aluminum |
PVC |
Gray |
LTAES07G-B |
50 |
15 |
2" |
53mm |
63mm |
Aluminum |
PVC |
Gray |
LTAES08G-A |
25 |
8 |
2-1/2" |
63mm |
70mm |
Aluminum |
PVC |
Gray |
LTAES09G-A |
25 |
8 |
3" |
78mm |
80mm |
Aluminum |
PVC |
Gray |
LTAES11G-A |
25 |
8 |
4" |
103mm |
100mm |
Aluminum |
PVC |
Gray |
LTAES12G-A |
25 |
8 |
5" |
129mm |
--- |
Aluminum |
PVC |
Gray |
LTAES13G-A |
25 |
8 |
6" |
155mm |
--- |
Aluminum |
PVC |
Gray |
LTAES01G-K |
500 |
150 |
3/8" |
12mm |
16mm |
Aluminum |
PVC |
Gray |
LTAES02G-K |
500 |
150 |
1/2" |
16mm |
20mm |
Aluminum |
PVC |
Gray |
LTAES03G-K |
500 |
150 |
3/4" |
21mm |
25mm |
Aluminum |
PVC |
Gray |
LTAES04G-J |
400 |
120 |
1" |
27mm |
32mm |
Aluminum |
PVC |
Gray |
LTAES05G-E |
200 |
60 |
1-1/4" |
35mm |
40mm |
Aluminum |
PVC |
Gray |
LTAES06G-D |
150 |
45 |
1-1/2" |
41mm |
50mm |
Aluminum |
PVC |
Gray |
LTAES07G-C |
100 |
30 |
2" |
53mm |
63mm |
Aluminum |
PVC |
Gray |
LTAES01G-L |
1000 |
300 |
3/8" |
12mm |
16mm |
Aluminum |
PVC |
Gray |
LTAES02G-L |
1000 |
300 |
1/2" |
16mm |
20mm |
Aluminum |
PVC |
Gray |
LTAES03G-L |
1000 |
300 |
3/4" |
21mm |
25mm |
Aluminum |
PVC |
Gray |
LTAES01B-C |
100 |
30 |
3/8" |
12mm |
16mm |
Aluminum |
PVC |
Black |
LTAES02B-C |
100 |
30 |
1/2" |
16mm |
20mm |
Aluminum |
PVC |
Black |
LTAES03B-C |
100 |
30 |
3/4" |
21mm |
25mm |
Aluminum |
PVC |
Black |
LTAES04B-C |
100 |
30 |
1" |
27mm |
32mm |
Aluminum |
PVC |
Black |
LTAES05B-B |
50 |
15 |
1-1/4" |
35mm |
40mm |
Aluminum |
PVC |
Black |
LTAES06B-B |
50 |
15 |
1-1/2" |
41mm |
50mm |
Aluminum |
PVC |
Black |
LTAES07B-B |
50 |
15 |
2" |
53mm |
63mm |
Aluminum |
PVC |
Black |
LTAES08B-A |
25 |
8 |
2-1/2" |
63mm |
70mm |
Aluminum |
PVC |
Black |
LTAES09B-A |
25 |
8 |
3" |
78mm |
80mm |
Aluminum |
PVC |
Black |
LTAES11B-A |
25 |
8 |
4" |
103mm |
100mm |
Aluminum |
PVC |
Black |
LTAES12B-A |
25 |
8 |
5" |
129mm |
--- |
Aluminum |
PVC |
Black |
LTAES13B-A |
25 |
8 |
6" |
155mm |
--- |
Aluminum |
PVC |
Black |
LTAES01B-K |
500 |
150 |
3/8" |
12mm |
16mm |
Aluminum |
PVC |
Black |
LTAES02B-K |
500 |
150 |
1/2" |
16mm |
20mm |
Aluminum |
PVC |
Black |
LTAES03B-K |
500 |
150 |
3/4" |
21mm |
25mm |
Aluminum |
PVC |
Black |
LTAES04B-J |
400 |
120 |
1" |
27mm |
32mm |
Aluminum |
PVC |
Black |
LTAES05B-E |
200 |
60 |
1-1/4" |
35mm |
40mm |
Aluminum |
PVC |
Black |
LTAES06B-D |
150 |
45 |
1-1/2" |
41mm |
50mm |
Aluminum |
PVC |
Black |
LTAES07B-C |
100 |
30 |
2" |
53mm |
63mm |
Aluminum |
PVC |
Black |
|
