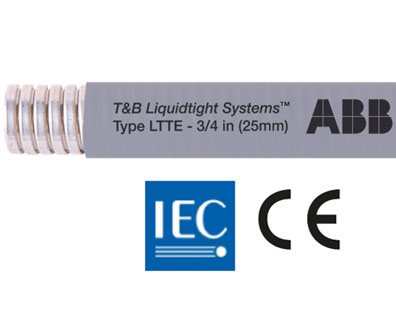

Thomas & Betts Type LTTE - wide temperature, CE Certified
Liquid-tight flexible metallic conduit
Wide temperature, CE compliant liquid-tight flexible metallic conduits provide excellent performance in low and high temperatures.
Features & benefits:
Designed to meet UL 360 ID/OD dimension requirements
Full compliance to IEC 61386-1, -23 requirements, CE Certified
Wide temperature range from -55 to +105°C (-67 to +221°F)
Trade sizes from 3/8 to 6” (12mm to 155mm)
Coordinated performance with Series 52/53 Steel Fittings
Ingress protection ratings aligned with industrial enclosures
Smooth extruded jackets provide best performance with fittings
Thomas & Betts Type LTTE - wide temperature, CE Certified
Liquid-tight flexible metallic conduit
Applications:
The LTTE flexible metallic conduit is used with high temperature machine tool wiring
Ideal for use in outdoor applications for cold environments
Liquid tight applications against water, oils, cutting fluids, mild acids
Construction / Material / Finish:
Hot-dipped Zinc Galvanized Steel Core
PVC (Polyvinyl Chloride) extruded smooth jacket
Ink jet printed ratings and technical information
Full range of trade sizes from 3/8 to 6” (12 to 155mm)
– 3/8 to 2”, square lock design with cord filler
– 2-1/2” to 6”, fully interlocked design
Colors: Machine tool gray standard
For use in electrical circuits up to 1,000 V
Part No. |
Package Length |
Trade Size |
Materials |
Feet |
Meters |
UL |
CSA |
ISO/BS EN |
Core |
Jacket |
Color |
LTTES01G-C |
100 |
30 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Gray |
LTTES02G-C |
100 |
30 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Gray |
LTTES03G-C |
100 |
30 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Gray |
LTTES04G-C |
100 |
30 |
1" |
27mm |
32mm |
Galv Steel |
PVC |
Gray |
LTTES05G-B |
50 |
15 |
1-1/4" |
35mm |
40mm |
Galv Steel |
PVC |
Gray |
LTTES06G-B |
50 |
15 |
1-1/2" |
41mm |
50mm |
Galv Steel |
PVC |
Gray |
LTTES07G-B |
50 |
15 |
2" |
53mm |
63mm |
Galv Steel |
PVC |
Gray |
LTTES08G-A |
25 |
8 |
2-1/2" |
63mm |
70mm |
Galv Steel |
PVC |
Gray |
LTTES09G-A |
25 |
8 |
3" |
78mm |
80mm |
Galv Steel |
PVC |
Gray |
LTTES11G-A |
25 |
8 |
4" |
103mm |
100mm |
Galv Steel |
PVC |
Gray |
LTTES12G-A |
25 |
8 |
5" |
129mm |
--- |
Galv Steel |
PVC |
Gray |
LTTES13G-A |
25 |
8 |
6" |
155mm |
--- |
Galv Steel |
PVC |
Gray |
LTTES01G-K |
500 |
150 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Gray |
LTTES02G-K |
500 |
150 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Gray |
LTTES03G-K |
500 |
150 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Gray |
LTTES04G-J |
400 |
120 |
1" |
27mm |
32mm |
Galv Steel |
PVC |
Gray |
LTTES05G-E |
200 |
60 |
1-1/4" |
35mm |
40mm |
Galv Steel |
PVC |
Gray |
LTTES06G-D |
150 |
45 |
1-1/2" |
41mm |
50mm |
Galv Steel |
PVC |
Gray |
LTTES07G-C |
100 |
30 |
2" |
53mm |
63mm |
Galv Steel |
PVC |
Gray |
LTTES08G-G |
275 |
80 |
2-1/2" |
63mm |
70mm |
Galv Steel |
PVC |
Gray |
LTTES09G-P |
175 |
50 |
3" |
78mm |
80mm |
Galv Steel |
PVC |
Gray |
LTTES11G-C |
100 |
30 |
4" |
103mm |
100mm |
Galv Steel |
PVC |
Gray |
LTTES01G-L |
1000 |
300 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Gray |
LTTES02G-L |
1000 |
300 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Gray |
LTTES03G-L |
1000 |
300 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Gray |
|
