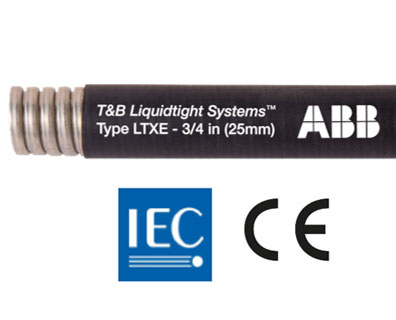

Thomas & Betts Type LTXE - extreme temperature, CE Certified
Liquid-tight flexible metallic conduit
Extreme temperature, CE compliant liquid-tight flexible metallic conduits provide excellent performance in extreme low and high temperature environments.
Features & benefits:
Designed to meet UL 360 ID/OD dimension requirements
Full compliance to IEC 61386-1, -23 requirements, CE Certified
Wide temperature range from -60 to +150°C (-76 to +302°F)
Trade sizes from 3/8 to 4” (12mm to 103mm)
Coordinated performance with Series 52/53 Steel Fittings
Ingress protection ratings aligned with industrial enclosures
Smooth extruded jackets provide best performance with fittings
Thomas & Betts Type LTXE - extreme temperature, CE Certified
Liquid-tight flexible metallic conduit
Applications:
The LTXE flexible metallic conduit is used in extremely high temperature applications such as commercial ovens and refrigeration, industrial furnaces and foundries
Ideal for machine and equipment, OEMs, panel builders and industrial, light manufacturing, commercial and outdoor installations
Liquid tight applications against water, oils and mild acids
For use in electrical circuits up to 1,000 V
Construction / Material / Finish:
Hot-dipped zinc galvanized steel core
TPR (Thermoplastic Rubber), extruded smooth jacket
Ink jet printed ratings and technical information
Full range of trade sizes from 3/8” to 4” (12 to 103mm)
– 3/8 to 1-1/4”, Square Lock design with cord filler
– 1-1/2” to 4”, fully interlocked design
Color: Black Standard
Part No. |
Package Length |
Trade Size |
Materials |
Feet |
Meters |
UL |
CSA |
ISO/BS EN |
Core |
Jacket |
Color |
LTXES01B-C |
100 |
30 |
3/8" |
12mm |
16mm |
Galv Steel |
TPR |
Black |
LTXES02B-C |
100 |
30 |
1/2" |
16mm |
20mm |
Galv Steel |
TPR |
Black |
LTXES03B-C |
100 |
30 |
3/4" |
21mm |
25mm |
Galv Steel |
TPR |
Black |
LTXES04B-C |
100 |
30 |
1" |
27mm |
32mm |
Galv Steel |
TPR |
Black |
LTXES05B-B |
50 |
15 |
1-1/4" |
35mm |
40mm |
Galv Steel |
TPR |
Black |
LTXES06B-B |
50 |
15 |
1-1/2" |
41mm |
50mm |
Galv Steel |
TPR |
Black |
LTXES07B-B |
50 |
15 |
2" |
53mm |
63mm |
Galv Steel |
TPR |
Black |
LTXES08B-A |
25 |
8 |
2-1/2" |
63mm |
70mm |
Galv Steel |
TPR |
Black |
LTXES09B-A |
25 |
8 |
3" |
78mm |
80mm |
Galv Steel |
TPR |
Black |
LTXES11B-A |
25 |
8 |
4" |
103mm |
100mm |
Galv Steel |
TPR |
Black |
LTXES01B-K |
500 |
150 |
3/8" |
12mm |
16mm |
Galv Steel |
TPR |
Black |
LTXES02B-K |
500 |
150 |
1/2" |
16mm |
20mm |
Galv Steel |
TPR |
Black |
LTXES03B-K |
500 |
150 |
3/4" |
21mm |
25mm |
Galv Steel |
TPR |
Black |
LTXES04B-J |
400 |
120 |
1" |
27mm |
32mm |
Galv Steel |
TPR |
Black |
LTXES05B-E |
200 |
60 |
1-1/4" |
35mm |
40mm |
Galv Steel |
TPR |
Black |
LTXES06B-D |
150 |
45 |
1-1/2" |
41mm |
50mm |
Galv Steel |
TPR |
Black |
LTXES07B-C |
100 |
30 |
2" |
53mm |
63mm |
Galv Steel |
TPR |
Black |
LTXES01B-L |
1000 |
300 |
3/8" |
12mm |
16mm |
Galv Steel |
TPR |
Black |
LTXES02B-L |
1000 |
300 |
1/2" |
16mm |
20mm |
Galv Steel |
TPR |
Black |
LTXES03B-L |
1000 |
300 |
3/4" |
21mm |
25mm |
Galv Steel |
TPR |
Black |
|
