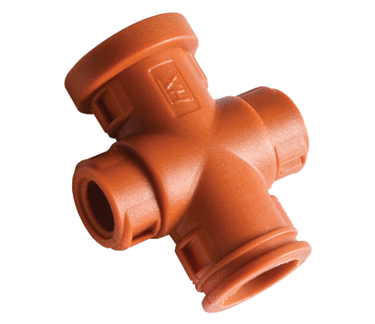

Harnessflex Type XPH - High Temperature Two-piece X Configuration Fitting

Harnessflex TempGuard hinged fittings

Two-piece X configuration fitting. These fittings are designed to snap together over all types of slit and unslit Harnessflex conduit, maintaining maximum conduit bore. Full TempGuard system protection is achieved using these fittings with HTC conduit.

Harnessflex Download Type XPH - High Temperature X-Piece datasheet



Temperature Range
Minimum -40oC
Permanent Max +160oC
Long term max (30,000 hrs) +185oC
Short term max (3,000 hrs) +200oC



  • One-piece external design for unrestricted bore and quick assembly with no tools.
  • High pull-off strength - conduit corrugations sit tightly into joiner junctions.
  • Conduit size labels - each junction indicates nominal conduit size to aid installation
  • High Temperature Polyamide (Nylon) - Low Smoke & Halogen Free
  • IP40 rated
  • High UV resistance





Conformity

  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
  • UL94 V2 / UL94 RTI 150 (Elec)





Harnessflex Download Type XPH - High Temperature X-Piece datasheet


Conduit Size (NC)
Conduit Size (NW) Conduit Engagement
Part no A B C D A B C D E F G H
XPH1208 12 08 12 08 10 7.5 10 7.5 9.5mm 7mm 9.5mm 7mm
