Kopex-Ex UL listed range of XP-Flex explosion-proof flexible couplings
Kopex-Ex防爆挠性连接头 -
XP Flex系列
XP-Flex explosion-proof flexible couplings
在危险场所建立柔性连接！

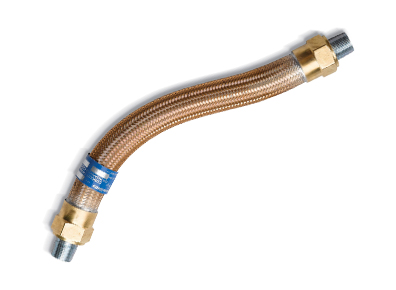

XP Flex防爆柔性管接头
T&B XP Flex 防爆柔性连接头采用柔性设计，能够轻松地在密闭空间的导线
管系统中实现变向连接——或将移动或振动的设备连接到固定设备。该接
头不仅防爆而且耐腐蚀，即使在危险潮和湿环境也可放心使用。
防爆挠性连接头特点
- 通过UL危险潮湿环境使用认证
- 耐腐蚀，适用于冲洗区域
- 挠性青铜结构，带耐电弧内套筒和黄铜接头
- 终端处分别带有两个螺纹母接头和两个公接头
- 使用时不需要跨接线
Kopex-Ex防爆挠性连接头XP Flex系列接头
认证
标准
UL认证：
0.5” and 0.75” 承口尺寸: Class I Div 1 及 2 ABCD;
Class II Div 1 EFG, Class III
1” 承口尺寸: Class I Div 1 及 2 CD;
Class II Div 1 EFG, Class III
UL 886 认证
XP Flex系列
防爆挠性连接头 防火格兰头
XP Flex系列
防爆挠性连接头-公制螺纹 / 材质：带黄铜接头的青铜结构
型号 |
NPT螺纹
尺寸 (inch) |
挠性
长度 (mm) |
长度 |
A |
B |
XPLFL16
|
1/2 |
150 |
39.1 |
36.6 |
XPLFL18 |
1/2 |
200 |
39.1 |
36.6 |
XPLFL110 |
1/2 |
250 |
39.1 |
36.6 |
XPLFL112
|
1/2 |
300 |
39.1 |
36.6 |
XPLFL115 |
1/2 |
380 |
39.1 |
36.6 |
XPLFL118 |
1/2 |
460 |
39.1 |
36.6 |
XPLFL124
|
1/2 |
610 |
39.1 |
36.6 |
| XPLFL212 |
3/4 |
300 |
40.6 |
47.5 |
| XPLFL215 |
3/4 |
380 |
40.6 |
47.5 |
XPLFL218
|
3/4 |
460 |
40.6 |
47.5 |
| XPLFL224 |
3/4 |
610 |
40.6 |
47.5 |
| XPLFL236 |
3/4 |
915 |
40.6 |
47.5 |
| XPLFL318 |
1 |
460 |
50.08 |
58.7 |
防爆、粉尘阻燃，适合危险场合应用
T&B XP Flex连接头采用挠性设计，可在空间受限时在导线管系统内实现紧密完全，或用于连接静止设备和移动或振动的设备。由于具有防爆和耐腐蚀的特性，它们非常适合在危险和潮湿场合中使用。
XP Flex range
Features
A range of explosion proof flexible coupling for hazardous areas (UL).
UL Listed for use in hazardous and wet location
Corrosion-resistant - ideal for wash down areas
Flexible bronze construction with arc resistant inner sleeve and brass fittings
Terminated with two threaded female end fittings and male close nipples
No bonding jumper required
XP Flex Part numbers
Part No |
Hub Size |
Length |
Bend Radius |
GID |
XPLFL318 |
1 NPT |
460mm |
300mm |
7TAD013340R0012 |
XPLFL236 |
3/4 NPT |
915mm |
250mm |
7TAD013340R0011 |
XPLFL224 |
3/4 NPT |
610mm |
250mm |
7TAD013340R0010 |
XPLFL218 |
3/4 NPT |
460mm |
250mm |
7TAD013340R0009 |
XPLFL215 |
3/4 NPT |
380mm |
250mm |
7TAD013340R0008 |
XPLFL212 |
3/4 NPT |
300mm |
250mm |
7TAD013340R0007 |
XPLFL124 |
1/2 NPT |
610mm |
200mm |
7TAD013340R0004 |
XPLFL118 |
1/2 NPT |
460mm |
200mm |
7TAD013340R0003 |
XPLFL115 |
1/2 NPT |
380mm |
200mm |
7TAD013340R0002 |
XPLFL115 |
1/2 NPT |
380mm |
200mm |
7TAD013340R0002 |
XPLFL112 |
1/2 NPT |
300mm |
200mm |
7TAD013340R0001 |
XPLFL110 |
1/2 NPT |
250mm |
200mm |
7TAD013340R0000 |
XPLFL18 |
1/2 NPT |
200mm |
200mm |
7TAD013340R0006 |
XPLFL16 |
1/2 NPT |
150mm |
200mm |
7TAD013340R0005 |

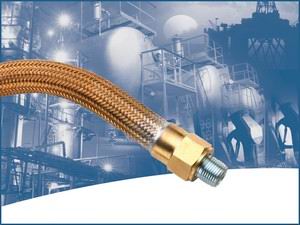

New Xp–Flex Flexible Couplings Are UL Listed
13 SEPTEMBER 2012
For any organisations selling electrical assemblies into the US market, the launch of the Kopex-Ex UL listed range of XP-Flex explosion-proof flexible couplings will be of particular interest. As UL listed products they are approved for use in hazardous and wet locations including Class 1, Div 1 & 2 classified areas. This classification covers areas where ignitable concentrations of flammable gasses, vapours or liquids are present within the atmosphere under normal operating conditions
XP-Flex explosion-proof flexible couplings have a flexible bronze construction with an arc resistant inner sleeve and brass fittings. They are terminated with two threaded female end fittings and male close nipples. With their flexible design, XP-Flex couplings make it easy to achieve tight bends in electrical conduit systems in confined spaces - or to connect stationary equipment to equipment that moves or vibrates. Their explosion-proof and corrosion-resistant construction means they can be used with confidence in hazardous and wet areas.
The XP-Flex range is available in 150-915mm flexible lengths, with , and 1 inch NPT threads available. These complement the Kopex-Ex range of enlargers, reducers, converters, universal stopping glands and swivel glands that are also available for Class, 1 Div 1 and 2 applications. The glands employ a putty to maintain any explosion within an enclosure.
