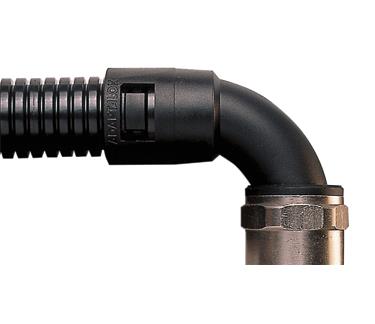

Adaptaflex Type CSF90 - Adaptalok
90o Elbow Fitting - Swivel Internal Female Thread

Polyamide (Nylon) 66, Nickel Plated Brass Thread
For use with: Type PA / PI / CP / PR & PF conduits
Temperature range - Static Applications: -50oC to +120oC
Temperature range - Moving Applications: -45oC to +120oC
IP66 - IP69 rated
For attaching to external threads & other fittings
London Underground, NF and c RU us approved
Typical applications
Designed to help maintain system integrity





Part No Size Colour Name Unit Pack
AL13/M16/CSF90/BL 13_mm Black m16 adaptalok 90 degree fitting with swivel internal thread EA 10
AL13/M16/CSF90/GR 13_mm Grey m16 adaptalok 90 degree fitting with swivel internal thread EA 10
AL13/PG9/CSF90/BL 13_mm Black pg9 adaptalok 90 degree fitting with swivel internal thread EA 10
AL13/PG9/CSF90/GR 13_mm Grey pg9 adaptalok 90 degree fitting with swivel internal thread EA 10
AL16/M16/CSF90/BL 16_mm Black m16 adaptalok 90 degree fitting with swivel internal thread EA 10
AL16/M16/CSF90/GR 16_mm Grey m16 adaptalok 90 degree fitting with swivel internal thread EA 10
AL16/PG11/CSF90/BL 16_mm Black pg11 adaptalok 90 degree fitting with swivel internal thread EA 10
AL16/PG11/CSF90/GR 16_mm Grey pg11 adaptalok 90 degree fitting with swivel internal thread EA 10
AL21/M20/CSF90/BL 21_mm Black m20 adaptalok 90 degree fitting with swivel internal thread EA 10
AL21/M20/CSF90/GR 21_mm Grey m20 adaptalok 90 degree fitting with swivel internal thread EA 10
AL21/PG13/CSF90/BL 21_mm Black pg13 adaptalok 90 degree fitting with swivel internal thread EA 10
AL21/PG13/CSF90/GR 21_mm Grey pg13 adaptalok 90 degree fitting with swivel internal thread EA 10
AL21/PG16/CSF90/BL 21_mm Black pg16 adaptalok 90 degree fitting with swivel internal thread EA 10
AL21/PG16/CSF90/GR 21_mm Grey pg16 adaptalok 90 degree fitting with swivel internal thread EA 10
AL28/M25/CSF90/BL 28_mm Black m25 adaptalok 90 degree fitting with swivel internal thread EA 10
AL28/M25/CSF90/GR 28_mm Grey m25 adaptalok 90 degree fitting with swivel internal thread EA 10
AL28/PG21/CSF90/BL 28_mm Black pg21 adaptalok 90 degree fitting with swivel internal thread EA 10
AL28/PG21/CSF90/GR 28_mm Grey pg21 adaptalok 90 degree fitting with swivel internal thread EA 10
AL34/M32/CSF90/BL 34_mm Black m32 adaptalok 90 degree fitting with swivel internal thread EA 10
AL34/M32/CSF90/GR 34_mm Grey m32 adaptalok 90 degree fitting with swivel internal thread EA 10
AL34/PG29/CSF90/BL 34_mm Black pg29 adaptalok 90 degree fitting with swivel internal thread EA 10
AL34/PG29/CSF90/GR 34_mm Grey pg29 adaptalok 90 degree fitting with swivel internal thread EA 10
AL42/M40/CSF90/BL 42_mm Black m40 adaptalok 90 degree fitting with swivel internal thread EA 2
AL42/M40/CSF90/GR 42_mm Grey m40 adaptalok 90 degree fitting with swivel internal thread EA 2
AL42/PG36/CSF90/BL 42_mm Black pg36 adaptalok 90 degree fitting with swivel internal thread EA 2
AL42/PG36/CSF90/GR 42_mm Grey pg36 adaptalok 90 degree fitting with swivel internal thread EA 2
AL54/M50/CSF90/BL 54_mm Black m50 adaptalok 90 degree fitting with swivel internal thread EA 1
AL54/M50/CSF90/GR 54_mm Grey m50 adaptalok 90 degree fitting with swivel internal thread EA 1
AL54/PG48/CSF90/BL 54_mm Black pg48 adaptalok 90 degree fitting with swivel internal thread EA 1
AL54/PG48/CSF90/GR 54_mm Grey pg48 adaptalok 90 degree fitting with swivel internal thread EA 1

?
