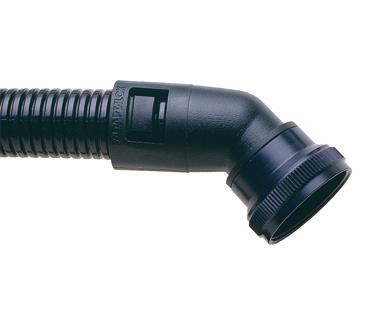

Adaptaflex UNEF Type C45 - Adaptalok
45° Elbow Body - Swivel Internal Female Thread

Polyamide (Nylon) 66 & Aluminium
For use with: Type PA / PI / CP / PR & PF conduits
Temperature range - Static Applications: -50oC to +120oC
Temperature range - Moving Applications: -45oC to +120oC
IP66 - IP69 rated
For coupling to UNEF circular connectors
London Underground, NF approved
Typical applications
Designed to help maintain system integrity

Part No	Size	Colour	Name	Unit	Pack
AL13/U063/45/000620	13_mm	Black	5/8 unef adaptalok 45 degree fitting	EA	10
AL13/U075/45/000620	13_mm	Black	3/4 unef adaptalok 45 degree fitting	EA	10
AL13/U088/45/000620	13_mm	Black	7/8 unef 45 degree swivel fitting with internal thread	EA	10
AL16/U063/45/000620	16_mm	Black	5/8 unef 45 degree swivel fitting with internal thread	EA	10
AL16/U075/45/000620	16_mm	Black	3/4 unef 45 degree swivel fitting with internal thread	EA	10
AL16/U081/45/000620	16_mm	Black	13/16 unef 45 degree swivel fitting with internal thread	EA	10
AL16/U088/45/000620	16_mm	Black	7/8 unef 45 degree swivel fitting with internal thread	EA	10
AL16/U094/45/000620	16_mm	Black	15/16 unef 45 degree swivel fitting with internal thread	EA	10
AL16/U100/45/000620	16_mm	Black	1 unef 45 degree swivel fitting with internal thread	EA	10
AL16/U119/45/000620	16_mm	Black	1 3/16 unef 45 degree swivel fitting with internal thread	EA	10
AL16/U131/45/000620	16_mm	Black	1 5/16 unef 45 degree swivel fitting with internal thread	EA	10
AL21/U075/45/000620	21_mm	Black	3/4 unef 45 degree swivel fitting with internal thread	EA	10
AL21/U088/45/000620	21_mm	Black	7/8 unef 45 degree swivel fitting with internal thread	EA	10
AL21/U094/45/000620	21_mm	Black	15/16 unef 45 degree swivel fitting with internal thread	EA	10
AL21/U100/45/000620	21_mm	Black	1 unef 45 degree swivel fitting with internal thread	EA	10
AL21/U113/45/000620	21_mm	Black	1 1/8 unef 45 degree swivel fitting with internal thread	EA	10
AL21/U119/45/000620	21_mm	Black	1 3/16 unef 45 degree swivel fitting with internal thread	EA	10
AL21/U131/45/000620	21_mm	Black	1 5/16 unef 45 degree swivel fitting with internal thread	EA	10
AL21/U138/45/000620	21_mm	Black	1 3/8 unef 45 degree swivel fitting with internal thread	EA	10
AL21/U144/45/000620	21_mm	Black	1 7/16 unef 45 degree swivel fitting with internal thread	EA	10
AL21/U175/45/000620	21_mm	Black	1 3/4 unef 45 degree swivel fitting with internal thread	EA	10
AL28/U088/45/000620	28_mm	Black	7/8 unef 45 degree swivel fitting with internal thread	EA	10
AL28/U094/45/000620	28_mm	Black	15/16 unef 45 degree swivel fitting with internal thread	EA	10
AL28/U100/45/000620	28_mm	Black	1 unef 45 degree swivel fitting with internal thread	EA	10
AL28/U119/45/000620	28_mm	Black	1 3/16 unef 45 degree swivel fitting with internal thread	EA	10
AL28/U138/45/000620	28_mm	Black	1 3/8 unef 45 degree swivel fitting with internal thread	EA	10
AL28/U144/45/000620	28_mm	Black	1 7/16 unef 45 degree swivel fitting with internal thread	EA	10
AL28/U175/45/000620	28_mm	Black	1 3/4 unef 45 degree swivel fitting with internal thread	EA	10
AL28/U200/45/000620	28_mm	Black	2 unef 45 degree swivel fitting with internal thread	EA	10
AL28/U225/45/000620	28_mm	Black	2 1/4 unef 45 degree swivel fitting with internal thread	EA	10
AL34/U100/45/000620	34_mm	Black	1 unef 45 degree swivel fitting with internal thread 1	EA	10
AL34/U119/45/000620	34_mm	Black	1 3/16 unef 45 degree swivel fitting with internal thread	EA	10
AL34/U144/45/000620	34_mm	Black	1 7/16 unef 45 degree swivel fitting with internal thread	EA	10
AL34/U175/45/000620	34_mm	Black	1 3/4 unef 45 degree swivel fitting with internal thread	EA	10
AL34/U200/45/000620	34_mm	Black	2 unef 45 degree swivel fitting with internal thread	EA	10
AL42/U175/45/000620	42_mm	Black	1 3/4 unef 45 degree swivel fitting with internal thread	EA	2
AL42/U200/45/000620	42_mm	Black	2 unef 45 degree swivel fitting with internal thread	EA	2
