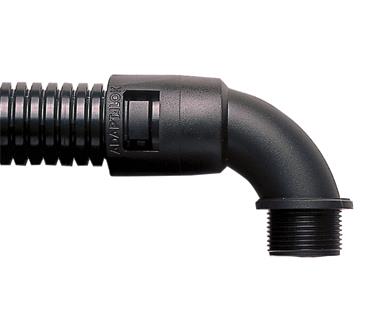

Adaptaflex Type C90 - Adaptalok
90o Elbow Fitting - Fixed External Male Thread

Polyamide (Nylon) 66 fitting
For use with: Type PA / PI / CP / PR & PF conduits
Temperature range - Static Applications: -50oC to +120oC
Temperature range - Moving Applications: -45oC to +120oC
IP66 - IP69 rated
For insertion into knockouts using a locknut. Locknut supplied with METRIC THREAD ONLY
London Underground, NF and c RU us approved
Typical applications
Designed to help maintain system integrity



Part No Size Colour Name Unit Pack
AL10/M12/C90/BL 10_mm Black 10-m12 90deg bl curved elbow EA 10
AL10/M12/C90/GR 10_mm Grey m12 90 degree elbow with fixed external thread EA 10
AL10/PG7/C90/BL 10_mm Black pg7 90 degree elbow with fixed external thread EA 10
AL10/PG7/C90/GR 10_mm Grey pg7 90 degree elbow with fixed external thread EA 10
AL13/038/C90/BL 13_mm Black 3/8 npt 90 degree elbow with fixed external thread EA 10
AL13/M16/C90/BL 13_mm Black m16 90 degree elbow with fixed external thread EA 10
AL13/M16/C90/GR 13_mm Grey m16 90 degree elbow with fixed external thread EA 10
AL13/PF038/C90/BL 13_mm Black pf038 90 degree elbow with fixed external thread EA 10
AL13/PF038/C90/LG 13_mm Light Grey pf038 90 degree elbow with fixed external thread EA 10
AL13/PG9/C90/BL 13_mm Black pg9 90 degree elbow with fixed external thread EA 10
AL13/PG9/C90/GR 13_mm Grey pg9 90 degree elbow with fixed external thread EA 10
AL16/038/C90/BL 16_mm Black 3/8 npt 90 degree elbow with fixed external thread EA 10
AL16/050/C90/BL 16_mm Black 1/2 npt 90 degree elbow with fixed external thread EA 10
AL16/M16/C90/BL 16_mm Black m16 90 degree elbow with fixed external thread EA 10
AL16/M16/C90/GR 16_mm Grey m16 90 degree elbow with fixed external thread EA 10
AL16/M20/C90/BL 16_mm Black m20 90 degree elbow with fixed external thread EA 10
AL16/M20/C90/GR 16_mm Grey m20 90 degree elbow with fixed external thread EA 10
AL16/PF038/C90/BL 16_mm Black pf038 90 degree elbow with fixed external thread EA 10
AL16/PF038/C90/LG 16_mm Light Grey pf038 90 degree elbow with fixed external thread EA 10
AL16/PF050/C90/BL 16_mm Black pf050 90 degree elbow with fixed external thread EA 10
AL16/PF050/C90/LG 16_mm Light Grey pf050 90 degree elbow with fixed external thread EA 10
AL16/PG11/C90/BL 16_mm Black pg11 90 degree elbow with fixed external thread EA 10
AL16/PG11/C90/GR 16_mm Grey pg11 90 degree elbow with fixed external thread EA 10
AL16/PG13/C90/BL 16_mm Black pg13 90 degree elbow with fixed external thread EA 10
AL16/PG13/C90/GR 16_mm Grey pg13 90 degree elbow with fixed external thread EA 10
AL16/PG9/C90/BL 16_mm Black pg16 90 degree elbow with fixed external thread EA 10
AL16/PG9/C90/GR 16_mm Grey pg9 90 degree elbow with fixed external thread EA 10
AL21/M20/C90/BL 21_mm Black m20 90 degree elbow with fixed external thread EA 10
AL21/M20/C90/GR 21_mm Grey m20 90 degree elbow with fixed external thread EA 10
AL21/PF050/C90/BL 21_mm Black pf050 90 degree elbow with fixed external thread EA 10
AL21/PF050/C90/LG 21_mm Light Grey pf050 90 degree elbow with fixed external thread EA 10
AL21/PG13/C90/BL 21_mm Black pg13 90 degree elbow with fixed external thread EA 10
AL21/PG13/C90/GR 21_mm Grey pg13 90 degree elbow with fixed external thread EA 10
AL21/PG16/C90/BL 21_mm Black pg16 90 degree elbow with fixed external thread EA 10
AL21/PG16/C90/GR 21_mm Grey pg16 90 degree elbow with fixed external thread EA 10
AL28/075/C90/BL 28_mm Black 3/4 npt 90 degree elbow with fixed external thread EA 10
AL28/M25/C90/BL 28_mm Black m25 90 degree elbow with fixed external thread EA 10
AL28/M25/C90/GR 28_mm Grey m25 90 degree elbow with fixed external thread EA 10
AL28/PF075/C90/BL 28_mm Black pf075 90 degree elbow with fixed external thread EA 10
AL28/PF075/C90/LG 28_mm Light Grey pf075 90 degree elbow with fixed external thread EA 10
AL28/PG21/C90/BL 28_mm Black pg21 90 degree elbow with fixed external thread EA 10
AL28/PG21/C90/GR 28_mm Grey pg21 90 degree elbow with fixed external thread EA 10
AL34/100/C90/BL 34_mm Black 1 npt 90 degree elbow with fixed external thread EA 10
AL34/M32/C90/BL 34_mm Black m32 90 degree elbow with fixed external thread EA 10
AL34/M32/C90/GR 34_mm Grey m32 90 degree elbow with fixed external thread EA 10
AL34/PF100/C90/BL 34_mm Black pf100 90 degree elbow with fixed external thread EA 10
AL34/PF100/C90/LG 34_mm Light Grey pf100 90 degree elbow with fixed external thread EA 10
AL34/PG29/C90/BL 34_mm Black pg29 90 degree elbow with fixed external thread EA 10
AL34/PG29/C90/GR 34_mm Grey pg29 90 degree elbow with fixed external thread EA 10
AL42/125/C90/BL 42_mm Black 1 1/4 npt 90 degree elbow with fixed external thread EA 2
AL42/M40/C90/BL 42_mm Black m40 90 degree elbow with fixed external thread EA 2
AL42/M40/C90/GR 42_mm Grey m40 90 degree elbow with fixed external thread EA 2
AL42/PF125/C90/BL 42_mm Black pf125 90 degree elbow with fixed external thread EA 2
AL42/PF125/C90/LG 42_mm Light Grey pf125 90 degree elbow with fixed external thread EA 2
AL42/PG36/C90/BL 42_mm Black pg36 90 degree elbow with fixed external thread EA 2
AL42/PG36/C90/GR 42_mm Grey pg36 90 degree elbow with fixed external thread EA 2
AL54/150/C90/BL 54_mm Black 1 1/2 npt 90 degree elbow with fixed external thread EA 1
AL54/200/C90/BL 54_mm Black 2 npt 90 degree elbow with fixed external thread EA 1
AL54/M50/C90/BL 54_mm Black m50 90 degree elbow with fixed external thread EA 1
AL54/M50/C90/GR 54_mm Grey m50 90 degree elbow with fixed external thread EA 1
AL54/M63/C90/BL 54_mm Black m63 90 degree elbow with fixed external thread EA 1
AL54/M63/C90/GR 54_mm Grey m63 90 degree elbow with fixed external thread EA 1
AL54/PF150/C90/BL 54_mm Black pf150 90 degree elbow with fixed external thread EA 1
AL54/PF150/C90/LG 54_mm Light Grey pf150 90 degree elbow with fixed external thread EA 1
AL54/PF200/C90/BL 54_mm Black pf200 90 degree elbow with fixed external thread EA 1
AL54/PF200/C90/LG 54_mm Light Grey pf200 90 degree elbow with fixed external thread EA 1
AL54/PG48/C90/BL 54_mm Black pg48 90 degree elbow with fixed external thread EA 1
AL54/PG48/C90/GR 54_mm Grey pg48 90 degree elbow with fixed external thread EA 1

?
