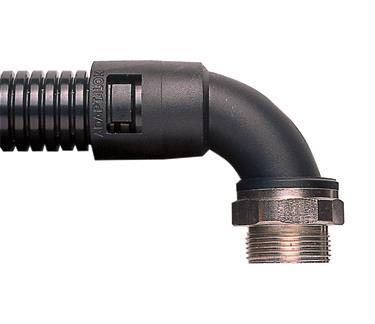

Adaptaflex Type CS90 - Adaptalok
90o Elbow Fitting - Swivel External Male Thread

Polyamide (Nylon) 66, Nickel Plated Brass Thread
For use with: Type PA / PI / CP / PR & PF conduits
Temperature range - Static Applications: -50oC to +120oC
Temperature range - Moving Applications: -45oC to +120oC
IP66 - IP69 rated
For insertion into threaded entries & knockouts using a locknut. Order locknut separately
London Underground, NF approved
Typical applications
Designed to help maintain system integrity

Part No	Size	Colour	Name	Unit	Pack
AL13/M16/CS90/BL	13_mm	Black	m16 90 degree elbow with swivel external thread	EA	10
AL13/M16/CS90/GR	13_mm	Grey	m16 90 degree elbow with swivel external thread	EA	10
AL13/PG9/CS90/BL	13_mm	Black	pg9 90 degree elbow with swivel external thread	EA	10
AL13/PG9/CS90/GR	13_mm	Grey	pg9 90 degree elbow with swivel external thread	EA	10
AL16/M16/CS90/BL	16_mm	Black	m16 90 degree elbow with swivel external thread	EA	10
AL16/M16/CS90/GR	16_mm	Grey	m16 90 degree elbow with swivel external thread	EA	10
AL16/PG11/CS90/BL	16_mm	Black	pg11 90 degree elbow with swivel external thread	EA	10
AL16/PG11/CS90/GR	16_mm	Grey	pg11 90 degree elbow with swivel external thread	EA	10
AL21/M20/CS90/BL	21_mm	Black	m20 90 degree elbow with swivel external thread	EA	10
AL21/M20/CS90/GR	21_mm	Grey	m20 90 degree elbow with swivel external thread	EA	10
AL21/PG13/CS90/BL	21_mm	Black	pg13 90 degree elbow with swivel external thread	EA	10
AL21/PG13/CS90/GR	21_mm	Grey	pg13 90 degree elbow with swivel external thread	EA	10
AL21/PG16/CS90/BL	21_mm	Black	pg16 90 degree elbow with swivel external thread	EA	10
AL21/PG16/CS90/GR	21_mm	Grey	pg16 90 degree elbow with swivel external thread	EA	10
AL28/M25/CS90/BL	28_mm	Black	m25 90 degree elbow with swivel external thread	EA	10
AL28/M25/CS90/GR	28_mm	Grey	m25 90 degree elbow with swivel external thread	EA	10
AL28/PG21/CS90/BL	28_mm	Black	pg21 90 degree elbow with swivel external thread	EA	10
AL28/PG21/CS90/GR	28_mm	Grey	pg21 90 degree elbow with swivel external thread	EA	10
AL34/M32/CS90/BL	34_mm	Black	m32 90 degree elbow with swivel external thread	EA	10
AL34/M32/CS90/GR	34_mm	Grey	m32 90 degree elbow with swivel external thread	EA	10
AL34/PG29/CS90/BL	34_mm	Black	pg29 90 degree elbow with swivel external thread	EA	10
AL34/PG29/CS90/GR	34_mm	Grey	pg29 90 degree elbow with swivel external thread	EA	10
AL42/M40/CS90/BL	42_mm	Black	m40 90 degree elbow with swivel external thread	EA	2
AL42/M40/CS90/GR	42_mm	Grey	m40 90 degree elbow with swivel external thread	EA	2
AL42/PG36/CS90/BL	42_mm	Black	pg36 90 degree elbow with swivel external thread	EA	2
AL42/PG36/CS90/GR	42_mm	Grey	pg36 90 degree elbow with swivel external thread	EA	2
AL54/M50/CS90/BL	54_mm	Black	m50 90 degree elbow with swivel external thread	EA	2
AL54/M50/CS90/GR	54_mm	Grey	m50 90 degree elbow with swivel external thread	EA	2
AL54/M63/CS90/BL	54_mm	Black	m63 90 degree elbow with swivel external thread	EA	2
AL54/M63/CS90/GR	54_mm	Grey	m63 90 degree elbow with swivel external thread	EA	2
AL54/PG48/CS90/BL	54_mm	Black	pg48 90 degree elbow with swivel external thread	EA	1
AL54/PG48/CS90/GR	54_mm	Grey	pg48 90 degree elbow with swivel external thread	EA	1
