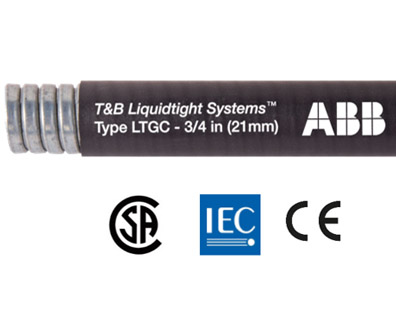

Thomas & Betts Type LTGC – general purpose, CSA Certified
Liquid-tight flexible metallic conduit
General Purpose, CSA Certified liquid-tight flexible metallic conduits provide excellent strength and liquid-tight performance, meeting CEC requirements.
Features & benefits:
Designed to meet CSA C22.2 No. 56 ID/OD dimension requirements
Full compliance to IEC 61386 requirements, CE compliant
Trade sizes from 3/8” to 4” (12mm to 103mm)
Coordinated performance with Ser. 52/53 Steel Fittings
CSA & IP ingress protection ratings aligned with industrial enclosures
Smooth extruded jackets provide best performance with fittings
Thomas & Betts Type LTGC – general purpose, CSA Certified
Liquid-tight flexible metallic conduit
Applications:
CSA Certified conduit is intended for use to CEC as described in Section 12-1300 for dry, damp or wet locations where flexibility is required
Ideal for machine and equipment, OEMs, panel builders and industrial, light manufacturing, commercial and outdoor installations
Liquid tight applications against water, oils, cutting fluids, mild acids
For use in electrical circuits up to 1,000 V
Canadian Electrical Code (CEC) Part 1
– CEC Rule 12-1300
– CEC Rule 12-1306: Separate Bonding Condutor is mandatory
– CEC Rule 34-400: Sign and Outline Lighting
Construction / Material / Finish:
Hot-dipped zinc galvanized steel core
PVC (polyvinyl chloride) extruded smooth jacket
Ink jet printed ratings and technical information
Full range of trade sizes from 3/8” to 4” (12 to 103mm)
– 3/8 to 1-1/4”, Square Lock design with cord filler
– 1-1/2” to 4”, fully interlocked design
Color: Black standard, other colors on request
Part No. |
Package Length |
Trade Size |
Materials |
Feet |
Meters |
UL |
CSA |
ISO/BS EN |
Core |
Jacket |
Color |
LTGCS01B-C |
100 |
30 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Black |
LTGCS02B-C |
100 |
30 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Black |
LTGCS03B-C |
100 |
30 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Black |
LTGCS04B-C |
100 |
30 |
1" |
27mm |
32mm |
Galv Steel |
PVC |
Black |
LTGCS05B-B |
50 |
15 |
1-1/4" |
35mm |
40mm |
Galv Steel |
PVC |
Black |
LTGCS06B-B |
50 |
15 |
1-1/2" |
41mm |
50mm |
Galv Steel |
PVC |
Black |
LTGCS07B-B |
50 |
15 |
2" |
53mm |
63mm |
Galv Steel |
PVC |
Black |
LTGCS08B-A |
25 |
8 |
2-1/2" |
63mm |
70mm |
Galv Steel |
PVC |
Black |
LTGCS09B-A |
25 |
8 |
3" |
78mm |
80mm |
Galv Steel |
PVC |
Black |
LTGCS11B-A |
25 |
8 |
4" |
103mm |
100mm |
Galv Steel |
PVC |
Black |
LTGCS01B-K |
500 |
150 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Black |
LTGCS02B-K |
500 |
150 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Black |
LTGCS03B-K |
500 |
150 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Black |
LTGCS04B-J |
400 |
120 |
1" |
27mm |
32mm |
Galv Steel |
PVC |
Black |
LTGCS05B-E |
200 |
60 |
1-1/4" |
35mm |
40mm |
Galv Steel |
PVC |
Black |
LTGCS06B-D |
150 |
45 |
1-1/2" |
41mm |
50mm |
Galv Steel |
PVC |
Black |
LTGCS07B-C |
100 |
30 |
2" |
53mm |
63mm |
Galv Steel |
PVC |
Black |
LTGCS01B-L |
1000 |
300 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Black |
LTGCS02B-L |
1000 |
300 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Black |
LTGCS03B-L |
1000 |
300 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Black |
|
