Thomas & Betts Type LTGE - general purpose, CE Certified
Liquid-tight flexible metallic conduit

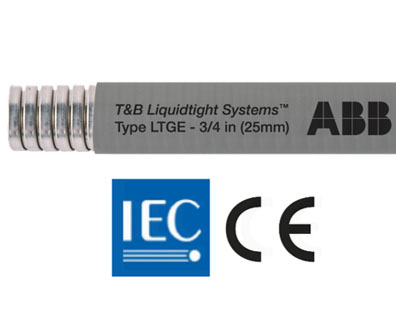

General Purpose, CE compliant liquid-tight flexible metallic conduits provide excellent strength and liquid-tight performance.
Features & benefits:
Designed to meet UL 360 ID/OD dimension requirements
Full compliance to IEC 61386 requirements, CE compliant
Trade sizes from 3/8 to 6” (12mm to 155mm)
Coordinated performance with Series 52/53 Steel Fittings
Ingress protection ratings aligned with industrial enclosures
Smooth extruded jackets provide best performance with fittings
Thomas & Betts Type LTGE - general purpose, CE Certified
PDF Catalog
Applications产品应用:
- General Purpose specification grade liquid-tight flexible metallic conduit
- Used extensively in the machine tool and other industrial environments where flexibility is necessary for motion, vibration and bending
- The inherant sunlight resistance of PVC enables this product to be used in outdoor
applications
- Liquid-tight applications against water, oils, cutting fluids, mild acids
- For use in electrical circuits up to 1,000 V
Construction / Material / Finish:
Hot-dipped Zinc Galvanized Steel Core
PVC (Polyvinyl Chloride) extruded smooth jacket
Ink jet printed ratings and technical information
Full range of trade sizes from 3/8 to 6” (12 to 155mm)
– 3/8 to 2”, square lock design with cord filler
– 2-1/2” to 6”, fully interlocked design
Colors: Machine tool gray standard, black optional
Part No. |
Package Length |
Trade Size |
Materials |
Feet |
Meters |
UL |
CSA |
ISO/BS EN |
Core |
Jacket |
Color |
LTGES01G-C |
100 |
30 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Gray |
LTGES02G-C |
100 |
30 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Gray |
LTGES03G-C |
100 |
30 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Gray |
LTGES04G-C |
100 |
30 |
1" |
27mm |
32mm |
Galv Steel |
PVC |
Gray |
LTGES05G-B |
50 |
15 |
1-1/4" |
35mm |
40mm |
Galv Steel |
PVC |
Gray |
LTGES06G-B |
50 |
15 |
1-1/2" |
41mm |
50mm |
Galv Steel |
PVC |
Gray |
LTGES07G-B |
50 |
15 |
2" |
53mm |
63mm |
Galv Steel |
PVC |
Gray |
LTGES08G-A |
25 |
8 |
2-1/2" |
63mm |
70mm |
Galv Steel |
PVC |
Gray |
LTGES09G-A |
25 |
8 |
3" |
78mm |
80mm |
Galv Steel |
PVC |
Gray |
LTGES11G-A |
25 |
8 |
4" |
103mm |
100mm |
Galv Steel |
PVC |
Gray |
LTGES12G-A |
25 |
8 |
5" |
129mm |
--- |
Galv Steel |
PVC |
Gray |
LTGES13G-A |
25 |
8 |
6" |
155mm |
--- |
Galv Steel |
PVC |
Gray |
LTGES01G-K |
500 |
150 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Gray |
LTGES02G-K |
500 |
150 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Gray |
LTGES03G-K |
500 |
150 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Gray |
LTGES04G-J |
400 |
120 |
1" |
27mm |
32mm |
Galv Steel |
PVC |
Gray |
LTGES05G-E |
200 |
60 |
1-1/4" |
35mm |
40mm |
Galv Steel |
PVC |
Gray |
LTGES06G-D |
150 |
45 |
1-1/2" |
41mm |
50mm |
Galv Steel |
PVC |
Gray |
LTGES07G-C |
100 |
30 |
2" |
53mm |
63mm |
Galv Steel |
PVC |
Gray |
LTGES08G-G |
275 |
80 |
2-1/2" |
63mm |
70mm |
Galv Steel |
PVC |
Gray |
LTGES09G-P |
175 |
50 |
3" |
78mm |
80mm |
Galv Steel |
PVC |
Gray |
LTGES11G-C |
100 |
30 |
4" |
103mm |
100mm |
Galv Steel |
PVC |
Gray |
LTGES01G-L |
1000 |
300 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Gray |
LTGES02G-L |
1000 |
300 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Gray |
LTGES03G-L |
1000 |
300 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Gray |
LTGES01B-C |
100 |
30 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Black |
LTGES02B-C |
100 |
30 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Black |
LTGES03B-C |
100 |
30 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Black |
LTGES04B-C |
100 |
30 |
1" |
27mm |
32mm |
Galv Steel |
PVC |
Black |
LTGES05B-B |
50 |
15 |
1-1/4" |
35mm |
40mm |
Galv Steel |
PVC |
Black |
LTGES06B-B |
50 |
15 |
1-1/2" |
41mm |
50mm |
Galv Steel |
PVC |
Black |
LTGES07B-B |
50 |
15 |
2" |
53mm |
63mm |
Galv Steel |
PVC |
Black |
LTGES08B-A |
25 |
8 |
2-1/2" |
63mm |
70mm |
Galv Steel |
PVC |
Black |
LTGES09B-A |
25 |
8 |
3" |
78mm |
80mm |
Galv Steel |
PVC |
Black |
LTGES11B-A |
25 |
8 |
4" |
103mm |
100mm |
Galv Steel |
PVC |
Black |
LTGES12B-A |
25 |
8 |
5" |
129mm |
--- |
Galv Steel |
PVC |
Black |
LTGES13B-A |
25 |
8 |
6" |
155mm |
--- |
Galv Steel |
PVC |
Black |
LTGES01B-K |
500 |
150 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Black |
LTGES02B-K |
500 |
150 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Black |
LTGES03B-K |
500 |
150 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Black |
LTGES04B-J |
400 |
120 |
1" |
27mm |
32mm |
Galv Steel |
PVC |
Black |
LTGES05B-E |
200 |
60 |
1-1/4" |
35mm |
40mm |
Galv Steel |
PVC |
Black |
LTGES06B-D |
150 |
45 |
1-1/2" |
41mm |
50mm |
Galv Steel |
PVC |
Black |
LTGES07B-C |
100 |
30 |
2" |
53mm |
63mm |
Galv Steel |
PVC |
Black |
LTGES08B-G |
275 |
80 |
2-1/2" |
63mm |
70mm |
Galv Steel |
PVC |
Black |
LTGES09B-P |
175 |
50 |
3" |
78mm |
80mm |
Galv Steel |
PVC |
Black |
LTGES11B-C |
100 |
30 |
4" |
103mm |
100mm |
Galv Steel |
PVC |
Black |
LTGES01B-L |
1000 |
300 |
3/8" |
12mm |
16mm |
Galv Steel |
PVC |
Black |
LTGES02B-L |
1000 |
300 |
1/2" |
16mm |
20mm |
Galv Steel |
PVC |
Black |
LTGES03B-L |
1000 |
300 |
3/4" |
21mm |
25mm |
Galv Steel |
PVC |
Black |
|
