Thomas & Betts XTRA FLEX- System
Specification Sheet — Bullet- Liquidtight Fittings or Liquidtight Flexible Non-Metallic Conduit and Tubing
PDF Catalog
Suggested Specification:
Where liquidtight flexible non-metallic conduit (UL Type B) or liquidtight flexible non-metallic tubing is terminated to a box or enclosure, the non-metallic connectors used shall be able to be installed without disassembly and provide a positive installation criteria- In the installed condition, the connector must provide a seal meeting watertight requirements of NEMA Type 4 and Type 6 enclosures- The performance of connectors shall be unaffected by exposure to detergents, sanitizers, cutting fluids, wire pulling compounds and oil base industrial paints- The connector must also be capable of withstanding Marine environment and cold impact simulating a hammer blow- Installed connectors shall be of the elongated gland type as manufactured by Thomas & Betts LT38P series-
Application
A series of nonmetallic connectors designed to provide a liquidtight seal when terminating liquidtight nonmetallic conduit (UL Type B) or liquidtight nonmetallic tubing to a box or enclosure with knockout opening or a threaded hub-
Plastic Bullet- Liquidtight Fittings Features
-
Connector assembles to conduit without disassembly and is designed to be installed with a positive installation criteria gland bottoms on body shoulder
- Rugged low profile non-metallic body and gland construction (1); the connector is equipped with a steel locknut to firmly secure connector to box or an enclosure and a sealing O-Ring
- Captivated sealing O-Ring (2) with predetermined compression for a reliable seal at enclosure
- Connector ferrule designed to accept variations in conduit inside diameter and is tolerant of field conduit cuts (3)
.The profile of ferrule is designed to reduce friction between conduit I.D- and ferrule, (4) enabling conduit to seat properly for an effective seal
- Outer surface of the clamping fingers provided with friction reducing ridges
(5) for ease of installation; the inner surface is designed with conduit biting teeth to enhance clamping and sealing action (6)
- Performance of connectors tested to simulate adverse installation conditions
- Provides a double sealing action (7)
- Elongated gland nut profile (8) designed to provide additional strain relief for 90° pull and an easy hand grip-
- Performance of connector unaffected by exposure to detergents, cleaners and sanitizers commonly encountered in food processing plants and typical industrial environment; also unaffected by cutting fluids, wiring pulling compounds and marine environment- The connector meets industry standards for cold impact and simulated hammer blow-
Standard Material/Finish
- Body Gland — Weather stabilized thermoplastic (black)
- O-Ring — Nitrile (blue)
- Locknut — Steel/electro zinc plated
- Material Temperature Rating — thermoplastic -40° C to 105° C
- Material Flammability Rating: UL 94-V2
Listed/Certified by
UL (File# E23018); CSA (File# LR52391)
Conforms to
- CSA 22.2 #227.2 & CSA 22.2 #227.3
- ANSI/U.L.514B-1988
- Watertight requirements of NEMA Type 4 and NEMA Type 6 enclosures
- Federal Standard H28 (NPT threads)
- Suitable for hazardous locations — Class I Div- 2; Class II Div- 1 & 2; Groups E,F, & G; Class III per N.E.C.; Article 501-4, 502-4 and 503-3
- NEMA 6P
XTRA FLEX- System —
Conduit, Tubing, Fittings for Non-Metallic Liquidtight Conduit
The BULLET- non-metallic liquidtight fitting — easy to use, built to take it!
- Outside surface has friction-reducing ridges
- Inner surface teeth bite into conduit or tubing to enhance clamping and sealing action
- Fitting ferrule designed to accept variations in conduit sizes and field conduit cuts
- Smooth ferrule profile reduces friction to ensure a tight conduit-to-fitting seal
- Friction-reducing ridges and teeth provide a true double seal and high pullout resistance
- Elongated gland nut offers additional strain relief for 90° pull and easy hand grip
-
Ruggd low-profile nonmetallic body and gland construction provides space savings
-
Captivated sealing O-Ring features predetermined compression to provide a reliable seal at enclosure
-
Steel locknut firmly secures fitting to box or enclosure
B*
B*
A
A
THREAD
D
D
FIGURE 1
FIGURE 2
(STRAIGHT) (45 DEGREE)
C
B*
A
D
FIGURE 3
(90 DEGREE)
Plastic Bullet- Liquidtight Fittings for T&B LTC Non-Metallic Liquidtight Conduit Type B and T&B EFC Flexible Tubing
This engineering breakthrough meets the The BULLET- fitting is economical because it can demand for a tough, reusable, non-metallic be used over and over again without sacrificing liquidtight fitting for use with XTRA FLEX- the quality of the original seal- When used with Type B conduit or flexible tubing- The BULLET- the XTRA FLEX- raceway system, you can meet non-metallic fitting provides a reliable liquidtight most machine or industrial requirements where seal that combines high pullout resistance and liquidtight protection is needed- ease of installation-
Corrosion resistant- Built to take it- Engineered to meet your needs-
The BULLET- liquidtight fitting is manufactured The BULLET- non-metallic fitting meets your from weather-resistant thermoplastic materials performance requirements when terminating and is suitable for indoor or outdoor corrosive Type B liquidtight non-metallic conduit or flexible environments- The BULLET- fitting is resistant to non-metallic tubing to a box or enclosure with detergents, cleaners, oils, sanitizers, paints, knockout opening or threaded hub- Fittings meet cutting fluids and wire pulling compounds — the watertight requirements for NEMA Type 4 just about any liquid usually found in industrial, and Type 6 enclosures and conform to UL514B plant or marine environments- It also surpasses and CSA No- 22.2 #227.2 specifications- industry standards for cold impact and simulated
hammer blows-
Ease of installation-
Installations can be performed quickly and easily because BULLET- liquidtight fittings can be installed without disassembly- BULLET- nonmetallic fittings are resistant to numerous caustics and solvents-
C ±.015 (0.40) MIN- E
TRADE A ±.015 ACROSS THROAT THREAD F*
SIZE (.040) *B ±.035 (0.90) CORNERS DIA- D NPT (IN.) (MM)
CAT- NO- FIG- (IN.) (IN.) (MM) (IN.) (MM) (IN.) (MM) (IN.) (MM) (IN.) APPROX-
LT438P 2 3.8 (14.48) 2.012 (51.10) (34.39) (10.59) 1.2-14 1.534 (38.95)
LT50P 1 .570 1.636 (41.55) 1.448 .550 –
LT950P 3 1.489 (37.82) 1.986 (50.44)
LT475P 2 3.4 (14.78) 2.452 (62.28) (44.20) (18.80) 3.4-14 1.821 (46.25)
LT100P 1 .726 1.923 (48.84) 2.068 .940 –
LT9100P 3 2.104 (53.44) 2.508 (63.70)
LT4125P 2 11.4 (19.05) 3.264 (82.91) (63.35) (31.93) 11.4-111.2 2.385 (60.58)
LT150P 1 .767 2.353 (59.77) 2.784 1.453 –
LT9150P 3 2.854 (72.49) 3.144 (79.86)
LT4200P 2 2 (20.17) 4.210 (106.93) (85.39) (47.83) 2-8 3.050 (77.47)
* After Assembly
UL File No- E-23018
CSA File No- 52391
United States
Canada
Tel: 901.252.8000
Tel:
450.347.5318
Fax:
XTRA FLEX- System —
Conduit, Tubing, Fittings for Non-Metallic Liquidtight Conduit Table 1 — Behavior of EMS20-1B.1 IN: Aqueous Solutions of Inorganic Salts at Room Temperature
SALT SOLUTIONS VISUAL CHANGE RATINGS* SALT SOLUTIONS VISUAL CHANGE RATINGS*
10% Aluminum Chloride Unchanged F
10% Calcium Chloride Unchanged F
10% Ferric Chloride Unchanged yellowing P
10% Potassium Nitrate Unchanged G
10% Copper Sulfate Unchanged G
10% Magnesium Chloride Unchanged G
10% Magnanese Sulfate Unchanged G
10% Sodium Sulfate Unchanged G
10% Sodium Bisulfite Unchanged G
5% Mercuric Chloride Swelled P
10% Zinc Chloride Unchanged F
* These abbreviations are used for the ratings:
E – Excellent P – Poor
G – Good NR – Not Recommended
F – Fair S – Solvent
Table 2 — Behavior of EMS20-1B.1 IN: Acids, Bases, Halogens, etc-
REAGENT TEMP °F VISUAL CHANGE RATINGS*
Sulfuric Acid (Dilute) 75 Partially dissolves P, NR
Hydrochloric Acid (Dilute) 75 Partially dissolves P, NR
Phosphoric Acid (Conc) 75 Dissolves S, NR
Acetic Acid (Conc) 75 Partially Dissolves P, NR
Acetic Acid (Dilute) 75 Etched F, NR
Formic Acid (Dilute) 75 Partially Dissolves P, NR
Bromine – Strong Attack NR
O-Chlorophenol 75 Dissolves S, NR
p-Chlorophenol 75 Dissolves S, NR
Dimethylformamide 75 Strong Attack NR
Xylenols 75 Dissolves S, NR
Sodium Hydroxide (5%) 73 Minimal effect E
Sodium Hydroxide (10%) 73 Minimal effect E
Potassium Hydroxide (5%) 73 Minimal effect E
Potassium Hydroxide (10%) 73 Minimal effect E
Hydrogen Peroxide (0.5%) 73 Unchanged G
Hydrogen Peroxide (3%) 73 Brittle after 54 days NR
Hydrogen Peroxide (30%) 73 Degrades NR
* These abbreviations are used for the ratings:
E – Excellent P – Poor
G – Good NR – Not Recommended
F – Fair S – Solvent
Table 3 — Behavior of EMS20-1B.1 IN:
Organic Solvents at Room Temperature
REAGENT VISUAL CHANGE RATINGS*
Benzyl Alcohol Coarse surface after 2 days NR
Butyl Alcohol Temporary loss of stiffness G
Ethyl Alcohol Temporary loss of stiffness G
Isopropyl Alcohol Temporary loss of stiffness G
Methyl Alcohol Temporary loss of stiffness G
Butyl Acetate Temporary loss of stiffness G
Ethyl Acetate Unchanged E
Methyl Acetate Unchanged E
Amyl Acetate Unchanged E
Ether (Diethyl) Unchanged E
Tetrahydrofuran Unchanged E
Acetone Unchanged E
Benzaldyhyde Unchanged E
Cyclohexanone Unchanged E
Dichlorethylene Unchanged E
Trichlorethylene Temporary loss of stiffness G
Perchlorethylene Temporary loss of stiffness G
Dichlormethane Unchanged E
Chloroform Temporary loss of stiffness G
Carbon Tetrachloride Temporary loss of stiffness G
Carbon Disulfide Unchanged E
Pyridine Unchanged E
Benzene Unchanged E
Monochlorbenzene Unchanged E
Toluene Unchanged E
Xylene Unchanged E
Kerosene Unchanged E
Turpentine Unchanged E
Tetralin Unchanged E
Decalin Unchanged E
Gasoline Unchanged E
Petroleum Unchanged E
Mineral Oil Unchanged E
Resorcinol Dissolves NR
* These abbreviations are used for the ratings:
E – Excellent P – Poor
G – Good NR – Not Recommended
F – Fair S – Solvent
United States
Canada
Technical Services
Tel:
901.252.8000
Tel:
450.347.5318
Tel:
888.862.3289
800.816.7809
XTRA FLEX- System —
Conduit, Tubing, Fittings for Non-Metallic Liquidtight Conduit

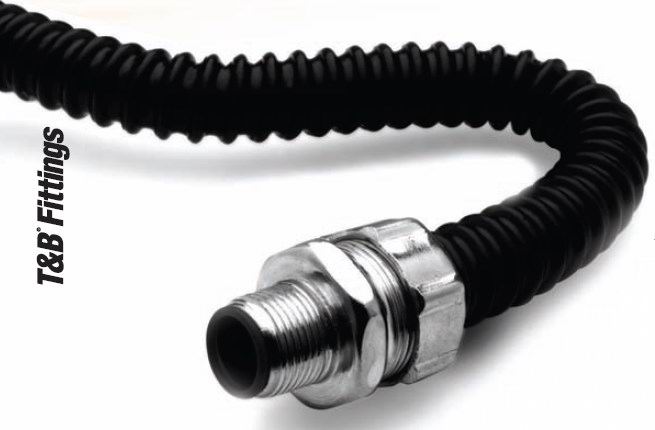

Metallic Bullet- Liquidtight Connectors for T&B LTC Non-Metallic Liquidtight Conduit Type B and T&B EFC Flexible Tubing
TRADE A ±.030 *B ±.060 C ±.045 THREAD
SIZE (.80) (1.50) (1.15) D NPT
CAT- NO- FIG- (IN.) (IN.) (MM) (IN.) (MM) (IN.) (MM) (IN.) (MM) (IN.)
LT438M 2 3.(29.4) 1.962 (49.8) 0.562 (14.3) — 1.2–14
8
LT50M 1 — 1.375 1.562 (39.7) 0.562 (14.3) — —
LT950M 3 — — 1.437 (36.5) 0.625 (15.9) 1.562 (39.7)
LT475M 2 3.(42.1) 2.125 (54.0) 0.562 (14.3) — 3.4–14
4
LT100M 1 — 1.875 2.062 (52.4) 0.750 (19.0) — —
B
LT9100M 3 — — 1.937 (49.2) 0.812 (20.6) 2.187 (55.5)
LT4125M 2 11.(60.3) 2.750 (69.8) 0.812 (20.6) — 11.4–111.
42
LT150M 1 — 2.750 2.687 (68.2) 0.812 (20.6) — —
NEMA Type 4 enclosures with tubing- Installed connectors shall be as manufactured by Thomas & Betts LT38M series- Material: Body/Gland — Steel/MI Insert — Nylon
United States
Canada
Tel: 901.252.8000
Tel:
450.347.5318
Fax:
XTRA FLEX- System —
Conduit, Tubing, Fittings for Non-Metallic Liquidtight Conduit Material — PVC
When you have a conduit application in a liquidtight environment, it’s time to load up the T&B Bullet.-
Thomas & Betts introduces the ISO Metric Bullet- liquidtight fittings for use with the 3.8", 1.2" and 3.4" XTRA FLEX- EFC and LTC non-metallic liquidtight conduit series-
The T&B Bullet- liquidtight fitting and EFC non-metallic conduit are suited for OEM applications as in the machine tool industry where environments include continuous motion, vibration and exposure to moisture, oil, dirt and dust-
The T&B Bullet- liquidtight fitting and LTC non-metallic conduit are also suitable for construction applications where ISO metric threading and liquidtight systems are installed-
The XTRA FLEX- system offers a lightweight, liquidtight flexible conduit solution for industrial applications- The XTRA FLEX- system enables fast, easy installation and high performance in demanding industrial applications-
ISO Metric Bullet- Liquidtight Fitting Non-Metallic
CAT- ANGLE CONDUIT KNOCKOUT UNIT STANDARD UPC NO- OF FITTING SIZE SIZE PACKAGE PACKAGE NUMBER
LT38P-ISO20 Straight 3.8" 1.2" 25 100 786210-66444 LT50P-ISO20 Straight 1.2" 1.2" 25 100 786210-66613 LT75P-ISO25 Straight 3.4" 3.4" 25 50 786210-66443 LT938P-ISO20 90° 3.8" 1.2" 25 50 786210-66612 LT950P-ISO20 90° 1.2" 1.2" 25 50 786210-66640 LT975M-ISO25 90° 3.4" 3.4" 10 50 786210-66611
*Testing: UL and CSA listed; NEMA 4, 6, 6P; IP 67 when used with LTC conduit or EFC tubing with installed T&B Bullet liquidtight fitting-
United States Canada Technical Services
Tel: 901.252.8000
Tel:
450.347.5318
Tel: 888.862.3289
800.816.7809
XTRA FLEX- System —
Conduit, Tubing, Fittings for Non-Metallic Liquidtight Conduit Material — PVC
Maximum flexibility for tight applications!

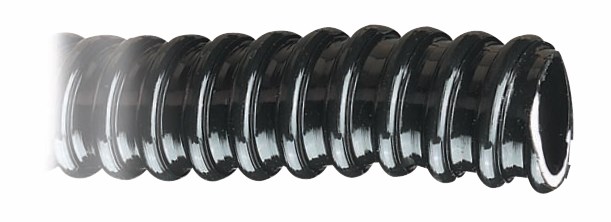

Corrugated Flexible Non-Metallic Tubing
-
OEM grade — UL Recognized
-
PVC material
-
Black color standard
-
Extremely fast installation
-
Liquidtight with specified fittings
-
Good tensile strength provides excellent pullout protection
-
Smooth inner diameter allows easy wire pulling
-
Broad operating temperature range: 18° C to +60° C (-2° F to +140° F)-
-
Flammability Rating VW-1 (Vertical Wire) UL224
I.D- O.D-
CONDUIT I.D- (IN.) CAT- NO- SIZE MIN- MAX- MIN- EFC025* 1.4" .390 .405 .560 EFC038 3.8" .484 .504 .690 EFC050 1.2" .622 .642 .820 EFC075 3.4" .820 .840 1.030 EFC100 1" 1.041 1.066 1.290 EFC125 11.4" 1.380 1.410 1.630 EFC150 11.2" 1.575 1.600 1.865 EFC200 2" 2.020 2.045 2.340
* Not CSA Certified- CSA File No- 067241
Underwriters Recognized See technical data next page-
UL File No- 96548 Use with Bullet- Liquidtight Fittings-
O.D- (IN.)
MAX-
.575 .710 .840
1.050
1.315
1.660
1.900
2.375
Recommended industrial applications
-
Protection of fiber optic cable
-
Installation of instrumentation and control cable
-
Indoor/outdoor lighting
-
Packaging equipment
-
Marine and shipboard wiring
-
Flexing component wiring protection on robots, graphic arts equipment, etc-
-
AVAILABLE COLORS CAT- NO- COLOR OF LTC – CONDUIT W/O SUFFIX Black -1 Orange -2 Blue
United States Canada Technical Services
Tel: 901.252.8000 Tel: 450.347.5318 Tel: 888.862.3289
800.816.7809 Fax: 450.347.1976 www.tnb.com A-127
Fax: 901.252.1354
XTRA FLEX- System —
Conduit, Tubing, Fittings for Non-Metallic Liquidtight Conduit Material — PVC
Now available in reels-

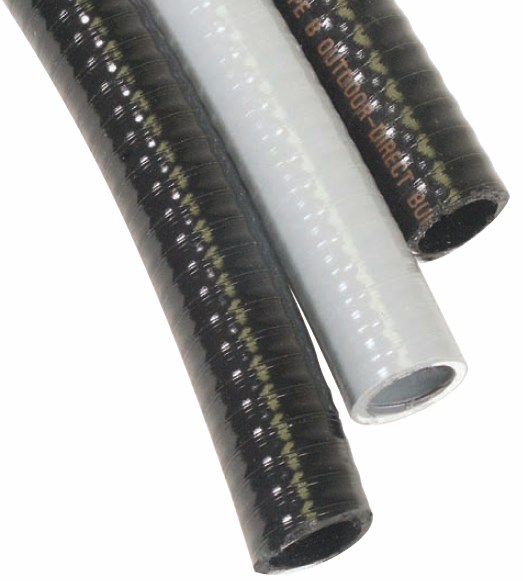

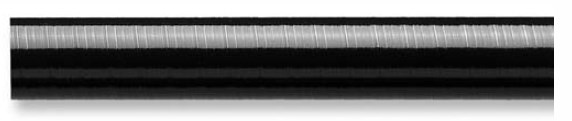

XTRA FLEX- Conduit
The XTRA FLEX- system offers a lightweight, liquidtight flexible conduit solution for demanding applications- The XTRA FLEX- system ensures fast, easy installations and long-lasting, high performance in a variety
of environments-
Now, XTRA FLEX- Conduit is available on reels- Large users can save space and reduce waste, while taking advantage of the convenience of stocking bulk in lengths- Utilizing our new coupling design to connect 100-ft- lengths, Thomas & Betts now offers reel lengths up to 1,000 feet-
-
Fast installation — even in tight, cramped spaces
-
Smooth inner diameter enables easy wire pulling
-
Smooth outer jacket — approved for outdoor use, sunlight resistant and oil resistant
-
Tested to CSA and UL requirements
-
Lightweight and liquidtight
-
Marked at 1-foot intervals for fast, easy measuring
- - - - - - - - - - - - Specifications - - - - - - - - - - - -
-
Material: PVC
-
Colors Available: Black, Gray
-
Temp- Range: -18° C to +105° C (-2° F to +221° F) Black -18° C to +80° C (-2° F to +176° F) Gray
-
Flammability Rating: UL 1660
-
Listings: UL Listed, CSA Certified
Please contact your Thomas & Betts sales representative regarding custom colors and combinations-
XTRA FLEX- Liquidtight Conduit/Reel Lengths
-
CAT- NO- SIZE DESCRIPTION MIN- I.D- MAX- I.D MIN- O.D MAX- O.D- REEL LENGTH MIN- ORDER
LTC038GY-500 3.8" Gray Type B LT Conduit .484" .504" .690" .710" 500 ft- 1,500
LTC050GY-500 1.2" Gray Type B LT Conduit .622" .642" .820" .840" 500 ft- 1,500
LTC050-500 1.2" Black Type B LT Conduit .622" .642" .820" .840" 500 ft- Stock
LTC050GY-1000 1.2" Gray Type B LT Conduit .622" .642" .820" .840" 1,000 ft- 2,000
LTC100GY-500 1" Gray Type B LT Conduit 1.041" 1.066" 1.290" 1.315" 500 ft- 1,500
LTC100-500 1" Black Type B LT Conduit 1.041" 1.066" 1.290" 1.315" 500 ft- 1,500
UL Listed, UL File No- 95745
CSA Certified, CSA File No- LL 80349
United States
Canada
Technical Services
Tel:
901.252.8000
Tel:
450.347.5318
Tel:
888.862.3289
800.816.7809
XTRA FLEX- System —
Conduit, Tubing, Fittings for Non-Metallic Liquidtight Conduit Material — PVC
Smooth, sunlight- and oil-resistant outer jacket, approved for outdoor use!
Smooth Liquidtight Non-Metallic Conduit Type B
-
Industrial grade — UL Listed/CSA Certified
-
PVC material
-
Liquidtight non-metallic conduit Type B
-
Black color standard
-
Fast installation — even in tight, cramped spaces
-
Smooth inner diameter enables easy wire pulling
-
Tested to CSA and UL requirements
-
Lightweight and liquidtight
-
Temperature range of -18° C to +105° C (-2° F to +221° F)
-
UL1660 flammability rating
-
Marked at 1-ft- intervals for fast, easy measuring and cutting
Recommended industrial applications
-
Machine tools
-
Motor hookups
-
Food processing equipment
-
Extensions from wireways
-
Sensor and microswitch wiring in control consoles
XTRA FLEX- Conduit and Tubing Technical Data*
LTFNMC = Liquidtight flexible non-metallic conduit LTFNMT = Liquidtight flexible non-metallic tubing
Industrial Grade
CONDUIT I.D- (IN.) O.D- (IN.)
CAT- NO- SIZE MIN- MAX- MIN- MAX-
LTC050 LTC100 LTC150 1.2" 1" 11.2" .622 1.041 1.575 .642 1.066 1.600 .820 1.290 1.865 .840 1.315 1.900
Commercial Grade
-
CONDUIT I.D- (IN.) O.D- (IN.)
CAT- NO- SIZE MIN- MAX- MIN- MAX-
LTC050GY 1.2" .622 .642 .820 .840
LTC100GY 1" 1.041 1.066 1.290 1.315
LTC150GY 11.2" 1.575 1.600 1.865 1.900
Rated at 600V
XTRA FLEX- Type B suitable for use in hazardous location (for LTC Series only) where general purpose equipment is specifically permitted by the NEC; Class I Div- 2; Class II, Div- 1 & 2; Class III, Div- 1 & 2, NEC 501-4(b); 502-4(a)(b); 503-3(a)(b)-
UL Listed, UL File No- E95745
CSA Certified, CSA File No- LL80349
See technical data below-
Use with Bullet- Liquidtight Fittings-
XTRA FLEX- AVAILABLE COLORS
CONDUIT & TUBING STYLE COLOR SIZE RANGE UL TEMP RATING CSA TEMP RATING VOLTAGE RATING UL OIL RESISTANT UL OUTDOOR UL DIRECT BURIAL LTC – CAT- NO- COLOR OF CONDUIT COLOR OF MARKING
-1 Orange Black LTC038-1, -2 UL Type B Orange, 1.2"–1" 105° C Dry — 600V Yes No Yes Series LTFNMC Blue 60° C Wet —
70° C Oil
EFC025 Series** LTFNMT Black 1.4"–2" 105° C 75°C-18 C 300V Yes Yes No
* For a complete test report, contact Customer Service- ** UL Component Recognized
United States
Canada
Tel: 901.252.8000
Tel:
450.347.5318
Fax:
XTRA FLEX- System —
Conduit, Tubing, Fittings for Non-Metallic Liquidtight Conduit Material — PVC XTRA FLEX- Non-Metallic Conduit Type B and Flexible Tubing
A = SATISFACTORY B = BE EXPECTED TO CHANGE C = NOT RECOMMENDED
CHEMICAL CHEMICAL CHEMICAL
Acetate Solvents - - - - - - - - - - - - - - - - - - - C Cottonseed Oil - - - - - - - - - - - - - - - - - - - - - - - B Lubricating Oils- - - - - - - - - - - - - - - - - - - - - - - A
Acetic Acid (10%)- - - - - - - - - - - - - - - - - - A Creosote - - - - - - - - - - - - - - - - - - - - - - - - - - - - C Magnesium Chloride- - - - - - - - - - - - - - - - - - - A
Acetic Acid (Glacial) - - - - - - - - - - - - - - - - B Cresol - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A Magnesium Hydroxide - - - - - - - - - - - - - - - - - A
Acetone- - - - - - - - - - - - - - - - - - - - - - - - - - C Cresylic Acid- - - - - - - - - - - - - - - - - - - - - - - - - C Magnesium Sulphate - - - - - - - - - - - - - - - - - - A
Acrylonitrile- - - - - - - - - - - - - - - - - - - - - - - A Cyclohexane - - - - - - - - - - - - - - - - - - - - - - - - - A Malic Acid- - - - - - - - - - - - - - - - - - - - - - - - - - - A
Adipic Acid - - - - - - - - - - - - - - - - - - - - - - - A Cyclohexanone - - - - - - - - - - - - - - - - - - - - - - - C Methyl Acetate - - - - - - - - - - - - - - - - - - - - - - - C
Alcohol Butyl- - - - - - - - - - - - - - - - - - - - - - A DDT Weed Killer - - - - - - - - - - - - - - - - - - - - - - A Methyl Bromide - - - - - - - - - - - - - - - - - - - - - - C
Alcohol Ethyl- - - - - - - - - - - - - - - - - - - - - - A Detergent Synthetic - - - - - - - - - - - - - - - - - - - - A Methyl Ethyl Ketone - - - - - - - - - - - - - - - - - - - C
Alcohol Isopropyl - - - - - - - - - - - - - - - - - - A Developers Photographic - - - - - - - - - - - - - - - A Methylene Chloride- - - - - - - - - - - - - - - - - - - - C
Alcohol Methyl - - - - - - - - - - - - - - - - - - - - A Dextrin - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A Mineral Oils - - - - - - - - - - - - - - - - - - - - - - - - - A
Aluminum Acetate - - - - - - - - - - - - - - - - - - A Dextrose - - - - - - - - - - - - - - - - - - - - - - - - - - - - A Monochlorobenzene - - - - - - - - - - - - - - - - - - - C
Aluminum Chloride- - - - - - - - - - - - - - - - - A Dibutyle Phthalate- - - - - - - - - - - - - - - - - - - - - C Naphtha- - - - - - - - - - - - - - - - - - - - - - - - - - - - - B
Aluminum Hydroxide - - - - - - - - - - - - - - - A Dichlorobenzene - - - - - - - - - - - - - - - - - - - - - - C Naphthalene - - - - - - - - - - - - - - - - - - - - - - - - - C
Aluminum Sulfate - - - - - - - - - - - - - - - - - - A Diesel Oil - - - - - - - - - - - - - - - - - - - - - - - - - - - B Nitric Acid (10%) - - - - - - - - - - - - - - - - - - - - - A
Aliyl Chloride - - - - - - - - - - - - - - - - - - - - - C Diethylene Glycol - - - - - - - - - - - - - - - - - - - - - A Nitric Acid (40%) - - - - - - - - - - - - - - - - - - - - - A
Ammonia (0.88S.G.Aqueous) - - - - - - - - - A Diethyl Ether - - - - - - - - - - - - - - - - - - - - - - - - - C Nitric Acid (70%) - - - - - - - - - - - - - - - - - - - - - C
Ammonia (Dry Gas) - - - - - - - - - - - - - - - - A Di-isodecyl Phthalate - - - - - - - - - - - - - - - - - - C Nitrobenzene - - - - - - - - - - - - - - - - - - - - - - - - - C
Ammonia (Liquid)- - - - - - - - - - - - - - - - - - C Dioctyle Phthalate - - - - - - - - - - - - - - - - - - - - - C Nitrogen Fertilizers - - - - - - - - - - - - - - - - - - - - A
Ammonium Chloride- - - - - - - - - - - - - - - - A Emulsifiers - - - - - - - - - - - - - - - - - - - - - - - - - - A Oleic Acid - - - - - - - - - - - - - - - - - - - - - - - - - - - A
Ammonium Hydroxide - - - - - - - - - - - - - - A Emulsions Photographic - - - - - - - - - - - - - - - - A Oxalic Acid - - - - - - - - - - - - - - - - - - - - - - - - - - A
Animal Oils - - - - - - - - - - - - - - - - - - - - - - - A Ethyl Acetate - - - - - - - - - - - - - - - - - - - - - - - - - C Palmitic Acid- - - - - - - - - - - - - - - - - - - - - - - - - A
Amyl Acetate - - - - - - - - - - - - - - - - - - - - - - C Ethylene Dichloride- - - - - - - - - - - - - - - - - - - - C Paraffin - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A
Aniline Oils - - - - - - - - - - - - - - - - - - - - - - - B Ethylene Glycol - - - - - - - - - - - - - - - - - - - - - - - A Pentane - - - - - - - - - - - - - - - - - - - - - - - - - - - - - B
Aromatic Hydrocarbons - - - - - - - - - - - - - C Fatty Acid - - - - - - - - - - - - - - - - - - - - - - - - - - - A Perchloroethylene - - - - - - - - - - - - - - - - - - - - - C
Asphalt - - - - - - - - - - - - - - - - - - - - - - - - - - C Ferric Chloride - - - - - - - - - - - - - - - - - - - - - - - A Phenol- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - B
ASTM Fuel A- - - - - - - - - - - - - - - - - - - - - - B Ferric Sulphate - - - - - - - - - - - - - - - - - - - - - - - A Phosphoric Acid - - - - - - - - - - - - - - - - - - - - - - A
ASTM Fuel B - - - - - - - - - - - - - - - - - - - - - C Ferrous Chloride - - - - - - - - - - - - - - - - - - - - - - A Pitch - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A
ASTM #1 Oil - - - - - - - - - - - - - - - - - - - - - - A Ferrous Sulphate- - - - - - - - - - - - - - - - - - - - - - A Potassium Hydroxide - - - - - - - - - - - - - - - - - - A
ASTM #3 Oil - - - - - - - - - - - - - - - - - - - - - - B Fixing Solution, Photographic- - - - - - - - - - - - A Propane- - - - - - - - - - - - - - - - - - - - - - - - - - - - - A
Barium Chloride - - - - - - - - - - - - - - - - - - - A Fluorine - - - - - - - - - - - - - - - - - - - - - - - - - - - - C Sea Water - - - - - - - - - - - - - - - - - - - - - - - - - - - A
Barium Hydroxide - - - - - - - - - - - - - - - - - - A Formaldehyde (40%) - - - - - - - - - - - - - - - - - - C Sodium Hydroxide (10%) - - - - - - - - - - - - - - - A
Barium Sulfide - - - - - - - - - - - - - - - - - - - - A Formic Acid (40%) - - - - - - - - - - - - - - - - - - - - A Sodium Hydroxide (50%) - - - - - - - - - - - - - - - A
Benzene - - - - - - - - - - - - - - - - - - - - - - - - - C Formic Acid (50%) - - - - - - - - - - - - - - - - - - - - B Sodium Cyanide - - - - - - - - - - - - - - - - - - - - - - A
Benzine - - - - - - - - - - - - - - - - - - - - - - - - - - B Formic Acid (100%) - - - - - - - - - - - - - - - - - - - C Soybean Oil- - - - - - - - - - - - - - - - - - - - - - - - - - A
Bordeaux Mixture - - - - - - - - - - - - - - - - - - A Fuel Oil - - - - - - - - - - - - - - - - - - - - - - - - - - - - - B Stearic Acid- - - - - - - - - - - - - - - - - - - - - - - - - - A
Borax- - - - - - - - - - - - - - - - - - - - - - - - - - - - A Glacial Acetic Acid - - - - - - - - - - - - - - - - - - - - B Styrene - - - - - - - - - - - - - - - - - - - - - - - - - - - - - C
Boric Acid - - - - - - - - - - - - - - - - - - - - - - - - A Glucose - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A Sulphur Dioxide (Dry) - - - - - - - - - - - - - - - - - - A
Brine - - - - - - - - - - - - - - - - - - - - - - - - - - - - A Glycerine - - - - - - - - - - - - - - - - - - - - - - - - - - - - A Sulphur Dioxide (Moist) - - - - - - - - - - - - - - - - B
Bromine Traces - - - - - - - - - - - - - - - - - - - - C Grape Sugar - - - - - - - - - - - - - - - - - - - - - - - - - A Sulphur Dioxide (Liquid) - - - - - - - - - - - - - - - C
Butyl Acetate - - - - - - - - - - - - - - - - - - - - - - C Grease - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A Sulphuric Acid (45%) - - - - - - - - - - - - - - - - - - A
Calcium Hydroxide - - - - - - - - - - - - - - - - - A Heptane - - - - - - - - - - - - - - - - - - - - - - - - - - - - - B Sulphuric Acid (60%) - - - - - - - - - - - - - - - - - - B
Calcium Hypochlorite - - - - - - - - - - - - - - - A Hexane - - - - - - - - - - - - - - - - - - - - - - - - - - - - - B Sulphuric Acid (98%) - - - - - - - - - - - - - - - - - - C
Carbonic Acid - - - - - - - - - - - - - - - - - - - - - B Hydrobromic Acid - - - - - - - - - - - - - - - - - - - - - A Sulphurous Acid (30%) - - - - - - - - - - - - - - - - A
Carbon Dioxide - - - - - - - - - - - - - - - - - - - - A Hydrochloric Acid (10%) - - - - - - - - - - - - - - - A Tannic Acid - - - - - - - - - - - - - - - - - - - - - - - - - - A
Carbon Disulphite- - - - - - - - - - - - - - - - - - C Hydrochloric Acid (40%) - - - - - - - - - - - - - - - A Tartaric Acid - - - - - - - - - - - - - - - - - - - - - - - - - A
Carbon Monoxide - - - - - - - - - - - - - - - - - - A Hydrofluoric Acid (10%) - - - - - - - - - - - - - - - - A Tetrahydrofuran - - - - - - - - - - - - - - - - - - - - - - - C
Carbon Tetrachloride- - - - - - - - - - - - - - - - C Hydrofluoric Acid (40%) - - - - - - - - - - - - - - - - B Toluene - - - - - - - - - - - - - - - - - - - - - - - - - - - - - C
Casein- - - - - - - - - - - - - - - - - - - - - - - - - - - A Hydrofluoboric Acid - - - - - - - - - - - - - - - - - - - A Trichlorethylene- - - - - - - - - - - - - - - - - - - - - - - C
Chlorine (Dry) - - - - - - - - - - - - - - - - - - - - - A Hydrofluosilicic Acid- - - - - - - - - - - - - - - - - - - A Triethanolamine- - - - - - - - - - - - - - - - - - - - - - - A
Chlorine (Wet Gas) - - - - - - - - - - - - - - - - - B Hydrogen Peroxide - - - - - - - - - - - - - - - - - - - - A Tricresyl Phosphate- - - - - - - - - - - - - - - - - - - - C
Chlorine (Water) - - - - - - - - - - - - - - - - - - - C Hydrogen Sulphide - - - - - - - - - - - - - - - - - - - - A Turpentine - - - - - - - - - - - - - - - - - - - - - - - - - - - B
Chlorobenzene - - - - - - - - - - - - - - - - - - - - C Iso-octan - - - - - - - - - - - - - - - - - - - - - - - - - - - - A Urea - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A
Chlorinated Hydrocarbons - - - - - - - - - - - C Isopropyl Acetate - - - - - - - - - - - - - - - - - - - - - C Vinegar - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A
Chloroform - - - - - - - - - - - - - - - - - - - - - - - C Kerosene - - - - - - - - - - - - - - - - - - - - - - - - - - - - B Vinyl Acetate - - - - - - - - - - - - - - - - - - - - - - - - - C
Chromic Acid - - - - - - - - - - - - - - - - - - - - - A Ketones - - - - - - - - - - - - - - - - - - - - - - - - - - - - - C Vinyl Chloride- - - - - - - - - - - - - - - - - - - - - - - - C
Citric Acid - - - - - - - - - - - - - - - - - - - - - - - - A Lactic Acid (10%) - - - - - - - - - - - - - - - - - - - - - A Water- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A
Coal Tar - - - - - - - - - - - - - - - - - - - - - - - - - C Lactic Acid (100%) - - - - - - - - - - - - - - - - - - - - C Xylene - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - C
Copper Chloride - - - - - - - - - - - - - - - - - - - A Lacquer Solvents- - - - - - - - - - - - - - - - - - - - - - B Zinc Chloride - - - - - - - - - - - - - - - - - - - - - - - - A
Copper Nitrate- - - - - - - - - - - - - - - - - - - - - A Linseed Oil - - - - - - - - - - - - - - - - - - - - - - - - - - A Zinc Sulphate - - - - - - - - - - - - - - - - - - - - - - - - A
Copper Sulphate - - - - - - - - - - - - - - - - - - - A
|
