海底应用水下阀门 _ 海底高压球阀

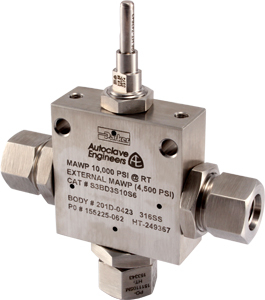

Autoclave Engineers Subsea Series Ball Valves



Parker Autoclave Engineers海底应用球阀的设计满足了石油行业对耐受外部压力的阀件不断增长的需求。在海工行业应用设计中，为水下机器人，潜水员装备或海底远程执行设备提供了简易安装。 Parker Autoclave Engineers海底应用球阀外部承压达20，000psi(1379bar），阀内承压达水深12，500”(3810米)。

Parker Autoclave Engineers 海底球阀的设计满足了石油行业不断增长的需求，以及其他市场对外压组件的需求。利用与标准球阀相同的设计技术，水下设计包括必要的设计变更，为水下行业提供可靠的外压阀。由于配件、管道和相关设备的可用性，我们的球阀可以满足您在地面上或地下高压应用中的所有需求。Parker Autoclave Engineers subsea ball valves have been designed to fulfill the ever growing demand in the petroleum industry as well as the need for externally pressurized components in other markets. Utilizing the same design technology as the standard ball valve, the subsea design incorporates the necessary design alterations to provide a reliable externally pressurized valve for the subsea industry. With the availability of fittings, tubing, and related equipment our ball valves can provide all your needs on high-pressure applications above or below the surface.



High Pressure Subsea Ball Valves PDF Catalog
3/16", 1/4", 3/8" and 1/2" to 20,000 psi (1379 bar) and operational in water depths to 12,500 feet (3810 meters)


海底应用球阀外部承压达20，000psi(1379bar）
阀内承压达水深12，500”(3810米)



Subsea Ball Valve规格参数：

- 整体式，耳轴安装式，阀杆设计消除了两件式设计中的剪切破坏。
One-piece, trunnion mounted style, stem design eliminates shear failure found in two-piece designs.

- 可重新扭转阀座压盖，延长阀座使用寿命。
Re-torqueable seat glands for longer seat life.

- PEEK座椅具有优异的耐化学品、耐热性和耐磨性。
PEEK seats which offer excellent resistance to chemicals,heat, and wear/abrasion.

- 全流道流道使压降更小化。

-316冷加工不锈钢结构。
Full-port flow path minimizes pressure drop.

- 316冷加工不锈钢结构。
316 cold worked stainless steel construction.

- 丁腈橡胶o形圈标准温度 高至250°F（121°C）。
Buna-N o-ring standard 250°F (121°C) max.



- 低摩擦压力辅助石墨填充聚四氟乙烯阀杆密封增加了循环寿命。
Low friction pressure assisted graphite filled PTFE stem seal increases cycle life.

- 可提供多种管子和管端配件。
Wide selection of tube and pipe end fittings available.

- 适用于NACE MR-01-75。
Available to NACE MR-01-75.

- 可选湿润材料。
Optional wetted materials.

- 提供多种流量配置和端口大小。
Available in a number of flow configurations and port sizes.



- 海底球阀深水应用：2通和3通设计，压力可达20000psi, 水深达3810米，12500ft; ROV Paddles and buckets可选。海底球阀符合NACE MR-01-75标准，ROV水下机器人可操作。海底球阀典型应用包括水下液压管路、阀组、水下控制面板、水下采油树和潜艇。

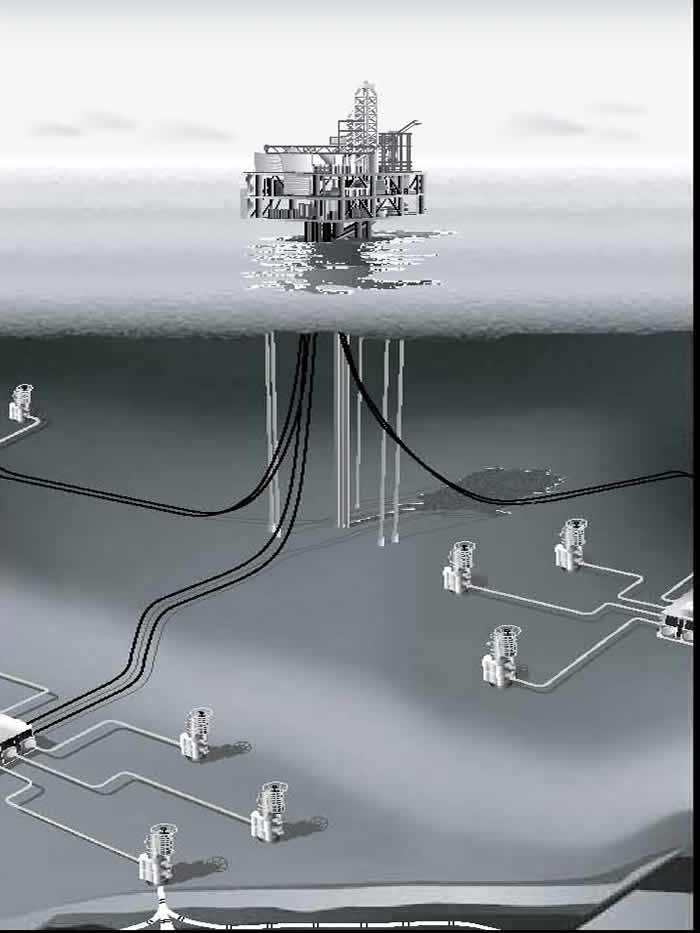

Ball Valves - Subsea Series Applications:
海底球阀应用

- 海底液压管汇
Subsea hydraulic manifolds
- 海底控制面板
Subsea control panels
- 海底采油树
Subsea trees



适用于客户远程操作车辆ROV操作
Adaptable for Remote Operated Vehicle (ROV) operation by customer



Autoclave海底球阀 (1.379bar) 压力等级20,000psi
尺寸: 3/16~，1/4~，3/8~，1/2~和1英寸
用于海底操作的高压球阀，水深12,500英尺(3810米)

二通6.35m节流口径型号: S2B4S15L2，S2B4S15L4，S2B4S15L6，S2B4S10L8，S2B4S20K4，S2B4S20M6，S2B4S20，S2B4S20H4，S2B4S20H6，S2B4S20H9，S2B4S15P2，S2B4S15P4，S2B4S15P6.S2B4S15P8
二通9.52m节流口径型号: S2B6S10L8，S2B6S206，S2B6S20，S2B6S20M12，S2B6S15P4,S2B6S15P6， S2B6S15P8
二通12.7mm节流口径型号: S2B8S15M12，S2B8S15M16，S2B8S10P12，S2B8S10P16
二通4.77m节流口径型号: S3B3S15M4，S3BD3S15M4，S3B3S15M6，S3BD3S15M6，S3B3S15M9,S3BD3S15M3，S3B3S15H4S3BD3S15H4， S3B3S15H6，S3BD3S15H6，S3B3S15P4，S3BD3S15P4，S3B3S15P6，S3BD3S15P6二通8.33n节流口径型号: S3B6S10L8，S3BD6S10L8，S3B6S106，S3BD6S10M6，S3B6S10M9，S3BD6S10M9，S3B6S10M12,S3BD6S10M12，S3B6S10P4，S3BD6S10P4，S3B6S10P6，S3BD6S10P6，S3B6S10P8，S3BD6S10P8
二通12.7m节流口径型号: S3B8S10M12，S3BD8S10M12，S3E8S10M16，S3BD8S10M16，S3B8S10P12，S3BD8S10P12，S3B8S10P16.S3BD8S10P16




Parker Autoclave Engineers ball valves can be utilized to switch or isolate flow. The standard material of construction of the valve is 316 cold worked stainless steel with PEEK seats, graphite filled PTFE stem seal, and o-ring material as required by the process fluid.
The subsea ball valve design incorporates additional o-ring seals, which prevent the ingress of seawater into the valve which would adversely affect the operation of the valve as well as contaminate the process fluid. A significant feature of the subsea design is a thrust washer positioned under the stem preventing outside sea water from moving the stem from it’s aligned position.

Subsea ball valves are designed to facilitate operation by a Remote Operated vehicle (ROV). ROV operator assemblies are used for valve mounting and to provide positive stopping for precise 90° operation.
Various tube and pipe connections are available throughout a variety of valve configurations with standard port sizes from 3/16” to 1”. Contact Parker Autoclave Engineers technical sales support or your local distributor for more information on optional materials of construction, seal materials and ROV operator designs to fit your application requirements.

PRESSURE TEMPERATURE RATINGS
MAWP: Maximum Allowable Working Pressure
TEMPERATURE .C
(-18) (38)
(93) (150) (204) (260)
Cv listed is for maximum orifice size of .250 inches only. Consult factory for Cv of valves with reduced orifice sizes.
20,000
(1379)

(1034)
15,000

10,000
(690)
(345)
5,000
0
TEMPERATURE .F
Pressure ratings are determined by the end connections chosen, see chart.
Maximum temperature rating is determined by the o-ring material (see descriptions below).
Maximum pressure rating is determined by the end connection (see table above).
NOTE: Ball valves are not recommended for critical gas applications such as Hydrogen, Helium or other small molecular gases.
Ordering Procedure
For complete information on available end connections, see next page. 2-way ball valves are furnished complete with tube or pipe connections. Standard valve has Buna-N o-rings [250°F (121°C)] max.
Typical catalog number: S2B 4 S 20 M9



Valve Ball Material Pressure End Connection OptionsSeries Orifice (X 1000 psi) Subsea-2-way Diameter S - 316SS M9 - SF562CX20 V - Viton: 400°F (204°C) max EPDM -Ethylene Propylene: 250°F (121°C) max
4-1/4” (For material options (See Chart on (6.35mm) contact factory) next page)
End Connection Options
Seat Gland


Catalog Number End Connection Number Connection MAWP @ Room Temperature Hex Inches(mm)
S2B4S15L2 L2 W125 15,000 psi (1034 bar) 1 (25.40)
S2B4S15L4 L4 SW250 15,000 psi (1034 bar) 1 (25.40)
S2B4S15L6 L6 SW375 15,000 psi (1034 bar) 1 (25.40)
S2B4S10L8 L8 SW500 10,000 psi (690 bar) 1 (25.40)
S2B4S20M4 M4 SF250CX20 20,000 psi (1379 bar) 1 (25.40)
S2B4S20M6 M6 SF375CX20 20,000 psi (1379 bar) 1 (25.40)
S2B4S20M9 M9 SF562CX20 20,000 psi (1379 bar) 1 (25.40)
S2B4S20H4 H4 F250C 20,000 psi (1379 bar) 1 (25.40)
S2B4S20H6 H6 F375C 20,000 psi (1379 bar) 1 (25.40)
S2B4S20H9 H9 F562C 20,000 psi (1379 bar) 1.38 (35.05)
S2B4S15P2 P2 1/8” NPT 15,000 psi (1034 bar) 1 (25.40)
S2B4S15P4 P4 1/4” NPT 15,000 psi (1034 bar) 1 (25.40)
S2B4S15P6 P6 3/8” NPT 15,000 psi (1034 bar) 1 (25.40)
S2B4S15P8 P8 1/2” NPT 15,000 psi (1034 bar) 1.38 (35.05)
MAWP: Maximum Allowable Working Pressure
See ball valve option/details section for end connection details, material, and high temperature options.

NOTE:
1. MAWP (See Table)

2. Maximum Sea Depth 12,500 FT (3811 meters)

3. Maximum External Pressure 5,500 psi (379 bar)

SEE END CONNECTION OPTIONS (both ends)
SEE SEAT GLAND HEX
Dimensions for reference only and subject to change.

PRESSURE BAR


For complete information on available end connections, see next page. 2-way ball valves are furnished complete with tube or pipe connections. Standard valve has Buna-N o-rings [250°F (121°C)] max.
Typical catalog number: S2B 6 S 20 M9
EPDM - Ethylene Propylene: 250°F (121°C) max



PRESSURE TEMPERATURE RATINGS
TEMPERATURE .C (-18) (38)(93) (150) (204) (260) 20,000

(1379)
(1034)
15,000
10,000
(690)
(345)
5,000
0
100 200 300 400 500 TEMPERATURE .F
Pressure.ratings.are.determined.by.the.end.connections.chosen,.see.chart.
Maximum temperature rating is determined by the o-ring material (see descriptions below).
Maximum pressure rating is determined by the end connection (see table above).
NOTE: Ball valves are not recommended for critical gas applications such as Hydrogen, Helium or other small molecular gases.
Ordering Procedure



Valve Ball Material Pressure
Series Orifice (X 1000 psi) End Connection Options
Subsea-2-way Diameter S - 316SS
M9 - SF562CX20 V - Viton: 400°F (204°C) max
6-3/8” (For material options
(9.52 mm) contact factory) (See Chart on
next page)
End Connection Options
Seat Gland


Catalog Number End Connection Number Connection MAWP @ Room Temperature Hex Inches(mm)
S2B6S10L8 L8 SW500 10,000 psi (690 bar) 1.38 (35.05)
S2B6S20M6 M6 SF375CX20 20,000 psi (1379 bar) 1.38 (35.05)
S2B6S20M9 M9 SF562CX20 20,000 psi (1379 bar) 1.38 (35.05)
S2B6S20M12 M12 SF750CX20 20,000 psi (1379 bar) 1.38 (35.05)
S2B6S15P4 P4 1/4” NPT 15,000 psi (1034 bar) 1.38 (35.05)
S2B6S15P6 P6 3/8” NPT 15,000 psi (1034 bar) 1.38 (35.05)
S2B6S15P8 P8 1/2” NPT 15,000 psi (1034 bar) 1.38 (35.05)
MAWP: Maximum Allowable Working Pressure
See ball valve option/details section for end connection details, material, and high temperature options.



NOTE:
1. MAWP (See Table)

2. Maximum Sea Depth 11,500 FT (3505 meters)

3. Maximum External Pressure 5,000 psi (345 bar)

SEE END CONNECTION OPTIONS (both ends)
SEE SEAT
GLAND HEX
5.53
(140.3)
Dimensions for reference only and subject to change.

MAWP @ Minimum Orifice
Connection Room Temperature Inches (mm)
SF750CX20 15,000 psi (1034 bar) .500 (12.70) SF1000CX20 15,000 psi (1034 bar) .500 (12.70) 3/4” NPT 10,000 psi (690 bar) .500 (12.70) 1” NPT 10,000 psi (690 bar) .500 (12.70)
Valve Cv=10.20
MAWP: Maximum Allowable Working Pressure

TEMPERATURE .C (-18) (38) (93) (150) (204) (260) 15,000
(1034)

(690)
10,000
5,000
(345)
0
Pressure ratings are determined by the end connections chosen, see chart.
Maximum temperature rating is determined by the o-ring material
(see descriptions below).
Maximum pressure rating is determined by the end connection
(see table above).

NOTE: Ball valves are not recommended for critical gas applications such as Hydrogen, Helium or other small molecular gases.
Ordering Procedure
For complete information on available end connections, see next page. 2-way ball valves are furnished complete with tube or pipe connections. Standard valve has Buna-N o-rings [250°F (121°C)] max.
Typical catalog number: S2B 8 S 15 M12

Valve Ball Material Pressure End Connection OptionsSeries Orifice (X 1000 psi)
Subsea-2-way Diameter S - 316SS
8-1/2” (For material options M12 - SF750CX20 V - Viton: 400°F (204°C) max EPDM - Ethylene Propylene: 250°F (121°C) max
(See Chart on
next page)(12.7 mm) contact factory)
End Connection Options
Seat Gland
CatalogNumber End Connection Number Connection MAWP @ Room Temperature Hex Inches(mm)

S2B8S15M12 M12 SF750CX20 15,000 psi (1034 bar) 1.75 (44.5) S2B8S15M16 M16 SF1000CX20 15,000 psi (1034 bar) 1.75 (44.5) S2B8S10P12 P12 3/4” NPT 10,000 psi (690 bar) 1.75 (44.5) S2B8S10P16 P16 1” NPT 10,000 psi (690 bar) 1.75 (44.5)
MAWP: Maximum Allowable Working Pressure
See ball valve option/details section for end connection details, material, and high temperature options.



.500” DEEP

NOTE:
1. MAWP (See Table)

2. Maximum Sea Depth 11,500 FT (3505 meters)

3. Maximum External Pressure 5,000 psi (345 bar)

SEE END CONNECTION OPTIONS (both ends)
SEE SEAT GLAND HEX
Dimensions for reference only and subject to change.

Ball Valves -2-Way Subsea Series (3/4” Orifice)
Pressures to 15,000 psi (1034 bar) .750” (19mm) Orifice
PRESSURE BAR
For complete information on available end connections, see next page. 2-way ball valves are furnished complete with tube or pipe connections. Standard valve has Buna-N o-rings [250°F (121°C)] max.
Typical catalog number: S2B 12 S 15 M12
MAWP @ Minimum Orifice

Connection Room Temperature Inches (mm)
SF750CX10 15,000 psi (1034 bar) .516 (13.10) SF1000CX10 15,000 psi (1034 bar) .688 (17.47) 1/2” NPT 15,000 psi (1034 bar) .688 (17.47) 3/4” NPT 10,000 psi (690 bar) .75 (19.05) 1” NPT 10,000 psi (690 bar) .75 (19.05)
Valve Cv=21

MAWP: Maximum Allowable Working Pressure
Cv listed is for maximum orifice size of .750 inch only.
Consult factory for Cv of valves with reduced orifice sizes.



(1034)
(690)
(345)
(see descriptions below).
Maximum pressure rating is determined by the end connection
(see table above).

NOTE: Ball valves are not recommended for critical gas applications such as Hydrogen, Helium or other small molecular gases.
Ordering Procedure



Valve Ball Material Pressure End Connection OptionsSeries Orifice (X 1000 psi) Subsea-2-way Diameter S - 316SS M12 - SF750CX10 V - Viton: 400°F (204°C) max EPDM - Ethylene Propylene: 250°F (121°C) max
12-3/4” (For material options (See Chart on
(19.05 mm) contact factory) next page)
End Connection Options
Seat Gland
CatalogNumber End Connection Number Connection MAWP @ Room Temperature Hex Inches(mm)

S2B12S15M12 M12 SF750CX20 15,000 psi (1034 bar) 1.88 (47.8) S2B12S15M16 M16 SF1000CX20 15,000 psi (1034 bar) 1.88 (47.8) S2B12S15P8 P8 1/2” NPT 15,000 psi (1034 bar) 1.88 (47.8) S2B12S10P12 P12 3/4” NPT 10,000 psi (690 bar) 1.88 (47.8) S2B12S10P16 P16 1” NPT 10,000 psi (690 bar) 1.88 (47.8)
MAWP: Maximum Allowable Working Pressure
See ball valve option/details section for end connection details, material, and high temperature options.



.625” DEEP

NOTE:

1. MAWP (See Table)

2. Maximum Sea Depth 11,500 FT (3505 meters)

3. Maximum External Pressure 5,000 psi (345 bar)

SEE END CONNECTION OPTIONS (both ends)
SEE SEAT GLAND HEX

Dimensions for reference only and subject to change.

Ball Valves -2-Way Subsea Series (1” Orifice)
Pressures to 10,000 psi (690 bar) 1.00” (25.4mm) Orifice
MAWP @ Minimum Orifice
Connection Room Temperature Inches (mm) Valve CV
SF1500CX 10,000 psi (690 bar) .938 (23.83) 30 3/4” NPT 10,000 psi (690 bar) 1.00 (25.40) 34 1” NPT 10,000 psi (690 bar) 1.00 (25.40) 34
MAWP: Maximum Allowable Working Pressure

(1034)
(690)
(345)
(see descriptions below).
Maximum pressure rating is determined by the end connection
(see table above).

NOTE: Ball valves are not recommended for critical gas applications such as Hydrogen, Helium or other small molecular gases.
Ordering Procedure

For complete information on available end connections, see next page. 2-way ball valves are furnished complete with tube or pipe connections. Standard valve has Buna-N o-rings [250°F (121°C)] max.
Typical catalog number: S2B 16 S 10 P16



PRESSURE BAR
Valve Ball Material Pressure End Connection OptionsSeries Orifice (X 1000 psi) Subsea-2-way Diameter S - 316SS P16 - 1” NPT V - Viton: 400°F (204°C) max EPDM - Ethylene Propylene: 250°F (121°C) max
(See Chart on
16-1” (For material options
(25.4 mm) contact factory) next page)
End Connection Options
Seat Gland
CatalogNumber End Connection Number Connection MAWP @ Room Temperature Hex Inches(mm)

S2B16S10M24 M24 SF1500CX 10,000 psi (690 bar) 1.88 (47.75)S2B16S10P12 P12 3/4” NPT 10,000 psi (690 bar) 1.88 (47.75)S2B16S10P16 P16 1” NPT 10,000 psi (690 bar) 1.88 (47.75)
MAWP: Maximum Allowable Working Pressure
See ball valve option/details section for end connection details, material, and high temperature options.



.625” DEEP

NOTE:
1. MAWP (See Table)

2. Maximum Sea Depth 11,500 FT (3505 meters)

3. Maximum External Pressure 5,000 psi (345 bar)

SEE END CONNECTION OPTIONS (both ends)
SEE SEAT GLAND HEX
Dimensions for reference only and subject to change.
Dimensions for P12 and P16 connections only. Contact facotry for M16 dimensions.



PRESSURE TEMPERATURE RATINGS TEMPERATURE .C (-18) (38) (93) (150) (204) (260) 20,000
(1379)

SF & F CO NNECTIONS
NPT C ONNECTION
NPT conne ction rated 400.F (204.C) maximum.

(1034)
15,000
(690)
10,000
(345)
5,000
0
100 200 300 400 500 TEMPERATURE .F *pressure ratings are determined by the end connections chosen, see chart. NOTE: Maximum side connection inlet pressure 15,000 psi (1034 bar).
Maximum temperature rating is determined by the o-ring material
Ordering Procedure

Standard valve has Buna-N o-rings [250°F (121°C)] max. Typical catalog number: S3BD 3 S 20 M9



Valve Ball Material Pressure End Connection Options
Series Orifice (X 1000 psi) Diameter S -316SS
V - Viton: 400°F (204°C) max
S3B Subsea-3-way
M9 - SF562CX20
S3BD Subsea-3-way
diverter
EPDM - Ethylene Propylene: 250°F (121°C) max (See Chart on
3-3/16” (For material options
next page)
contact factory)
(4.77 mm)
End Connection Options Catalog End Connection Number Number Connection MAWP @ Room Temperature Hex Inches(mm) Seat Gland
S3B3S15M4 S3BD3S20M4 M4 SF250CX20 15,000 psi (1034 bar) 20,000 psi (1379 bar) 1 (25.40)
S3B3S15M6 S3BD3S20M6 M6 SF375CX20 15,000 psi (1034 bar) 20,000 psi (1379 bar) 1 (25.40)
S3B3S15M9 S3BD3S20M9 M9 SF562CX20 15,000 psi (1034 bar) 20,000 psi (1379 bar) 1 (25.40)
S3B3S15H4 S3BD3S20H4 H4 F250C 15,000 psi (1034 bar) 20,000 psi (1379 bar) 1 (25.40)
S3B3S15H6 S3BD3S20H6 H6 F375C 15,000 psi (1034 bar) 20,000 psi (1379 bar) 1 (25.40)
S3B3S15P4 S3BD3S15P4 P4 1/4” NPT 15,000 psi (1034 bar) 1 (25.40)
S3B3S15P6 S3BD3S15P6 P6 3/8” NPT 15,000 psi (1034 bar) 1 (25.40)
See ball valve option/detail section for end connection details, material, and high temperature options.
OPEN OPEN OPEN CLOSED OPEN

*3-Way Diverter Valve 3-Way Ball Valve 90° Turn 180° Turn
*The Diverter Valve design permits inlet flow through the bottom port. Outlet flow may be diverted to either valve side port.

(6.35)
0.216 ± .001
(5.49 ± .025)
4.34
(110.23)
(119.89)

NOTE:
1. MAWP (See Table)

2. Maximum Sea Depth 10,300 FT (3140 meters)

3. Maximum External Pressure 4,500 psi (310 bar)

SEE END CONNECTION OPTONS (3 PLACES)
Dimensions for reference only and subject to change.

PRESSURE BAR
For complete information on available end connections, see next page. 3-way ball valves are furnished complete with tube or pipe connections. Standard valve has Buna-N o-rings [250°F (121°C)] max.
Typical catalog number: S3B 6 S 10 M9



PRESSURE TEMPERATURE RATINGS
TEMPERATURE .C
(-18) (38) (93) (150) (204) (260) 15,000
(1034)
(690)10,000

TEMPERATURE .F
Maximum temperature rating is determined by the o-ring material (see descriptions below).
Maximum pressure rating is determined by the end connection (see table above).
Note: Side inlet pressure not recommended. Bottom inlet pressure only.
NOTE: Ball valves are not recommended for critical gas applications such as Hydrogen, Helium or other small molecular gases.
Ordering Procedure

Valve Ball Material Pressure End Connection Options
Series Orifice (X 1000 psi)
S3B Subsea-3-way Diameter S -316SS S3BD Subsea-3-way
M9 -SF562CX20 V - Viton: 400°F (204°C) max EPDM - Ethylene Propylene: 250°F (121°C) max
(See Chart on6-3/8” (For material options
diverter
next page)(9.52 mm) contact factory)
End Connection Options
Seat Gland
CatalogNumber End Connection Number Connection MAWP @ Room Temperature Hex Inches(mm)
S3B6S10L8 L8 SW500 10,000 psi (690 bar) 1.38 (35.05)
S3BD6S10L8
S3B6S10M6 M6 SF375CX20 10,000 psi (690 bar) 1.38 (35.05)
S3BD6S10M6
S3B6S10M9 M9 SF562CX20 10,000 psi (690 bar) 1.38 (35.05)
S3BD6S10M9
S3B6S10M12 M12 SF750CX20 10,000 psi (690 bar) 1.38 (35.05)
S3BD6S10M12
S3B6S10P4 P4 1/4” NPT 10,000 psi (690 bar) 1.38 (35.05)
S3BD6S10P4
S3B6S10P6 P6 3/8” NPT 10,000 psi (690 bar) 1.38 (35.05)
S3BD6S10P6
S3B6S10P8 P8 1/2” NPT 10,000 psi (690 bar) 1.38 (35.05)
S3BD6S10P8
MAWP: Maximum Allowable Working Pressure
See ball valve option/details section for end connection details, material, and high temperature options.
OPEN OPEN OPEN CLOSED OPEN

*3-Way Diverter Valve 3-Way Ball Valve 90° Turn 180° Turn *The Diverter Valve design permits inlet flow through the bottom port. Outlet flow may be diverted to either valve side port.

NOTE:
1. MAWP (See Table)

2. Maximum Sea Depth 11,500 FT (3505 meters)

3. Maximum External Pressure 5,000 psi (345 bar)

Dimensions for reference only and subject to change.

PRESSURE BAR
For complete information on available end connections, see next page. 3-way ball valves are furnished complete with tube or pipe connections. Standard valve has Buna-N o-rings [250°F (121°C)] max.
Typical catalog number: S3B 8 S 10 M12



PRESSURE TEMPERATURE RATINGS
TEMPERATURE .C
(-18) (38) (93) (150) (204) (260) 15,000
(1034)
(690)10,000

Maximum temperature rating is determined by the o-ring material (see descriptions below).
Maximum pressure rating is determined by the end connection (see table above).
Note: Side inlet pressure not recommended. Bottom inlet pressure only.
NOTE: Ball valves are not recommended for critical gas applications such as Hydrogen, Helium or other small molecular gases.
Ordering Procedure

Valve Ball Material Pressure OptionsEnd Connection
Series
Orifice
S -316SS M12 -SF750CX20
V - Viton: 400°F (204°C) max EPDM - Ethylene Propylene: 250°F (121°C) max
S3B Subsea-3-way Diameter
S3BD Subsea-3-way diverter 8-1/2” (For material options
(12.7 mm) contact factory) (See Chart on
next page)
End Connection Options Catalog End Connection MAWP @ Hex Number Number Connection Room Temperature Inches(mm) Seat Gland
S3B8S10M12 M12 SF750CX20 10,000 psi (690 bar) 1.75 (44.5) S3BD8S10M12 S3B8S10M16 M16 SF1000CX20 10,000 psi (690 bar) 1.75 (44.5) S3BD8S10M16 S3B8S10P12 P12 3/4” NPT 10,000 psi (690 bar) 1.75 (44.5) S3BD8S10P12 S3B8S10P16 P16 1” NPT 10,000 psi (690 bar) 1.75 (44.5) S3BD8S10P16 See ball valve options for end connection details, material, and high temperature options. OPEN OPEN OPEN CLOSED OPEN MAWP: Maximum Allowable Working Pressure

*3-Way Diverter Valve 3-Way Ball Valve 90° Turn 180° Turn
*The Diverter Valve design permits inlet flow through the bottom port. Outlet flow may be diverted to either valve side port.







美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694
Http：//www.cnmec.biz
传真：010-8428 8762


京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
