Parker Autoclave Engineers Reactor反应釜
Autoclave Engineers公司作为高压反应设备方面的生产厂商已经有50年历史。Autoclave Engineers 被世人关注不仅仅因他在安全性和可靠性方面的辉煌历史，更是因为AE公司同时是技术上的一个开创者。MagneDrive（磁性驱动）就是由AE公司设计并应用在一系列的新型压力容器上的。我们在建立研究型实验室级别的先进搅拌型高压反应釜上有着广泛并占优势地位的经验。

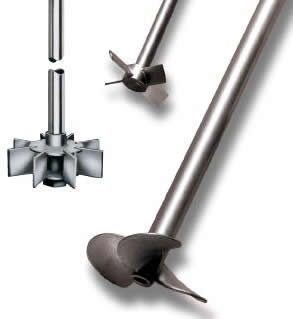

Autoclave Engineers公司一系列的模件配置支持客户在相当广泛的选项上自定义特殊要求。 压力容器配置的首要选择因素为压力和温度要求、容量、固定方式和封印兼容性。其次为搅拌装置的详细要求，包括扭矩要求、叶轮结构和马达类型。适合您研究的内部元件、预装阀门和仪器也是必须考虑的。
Autoclave Engineers Reactor反应釜产品范围
- Stirred Reactors 搅拌反应器
|
|
Mini-Reactors
微型反应釜
A Full-featured stirred reactor in an easy-open, compact size.
No tools required…open and close by hand.
25ml, 50ml, 100ml & 150ml sizes
2,900psi pressure at 600oF
3,000 rpm In-Line MagneDrive III agitation
Volume: 25, 50, 100 and 150 ml
Operating Pressure: 3,000 psi @ 600°F
207 Bar @ 315°C |
Bolted Closure Laboratory Batch Reactors
The highest pressure rating of the standard stirred laboratory reactors
A standard high pressure laboratory batch reactor
- Pressure rating of 5,500 psig (379 bar)
- Temperature rating 650°F (343°C)
- Magnetic mixer (3,300 rpm MagneDrive?)
- Standard sizes from 100 ml to 4,000 ml (other sizes offered)
- Many options
- Optional metal seals
- ASME Code stamp option |
|
|
High Temperature, Bolted Closure Laboratory Batch Reactors
The highest temperature and pressure rating of the standard stirred laboratory reactors
The High Pressure, Bolted Closure reactors permit research to be conducted at extremely high temperatures and pressures. Parker Autoclave Engineers has designed this line of reactors and specified the valves, fittings and tubing to be capable of 5,000 psi at up to 950°F (345bar @ 510°C) |
EZE-Seal Stirred Laboratory Reactor
Seal this (100 to 4,000 ml) high pressure laboratory reactor with low torque
A standard high temperature laboratory batch reactor
- 3,300 psig (227 bar) pressure rating
- 850°F (454°C) temperature rating
- Optional metal seals
- Catalytic conversion kits & optional equipment
- Magnetic mixer (3,300 rpm)
- Standard sizes (100 to 4,000 ml)
- ASME Code stamp option |
|
|

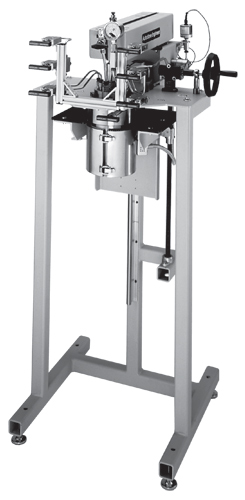

ZipperClave Stirred Laboratory Reactor
Open this (500 to 4,000 ml) high pressure, laboratory reactor by hand
A standard high pressure laboratory batch reactor
- Open & seal without tools
- Pressure rating of 2,200 psig (151 bar)
- Temperature rating 450°F (232°C)
- O-ring seals
- Magnetic mixer (3,300 rpm MagneDrive?)
- Standard sizes (500 to 4,000 ml)
- Many equipment options
- Dispersimax impeller offered. |

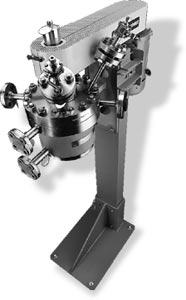

Stirred Precontacting Pot
Mix/slurry catalysts and pwder into pressurized, chemical reactions
Add hard-to-wet powders into 1 gallon (4 Liters) of high-pressure, viscous chemicals using a stirred & jacketed reactor. It is basic equipment for the slurry-phase/gas-phase Spheripol polypropylene process. The 1,000 psig (69 bar) pressure rating @ 212°F (100° C) allows direct injection of the mixture into a reaction under pressure. The MagneDrive? magnetically coupled mixer stirs viscous fluids |
|
|
|

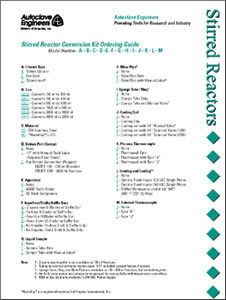

Conversion Kit
Change capacity of standard, ZipperClave, EZE-Seal, & Bolted closure batch reactors. Purchase the vessel, impeller, shaft, internal process tubing & furnace that you need in a single, complete conversion kit. Easily specify conversion parts for adding new capabilities to your high temperature, high pressure reactor.
|
压力密封方式：AE公司提供三种基本的密封压力容器系列：
ZipperClave Reactor
ZipperClave系列提供快的密封开启方式，不需要螺栓，密封圈，快松夹等任何配件。ZipperClave使用橡胶O型垫圈进行密封。 |
EZE Seal Reactor
EZE-Seal型可以工作在高温和中等压力之下。“活套法兰”允许快速简单的换置釜身。本型的密封设计只要求很小的螺栓扭力。EZE-Seal可以采用金属或是橡胶密封。 |
Bolted Closure Reactor
Bolted Closure 型可以在适合的温度时工作在极高的压力下。体型采用Gasche金属垫片进行压力密封。 |
- Autoclave Engineers Laboratory Reaction Systems实验室反应系统
|
|
Multi-Reactor Systems
Multiple Reactors for Faster Catalyst Development.
Productivity is increased by performing parallel processing. The stirred reactors can be chosen from any of Parker Autoclave Engineers' reactors. The number of reactors and their size & configuration is determined solely by your process requirments. Each system is custom desgined to meeet all of your needs. |

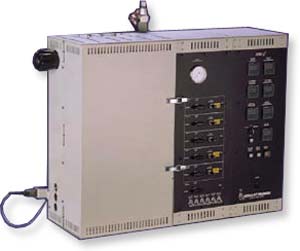

BTRS-JR Laboratory Tube Reactor System
Oven-based bench top tube reactor system keeps process fluid vaporized
The BTRS-Jr / vaporizes / mixes four inputs, which react in a tube reactor (independent temperature control) with back-pressure regulation. Precisely sample either inputs or reactants as hot vapor (no condensation)
- Pressure rating to 2,900 psig (200 bar)
- Temperature to 1,202°F (650°C) |
|
|

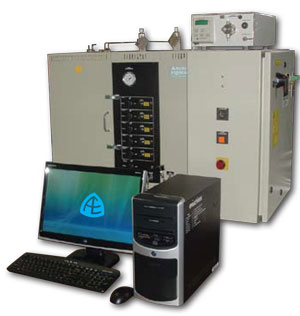

BTRS-JR-PC
Automatic Bench Top Reactor System at a reasonable price
The BTRS-Jr-PC is a complete reaction system designed for vapor phase catalyst evaluation and continuous flow analysis. The standard system includes one fixed bed tubular reactor with system control accomplished by a PLC and a supervisory computer. This system allows for accurate and automatic control of feed valves, status valve, sample valve, reactor temperature and pressure. Custom designs are available for other sized reactors, temperatures up to 1000oC, etc. |

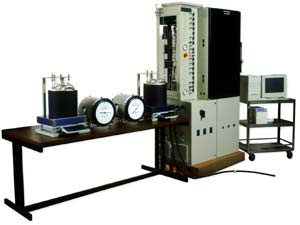

BTRS-900 Automatic Tube Reactor System
Automatic Bench Top Reaction System for complex laboratory simulations
Tube reactor system with, automatic customized software & controls (option for multiple reactor systems). Includes real-time fail-safe process logic (minimizing operator time / errors) & data acquisition / manipulation
- Pressure rating to 2,900 psig (200 bar)
- Temperature to1,202°F (650°C) |
- Autoclave Engineers Catalyst Reactors 催化剂反应器
|
|
Berty Stationary Basket Catalyst Reactor
Recycling gas/vapor phase catalyst research tool
Circulate gas past a stationary catalyst bed using 2,500 rpm vane blowers, either 3" (75 mm) or 5" (125 mm) OD, contained within the high pressure reactor
- Three different pressure ratings between 2,450 to 5,800 psi (169 to 400 bar)
- Two temperature ratings 650°F & 1,200°F (343°C & 649°C) |

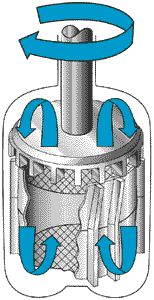

Micro-Berty Catalyst Testing Reactor
Miniature version of the Berty Stationary Basket Catalyst Reactor
Circulate the gas & vapor past the stationary catalyst bed using 5,000 rpm, 1" (25 mm) OD vane blower, contained within the high pressure reactor
- Pressure rating of 5,000 psig (349 bar)
- Temperature rating of either 650°F (343°C) or 1,000°F (538 °C)
- HASTELLOY? C-276 wetted materials |
|
|

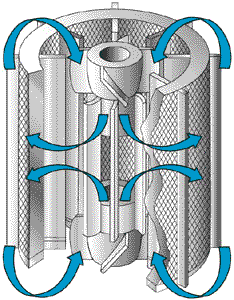

Robinson-Mahoney Catalyst Testing Reactor
The most widely used supported catalyst testing reactor for multiple phases
Popular reactor design circulates liquid reactants past a stationary catalyst bed. Impellers (1,000 rpm) draw fluid into the center of an annular catalyst basket
- Pressure ratings 5,400 psig (372 bar) @ 300 cm3 & 5,800 psig (400 bar) @ 1,000 cm3
- Temperature rating 650°F (343°C) |
Micro Robinson-Mahoney Catalyst Reactor
Test supported catalysts with this "Micro" reactor for multiple phases
Miniature version of the Robinson-Mahoney reactor design circulates liquid reactants past a stationary catalyst bed. Impellers (5,000 rpm) draw fluid into the center of an annular catalyst basket
- Pressure rating 5,000 psig (345 bar)
- Temperature rating 650°F (343°C)
- HASTELLOY? C-276 material |
|
|

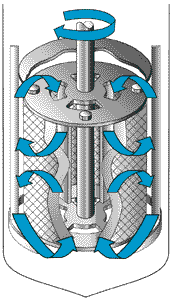

Mahoney-Robinson Spinning Basket Reactor
Spinning annular basket for supported catalyst testing in fluid reactants
One of the Parker Autoclave Engineers catalyst testing reactors for hydro-liquefaction, liquefaction, petroleum cracking, surface chemistry & heterogeneous catalysis research. This design spins a catalyst basket in liquid reactants
- Pressure rating 5,500 psig (379 bar)
- Temperature rating 650°F (343°C) |

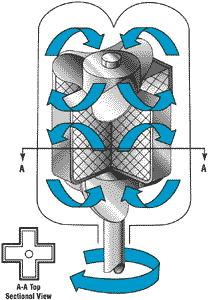

Carberry Spinning Basket Catalyst Reactor
A versatile supported catalyst testing reactor with internal circulation
This multipurpose design spins either a 3" (75 mm) or 5" (125 mm) OD catalyst basket from 0 to 2,500 rpm in order to circulate gases & liquids past solid catalysts
- Three different pressure ratings between 2,450 to 5,800 psig (169 to 400 bar)
- Two temperature ratings 650°F & 1,200°F (343°C & 649°C) |
|
|

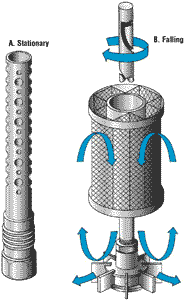

Harshaw Falling Basket Catalyst Reactor
Staged gas/solid & liquid/solid catalyst testing reactor
This sequential, spinning basket design allows the scientists to regenerate / condition / treat / activate / surface modify the catalyst in a gas phase; then directly immerse the catalyst in a liquid phase without handling
- Pressure rating 5,500 psig (379 bar)
- Temperature rating 650°F (343°C) |

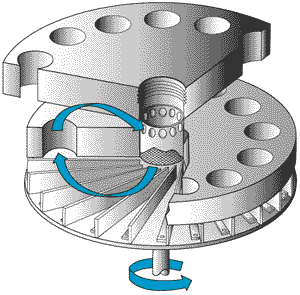

Caldwell Catalyst Testing Reactor
Low density gas/vapor recycling flow supported catalyst research tool
The design creates high circulation pressure & high mass transfer with low density gas. A 8" (200 mm) vane blower @ 2,500 rpm moves the gas past a stationary catalyst bed. Optional plating deactivates the reactor's surfaces
- Pressure rating 800 psig (55 bar)
- Temperature rating 950°F (510°C) |
|
|

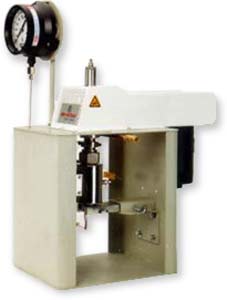

MicroClave Catalyst Testing Reactor
A miniature reactor for precision high pressure catalyst research
Standard, miniature high pressure homogeneous & dispersed catalyst testing reactor
- Pressure rating of 5,000 psig (345 bar)
- Temperature ratings of either 650°F (343°C) or 1,000°F (538°C)
- HASTELLOY C-276 material
- Metal seals
|
MicroClave Catalyst Testing Reactor
A miniature reactor for precision high pressure catalyst research
Standard, miniature high pressure homogeneous & dispersed catalyst testing reactor
- Pressure rating of 5,000 psig (345 bar)
- Temperature ratings of either 650°F (343°C) or 1,000°F (538°C)
- HASTELLOY C-276 material
- Metal seals
|
|
