BTLS2000 Electronic Temperature Switch & Level Switch
BTLS2000电子式温度和液位开关

Barksdale 的BTLS2000电子交换机将温度和水平组合在一个设备中。液压和冷却系统中许多应用的优化解决方案。由于空间始终是一个限制， Barksdale 提供与BTLS一个非常紧凑的版本使用18毫米直径的浮子，允许G1+2"或M20的过程连接。 虽然 BTLS 的模拟版本具有最大限度地减少应用程序中传感器数量的优势，但 IO 链接版本将因过程参数的数字传输而带来全部好处。

? 测量范围从 0...100°C 至 30...140°C 温度加模拟输出的
? 1 或 2 个设置点
? 1 或 2 个级别设置点（最小和最小报警器）
? IO 链接数字通信可用
? IP67

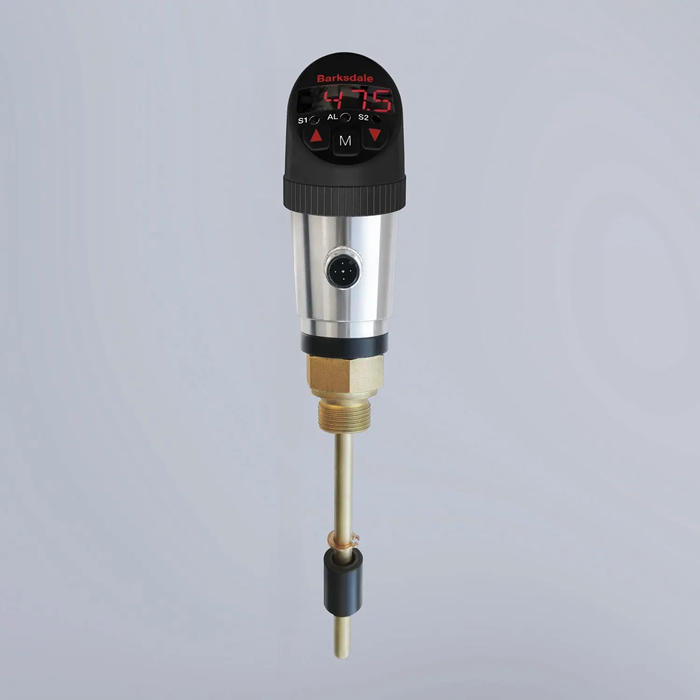

BTLS2000 Electronic Temperature Switch & Level Switch

Barksdale's BTLS2000 electronic switch combines temperature and level in one device. An optimized solution for many applications in hydraulics and cooling systems. As space is always a constraint, Barksdale offers with BTLS a very compact version using 18mm diameter floats to allow process connection of G1/2” or M20. While an analogue version of the BTLS has the advantage of minimizing the number of sensors in your application, the IO link version however will bring you the full benefit due to the digital transmission of process parameters.

? Measuring ranges from 0 ... 100°C to 30 ... 140°C
? 1 or 2 setpoints for Temperature plus analogue output
? 1 or 2 setpoints for Level (Min and Min-min alarm)
? IO-Link digital communication available
? IP67

应用：

温度和液位控制 Temperature & Level control for
