CPC Colder Products Company | 桶分装 | DrumQuik | 桶 IBC集装桶

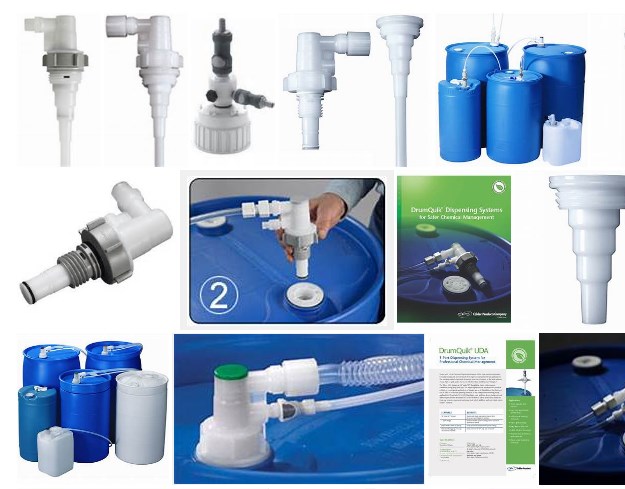

CPC DrumQuik Pro & DrumQuik PUR 封闭式化学品输送系统
CPC DrumQuik dispensing systems Drum/Dispensing
CPC DrumQuik Pro & DrumQuik PUR桶/分装连接器
CPC 桶 分装连接器 分装接头

化学品处理

安全地连接化学品。不管您的应用程序条件为何，安全性必然是您的优先考虑。当涉及到化学品的处理，没有其他公司比CPC更认真地研发快速断开管件、密封、接头和化学分配系统， 以保护工人的作业安全，防止化学品泄漏和溢出污染环境。我们的耐化学腐蚀的产品满足各种应用，如半导体、织物和陶瓷染料、调味剂、液晶显示器、太阳能电池、医药制造和化学品管理等等。

CPC DrumQuik Pro & DrumQuik PUR桶/分装连接器

无论您是使用简便油桶，桶或中型散装容器（IBCs），我们的DrumQuik分配系统适合几乎任何容器使用，“封闭”地提取容器中的化学品或食品为主的液体。备有不同尺寸和材料选择的汲取管系统，我们的解决方案有效减少危险品暴露，同时保护您的流体本身免受污染。

CPC DrumQuik Pro & DrumQuik PUR：封闭式化学品输送系统，带一个可多次使用的分配头和一个可再循环利用的插底管装置，便于从桶、罐和中型散装容器（IBC）中抽取化学品。
材料：食品级，纯聚丙烯和聚乙烯
螺纹规格：
桶螺纹：2”美制粗螺纹，BCS 56X4和2”NPS（G8）
分配头：1/2”NPT,3/4”软管倒钩和3/4”BSPP
DrumQuik转接头及配件

Colder公司可提供多种附件，用来与DrumQuikPRO和DrumQuik PUR系统一起使用。这些转接头和附件包括排气单向阀、底阀、管件和其他配件等。

DrumQuik3端口 UDA：把3/4”NPT外螺纹接头连接到具有标准桶塞的插底管系统的密闭分装系统。
材料：食品级，纯聚丙烯
螺纹规格：UDA 3端口：3/4”NPT外螺纹；UDA：无
瓶子适配器套件：用于SP400-38mm螺纹的试剂瓶。
材料：天然纯聚丙烯
螺纹规格：SP400-38mm
DrumQuik 亚洲桶适配器，桶塞和桶盖

UDC：用38mm螺纹和嵌入式瓶颈为盒装袋分装系统提供封闭连接。
材料：聚丙烯和聚甲醛
管道内径：3/8”至3/4”（9.5mm至19.0mm）

穿刺密封：为Hedwin Cubitainer盒袋容器系统以及带有SP400 38mm螺纹柔韧性袋和瓶提供了封闭连接。
材料：聚丙烯（接头）和聚乙烯（瓶帽）
管道内径：1/4”至3/8”（6.4mm至9.5mm）

管配件
FitQuik 接头：保证管路无泄漏连接的高质量接头。这种精密成型的接头设计消除了医疗设备、分析仪器或气动设备中的管道泄漏点。

更多产品信息
量身定制能力：Colder公司直接与客户的工程设计团队合作，以解决困难的液体和空气管理问题。

附件：提供各种辅配件，从管配件到鲁尔接头，以及PTF螺母和防尘帽。

Dip-tube 13.0" or 330mm long for 5 gal/25L Jerry Cans
DQPRODT0410
Dip-tube 13.0" or 330mm long for 5 gal/25L Jerry Cans

Dip-tube 35.5" or 905mm long for 55gal/200L Drums
DQPRODT0985
Dip-tube 35.5" or 905mm long for 55gal/200L Drums

Dip-tube 39.0" or 990mm long for 275gal/1040L IBCs
DQPRODT1070
Dip-tube 39.0" or 990mm long for 275gal/1040L IBCs

Dip-tube 47.0" or 1194mm long for 330gal/1250L IBCs
DQPRODT1274
Dip-tube 47.0" or 1194mm long for 330gal/1250L IBCs

Drum Inserts

Drum Insert with 2" American Buttress Thread and EPDM O-Rings (North American Plastic Drums)
DQPRO202BUT
Drum Insert with 2" American Buttress Thread and EPDM O-Rings (North American Plastic Drums)

Drum Insert with 2" Buttress Thread and with FKM (Viton?) O-Rings (North American Plastic Drums)
DQPRO202BUT202
Drum Insert with 2" Buttress Thread and with FKM (Viton?) O-Rings (North American Plastic Drums)

Drum Insert with BSC56X4 Thread (European Plastic Drums)
DQPRO2056X4
Drum Insert with BSC56X4 Thread (European Plastic Drums)

Drum Insert BSC 56X4 with FKM seal (Metric Thread)
DQPRO2056X4202
Drum Insert BSC 56X4 with FKM seal (Metric Thread)

70mm Thread Drum Insert with EPDM Seal for European 70x6 and Asian 70x5 (Plastic Drum)
DQPRO20BCS70
70mm Thread Drum Insert with EPDM Seal for European 70x6 and Asian 70x5 (Plastic Drum)

70mm Thread Drum Insert with FKM (Viton?) Seal for European 70x6 and Asian 70x5 (Plastic Drum)
DQPRO20BCS70202
70mm Thread Drum Insert with FKM (Viton?) Seal for European 70x6 and Asian 70x5 (Plastic Drum)

Drum Insert with 2" NPS (ISO G2) Thread and EPDM Flat Bung Seal (Plastic Drums and IBC Caps)
DQPRO20G2NPSPL
Drum Insert with 2" NPS (ISO G2) Thread and EPDM Flat Bung Seal (Plastic Drums and IBC Caps)

Drum Insert with 2" NPS (ISO G2) Thread and FKM (Viton?) Flat Bung Seal (Plastic Drums and IBC Caps)
DQPRO20G2NPSPL202
Drum Insert with 2" NPS (ISO G2) Thread and FKM (Viton?) Flat Bung Seal (Plastic Drums and IBC Caps)

Drum Insert with 2" NPS (ISO G2) Thread and EPDM O-Rings (Steel Drums and IBC Caps)
DQPRO20G2NPSST
Drum Insert with 2" NPS (ISO G2) Thread and EPDM O-Rings (Steel Drums and IBC Caps)

Drum Insert with 2" NPS (ISO G2) Thread and FKM (Viton?) O-Rings (Steel Drums and IBC Caps)
DQPRO20G2NPSST202
Drum Insert with 2" NPS (ISO G2) Thread and FKM (Viton?) O-Rings (Steel Drums and IBC Caps)

Fittings, Valves and Accessories

70 X 6 Adaptor with EPDM O-Ring
DQPRO70X6AD
70 X 6 Adaptor with EPDM O-Ring

70 X 6 Adaptor with FKM (Viton?) O-Rings
DQPRO70X6AD202
70 X 6 Adaptor with FKM (Viton?) O-Rings

Air Filter, Coupler Vent Port, Polypropylene, 70 Micron
DQPROFIL01
Air Filter, Coupler Vent Port, Polypropylene, 70 Micron

O-Rings and Seals

Adaptor, 3/4 FNPT Inner Port X 3/4 NPS Male Thread (for Asian Drums)
DQADAPP0212
Adaptor, 3/4 FNPT Inner Port X 3/4 NPS Male Thread (for Asian Drums)

Adaptor, 3/4 FNPT Inner Port X 1-3/8 Male Buttress Thread (for Asian Drums)
DQADAPP0622
Adaptor, 3/4 FNPT Inner Port X 1-3/8 Male Buttress Thread (for Asian Drums)

Bung Closure, EPDM O-Ring, 2" Buttress X 3/4 NPS Female Thread
DQMBUNGPP2BUT12
Bung Closure, EPDM O-Ring, 2" Buttress X 3/4 NPS Female Thread

Bung Closure, EPDM O-Ring, 2" NPS X 3/4 NPS Female Thread
DQMBUNGPP2NPS12
Bung Closure, EPDM O-Ring, 2" NPS X 3/4 NPS Female Thread

Bung Closure, EPDM O-Ring, BCS56X4 X 3/4 NPS Female Thread
DQMBUNGPP56X412
Bung Closure, EPDM O-Ring, BCS56X4 X 3/4 NPS Female Thread

Bung Closure, EPDM O-Ring, BCS70X6, 3/4 NPS Female Thread
DQMBUNGPP70X612
Bung Closure, EPDM O-Ring, BCS70X6, 3/4 NPS Female Thread

Cap Closure, EPDM O-Ring, 63mm, 3/4 NPS Female Thread
DQMCAPPP63MM
Cap Closure, EPDM O-Ring, 63mm, 3/4 NPS Female Thread

Cap Closure, EPDM O-Ring, 70mm X 3/4 NPS Female Thread
DQMCAPPP70MM
Cap Closure, EPDM O-Ring, 70mm X 3/4 NPS Female Thread

Other

1/2 MNPT Elbow Coupler, with EPDM O-Rings and 316 Stainless Spring
DQPRO120208
1/2 MNPT Elbow Coupler, with EPDM O-Rings and 316 Stainless Spring

1/2 MNPT Elbow Coupler with FKM (Viton?) O-Rings and 316 Stainless Spring
DQPRO120208202
1/2 MNPT Elbow Coupler with FKM (Viton?) O-Rings and 316 Stainless Spring

1/2 MNPT Elbow Coupler with EPDM O-Rings and Hastelloy C Spring
DQPRO120208206
1/2 MNPT Elbow Coupler with EPDM O-Rings and Hastelloy C Spring

1/2 MNPT Elbow Coupler with FKM (Viton?) O-Rings and Hastelloy C Spring
DQPRO120208207
1/2 MNPT Elbow Coupler with FKM (Viton?) O-Rings and Hastelloy C Spring

3/4 Hose Barb Elbow Coupler with EPDM O-Rings and 316 Stainless Spring
DQPRO120312
3/4 Hose Barb Elbow Coupler with EPDM O-Rings and 316 Stainless Spring

3/4 BSPP Elbow Coupler with EPDM O-Rings and 316 Stainless Spring
DQPRO120712
3/4 BSPP Elbow Coupler with EPDM O-Rings and 316 Stainless Spring

3/4 BSPP Male Elbow Coupler with FKM (Viton?) O-Rings and 316 Stainless Spring
DQPRO120712202
3/4 BSPP Male Elbow Coupler with FKM (Viton?) O-Rings and 316 Stainless Spring

3/4 BSPP Male Elbow Coupler with EPDM O-Rings and Hastelloy C Spring
DQPRO120712206
3/4 BSPP Male Elbow Coupler with EPDM O-Rings and Hastelloy C Spring

3/4 BSPP Male Elbow Coupler with FKM (Viton?) O-Rings and Hastelloy C Spring
DQPRO120712207
3/4 BSPP Male Elbow Coupler with FKM (Viton?) O-Rings and Hastelloy C Spring

Sample Kits

European Sample Kit, includes BSC 56X4 Drum Insert, 905mm Dip-tube, 3/4 BSPP Coupler with EPDM O-Rings and 316 Stainless Spring
DQPROEUSAMP
European Sample Kit, includes BSC 56X4 Drum Insert, 905mm Dip-tube, 3/4 BSPP Coupler with EPDM O-Rings and 316 Stainless Spring

European Sample Kit, includes BSC 56X4 Drum Insert, 905mm Dip-tube, 3/4 BSPP Coupler with FKM (Viton?) O-Rings and Hastelloy C Spring
DQPROEUSAMP207
European Sample Kit, includes BSC 56X4 Drum Insert, 905mm Dip-tube, 3/4 BSPP Coupler with FKM (Viton?) O-Rings and Hastelloy C Spring

North American Sample Kit, includes 2" Buttress Drum Insert, 905mm Dip-Tube, 1/2 NPT Coupler with EPDM O-Rings and 316 Stainless Spring
DQPRONASAMP
North American Sample Kit, includes 2" Buttress Drum Insert, 905mm Dip-Tube, 1/2 NPT Coupler with EPDM O-Rings and 316 Stainless Spring

North American Sample Kit, includes 2" Buttress Drum Insert, 905mm Dip-Tube, 1/2 NPT Coupler with FKM (Viton?) O-Rings and Hastelloy C Spring
DQPRONASAMP207
North American Sample Kit, includes 2" Buttress Drum Insert, 905mm Dip-Tube, 1/2 NPT Coupler with FKM (Viton?) O-Rings and Hastelloy C Spring

Sample Kit, includes 2" NPS (ISO G2) Drum Insert, 905mm Dip-tube, 1/2 NPT Coupler with EPDM Flat Gasket and 316 Stainless Spring
DQPRONPSPLSAMP
Sample Kit, includes 2" NPS (ISO G2) Drum Insert, 905mm Dip-tube, 1/2 NPT Coupler with EPDM Flat Gasket and 316 Stainless Spring

Sample Kit, includes 2" NPS (ISO G2) Drum Insert, 905mm Dip-tube, 1/2 NPT Coupler with FKM (Viton?) O-Rings and Hastelloy C Spring
DQPRONPSPLSAMP207
Sample Kit, includes 2" NPS (ISO G2) Drum Insert, 905mm Dip-tube, 1/2 NPT Coupler with FKM (Viton?) O-Rings and Hastelloy C Spring
DQPRONPSSTSAMP
Sample Kit, includes 2" NPS (ISO G2) Drum Insert, 905mm Dip-tube, 1/2 NPT Coupler with EPDM Bung O-Rings and 316 Stainless Spring

Sample Kit, includes 2" NPS (ISO G2) Drum Insert, 905mm Dip-tube, 1/2 NPT Coupler with FKM (Viton?) O-Rings and Hastelloy C Spring
DQPRONPSSTSAMP207
Sample Kit, includes 2" NPS (ISO G2) Drum Insert, 905mm Dip-tube, 1/2 NPT Coupler with FKM (Viton?) O-Rings and Hastelloy C Spring

DQPRO120208
DQPRO120712
DQPRO202BUT
DQPRO2056X4 BCS
DQPRO20G2NPSST
DQPRO20G2NPSPL
DQPRODT0410
DQPRODT0985
DQPRODT1070
DQPRODT1274
DQPRO120208
DQPRO120712
DQPRO202BUT
DQPRO2056X4 BCS 56x4 thread
DQPRO20G2NPSST 2" NPS (ISO G2) thread, o-ring seal
DQPRO20G2NPSPL 2" NPS (ISO G2) thread, flat gasket (For plastic drums)
DQPRODT0410
DQPRODT0985
DQPRODT1070
DQPRODT1274
Couplers: Polypropylene
ParT NUMBEr DESCriPTiON
DQPRO120208 1/2" male NPT liquid port
DQPRO120712 3/4" male BSPP liquid port
Drum inserts: HDPE
ParT NUMBEr DESCriPTiON
DQPRO202BUT 2" American buttress thread
DQPRO2056X4 BCS 56x4 thread
DQPRO20G2NPSST 2" NPS (ISO G2) thread, o-ring seal
(For steel drums and IBC caps)
DQPRO20G2NPSPL 2" NPS (ISO G2) thread, flat gasket
(For plastic drums)
Dip-tubes: HDPE
ParT NUMBEr DESCriPTiON
DQPRODT0410 13.0" (330mm) long for 5 gal/
25L jerry cans
DQPRODT0985 35.5" (905mm) long for 55 gal/
200L drums
DQPRODT1070 39.0" (990mm) long for 275 gal/
1040L IBCs
DQPRODT1274 47.0” (1194mm) long for 330 gal/
1250L IBCs

Couplers: Polypropylene
ParT NUMBEr DESCriPTiON
DQPRO120208 1/2" male NPT liquid port
DQPRO120712 3/4" male BSPP liquid port
Drum inserts: HDPE
ParT NUMBEr DESCriPTiON
DQPRO202BUT 2" American buttress thread
DQPRO2056X4 BCS 56x4 thread
DQPRO20G2NPSST 2" NPS (ISO G2) thread, o-ring seal
(For steel drums and IBC caps)
DQPRO20G2NPSPL 2" NPS (ISO G2) thread, flat gasket
(For plastic drums)
Dip-tubes: HDPE
ParT NUMBEr DESCriPTiON
DQPRODT0410 13.0" (330mm) long for 5 gal/
25L jerry cans
DQPRODT0985 35.5" (905mm) long for 55 gal/
200L drums
DQPRODT1070 39.0" (990mm) long for 275 gal/
1040L IBCs
DQPRODT1274 47.0” (1194mm) long for 330 gal/

DQPRO120208 DQPRO120712 DQPRO202BUT DQPRO2056X4 BCS DQPRO20G2NPSST DQPRO20G2NPSPL | DQPRODT0410 DQPRODT0985 DQPRODT1070 DQPRODT1274 DQPRO120208 DQPRO120712 DQPRO202BUT DQPRO2056X4 BCS 56x4 thread | DQPRO20G2NPSST 2" NPS (ISO G2) thread, o-ring seal DQPRO20G2NPSPL 2" NPS (ISO G2) thread, flat gasket (For plastic drums) | DQPRODT0410 DQPRODT0985 DQPRODT1070 DQPRODT1274

Couplings: CPC Colder Products: DrumQuik

CPC Colder Products DrumQuik

Materials
- Drum insert & dip-tube: Virgin polyethylene (HDPE)
- Shipping plug: Virgin polyethylene (HDPE)
- Coupler: Virgin polypropylene (DrumQuik PRO)Virgin PVDF (DrumQuik PUR)
- Spring (coupler only): 316 stainless steel, Hastelloy? C, virgin PEEK UHP,PPS or PTFE encapsulated 316 stainless steel (TESS)
- Coupler Seals: EPDM, FKM, Simriz? UHP FFKM Perfluoroelastomer
- Bung seal: Polyolefin, EPDM, FKM
- Shipping plug seal: EPDM, FKM
Vapor Management
- OPEN: Vent port left open to
atmosphere
- REMOTE: Vent port routed to
fume hood, scrubber or vapor
recovery system
- CHECKED: Connect vent
check valve to allow make-up
air in without allowing fumes to
escape
- BLANKET GAS: Connect a
- CPC quick disconnect coupling
for blanket gas (N2, CO2)
- FILTERED: Connect vent filter
Technical Specification
Temperatures
- Drum insert: -20°F to 120°F
(-20°C to 49°C)
- Coupler: HDPE, 32°F to 120°F
(0°C to 49°C) PVDF, 0°F to
120°F (-18°C to 49°C)
Pressures
- Uncoupled: Vacuum to 45PSI,
3.1 Bar
- Coupled: Vacuum to drum
rating

Part Number Description
DrumQuik PRO Couplers - Polypropylene
DQPRO120312 3/4” Hose Barb (EPDM Seals, 316 SST Spring)
DQPRO120208 1/2” Male NPT (EPDM Seals, 316 SST Spring)
DQPRO120208202 1/2” Male NPT (FKM Seals, 316 SST Spring)
DQPRO120208206 1/2” Male NPT (EPDM Seals, Hastelloy C Spring)
DQPRO120208207 1/2” Male NPT (FKM Seals, Hastelloy C Spring)
DQPRO120712 3/4” Male BSPP (EPDM Seals, 316 SST Spring)
DQPRO120712202 3/4” Male BSPP (FKM Seals, 316 SST Spring)
DQPRO120712206 3/4” Male BSPP (EPDM Seals, Hastelloy C Spring)
DQPRO120712207 3/4” Male BSPP (FKM Seals, Hastelloy C Spring)

Quick Release Couplings: CPC Colder Products: DrumQuik

CPC Colder Products DrumQuik

DrumQuik PUR Couplers - PVDF (3/4” Flare Termination)
DQPUR120112 FKM Liquid Contact Seals, FKM Vent Seal, PEEK Plastics pring
DQPUR120112203 Simriz? FFKM Liquid Contact Seals, FKM Vent Seal, PEEK Plastic Spring
DQPUR120112208 FKM Liquid Contact Seals, FKM Vent Seal, PPS Plastic Spring
DQPUR120112209 Simriz FFKM Liquid Contact Seals, FKM Vent Seal, PPS Plastic Spring
DQPUR120112210 FKM Liquid Contact Seals, FKM Vent Seal, PTFE Encapsulated 316 Stainless Steel (TESS) Spring
DQPUR120112211 Simriz FFKM Liquid Contact Seals, FKM Vent Seal, PTFE Encapsulated 316 Stainless Steel (TESS) Spring
DrumQuik PRO & PUR Drum Inserts - Polyethylene (HDPE)
DQPRO20BCS70 70mm Thread, EPDM Seals (70x6 and 70x5 Plastic Drums)
DQPRO20BCS70202 70mm Thread, FKM Seals (70x6 and 70x5 Plastic Drums)
DQPRO202BUT 2” American Buttress Thread, EPDM Seals (No. Am. Plastic Drums)
DQPRO202BUT202 2” American Buttress Thread, FKM Seals (No. Am. Plastic Drums)
DQPRO2056X4 BCS 56x4 Thread, EPDM Seals (European Plastic Drums)
DQPRO2056X4202 BCS 56x4 Thread, FKM Seals (European Plastic Drums)
DQPRO20G2NPSST 2” NPS (ISO G2) Thread, EPDM Seals (steel Drums and IBC caps)
DQPRO20G2NPSST202 2” NPS (ISO G2) Thread, FKM Seals (steel Drums and IBC caps)
DQPRO20G2NPSPL 2” NPS (ISO G2) Thread, EPDM Flat Bung Seal (PlasticDrums and IBC caps)
DQPRO20G2NPSPL202 2” NPS (ISO G2) Thread, FKM Flat Bung Seal (Plastic Drums and IBC caps)
DQPUR202BUT 2” American Buttress Thread, Polyolefin (POE) Bung Seal, EPDM Shipping Plug Seal
DQPUR202BUT202 2” American Buttress Thread, Polyolefin (POE) Bung Seal, FKM Shipping Plug Seal
DrumQuik PRO & PUR Dip-Tubes - Polyethylene (HDPE)
DQPRODT0410 13.0” (330mm) Long for 5 gal/25L Jerry cans
DQPRODT0985 35.5” (905mm) Long for 55 gal/200L Drums
DQPRODT1070 39.0” (990mm) Long for 275 gal/1040L IBCs
DQPRODT1274 47.0” (1194mm) Long for 330 gal/1250L IBCs
DQPURDT0410 13.0” (330mm) Long for 5 gal/25L Jerry cans
DQPURDT0985 35.5” (905mm) Long for 55 gal/200L Drums
DQPURDT1070 39.0” (990mm) Long for 275 gal/1040L IBCs
DQPURDT1274 47.0” (1194mm) Long for 330 gal/1250L IBCs

CPC Colder Products DrumQuik

Quick Release Couplings: CPC Colder Products: DrumQuik

DrumQuik PUR Assembled Drum Inserts & Dip-Tubes
DQPUR2BUT0410 Drum Insert Assembly, NAMPAC square Jerry can, 20L, 330mm Long (from Sealing Surface)
DQPUR2BUT0985 Drum Insert Assembly with Universal Dip-Tube (Drum), 905mm Long (from Sealing Surface)
DQPUR2BUT1070 Drum Insert Assembly with Universal Dip-Tube (Drum), 990mm Long (from Sealing Surface)
DQPUR2BUT1274 Drum Insert Assembly with Universal Dip-Tube (IBC), 1194mm Long (from Sealing Surface)
Part Code Product Description
Tools
2408900 Torque Socket Tool (Blue, Glass-Filled Nylon)
2479100 Bung Wrench (Aluminium)
2375600 Key Installation Tool for Key Kits (Shipping Plug may also be used to Install Keys)
DQPURFT08 Flaring Tool, 1/2” Tubing
DQPURFT12 Flaring Tool, 3/4” Tubing
Sample Kits (Includes One Coupler, One Insert & One Dip-Tube)
DQPRONASAMP 2” Buttress Drum Insert, 905mm Dip-Tube, 1/2 NPT Coupler (EPDM O-Rings, 316 SST Spring in Coupler)
DQPRONASAMP207 2” Buttress Drum Insert, 905mm Dip-Tube, 1/2 NPT Coupler (FKM Seals & Hastelloy C Spring in Coupler)
DQPROEUSAMP BSC 56 x 4 Drum Insert, 905mm Dip-Tube, 3/4 BSPP Coupler (EPDM Seals, 316 SST Spring in Coupler)
DQPROEUSAMP207 BSC 56 x 4 Drum Insert, 905mm Dip-Tube, 3/4 BSPP, Coupler (FKM Seals & Hastelloy C Spring in Coupler)
DQPRONPSSTSAMP 2” NPS (ISO G2) Drum Insert, 905mm Dip-Tube, 1/2 NPT Coupler (EPDM Bung O-Rings, 316 SST Spring in
Coupler)
DQPRONPSSTSAMP207 2” NPS (ISO G2) Drum Insert, 905mm Dip-Tube, 1/2 NPT Coupler (FKM Seals & Hastelloy C Spring in
Coupler)
DQPRONPSPLSAMP 2” NPS (ISO G2) Drum Insert, 905mm Dip-Tube, 1/2 NPT Coupler (EPDM Flat Gasket, 316 SST Spring)
DQPRONPSPLSAMP207 2” NPS (ISO G2) Drum Insert, 905mm Dip-Tube, 1/2 NPT Coupler NPT Coupler (FKM Seals & Hastelloy
C Spring in Coupler)
DQPURSAMP202 Kit Includes 1 Coupler (DQPUR 12 0112 (PEEK & FKM) & 1 Assembled Dip-Tube (DQPUR 2BUT 0985 202)
DQPURSAMP209 Kit Includes 1 Coupler (DQPUR 12 0112 209 (PPS & SIMRIZ) & 1 Dip-Tube assy. (DQPUR 2BUT 0985 202)
DrumQuik Accessories

CPC Colder Products DrumQuik
4
Quick Release Couplings: CPC Colder Products: DrumQuik

Shipping Plugs
DQPROPumpAD Internal 3/4” NPT Thread Pump Adaptor Shipping Plug (HDPE, EPDM)
DQPROPumpAD202 Internal 3/4” NPT Thread Pump Adaptor Shipping Plug (HDPE, FKM)
DQPRPumpAD202 Extended Shipping Plug for Venting Internal Pressure from Drum (HDPE, EPDM)
DQPROSHIPlugEX202 Extended Shipping Plug for Venting Internal Pressure from Drum (HDPE, FKM)
2007900 Shipping Plug for Drum Insert (Does not Include Shipping Plug O-Ring)
2290100 Shipping Plug O-Ring, EPDM
2307200 Shipping Plug O-Ring, FKM
DQPURSP Shipping Plug with EPDM Seals
DQPURSP202 Shipping Plug with FKM Seals
Sample Kits (Includes One Coupler, One Insert & One Dip-Tube)
DQPURDISealsPOE Drum Insert POE Bung Seals
DQPURDISealsFEP Drum Insert FEP Encapsulated Silione Bung Seals
DQPURCPSealsFKM Coupler Seals Kit (2 Seals), FKM
DQPURCPSealsMZ Coupler Seals Kit (2 Seals), Simriz¨
2423400 Coupler O-Ring Kit, EPDM (Includes 2 O-Rings)
2423500 Coupler O-Ring Kit, FKM (Includes 2 O-Rings)
2166000 Drum Insert Flat Gasket, 2” Buttress, FDA EPDM
2166100 Drum Insert Flat Gasket, 2” Buttress, FKM
2165800 Drum Insert O-Ring, 2” NPS (ISO G2) EPDM for Steel Drums
2165900 Drum Insert O-Ring, 2” NPS (ISO G2) FKM for Steel Drums
2165800 Drum Insert O-Ring, BCS 56 x 4, EPDM (same as ISO G2 for Steel)
2165900 Drum Insert O-Ring, BCS 56 x 4, FKM (same as ISO G2 for Steel)
2525200 Drum Insert Flat Gasket, 2” NPS (ISO G2) EPDM for plastic Drums
2525300 Drum Insert Flat Gasket, 2” NPS (ISO G2) FKM for plastic Drums
2594900 Replacement Drum Insert Seals, 2” Buttress, FDA
DQPRO70X6AD 70 X 6 Adaptor with EPDM O-Ring
DQPRO70X6AD202 70 X 6 Adaptor with FKM (Viton) O-Rings
Tether/Dust Cap
DrumQuik PRO Tether Tether/Dust Cap for use with DrumQuik PRO Shipping Plugs and Couplers (PVC, Vinyl)

CPC Colder Products DrumQuik
5
Quick Release Couplings: CPC Colder Products: DrumQuik

Coupler Vent Port Options
2879800 Vent Check Valves, 1/2” ID x 1/4” Male NPT (316 SST, Santoprene)
2879801 Vent Check Valves, 1/2” ID x 1/4” Male NPT (Hastelloy? C, FKM)
DQPROFIL01 Air Filter, Coupler Vent Port, 1/4” Male NPT (Polyproplyene, 70 micron)
APCD24004 Vent Coupling Insert, 1/4” Male NPT (Acetal, 316 SST, Buna-N)
APCD17004SH Vent Coupling Body with Shroud, 1/4” Hose Barb (Acetal, 316 SST, Buna-N)
APCD17006SH Vent Coupling Body with Shroud, 3/8” Hose Barb (Acetal, 316 SST, Buna-N)
EFCD24412 Vent Coupling Insert, 1/4” Male NPT (Polyproplyene, 316 SST, EPDM)
EFCD17412 Vent Coupling Body, 1/4” Hose Barb (Polyproplyene, 316 SST, EPDM)
EFCD17612 Vent Coupling Body, 3/8” Hose Barb (Polyproplyene, 316 SST, EPDM)
BACKFLOW Prevention Options Polyproplyene
2478900 Check Valves for Couplers, 1/2” Female NPT x 1/2” Male NPT (EPDM, 302 SST)
2478901 Check Valves for Couplers, 1/2” Female NPT x 1/2” Male NPT (FKM, 302 SST)
2478902 Check Valves for Couplers, 1/2” Female NPT x 1/2” Male NPT (EPDM, Hastelloy C)
2478903 Check Valves for Couplers, 1/2” Female NPT x 1/2” Male NPT (FKM, Hastelloy C)
2479000 Foot Valve for Dip-Tube, 1/2” Hose Barb (EPDM, 316 SST)
2479001 Foot Valve for Dip-Tube, 1/2” Hose Barb (FKM, 316 SST)
2479002 Foot Valve for Dip-Tube, 1/2” Hose Barb (EPDM, Hastelloy C)
2479003 Foot Valve for Dip-Tube, 1/2” Hose Barb (FKM, Hastelloy C)
Coupler Liquid Port Fittings Polyproplyene
2402600 1/2” Female NPT x 3/8” OD compression
2402700 1/2” Female NPT x 1/2” OD compression
2402800 1/2” Female NPT x 5/8” OD compression
2402900 1/2” Female NPT x 3/8” ID Hose Barb
2403000 1/2” Female NPT x 1/2” ID Hose Barb
2403100 1/2” Female NPT x 3/4” ID Hose Barb

CPC Colder Products DrumQuik
6
Quick Release Couplings: CPC Colder Products: DrumQuik

DrumQuik PUR Accessory Fittings
DQPUR MC0404 Male Connector, PVDF, 1/4” Flare x 1/4” NPT
DQPUR MC0604 Male Connector, PVDF, 3/8” Flare x 1/4” NPT
DQPUR MC0804 Male Connector, PVDF, 1/2” Flare x1/4” NPT
DQPUR FR1208 Flare Reducer, PFA, 3/4” Female Flare x 1/2” Male Flare
DQPUR FI1216 Flare Increaser, PFA, 3/4” Female Flare x 1” Male Flare
DQPUR TFMC1208 Female Flare x Male Connector, PFA, 3/4” Female Flare x 1/2” Male NPT
DQPUR SE0808 Sweep Elbow, PFA, 1/2” Female Flare x 1/2” Male Flare
DQPURSE1212 Sweep Elbow, PFA, 3/4” Female Flare x 3/4” Male Flare
DQPURDCPM0812 Double Containment Panel Mount Fitting, PFA, 1/2” Process Line x 3/4” Secondary Containment Line
DQPURDCPM1216 Double Containment Panel Mount Fitting, PFA, 3/4” Process Line x 1” Secondary Containment Line
DQPURDCN0812 Double Containment Adapter, PFA, 1/2” Process Line x 3/4” Secondary Containment Line
DQPURDCN1216 Double Containment Adapter, PFA, 3/4” Process Line x 1” Secondary Containment Line

分装系统可与各类泵一起使用，以便建立一个既可用于普通化学品，又可用于高纯度化学品的密闭输送系统。该产品易于使用，可同时满足化学品处理应用的严格安全要求以及在危险环境下的操作要求。DrumQuik 分装系统可大限度地减少化学品暴露危害，便于将化学 品从散装容器输送到用户的应用场所。对于普通化学品的输送，DrumQuikPRO可提供坚固耐用、成本效益较高的解决方案。DrumQuikPUR为100%无金属、在清洁室内完成包装的PVDF产品，专为高纯度要求的应用而设计。所有材料均满足食品和消费品应用的FDA标准。

无论您是使用简便油桶，桶或中型散装容器（IBCs）， 我们的DrumQuik分配系统适合几乎任何容器使用，“封闭”地提取容器中的化学品或食品为主的液体。备有不同尺寸和材料选择的汲取管系统，我们的解决方案有效减少危险品暴露，同时保护您的流体本身免受污染。 DrumQuik PRO is changing the world of chemical management with its unique closed-system design. The DrumQuik dispensing system for smarter chemical management provides safe, easy and economical extraction of chemicals from drums, jerricans and IBC totes—while reducing spills, containing hazardous fumes and enhancing workplace safety.

DrumQuik PRO分装系统和许多普通桶及中型散装容器IBC已按照49CFR178和德国BAM11027通过UN/DOT标准认证，以应用于危险化学品输送。
CPC推出液体化学品封闭分装系统

在遍布全国各地的工厂中，无论是半导体、药品、水处理或汽车行业，液态化学品都不可或缺，每天的使用量也很大。一直以来，在应用和处理过程中，操作人员通常采用开放式分装系统，简单直接地把化学液体从桶装、罐装或中型散装容器的插口倒出并分配；另一种方法是使用汲取管和电动汞组成的半封闭系统，但这两种方法在转移过程中都难逃化学品溢出的风险。认识到这些风险和挑战，许多工厂开始采用完全封闭式系统来分配化学品。

早在2015年初，连接解决方案CPC就在中国市场推出了特别为油桶和中型散装容器设计的DrumQuik PRO 封闭（密封）油箱分配系统。据CPC中国销售和市场发展经理曹明介绍，封闭分装系统旨在将运输、分装和处置化学品的过程中，把暴露于空气和污染的程度较小化。这类系统通常由1个汲取管和塞子组成的组件和可重复使用的连接器/分装头相连而成。汲取管系统预先安装在桶装、罐装或中型散装容器中；可密封，并和容器一起被运往用户点。一旦到达目的地，用户可直接将汲取管装置与连接器/分配头连接，准备分装。如果想要达到完全封闭式系统，连接器必须配置1个带气门的排气系统。排气系统能控制气体，进而允许补充空气或氮气保护层进入大桶，填充已被转移出的液体空间；而CPC的分配头在断开连接时立即自动截流，防止回流。

DrumQuik PRO

Quick connect/disconnect
Faster container change-outs
Automatic shutoff valve
Stops flow when disconnected
Disposable container insert
Reduces chemical exposure and messy handlig

产品规格

Pressure
Uncoupled: Vacuum to 45 psig (3.1 bar)
Coupled: Vacuum to drum rating

Temperature
Drum Insert: -20°to 120°F (-29°to 49°C)
Coupler: HDPE, 32° to 120°F (0° to 49°C)

材料：
Drum insert & dip-tube: Virgin polyethylene (HDPE)

Shipping plug: Virgin polyethylene (HDPE), FKM

Valves:
316 stainless steel, Hastelloy C, virgin PEEK UHP, PPS or Teflon encapsulated 316 stainless steel (TESS)

密封材料：

Coupler seals: EPDM, FKM, Simriz UHP FFKM Perfluoroelastomer

Bung seal: Polyolefin, EPDM, FKM

Shipping plug seal: EPDM, FKM

Torque specifications
2" Buttress - 20ft-lbs (27 N m)

BCS 56x4 - 20ft-lbs (27 N m)

2" NPS (plastic drum) - 20ft-lbs (27 N m)

2" NPS (steel drum) - 15ft-lbs (20 N m)

Shipping plug - hand tight

Note: The torque specifications listed above are general recommendations which may need to be adjusted + or – depending on specific application.
产品型号和规格参数

产品Dip-Tubes
PVDF/PP分配头分装枪头美国CPC DQPUR120112210
DQPRO120208
DQPRO120712
DQPRO202BUT
DQPRO2056X4 BCS
DQPRO20G2NPSST
DQPRO20G2NPSPL
DQPRODT0410
DQPRODT0985
DQPRODT1070
DQPRODT1274
DQPRO120208
DQPRO120712
DQPRO202BUT
DQPRO2056X4 BCS 56x4 thread
DQPRO20G2NPSST 2" NPS (ISO G2) thread, o-ring seal
DQPRO20G2NPSPL 2" NPS (ISO G2) thread, flat gasket (For plastic drums)
DQPRODT0410
DQPRODT0985
DQPRODT1070
DQPRODT1274
