Parker Autoclave's 150V Series needle valves 超高压针阀 - 150V 系列 150,000 PSI | #150V5072
Needle Valve, High Pressure - 150V Series 150,000 PSI
Parker 针阀 - Parker Needle Valves

派克 Autoclave 的 150V 系列针阀采用非旋转升杆设计，工作压力为 150,000 psi (10350 bar)，带 5/16” ” 端接。这些阀门是由高强度 15-5PH 不锈钢制成的圆柱形阀体。派克 Autoclave 的 150V 系列针阀采用高强度 15-5PH 不锈钢圆柱体设计，采用非旋转上升阀杆设计，采用镍马氏体时效钢可更换阀座。这些特种阀门可在高达 150,000 psi (10350 bar) 的压力下运行。管道尺寸仅提供 5/16”。管道连接采用派克 Autoclave 锥体和螺纹设计。

除了它们的许多功能外，这些阀门还可以在各种应用中提供可靠且无故障的服务。

Needle Valve High Pressure Cone & Thread 60,000 psi, 100,000 psi, 150,000 psi
30SC, 43SC, 30VM, 40VM, 60VM, 100VM, and 150V Series

市场：
- 石油和天然气
- 研究

特点/优势：
- 管道尺寸 5/16”。
- 非旋转阀杆可防止阀杆/阀座磨损。
- 上升杆/棒材主体设计。
- 金属对金属阀座可实现气密关闭、更长的阀杆/阀座在磨料流中的使用寿命、更高的重复开/关循环的耐用性和出色的耐腐蚀性。
- 高强度15-5PH 不锈钢圆柱体，带不锈钢填料压盖。工具钢非旋转阀杆，带镍马氏体时效钢可更换阀座。阀杆必须用扭矩扳手驱动（请参阅工具、安装、操作和维护部分）。
- 阀杆螺纹下方的楔形聚四氟乙烯和皮革填料，带有铍铜高压釜抗挤压支撑环。
- 仅限 V 形阀杆尖端

应用：

- 高压面板
- 高压流体处理系统

超高压针阀型号150V5072 Needle Valve, High Pressure - 150V Series 150,000 PSI

技术规格

• 最大工作压力： 10,342 巴，150,000 磅/平方英寸
• 管外径： 5/16" 英寸，7.93 毫米
• 阀杆类型： VEE
• 阀门类型： 2向角/可更换座椅
• 连接类型： F312C150
• 孔径： 0.062" 英寸，1.57 毫米

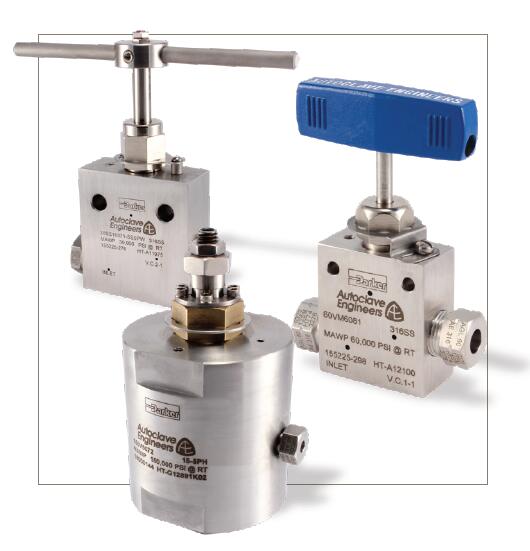

Parker Autoclave's 150V Series needle valves are a non-rotating rising stem design, with working pressures to 150,000 psi ( 10350 bar) with 5/16” ” end connections. These valves are a cylindrical body of high strength 15-5PH Stainless Steel. Parker Autoclave's 150V Series needle valves are cylindrical body design of high strength 15-5PH stainless steel with a non-rotating rising stem design that utilizes a replaceable seat of nickel maraging steel. These specialty valves operate in pressures up to 150,000 psi (10350 bar). The tubing size is only available in 5/16”. Tubing connections utilize the Parker Autoclave cone and thread design. Along with their many features these valves provide dependable and trouble free service in wide variety of applications.

Markets:
- Oil and Gas
- Research

Features/Benefits:
- Tubing size 5/16”.
- Non-rotating stem prevents stem/seat galling.
- Rising stem/barstock body design.
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- Cylindrical body of high strength 15-5PH stainless steel with stainless steel packing gland. Tool steel nonrotating stem with replaceable seat of nickel maraging steel. Stem must be actuated with torque wrench (refer to Tools, Installation, Operation and Maintenance section).
- Wedge-type PTFE and leather packing below stem threads with beryllium-copper Autoclave Anti-Extrusion Back up Rings.
- Vee stem tip only


Applications:
- High Pressure Panels
- High Pressure Fluid Handling Systems

Technical Specifications
