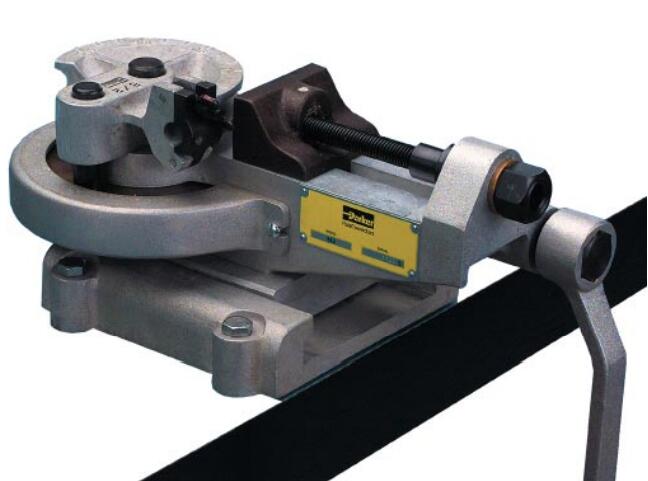

Exactol Model 424 Crank-Operated Bender

Parker's portable Exactol Model 424 Crank-Operated Bender will bend tube from size 4 (1/4”) through size 24 (1 1/2”) and 6mm through 38mm.





Parker's Exactol Model 424 Crank-Operated Bender will bend tube from size 4 (1/4”) through size 24 (1 1/2”) and 6mm through 38mm. This portable bender can be held in a vise or bench mounted using a bench mounting adapter. Exactol benders are designed with a worm-gear drive with a 60 to 1 gear ratio to allow accurate bending with minimum effort.



Exactol Model 424 Crank-Operated Bender



Features/Benefits:
- Will bend aluminum, copper, annealed steel and annealed stainless steel without kinks or wrinkles.
- Small, large and close bend radius blocks are available to meet any bending requirement.
- The easy crank operation permits continuous production without excessive operator fatigue, and it good for use in tube fabrication shops, in the field or in factory maintenance departments.

Applications:
- Bending metal tube for industrial applications

Technical Characteristics:
- Requires a slide block and radius block matching the tube O.D. to be bent.
- If mandrels are used, the 424 bender must be bench mounted.
- There is a kit option available which includes the slide block and radius blocks for tube O.D. sizes ?” to 1 1/2”.





Technical Specifications

Size: 1/4 to 1-1/2 inch, 6 - 38 mm
Product Type: Bender
Tube Material: copper, aluminum, steel, and stainless steel
Tube Outside Diameter: 1/4 to 1 1/2 inch, 6 to 38 mm
Includes: 424 bender, slide blocks and radius blocks for tube O.D. sizes 1/4" to 1 1/2"



Exactol Model 424 Crank-Operated Bender 型号

Part Options
424 Kit Kit
621044 Basic Unit
