Tube Fabrication Equipment Parker Fittings接头

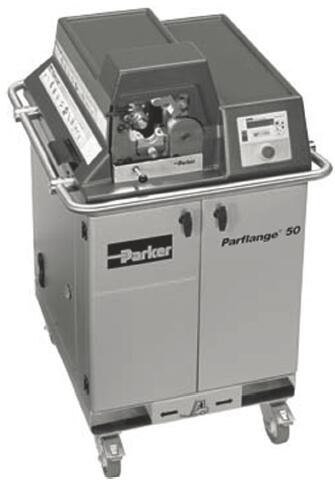

Parflange Pro 50 Flaring and Flanging System

Parker 的 Parflange? Pro 50 为 Seal-Lok O 型环面密封 (ORFS) 和 Triple-Lok 37° Flare JIC 接头提供高产量、无泄漏法兰和喇叭管连接。Parker 的 Parflange? Pro 50 为 Seal-Lok O 型环面密封 (ORFS) 和 Triple-Lok 37° Flare JIC 接头提供快速、无泄漏的法兰和喇叭管连接。这款高产机器使用轨道主轴工艺，在不到 15 秒的时间内生产出具有光滑配合表面的高质量、一致的法兰和喇叭口。Parflange 技术通过快速、一致和可靠的无泄漏连接为我们的客户创造了竞争优势，从而降低了成本并增加了收入。

Parflange Pro 50 Flaring and Flanging System

Parker's Parflange Pro 50 provides high production, leak-free flange and flare tube connections for Seal-Lok O-ring Face Seal (ORFS) and Triple-Lok 37° Flare JIC fittings. Parker's Parflange? Pro 50 provides fast, leak-free flange and flare tube connections for Seal-Lok O-ring Face Seal (ORFS) and Triple-Lok 37° Flare JIC fittings. Using an orbital spindle process, this high production machine produces high-quality, consistent flanges and flares with a smooth mating surface in less than 15 seconds. Parflange technology creates a competitive advantage for our customers through fast, consistent, and reliable leak-free connections which result in reduced costs and additional revenue.

特性/优点：
- 在不到 15 秒（高达 1 ?” 外径）内生产出具有光滑配合表面的高质量法兰，无需将套管与管端进行昂贵、耗时的钎焊。
- 这种高产量机器具有自动合模机构、自动工具润滑系统和自动循环启动增强功能，该增强功能通过将管子完全插入模具外壳而触发。
- 可根据要求提供自动套筒装载器选项。
- 方便的工作站设置，装置下方带有工具柜。
- 外径从 ?” 到 1 ?” 的法兰和喇叭形钢和不锈钢管。
- 还有法兰不锈钢盘管尺寸在CNG 应用中很常见。

应用：
- 翻边和扩口钢和不锈钢管，用于工业和移动应用中的 O 形环面密封 (ORFS) 和 37° 扩口连接。

技术特性：
- 提供 440 伏 3 相。
- 尺寸为 33” x 28” x 41”，重 836 磅。

Features/Benefits:
- Produces a high-quality flange with smooth mating surface in less than 15 seconds (up to 1 ?” OD), eliminating the need for expensive, time-consuming brazing of the sleeve to the tube end.
- This high production machine features an automatic die-clamping mechanism, an automatic tool lubrications system and an automatic cycle start enhancement that is triggered by full tube insertion into the die housing.
- An automatic sleeve loader option is available upon request.
- Convenient workstation setup with tooling cabinet below the unit.
- Flanges and flares steel and stainless steel tube from ?” up to 1 ?” OD.
- Also flanges stainless steel coiled tube sizes common in CNG applications.

Applications:
- Flanging and flaring steel and stainless steel tube for O-ring Face Seal (ORFS) and 37° flare connections in industrial and mobile applications.

Technical Characteristics:
- Available in 440-volt 3-phase.
- Dimensions are 33” x 28” x 41” and weighs 836 lbs.

Technical Specifications

Parflange Pro 50 Flaring and Flanging System 型号
