Tube Fabrication Equipment
Tube Cutters
Adjustable tube cutters for fully annealed copper, brass, aluminum, steel and thermoplastic tubing.
![](pic/Tube%20Fabrication%20Equipment_16.jpg)
Parker's adjustable tube cutters are designed to produce square cut ends with no external burr and minimum internal burr when used on fully annealed copper, brass, aluminum and steel tube. Features a hardened and burnished tool-steel cutting wheel and a flare cut-off groove in roller. The handle feeds and adjusts the cutting wheel to uniformly cut tube as the cutter is rotated.
Note: Tube cutters are not recommended for use with stainless steel tubing because of the work hardening effect. The use of a hacksaw with a "Tru-Kut" Sawing Vise or a rotary teeth saw is best recommended for stainless steel.
![](pic/Tube%20Fabrication%20Equipment_17.jpg)
Tube Cutters ![](pic/PDF-Icon.jpg)
Markets:
- Industrial
- Mobile
- Factory/Process Automation
- Construction
- Pneumatic
Features/Benefits:
- Features a hardened and burnished tool-steel cutting wheel for clean cuts, and a swing-away reamer for removing internal burrs.
- Removal of old flares is made easy with the grooved rollers for close-to-flare cuts.
- The handle feeds and adjusts the cutting wheel to uniformly cut tube as the cutter is rotated.
- For use on fully annealed copper, brass, aluminum and steel tube in sizes 1/8” to 1 1/8” OD.
Applications:
- Cutting metal tube for industrial and mobile hydraulic and pneumatic applications
Technical Specifications
Tube Material: |
Soft copper, aluminum, brass, thin wall steel, thin wall stainless steel, Soft copper, aluminum, brass, steel, Thermoplastic |

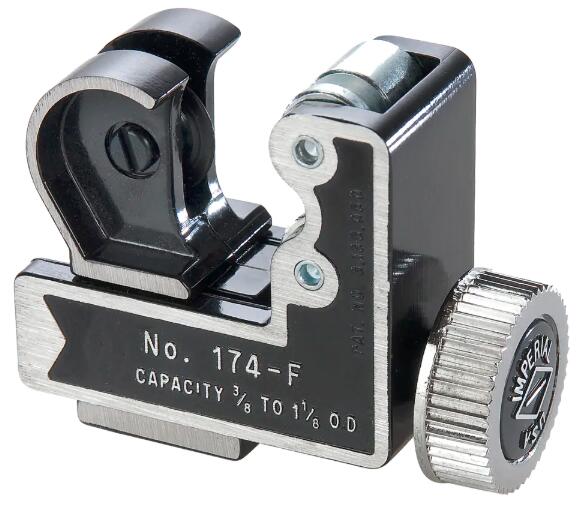

Tube Cutters 型号
Part |
Tube O.D. |
174-F-BPD |
3/8 - 1 1/8 |
PTC-001 |
1/8 - 1/2 |
TC-1000-BPD |
1/8 - 1 1/8 |
TC-1050-BPD |
1/8 - 5/8 |
|
