Parker Fittings接头 Hose Fittings

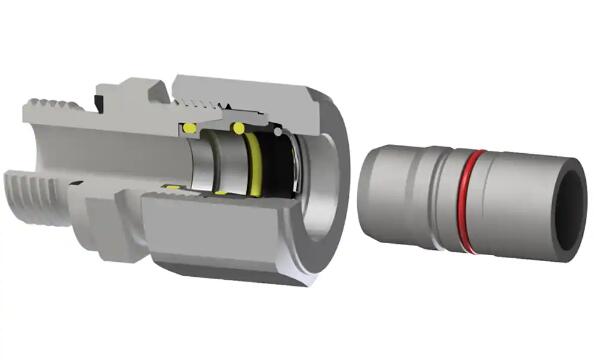

Parker Universal Push to Connect (UPTC) fitting

根据Tube ext预先组装的UPTC接头。直径 ?15mm，带公制公螺柱和保护盖。 UPTC是用于管状和/或刚性管连接的创新型Parker插入式解决方案，UPTC提供了将两个组件永久连接在一起的简单安全的方法。使用DIN版本时，它可以与所有符合ISO 8434-1的24°接头连接结合使用。UPTC的主要功能是在装配线生产中无需工具即可快速连接不同数量的管或软管。

The main function of UPTC is to connect quick different numbers of tubes or hoses without tools. UPTC is an innovative Parker plug-in solution for tubular and/or rigid tube connections, UPTC provides a simple and secure means of permanently connecting both components together. With the DIN version, it can be combined with all 24° fitting connections compliant with ISO 8434-1. The main function of UPTC is to connect quick different numbers of tubes or hoses without tools in assembly line productions.

Markets:
- Truck and Bus
- Transportation
- Energy
- Agriculture
- Machine Tools

Applications:
- The UPTC plug-in system is suitable for general hydraulic applications according to
- Steering hydraulic lines, cab tilt hydraulic lines, Fuel hydraulic lines, Clutch hydraulic lines, Cooling hydraulic lines, Lubrication Systems, Machinery motion hydraulic lines.

Features/Benefits:
-High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute extends the life cycle of the fittings.
- The Tool-free Push-to-Connect system is for tubes and hose application
- The Push-to-Connect system requires a very low insertion force
- Due to the special connector shape there is absolute no leakage under tough applications like hard vibrations or movement
- UPTC Plug-in connection contains a form-closed and soft-sealed connection, free of clearance and thereby wear-free
- The UPTC Plug-connection is very simple detachable at the adjacent fitting within a standard spanner (even simple detachable after a long utilisation period under hard environmental conditions)
- UPTC Push-to-Connect system fulfilled successful 1500h of a special accelerate RIG Vibration Test called Dust-Box-Text ("Arizona Road Dust")
- High pressure: UPTC has pressure ratings of up to 400 bar (L series). These features increase the range of applications.

Parker Universal Push to Connect (UPTC) fitting

市场：
- 卡车和公共汽车
- 运输
- 能源
- 农业
- 机床

应用：
- UPTC插入式系统根据以下标准适用于常规液压应用
- 转向液压管路，驾驶室倾斜液压管路，燃油液压管路，离合器液压管路，冷却液压管路，润滑系统，机械运动液压管路。

特性/优点：
- 高耐腐蚀性：不含Cr（VI）的表面处理对白锈的平均耐蚀性超过500小时。此属性延长了配件的使用寿命。
- 无需工具的即插即用系统适用于管材和软管应用
- 即插即用系统需要非常低的插入力
- 由于特殊的接头形状，在剧烈振动或震动等恶劣应用中绝对没有泄漏运动
- UPTC插入式接头包含闭合和软密封的连接，无间隙，因此无磨损
- UPTC插入式接头非常容易在标准扳手内的相邻接头处拆卸（即使很长一段时间也可拆卸）在恶劣的环境条件下的
使用寿命）- UPTC推入式连接系统成功完成了1500h的特殊加速RIG振动测试，称为Dust-Box-Text（“亚利桑那道路扬尘”）
- 高压：UPTC的额定压力高达400酒吧（L系列）。这些功能扩大了应用范围。

根据Tube ext预先组装的UPTC接头。直径 ?15毫米 公头螺栓连接器使用公制螺纹M18x1,5固定。
派克UPTC系统采用不含铬6的材料钢制成。
标准表面保护层镀锌，可满足许多应用的所有要求。在恶劣的环境条件下，例如永久振动或运动，Parker UPTC系统也能成功。派克UPTC系统的核心论点是在永久性振动或运动等恶劣环境条件下的无泄漏和无故障应用。插入式连接，以舒适的方式手动快速完成。
该系统具有封闭和软密封的连接，无间隙，因此无磨损。

Technical Specifications

UPTC Universal Push to Connect 型号

GE15UELKMMEDCF UPTC通用推动连接 | ＃GE15UELKMMEDCF
