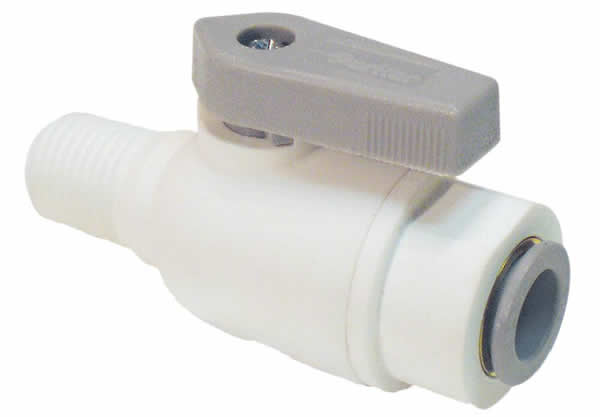

Parker Polypropylene Ball Valves
派克聚丙烯球阀

Parker派克聚丙烯球阀通过内置的 LIQUIfit,TrueSeal 和插管式连接,耐腐蚀能力使其成为水过滤装置,咖啡和饮料机以及各种其他流体应用的理想选择。派克的聚丙烯球阀耐腐蚀能力使其成为水过滤装置,咖啡和饮料机以及各种其他流体应用的理想选择。派克的聚丙烯球阀通过内置的 LIQUIfit,TrueSeal 和插管式连接节省成本,无需二次配件。紧凑的设计易于安装,节省空间并易于维护。聚丙烯球阀符合所有的美国 FDA 和 NSF-51 要求,以保证其能够与食品接触。

Parker's polypropylene ball valves corrosion resistant design make them ideal for water filtration units, coffee and beverage machines and various other fluid applications. Parker's polypropylene ball valves save cost with built-in LIQUIfit, TrueSeal and Par-Barb connections eliminating the need for a secondary fitting. The compact design allows for easy assembly and access where space is at a premium. Polypropylene ball valves meets all FDA and NSF-51 requirements for food contact.



Parker Polypropylene Ball Valves PDF Catalog
派克聚丙烯球阀

派克的聚丙烯球阀耐腐蚀设计使其成为水过滤装置,咖啡和饮料机以及各种其他流体应用的理想选择。派克的聚丙烯球阀通过内置的LIQUIfit,TrueSeal和Par-Barb连接节省了成本,而无需二次安装。紧凑的设计允许在空间有限的地方轻松组装和使用。聚丙烯球阀符合FDA和NSF-51对食品接触的所有要求。

Technical Specifications

Minimum Operating Temperature: 0 °F, -18 °C
Maximum Operating Temperature: 225 °F, 107 °C
Maximum Working Pressure (psi): 150
Maximum Working Pressure (bar): 10
Thread Type: NPTF
Specifications Met: FDA, NSF-51
Body Material: Polypropylene
Ball Material: Polysulfone
Seat seal material: EPDM

市场:
- 水过滤
- 饮料分配
- 装瓶
- 半导体
- 化学

特性/优点:
- 内置LIQUIfit,TrueSeal和Par-Barb连接,无需二次安装
- 薄型设计可在空间有限的情况下轻松组装和使用
- 双向流路可实现最高生产率
- 符合FDA和NSF -51对食品接触的要求
- 广泛的化学接受范围
- EPDM密封件
- 推连接和带倒钩的连接

应用范围:
- 水
- 饮料
- 食品
- 气动回路

可根据要求提供定制配置和尺寸。请与我们联系以获取更多信息。

Markets:
- Water Filtration
- Beverage Dispensing
- Bottling
- Semi-conductor
- Chemical

Features/Benefits:
- Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting
- Low-profile design allows for easy assembly and access where space is limited
- Bi-directional flow foe maximum productivity
- Meets FDA and NSF-51 requirements for food contact
- Wide chemical acceptance range
- EPDM seals
- Push-to-Connect and barbed connections

Applications:
- Water
- Beverages
- Food
- Pneumatic circuits

Custom configurations and sizes are available upon request. Contact us for additional information.



Showing 1 to 87 of 87 entries

Part Shape Style Connection Type Connection 1 Tube O.D. (inch) Connection 1 Hose I.D. (inch) Connection 1 Style Connection 2 Thread Size (inch) Connection 2 Tube O.D. (inch) Connection 2 Tube Stem O.D. (inch) Connection 2 Hose I.D. (inch) Connection 2 Style Connection 3 Thread Size (inch) Connection 3 Style
Part Shape Style Connection Type Tube O.D.       na na na
LFPP4VAS6 Angle Stop Tube to Pipe Grab Ring 1/4 na Push-to-Connect 3/8 na na na Male Pipe 3/8 Female Pipe
LFPP4VAS8 Angle Stop Tube to Pipe Grab Ring 1/4 na Push-to-Connect 3/8 na na na Male Pipe 1/2 Female Pipe
LFPP4VEU4 90° Elbow Tube to Tube Grab Ring 1/4 na Push-to-Connect na 1/4 na na Push-to-Connect na na
LFPP4VEU6 90° Elbow Tube to Tube Grab Ring 1/4 na Push-to-Connect na 3/8 na na Push-to-Connect na na
LFPP4VFC2 Connector Tube to Female Pipe Grab Ring 1/4 na Push-to-Connect 1/8 na na na Female Pipe na na
LFPP4VFC4 Connector Tube to Female Pipe Grab Ring 1/4 na Push-to-Connect 1/4 na na na Female Pipe na na
LFPP4VFC6 Connector Tube to Female Pipe Grab Ring 1/4 na Push-to-Connect 3/8 na na na Female Pipe na na
LFPP4VFE2 90° Elbow Tube to Female Pipe Grab Ring 1/4 na Push-to-Connect 1/8 na na na Female Pipe na na
LFPP4VFE4 90° Elbow Tube to Female Pipe Grab Ring 1/4 na Push-to-Connect 1/4 na na na Female Pipe na na
LFPP4VFE6 90° Elbow Tube to Female Pipe Grab Ring 1/4 na Push-to-Connect 3/8 na na na Female Pipe na na
LFPP4VMC4 Connector Tube to Pipe Grab Ring 1/4 na Push-to-Connect 1/4 na na na Male Pipe na na
LFPP4VMC6 Connector Tube to Pipe Grab Ring 1/4 na Push-to-Connect 3/8 na na na Male Pipe na na
LFPP4VMC8 Connector Tube to Pipe Grab Ring 1/4 na Push-to-Connect 1/2 na na na Male Pipe na na
LFPP4VME2 90° Elbow Tube to Pipe Grab Ring 1/4 na Push-to-Connect 1/8 na na na Male Pipe na na
LFPP4VME4 90° Elbow Tube to Pipe Grab Ring 1/4 na Push-to-Connect 1/4 na na na Male Pipe na na
LFPP4VME6 90° Elbow Tube to Pipe Grab Ring 1/4 na Push-to-Connect 3/8 na na na Male Pipe na na
LFPP4VME8 90° Elbow Tube to Pipe Grab Ring 1/4 na Push-to-Connect 1/2 na na na Male Pipe na na
LFPP4VUC4 Union Tube to Tube Grab Ring 1/4 na Push-to-Connect na 1/4 na na Push-to-Connect na na
LFPP4VUC6 Union Tube to Tube Grab Ring 1/4 na Push-to-Connect na 3/8 na na Push-to-Connect na na
LFPP4VUCPB4 Connector Tube to Barb Grab Ring 1/4 na Push-to-Connect na na na 1/4 Barb na na
LFPP6VAS6 Angle Stop Tube to Pipe Grab Ring 3/8 na Push-to-Connect 3/8 na na na Male Pipe 3/8 Female Pipe
LFPP6VAS8 Angle Stop Tube to Pipe Grab Ring 3/8 na Push-to-Connect 3/8 na na na Male Pipe 1/2 Female Pipe
LFPP6VEU4 90° Elbow Tube to Tube Grab Ring 3/8 na Push-to-Connect na 1/4 na na Push-to-Connect na na
LFPP6VEU6 90° Elbow Tube to Tube Grab Ring 3/8 na Push-to-Connect na 3/8 na na Push-to-Connect na na
LFPP6VFC2 Connector Tube to Female Pipe Grab Ring 3/8 na Push-to-Connect 1/8 na na na Female Pipe na na
LFPP6VFC4 Connector Tube to Female Pipe Grab Ring 3/8 na Push-to-Connect 1/4 na na na Female Pipe na na
LFPP6VFC6 Connector Tube to Female Pipe Grab Ring 3/8 na Push-to-Connect 3/8 na na na Female Pipe na na
LFPP6VFE2 90° Elbow Tube to Female Pipe Grab Ring 3/8 na Push-to-Connect 1/8 na na na Female Pipe na na
LFPP6VFE4 90° Elbow Tube to Female Pipe Grab Ring 3/8 na Push-to-Connect 1/4 na na na Female Pipe na na
LFPP6VFE6 90° Elbow Tube to Female Pipe Grab Ring 3/8 na Push-to-Connect 3/8 na na na Female Pipe na na
LFPP6VMC2 Connector Tube to Pipe Grab Ring 3/8 na Push-to-Connect 1/8 na na na Male Pipe na na
LFPP6VMC4 Connector Tube to Pipe Grab Ring 3/8 na Push-to-Connect 1/4 na na na Male Pipe na na
LFPP6VMC6 Connector Tube to Pipe Grab Ring 3/8 na Push-to-Connect 3/8 na na na Male Pipe na na
LFPP6VMC8 Connector Tube to Pipe Grab Ring 3/8 na Push-to-Connect 1/2 na na na Male Pipe na na
LFPP6VME2 90° Elbow Tube to Pipe Grab Ring 3/8 na Push-to-Connect 1/8 na na na Male Pipe na na
LFPP6VME4 90° Elbow Tube to Pipe Grab Ring 3/8 na Push-to-Connect 1/4 na na na Male Pipe na na
LFPP6VME6 90° Elbow Tube to Pipe Grab Ring 3/8 na Push-to-Connect 3/8 na na na Male Pipe na na
LFPP6VME8 90° Elbow Tube to Pipe Grab Ring 3/8 na Push-to-Connect 1/2 na na na Male Pipe na na
LFPP6VUC6 Union Tube to Tube Grab Ring 3/8 na Push-to-Connect 3/8 3/8 na na Push-to-Connect na na
LFPP6VUCPB6 Connector Tube to Barb Grab Ring 3/8 na Push-to-Connect na na na 3/8 Barb na na
PBPP4FVFE4 90° Elbow Barb to Female Pipe na na 1/4 Barb 1/4 na na na Female Pipe na na
PBPP4VFC4 Connector Barb to Female Pipe na na 1/4 Barb 1/4 na na na Female Pipe na na
PBPP4VMC4 Connector Barb to Male Pipe na na 1/4 Barb 1/4 na na na Male Pipe na na
PBPP4VUC4 Union Barb to Barb na na 1/4 Barb na na na 1/4 Barb na na
PBPP6VFC6 Connector Barb to Female Pipe na na 3/8 Barb 3/8 na na na Female Pipe na na
PBPP6VFE4 90° Elbow Barb to Female Pipe na na 3/8 Barb 1/4 na na na Female Pipe na na
PBPP6VFE6 90° Elbow Barb to Female Pipe na na 3/8 Barb 3/8 na na na Female Pipe na na
PBPP6VME6 90° Elbow Barb to Male Pipe na na 3/8 Barb 3/8 na na na Male Pipe na na
PBPP6VUC6 Union Barb to Barb na na 3/8 Barb na na na 3/8 Barb na na
PBPP8VUC8 Union Barb to Barb na na 1/2 Barb na na na 1/2 Barb na na
PP4VEU4-MG 90° Elbow Tube to Tube Collet 1/4 na Push-to-Connect na 1/4 na na Push-to-Connect na na
PP4VEU6-MG 90° Elbow Tube to Tube Collet 1/4 na Push-to-Connect na 3/8 na na Push-to-Connect na na
PP4VFC2-MG Connector Tube to Female Pipe Collet 1/4 na Push-to-Connect 1/8 na na na Female Pipe na na
PP4VFC4-MG Connector Tube to Female Pipe Collet 1/4 na Push-to-Connect 1/4 na na na Female Pipe na na
PP4VFC6-MG Connector Tube to Female Pipe Collet 1/4 na Push-to-Connect 3/8 na na na Female Pipe na na
PP4VFE2-MG 90° Elbow Tube to Female Pipe Collet 1/4 na Push-to-Connect 1/8 na na na Female Pipe na na
PP4VFE4-MG 90° Elbow Tube to Female Pipe Collet 1/4 na Push-to-Connect 1/4 na na na Female Pipe na na
PP4VFE6-MG 90° Elbow Tube to Female Pipe Collet 1/4 na Push-to-Connect 3/8 na na na Female Pipe na na
PP4VMC2-MG Connector Tube to Pipe Collet 1/4 na Push-to-Connect 1/8 na na na Male Pipe na na
PP4VMC4-MG Connector Tube to Pipe Collet 1/4 na Push-to-Connect 1/4 na na na Male Pipe na na
PP4VMC6-MG Connector Tube to Pipe Collet 1/4 na Push-to-Connect 3/8 na na na Male Pipe na na
PP4VMC8-MG Connector Tube to Pipe Collet 1/4 na Push-to-Connect 1/2 na na na Male Pipe na na
PP4VME2-MG 90° Elbow Tube to Pipe Collet 1/4 na Push-to-Connect 1/8 na na na Male Pipe na na
PP4VME4-MG 90° Elbow Tube to Pipe Collet 1/4 na Push-to-Connect 1/4 na na na Male Pipe na na
PP4VME6-MG 90° Elbow Tube to Pipe Collet 1/4 na Push-to-Connect 3/8 na na na Male Pipe na na
PP4VME8-MG 90° Elbow Tube to Pipe Collet 1/4 na Push-to-Connect 1/2 na na na Male Pipe na na
PP4VTEU6-MG 90° Elbow Tube to standpipe Collet 1/4 na Push-to-Connect na na 3/8 na Tube Stem na na
PP4VUC4-MG Union Tube to Tube Collet 1/4 na Push-to-Connect na 1/4 na na Push-to-Connect na na
PP4VUC6-MG Union Tube to Tube Collet 1/4 na Push-to-Connect na 3/8 na na Push-to-Connect na na
PP6VEU4-MG 90° Elbow Tube to Tube Collet 3/8 na Push-to-Connect na 1/4 na na Push-to-Connect na na
PP6VEU6-MG 90° Elbow Tube to Tube Collet 3/8 na Push-to-Connect na 3/8 na na Push-to-Connect na na
PP6VFC2-MG Connector Tube to Female Pipe Collet 3/8 na Push-to-Connect 1/8 na na na Female Pipe na na
PP6VFC4-MG Connector Tube to Female Pipe Collet 3/8 na Push-to-Connect 1/4 na na na Female Pipe na na
PP6VFC6-MG Connector Tube to Female Pipe Collet 3/8 na Push-to-Connect 3/8 na na na Female Pipe na na
PP6VFE2-MG 90° Elbow Tube to Female Pipe Collet 3/8 na Push-to-Connect 1/8 na na na Female Pipe na na
PP6VFE4-MG 90° Elbow Tube to Female Pipe Collet 3/8 na Push-to-Connect 1/4 na na na Female Pipe na na
PP6VFE6-MG 90° Elbow Tube to Female Pipe Collet 3/8 na Push-to-Connect 3/8 na na na Female Pipe na na
PP6VMC4-MG Connector Tube to Pipe Collet 3/8 na Push-to-Connect 1/4 na na na Male Pipe na na
PP6VMC6-MG Connector Tube to Pipe Collet 3/8 na Push-to-Connect 3/8 na na na Male Pipe na na
PP6VMC8-MG Connector Tube to Pipe Collet 3/8 na Push-to-Connect 1/2 na na na Male Pipe na na
PP6VME2-MG 90° Elbow Tube to Pipe Collet 3/8 na Push-to-Connect 1/8 na na na Male Pipe na na
PP6VME4-MG 90° Elbow Tube to Pipe Collet 3/8 na Push-to-Connect 1/4 na na na Male Pipe na na
PP6VME6-MG 90° Elbow Tube to Pipe Collet 3/8 na Push-to-Connect 3/8 na na na Male Pipe na na
PP6VME8-MG 90° Elbow Tube to Pipe Collet 3/8 na Push-to-Connect 1/2 na na na Male Pipe na na
PP6VTEU6-MG 90° Elbow Tube to standpipe Collet 3/8 na Push-to-Connect na na 3/8 na Tube Stem na na
PP6VUC4-MG Union Tube to Tube Collet 3/8 na Push-to-Connect na 1/4 na na Push-to-Connect na na
PP6VUC6-MG Union Tube to Tube Collet 3/8 na Push-to-Connect na 3/8 na na Push-to-Connect na na
