Hydraulic Driven Boosters - Hydraulic Booster Station
液驱气体增压单元
- 供油单元由定量泵或变量泵与电动泵组成；
- 达设定的工作压力后，电气控制系统关断；
- 压力入口和出口可以选配截止阀、压力表和压力开关；
- 配备空气/水冷却器。
Maximator液驱气体增压站模块化设计，结构紧凑。针对不同的应用，Maximator可以灵活满足客户的各类需求，也可以提供定制的交钥匙工程解决方案。根据工况需求，Maximator也可以提供多级增压系统或多泵并联系统。
供油单元由定量泵或变量泵与电动泵组成。电气控制系统控制液驱气体增压器到达设定的工作压力后停止工作。压力入口和出口可以选配截止阀、压力表和压力开关。
可选项：
- 非惰性气体的氮气冲洗
- 变频器的速度控制
- 油气冷凝器的恒温控制
压力范围：
- HDLE 2 up to 50 bar
- HDLE 5 up to 100 bar
- HDLE 15 up to 300 bar
- HDLE 30 up to 900 bar
型号 |
压力比 |
排量 |
出口压力 |
| ? |
? |
cm3 |
in3 |
bar |
HDLE2-D |
1:0.27 |
1,844.00 |
112.00 |
5. |
HDLE5-D |
1:0.68 |
1,492.00 |
91.00 |
100 |
HDLE15 |
1:0.48 |
244.00 |
14.00 |
300 |
HDLE15-D |
1:0.48 |
488.00 |
29.00 |
300 |
HDLE30 |
1:4 |
120.00 |
7.00 |
900 |
DLE30-D |
1:4 |
240.00 |
14.00 |
900 |

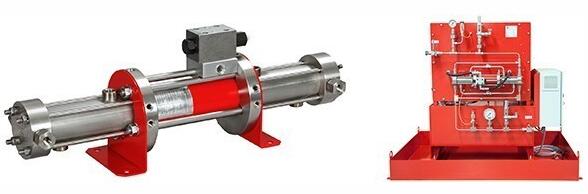

Maximator Hydraulic Booster Stations
In Austria we provide this hydraulic unit with a variable capacity pump or a fixed displacement pump and an electric motor. The electrical control system allows the independent switching on /off as soon as the preset operating pressure is reached. Shut-off valves, pressure switches and pressure gauges are located at the pressure in- and outlet. You can choose between models with water- or air coolers.
General information:
You will receive this hydraulic compressor as a complete system, the hydraulic unit is included. The modular construction allows an exact adaptation to your individual requirements. Available are single or multi-stage and parallel designs.
You can choose between fixed displacement pumps or variable capacity pumps. Pumps can be provided with an electric motor. Optionally available are an electrical control system, pressure gauges at the pressure in- and outlet, pressure switches and shut-off valves.
Options:
Compression of non-inert gases with nitrogen flushing
Speed control by means of a frequency converter
Oil-air cooling: automatic turn on/off by means of thermostatic control
The HDLE models operate in the pressure ranges 2 to 50 bar, 5 to 100 bar, 15 to 300 and 30 to 900 bar.
Products:
HDLE2-D
HDLE5-D
Pressure ratio: 1:0,68
Displacement volume (cm3): 1.492,00
Displacement volume (in3): 91,00
HDLE15
HDLE15-D
HDLE30
HDLE-30D
