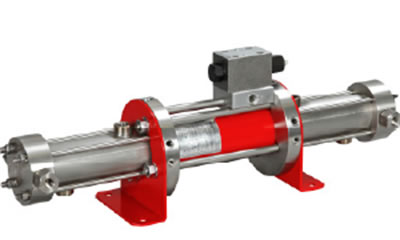

液驱气体增压器_Hydraulic Driven Boosters
MAXIMATOR HDLE系列液驱气体增压器共四种基本型号，涵盖压力范围为50bar到900bar，且输出流量恒定。为满足更大流量要求，每种型号（HDLE2,5,15和30）均可进行增长活塞设计。适用于工业气体和氢气的增压。
Maximator HDLE系列液驱气体增压器共四种基本型号，涵盖压力范围为50bar到900bar，且输出流量恒定。为满足更大流量要求，每种型号（HDLE2,5,15和30）均可进行增长活塞设计。适用于工业气体和氢气的增压。
HDLE操作温度可达100°C。其广泛应用于涉及气体增压的行业，例如：汽车、能源、化工、石化、石油和天然气（海上或陆地上）等领域。
Maximator HDLE系列具有下述特点：
- 四种基本型号，涵盖了不同的压力范围（50bar到900bar）；
- HDLE 2 压力可达 50 bar，HDLE 5 压力可达 100 bar，HDLE 15 压力可达 300 bar，HDLE 30 压力可达 900 bar；
- 在压力范围内输出流量恒定；
- 双冲程长度的HDLE系列可以提供更大的流量；
- 可根据客户要求定制。
技术参数
型号 |
压力比 |
排量 |
出口压力 |
| ?
|
?
|
cm3 |
in3 |
bar |
HDLE2-D |
1:0.27 |
1,844.00 |
112.00 |
5. |
HDLE5-D |
1:0.68 |
1,492.00 |
91.00 |
100 |
HDLE15 |
1:0.48 |
244.00 |
14.00 |
300 |
HDLE15-D |
1:0.48 |
488.00 |
29.00 |
300 |
HDLE30 |
1:4 |
120.00 |
7.00 |
900 |
DLE30-D |
1:4 |
240.00 |
14.00 |
900 |
液驱气体增压单元Hydraulic Booster Station
- 压力入口和出口可以选配截止阀、压力表和压力开关
- 供油单元由定量泵或变量泵与电动泵组成
- 达设定的工作压力后，电气控制系统关断
Maximator Hydraulic Booster Stations
In Austria we provide this hydraulic unit with a variable capacity pump or a fixed displacement pump and an electric motor. The electrical control system allows the independent switching on /off as soon as the preset operating pressure is reached. Shut-off valves, pressure switches and pressure gauges are located at the pressure in- and outlet. You can choose between models with water- or air coolers.
General information:
You will receive this hydraulic compressor as a complete system, the hydraulic unit is included. The modular construction allows an exact adaptation to your individual requirements. Available are single or multi-stage and parallel designs.
You can choose between fixed displacement pumps or variable capacity pumps. Pumps can be provided with an electric motor. Optionally available are an electrical control system, pressure gauges at the pressure in- and outlet, pressure switches and shut-off valves.
Options:
Compression of non-inert gases with nitrogen flushing
Speed control by means of a frequency converter
Oil-air cooling: automatic turn on/off by means of thermostatic control
The HDLE models operate in the pressure ranges 2 to 50 bar, 5 to 100 bar, 15 to 300 and 30 to 900 bar.
Products:
HDLE2-D
HDLE5-D
Pressure ratio: 1:0,68
Displacement volume (cm3): 1.492,00
Displacement volume (in3): 91,00
HDLE15
HDLE15-D
HDLE30
HDLE-30D
