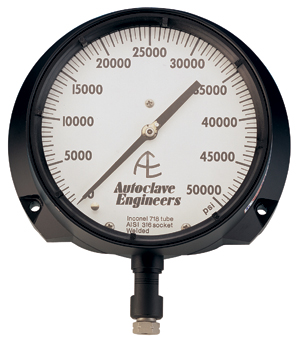

Autoclave Engineers high pressure gauges with pressure ranges from 0-1,000 psi up to 0-80,000 psi. All gauges come with a 1/4" F250C coned and threaded connection and include the collar and gland. The guages are 4-1/2" diamter face up to 20,000 psi and 6" diameter faces from 30,000 psi to 80,000 psi.

Autoclave Engineers压力表:
表盘：4-1/2”和6”
量程：0到101,528psi（7000bar）
连接尺寸：1/4”，9/16”
材质：316不锈钢
Pressures to 80,000 psi (5116 bar)
Pressures to 20,000 psi (1379 bar)
Gauges - Pressure gauges are offered for use in low, medium and high pressure systems. Instrument quality gauges are available with pressure to 80,000 psi (5115.7 bar).
Materials and Features
Accuracy within ±0.5% of full scale range.
Plastic dial cover/solid front aluminum alloy case.
Blow-out back panel for pressure relief in the event ofBourdon tube failure.
316 Stainless steel Bourdon tubes**
Precision stainless steel movement for accuracy andresistance to atmospheric corrosion.
Pointer zero adjustment located on front of gauge behind dialcover for convenience
Gauges are commercially cleaned when shipped.
Gauges available oxygen cleaned upon request.
Gauges glycerin filled upon request.
Gauges available with dual scale face plates.
Instrument quality gauges
Flush panel mounting - Interchangeable dial cover retaining rings are stocked to permit flush panel mounting of any instrument quality gauge. These will be furnished at an additional charge when specified - add “PM” to order number.
Optional electrical contact face - Available for all instrument quality gauges. With adjustable low and high electrical contacts, this option permits gauges to provide pressure control for automatic or remote operation, or for fail-safe set points.
**Bourdon tube material for 0-30,000 psi (0-2068 bar) gauge is K Monel. Bourdon tube material for 0-50,000 psi (0-3447 bar) and 0-80,000 psi (0-5116 bar) gauge is Inconel 718.
High Pressure Gauges to 80,000 psi
| Part Number |
Interval Range (psi) |
Minor Dial Value (psi) |
| P-0499-CG |
0-1,000 psi |
10 psi |
| P-0479-CG |
0-1,500 psi |
10 psi |
| P-0480-CG |
0-3,000 psi |
20 psi |
| P-0481-CG |
0-5,000 psi |
50 psi |
| P-0482-CG |
0-10,000 psi |
100 psi |
| P-0483-CG |
0-15,000 psi |
100 psi |
| P-0487-CG |
0-20,000 psi |
200 psi |
| P-0488-CG** |
0-30,000 psi |
200 psi |
| P-0489-CG** |
0-50,000 psi |
500 psi |
| P-0490-CG** |
0-80,000 psi |
1,000 psi |
| Optional Electrical Contact Face |
| Catalog Number |
Fits Gauge Dial Diameter inches - (mm) |
| P-0713 |
41/2 (114.3) |
| P-0714 |
6 (152.4) |
| Gauge |
“A” |
“B” |
“C” |
| Size |
cutout |
inches - (mm) |
inches - (mm) |
| inches - (mm) |
inches - (mm) |
|
|
| 41/2” (114.3) |
4.937 (125.39) |
5.375 (136.52) |
.281 (7.14) |
| 6” (152.4) |
6.437 (163.49) |
7.0 (177.80) |
.281 (7.14) |
**Bourdon tube material for 0-30,000 psi (0-2068 bar) gauge is K Monel. Bourdon tube material for 0-50,000 psi (0-3447 bar) and 0-80,000 psi (0-5116 bar) gauge is Inconel 718.
Autoclave Engineers Pressure Gauges
Catalogue Number H-0336, 0-10,000PSI
Catalogue Number H-0071, 0-15,000PSI
Catalogue Number H-0304, 0-20,000PSI

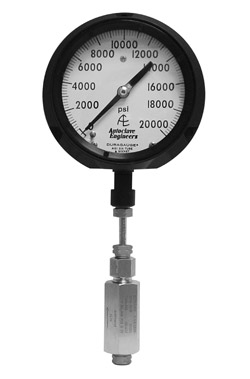

SNBFH4FH4 60000 psi
4137 bar 3.36 Inch
85.34 mm 2.50 Inch
63.5 mm 0.50 Inch
12.70 mm 0.63 Inch
15.33 mm 1.19 Inch
30.15 mm
SNBFH4MH4 60000 psi
4137 bar 4.05 Inch
102.87 mm 2.50 Inch
63.5 mm 0.50 Inch
12.70 mm 0.63 Inch
15.33 mm 1.19 Inch
30.15 mm
SNBFM4FM4 20000 psi
1378.9 bar 2.82 Inch
71.63 mm 2.38 Inch
60.45 mm 0.38 Inch
9.65 mm 0.5 Inch
12.7 mm 0.81 Inch
20.57 mm
SNBMH6MH4 60000 psi
4137 bar 3.68 Inch
93.47 mm 2.13 Inch
54.1 mm 1.50 Inch
38.10 mm 0.75 Inch
19.05 mm 1.19 Inch
30.15 mm |
