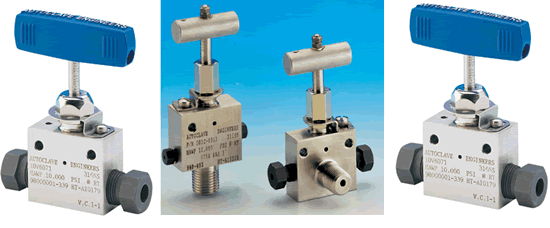

Autoclave Engineers needle valvs针阀
从1945年开始,Autoclave Engineers开始生产具有安全、可靠操作性的高压阀系统,它们可以适用于各种温度、压力和环境状况。今天,Autoclave Engineers已经发展成为各类高压行业提供可靠的高压阀、接头和管子的世界领先者。产品性能是Autoclave Engineers对客户的承诺,Autoclave的阀、接头和管子满足严格的标准,它的压力可以从0到150,000 psi(10343 bar) ,温度从 0 到 1200°F (650°C)有上千种变化。没有别的工厂能比Autoclave Engineers在高压要求方面做得更好,也没有别的工厂能比Autoclave Engineers做的系统更可靠和具有创新的特性。Autoclave Engineers的产品为满足客户的各种需求而设计,并且具有品质高,交货准时,价格适当的特点。
AUTOCLAVE产品汇总:针阀 球阀 安全阀 仪表阀 特制的阀和阀组 气动执行器 接头 热电偶 压力表
AUTOCLAVE针型阀规格参数:
压力:0到150,000 psi (10343 bar)
温度:-423°F (-252°C)到1200°F (650°C)
连接尺寸:1/16”到1”的管外径
流通尺寸:0.055”(1.4mm)到0.688”(17.48mm)
Cv:两位直通阀:0.05到5.2
两位角形阀的Cv值大约需要加50%
材质:316不锈钢及其他可选材质
Autoclave Needle Valve
Low Pressure Valves: 10V & SW Series, Pressures to 11,500 psi. (793 bar)
Medium Pressure Valves: SM Series, Pressures to 20,000 psi. (1379 bar)
(Note: SM Series replace existing SC Series)
High Pressure Valves: 30SC, 30VM, 40VM, 60VM, 100V, & 150V Series, Pressures to 150,000 psi. (1032 bar)
Mini Valves: MVE Series, Pressures to 15,000 psi. (1034 bar)
Micro Metering Valves: VRMM Series, Pressures to 60,000 psi. (4137 bar)
Block and Bleed Valves: 20MVBB, Rated to 20,000 psi. (1379 bar)
Extreme Temperture Valves: HT, LT, & PV Series, Pressures to 60,000 psi. (4137 bar)
Diverter Valves: 20DV Series, Pressures to 20,000 psi. (1379 bar)
Yoke Valves:15Y, 43Y & 50Y Series, Pressures to 50,000 psi. (3447 bar)
Valve Options:Stem Types, Material Selection, Coatings and Handles
低圧 1/8 15,000 Vee 10V2071 10V2072 10V2073 10V2074 10V2872 10V2075
Reg 10V2081 10V2082 10V2083 10V2084 10V2882 10V2085
1/4 15,000 Vee 10V4071 10V4072 10V4073 10V4074 10V4872 10V4075
Reg 10V4081 10V4082 10V4083 10V4084 10V4882 10V4085
3/8 15,000 Vee 10V6071 10V6072 10V6073 10V6074 10V6872 10V6075
Reg 10V6081 10V6082 10V6083 10V6084 10V6882 10V6085
1/2 10,000 Vee 10V8071 10V8072 10V8073 10V8074 10V9872 10V8075
Reg 10V8081 10V8082 10V8083 10V8084 10V9882 10V8085
Vee SW4071 SW4072 SW4073 SW4074 SW4872 SW4075
1/4 15,000 Reg SW4081 SW4082 SW4083 SW4084 SW4882 SW4085
Vee SW6071 SW6072 SW6073 SW6074 SW6872 SW6075
3/8 15,000 Reg SW6081 SW6082 SW6083 SW6084 SW6882 SW6085
10,000 Vee SW8071 SW8072 SW8073 SW8074 SW8872 SW8075
1/2 Reg SW8081 SW8082 SW8083 SW8084 SW8882 SW8085
Vee 10SM9071 10SM9072 10SM9073 10SM9074 10SM9872 10SM9075
9/16 10,000 Reg 10SM9081 10SM9082 10SM9083 10SM9084 10SM9882 10SM9085
Vee 10SM12071 10SM12072 10SM12073 10SM12074 10SM12872 10SM12075
3/4 10,000 Reg 10SM12081 10SM12082 10SM12083 10SM12084 10SM12882 10SM12085
1 Vee 10SM16071 10SM16072 10SM16073 10SM16074 10SM16872 10SM16075
10,000 Reg 10SM16081 10SM16082 10SM16083 10SM16084 10SM16882 10SM16085
Vee 20SM4071 20SM4072 20SM4073 20SM4074 20SM4872 20SM4075
中圧 1/4 20,000 Reg 20SM4081 20SM4082 20SM4083 20SM4084 20SM4882 20SM4085
Vee 20SM6071 20SM6072 20SM6073 20SM6074 20SM6872 20SM6075
3/8 20,000 Reg 20SM6081 20SM6082 20SM6083 20SM6084 20SM6882 20SM6085
Vee 20SM9071 20SM9072 20SM9073 20SM9074 20SM9872 20SM9075
9/16 20,000 Reg 20SM9081 20SM9082 20SM9083 20SM9084 20SM9882 20SM9085
Vee 20SM12071 20SM12072 20SM12073 20SM12074 20SM12872 20SM12075
3/4 20,000 Reg 20SM12081 20SM12082 20SM12083 20SM12084 20SM12882 20SM12085
1 Vee 20SM16071 20SM16072 20SM16073 20SM16074 20SM16872 20SM16075
20,000 Reg 20SM16081 20SM16082 20SM16083 20SM16084 20SM16882 20SM16085
1 Vee 30SC16071 30SC16071 - - 30SC16872 -
30,000 Reg 30SC16081 30SC16081 - - 30SC16882 -
Vee 30VM4071 30VM4072 30VM4073 30VM4074 30VM4872 30VM4075
1/4 30,000 Reg 30VM4081 30VM4082 30VM4083 30VM4084 30VM4882 30VM4085
Vee 30VM6071 30VM6072 30VM6073 30VM6074 30VM6872 30VM6075
3/8 30,000 Reg 30VM6081 30VM6082 30VM6083 30VM6084 30VM6882 30VM6085
Vee 30VM9071 30VM9072 30VM9073 30VM9074 30VM9872 30VM9075
9/16 30,000 Reg 30VM9081 30VM9082 30VM9083 30VM9084 30VM9882 30VM9085
Vee 40VM9071 40VM9072 - - - 40SM6075
高圧 9/16 40,000 Reg 40VM9081 40VM9082 - - - 40SM6085
1/4 60,000 Vee 60VM4071 60VM4072 60VM4073 60VM4074 60VM4872 60VM4075
Reg 60VM4081 60VM4082 60VM4083 60VM4084 60VM4882 60VM4085
3/8 60,000 Vee 60VM6071 60VM6072 60VM6073 60VM6074 60VM6872 60VM6075
Reg 60VM6081 60VM6082 60VM6083 60VM6084 60VM6882 60VM6085
1/16 60,000 Vee 60VM9071 60VM9072 60VM9073 60VM9074 60VM9872 60VM9075
Reg 60VM9081 60VM9082 60VM9083 60VM9084 60VM9882 60VM9085
1/4 100,000 Vee 100VM4071 100VM4072 100VM4073 - - -
5/16 100,000 Vee 100VM5071 100VM5072 100VM5073 - - -
3/8 100,000 Vee 100VM6071 100VM6072 100VM6073 - - -
5/16 150,000 Vee - - - - 150V5072 -
20DV9077 VEE 9/16 0.359 2.50 1.25 0.53 2.41 1.75/1.63 4.69 4.00 1.00 0.34 8.88 0.69 0.50 1.00 See Figure 1
(14.29) (9.12) (63.50) (31.75) (13.46) (61.21) (44.45/41.40) (119.13) (101.60) (25.40) (8.64) (225.55) (17.53) (12.70) (25.40)
20DV12077 VEE 3/4 0.516 3.00 1.50 0.62 3.00 2.13/1.81 5.69 10.25 1.12 0.44 10.12 0.88 0.62 1.38
(19.05) (13.11) (76.20) (38.10) (15.75) (76.20) (54.10/45.97) (144.53) (260.35) (28.45) (11.18) (257.05) (22.35) (15.75) (35.05)
20DV16077 VEE 1 0.750 4.12 2.06 0.72 3.75 2.81/2.62 7.25 10.25 1.62 0.56 12.79 1.25 1.12 1.75
(25.40) (19.05) (104.65) (52.33) (18.29) (95.25) (71.37/66.55) (184.15) (260.35) (41.15) (14.22) (324.87) (31.75) (28.45) (44.45) 20DV16077 20DV Series
Pressures to 20,000 psi (1379 bar)
Autoclave Engineers diverter valves provide the ability to direct incoming flow to one of two outlets. Flow is changed by rotating the handle in or out causing a double-ended stem to block the flow path to the outlet not needed. Diverter valves eliminate the need for multiple valves and the possibility of error in flow direction changes.
AE Diverter Valve Features
Autoclave高压针阀规格
类型:两通阀、三通阀/直线型、角型
最大工作压力:1034.3 MPa
工作温度范围:-423℉ (-252℃) 到1200℉ (649℃)
连接尺寸:英制:1/16”到1-1/2”;公制:10mm到16mm
流通尺寸:0.055”(1.4mm)到0.937”(23.8mm)
材质:316SS
Autoclave高压针阀型号
30SC16071 43SC1607130VM9071 10V8081 20SM12074 MVE2005
30SC16072 43SC16072 30VM9072 10V2072 20SM12084 MV2005
30SC16081 43SC16081 30VM9073 10V2082 20SM16074 15P2001
30SC16082 43SC16082 30VM9074 10V4072 20SM16084 15P2011
30SC16871 43SC16871 30VM9075 10V4082 10SM9074 15P4071
30SC16872 43SC16872 30VM9081 10V6072 10SM9084 15P4081
30SC16881 43SC16881 30VM9082 10V6082 10SM12074 15P6071
30SC16882 43SC16882 30VM9083 10V8072 10SM1208415P6081
30VM4071 30VM6071 30VM9084 10V8082 10SM16074 15P8071
30VM4072 30VM6072 30VM9085 10V2073 10SM16084 15P8081
30VM4073 30VM6073 30VM9871 10V2083 20SM4872 10P12071
30VM4074 30VM6074 30VM9872 10V4073 20SM4882 10P12081
30VM4075 30VM6075 30VM9873 10V4083 20SM6872 10P16071
30VM4081 30VM6081 30VM9874 10V6073 20SM6882 10P16081
30VM4082 30VM6082 30VM9875 10V6083 20SM9872 15P2002
30VM4083 30VM6083 30VM9881 10V8073 20SM9882 15P2012
30VM4084 30VM6084 30VM9882 10V8083 20SM12872 15P4072
30VM4085 30VM6085 30VM9883 10V2074 20SM12882 15P4082
30VM4871 30VM6871 30VM9884 10V2084 20SM16872 15P6072
30VM4872 30VM6872 30VM9885 10V4074 20SM16882 15P6082
30VM4873 30VM6873 60VM9071 10V4084 10SM9872 15P8072
30VM4874 30VM6874 60VM9072 10V6074 10SM9882 15P8082
30VM4875 30VM6875 60VM9073 10V6084 10SM12872 10P12072
30VM4881 30VM6881 60VM9074 10V8074 10SM12882 10P12082
30VM4882 30VM6882 60VM9075 10V8084 10SM16872 10P16072
30VM4883 30VM6883 60VM9081 10V2873 10SM16882 10P16082
30VM4884 30VM6884 60VM9082 10V2882 20SM4075 15P4073
30VM4885 30VM6885 60VM9083 10V4872 20SM408515P4083
40VM9071 40VM9081 60VM9084 10V4882 20SM6075 15P6073
40VM9072 40VM9082 60VM9085 10V6872 20SM6085 15P6083
40VM9075 40VM9085 60VM9871 10V6882 20SM907515P8073
60VM4071 60VM6071 60VM9872 10V8872 20SM9085 15P8083
60VM4072 60VM6072 60VM9873 10V8882 20SM12075 10P12073
60VM4073 60VM6073 60VM9874 10V2075 20SM12085 10P12083
60VM4074 60VM6074 60VM9875 10V2085 20SM16075 10P16073
60VM4075 60VM6075 60VM9881 10V4075 20SM16085 10P16083
60VM4081 60VM6081 60VM9882 10V4085 10SM9075 15P4074
60VM4082 60VM6082 60VM9883 10V6075 10SM9085 15P4084
60VM4083 60VM6083 60VM9884 10V6085 20SM4071 15P6074
60VM4084 60VM6084 60VM9885 10V8075 20SM4081 15P6084
60VM4085 60VM6085 100VM4071 10V8085 20SM6071 15P8074
60VM4871 60VM6871 100VM4072 SW4071 20SM6081 15P8084
60VM4872 60VM6872 100VM4073 SW4081 20SM9071 10P12074
60VM4873 60VM6873 100VM4081 SW6071 20SM9081 10P12084
60VM4874 60VM6874 100VM4082 SW6081 20SM12071 10P16074
60VM4875 60VM6875 100VM4083 SW8071 20SM12081 10P16084
60VM4881 60VM6881 100VM5071 SW8081 20SM16071 15P4075
60VM4882 60VM6882 100VM5072 SW4072 20SM16081 15P4085
60VM4883 60VM6883 100VM5073 SW4082 10SM9071 15P6075
60VM4884 60VM6884 100VM5081 SW6072 10SM9081 15P6085
60VM4885 60VM6885 100VM5082 SW6082 10SM1207115P807
100VM6081 10SM9072 100VM5083 SW8072 10SM12081 15P8085
100VM6082 10SM9082 100VM6071 SW8082 10SM16071 10P12075
100VM6083 10SM12072 100VM6072 SW4073 10SM1608110P1208
150V5072 10SM12082 100VM6073 SW4083 20SM4072 10P16075
15SM24071 10SM16072 10SM12075 SW6073 20SM4082 10P16085
15SM24072 10SM16082 10SM12085 SW6083 20SM6072 15QS4071
15SM24081 20SM4073 10SM16075 SW8073 20SM6082 15QS4081
15SM24082 20SM4083 10SM16085 SW8083 20SM907215QS6071
BTV4S4P1 Side Inlet 20SM6073 20MVBB SW4074 20SM9082 15QS6081
BTV4F4L1 Front Inlet 20SM6083 20MVBB6 SW4084 20SM1207215QS9071
BTV4B2L2 Bottom Inlet 20SM9073 MVE1001 SW6074 20SM1208215QS9081
BTV4B4P2 Bottom Inlet 20SM9083 MV1001 SW6084 20SM1607215QS12071
BTV4F2L3 Front Inlet 20SM12073 MVE12001 SW8074 20SM1608215QS12081
BTV4F2L4 Front Inlet 20SM12083 MV2001 SW8084 50Y908115QS4072
20DV9077 20SM16073 MVE1002 SW4872 15Y12072 15QS4082
20DV12077 20SM16083 MV1002 SW4882 15Y12082 15QS6072
20DV16077 10SM9073 MVE2002 SW6872 15Y16072 15QS6082
PV4TW3G 10SM9083 MV2002 SW6882 15Y16082 15QS9072
PVT6TW4G 10SM12073 MVE1003 SW8872 43Y16072 15QS9082
PVCTW6MG 10SM12083 MV1003 SW8882 43Y16082 15QS12072
PVCTW9MG 10SM16073 MVE2003 SW4075 50Y9072 15QS12082
10V2071 10SM16083 MV2003 SW4085 50Y9082 10VRMM2812
10V2081 20SM4074 MVE1004 SW6075 15Y12872 30VRMM4812
10V4071 20SM4084 MV1004 SW6085 15Y12882 60VRMM4882
10V4081 20SM6074 MVE2004 SW8075 15Y16872 60VRMM6882
10V6071 20SM6084 MV2004 SW8085 15Y16882 20GV6078
10V6081 20SM9074 MVE1005 15Y16071 43Y16872 20GV9078
10V8071 20SM9084 MV1005 15Y16081 43Y16882 30GV9078
43Y16081 50Y9882 15Y12081 43Y16071 50Y9872 15Y12071
50Y9071
Autoclave高压针阀型号
30SC16071 43SC1607130VM9071 10V8081 20SM12074 MVE2005
30SC16072 43SC16072 30VM9072 10V2072 20SM12084 MV2005
30SC16081 43SC16081 30VM9073 10V2082 20SM16074 15P2001
30SC16082 43SC16082 30VM9074 10V4072 20SM16084 15P2011
30SC16871 43SC16871 30VM9075 10V4082 10SM9074 15P4071
30SC16872 43SC16872 30VM9081 10V6072 10SM9084 15P4081
30SC16881 43SC16881 30VM9082 10V6082 10SM12074 15P6071
30SC16882 43SC16882 30VM9083 10V8072 10SM1208415P6081
30VM4071 30VM6071 30VM9084 10V8082 10SM16074 15P8071
30VM4072 30VM6072 30VM9085 10V2073 10SM16084 15P8081
30VM4073 30VM6073 30VM9871 10V2083 20SM4872 10P12071
30VM4074 30VM6074 30VM9872 10V4073 20SM4882 10P12081
30VM4075 30VM6075 30VM9873 10V4083 20SM6872 10P16071
30VM4081 30VM6081 30VM9874 10V6073 20SM6882 10P16081
30VM4082 30VM6082 30VM9875 10V6083 20SM9872 15P2002
30VM4083 30VM6083 30VM9881 10V8073 20SM9882 15P2012
30VM4084 30VM6084 30VM9882 10V8083 20SM12872 15P4072
30VM4085 30VM6085 30VM9883 10V2074 20SM12882 15P4082
30VM4871 30VM6871 30VM9884 10V2084 20SM16872 15P6072
30VM4872 30VM6872 30VM9885 10V4074 20SM16882 15P6082
30VM4873 30VM6873 60VM9071 10V4084 10SM9872 15P8072
30VM4874 30VM6874 60VM9072 10V6074 10SM9882 15P8082
30VM4875 30VM6875 60VM9073 10V6084 10SM12872 10P12072
30VM4881 30VM6881 60VM9074 10V8074 10SM12882 10P12082
30VM4882 30VM6882 60VM9075 10V8084 10SM16872 10P16072
30VM4883 30VM6883 60VM9081 10V2873 10SM16882 10P16082
30VM4884 30VM6884 60VM9082 10V2882 20SM4075 15P4073
30VM4885 30VM6885 60VM9083 10V4872 20SM408515P4083
40VM9071 40VM9081 60VM9084 10V4882 20SM6075 15P6073
40VM9072 40VM9082 60VM9085 10V6872 20SM6085 15P6083
40VM9075 40VM9085 60VM9871 10V6882 20SM907515P8073
Autoclave高压针阀型号
30SC16071 43SC16071 30VM9071 10V8081 20SM12074MVE2005
30SC16072 43SC16072 30VM9072 10V2072 20SM12084 MV2005
30SC16081 43SC16081 30VM9073 10V2082 20SM16074 15P2001
30SC16082 43SC16082 30VM9074 10V4072 20SM16084 15P2011
30SC16871 43SC16871 30VM9075 10V4082 10SM9074 15P4071
30SC16872 43SC16872 30VM9081 10V6072 10SM9084 15P4081
30SC16881 43SC16881 30VM9082 10V6082 10SM12074 15P6071
30SC16882 43SC16882 30VM9083 10V8072 10SM1208415P6081
30VM4071 30VM6071 30VM9084 10V8082 10SM16074 15P8071
30VM4072 30VM6072 30VM9085 10V2073 10SM16084 15P8081
30VM4073 30VM6073 30VM9871 10V2083 20SM4872 10P12071
30VM4074 30VM6074 30VM9872 10V4073 20SM4882 10P12081
30VM4075 30VM6075 30VM9873 10V4083 20SM6872 10P16071
30VM4081 30VM6081 30VM9874 10V6073 20SM6882 10P16081
30VM4082 30VM6082 30VM9875 10V6083 20SM9872 15P2002
30VM4083 30VM6083 30VM9881 10V8073 20SM9882 15P2012
30VM4084 30VM6084 30VM9882 10V8083 20SM12872 15P4072
30VM4085 30VM6085 30VM9883 10V2074 20SM12882 15P4082
30VM4871 30VM6871 30VM9884 10V2084 20SM16872 15P6072
30VM4872 30VM6872 30VM9885 10V4074 20SM16882 15P6082
30VM4873 30VM6873 60VM9071 10V4084 10SM9872 15P8072
30VM4874 30VM6874 60VM9072 10V6074 10SM9882 15P8082
30VM4875 30VM6875 60VM9073 10V6084 10SM12872 10P12072
30VM4881 30VM6881 60VM9074 10V8074 10SM12882 10P12082
30VM4882 30VM6882 60VM9075 10V8084 10SM16872 10P16072
30VM4883 30VM6883 60VM9081 10V2873 10SM16882 10P16082
30VM4884 30VM6884 60VM9082 10V2882 20SM4075 15P4073
30VM4885 30VM6885 60VM9083 10V4872 20SM408515P4083
40VM9071 40VM9081 60VM9084 10V4882 20SM6075 15P6073
40VM9072 40VM9082 60VM9085 10V6872 20SM6085 15P6083
40VM9075 40VM9085 60VM9871 10V6882 20SM907515P8073
Autoclave Engineers 公司是以生产世界领先的高压阀、接头和管子而著名。压力可以从 0到150,000psi (10342
bar),温度从-423°F (-252°C) 到1200°F(649°C)。 没有别的工厂能比AutoclaveEngineers
在高压要求方面做的更好,也没有别的工厂能比AutoclaveEngineers做的系统更可靠、更具有创新的特性。
Autoclave高压阀门:高压针阀、高压球阀、安全阀、仪表阀、特制的阀和阀组、接头、管子、压力表、热电偶、气动执行器。
应用领域:海上油井.石油化工及航天领域
|
