德国GATHER快速接头 Gather快速接头 gather齿轮泵


德国Gather Industrie GmbH主要生产泵、管道、阀门和过滤器等产品。公司自成立以来，追求创新，不断推出新的产品，满足客户的更多需求。Gather Industrie公司同时提供良好的售后服务。今年来，该公司的产品远销全球各地，收到了越来越多的客户的欢迎。

GATHER快速接头平面设计使密封面不泄漏，易于接合断开。
温度介于-60 C和+315 °C
非泄漏断线：没有破坏环境的人或因泄漏的液体或气体的危害退出共享
无耦合操作：没有空气或灰尘进入管道
系统入口能力（清洁就地）：嵌入式无残留的清洁产品更换密封在与耦合仍然存在插座
所有的连接类型：螺纹类型众多，软管接头，法兰，特殊的连接
不锈钢，哈氏合金
特殊类型：维护与管断裂。
德国GATHER快速接头\磁力齿轮泵
GATHER磁力驱动齿轮泵是由不锈钢、哈氏合金或钛合金做成的，主要用于水、水性液体、盐溶液、酸碱溶液和溶剂，具有高度精确的特点。作为一个低维护流程泵，它可以优化集成到现有的系统；当用于加料和计量时，确保高度准确，重现性流动速率。在磁力耦合和使用最新的材料的基础上，Gather持续推进泵的设计，从最初为实验室服务的泵到开发适合于试验设施（小型厂）酸性和苛刻环境的泵和过程工艺泵，符合压力设备指令及危险区域ATEX的要求。
GATHER主要产品：GATHER磁力齿轮泵、GATHER离心泵、GATHER连接器、GATHER快速接头、GATHER过滤器、GATHER止回阀、GATHER溢流阀、GATHER流量保护控制阀

德国GATHER快速接头平面设计使密封面不泄漏，易于接合断开。温度介于-60 C和+315 °C非泄漏断线：没有破坏环境的人或因泄漏的液体或气体的危害退出共享无耦合操作：没有空气或灰尘进入管道系统入口能力（清洁就地）：嵌入式无残留的清洁产品更换密封在与耦合仍然存在插座所有的连接类型：螺纹类型众多，软管接头，法兰，特殊的连接不锈钢，哈氏合金特殊类型：维护与管断裂。

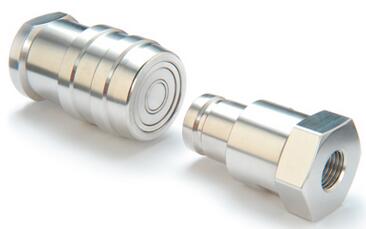

Flat-Face Quick-Disconnect Coupling Gather DBG系列平面快速接头 Non-spill, robust and safe for any application DBG series, DN 4 to 65 More than 500,000 coupling cycles Most cost-effective of plain, low-alloy stainless steel	Flat-Face Sterile Coupling Gather快速接头 Non-spill, robust and safe for any application especially in the pharmaceutical field Special variant of the DBG product series, DN 6 to DN 40 Unique in its class

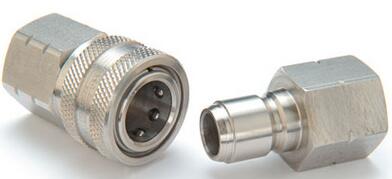

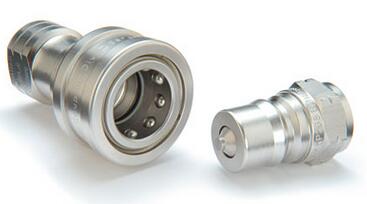

Original Hansen Tube-Hose Quick-Disconnect Coupling of HK Series Double shut-off versions Gather Hk Coupling系列快速接头	Original Hansen Tube-Hose Quick-Disconnect Coupling of ST Series Gather ST系列快速接头

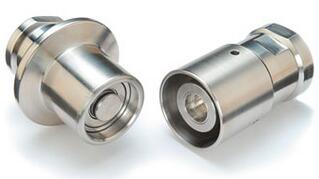

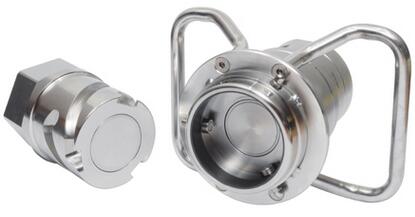

Connection under pressure Garher DBG-CUP系列带压操作快速接头 Special series DBG-CUP, DN 12 to 25 Non-spilling, robust and save for every application CUP SYSTEM? – Connection Under Pressure Unique in its class	GATHER DBG-SV快速接头 Tube-Hose Quick-Disconnect Coupling Double shutoff, dry-break and connectable under residual pressure Hose couplings of type DBG-SV are fitted with automa-tically closing shut-off valves.
Mechanical Pin Coding System 机械销编码系统	Electronic Coding System 电子编码系统

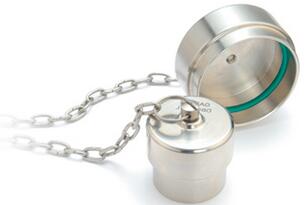

Gather快速接头防尘帽 防尘塞	Gather快速接头防尘帽 防尘塞

Hansen Coupling

The Evergreen“ HK Products - The Proven Hansen Design Series

Double shutoff feature, robust and safe in any application

DN 4 to DN 125

Technical Data

Connects/disconnects liquid, gas or steam lines quickly
Nominal diameters from DN 4 to DN 125
For vacuum and pressure up to 550 bar, at -60°C to +315°C
Double, single shutoff or without shutoff function
High operational safety: integrated shutoff valves reliably prevent product losses when the coupling is disconnected
Proven locking mechanism: automatic ball locking for high operational safety
All types of connection: numerous thread types, hose nipples, flanges, special connections
Stainless steel, steel, brass, aluminum, Hastelloy, titanium

Flat-Face Quick-Disconnect Coupling

Non-spill, robust and safe for any application
DBG series, DN 6 to 65
More than 500,000 coupling cycles
Most cost-effective of plain, low-alloy stainless steel

The flat-face sealing design enables non-spill disconnect and inclusion-free coupling operations.

Temperatures ranging between -60°C and +315°C
Single-hand operation
Non-spill disconnection: No environmental damage or hazards to persons due to spilled liquid or exiting gas
Inclusion-free coupling operation: No ingress of air or dirt into the piping system
CIP capability (Cleaning-in-Place): Inline cleaning without product residues
Seal replacement at the socket with coupling still in place
All types of connection: numerous thread types, hose nipples, flanges, special connections
Stainless steel, Hastelloy
Special types:
with hose breaking safeguard
with electronic identification system
with mechanical pin coding
with handles
Ready-to-install couplings for docking systems
Series products available from stock

Series Nominal diameter Admissible operating pressure Connection

DBG 2 DN 6 350 bar 1/4"
DBG 3 DN 10 350 bar 3/8"
DBG 4 DN 12 250 bar 1/2"
DBG 6 DN 20 200 bar 3/4"
DBG 8 DN 25 105 bar 1"
DBG 12 DN 40 60 bar 1.1/2"
DBG 20 DN 65 20 bar 2.1/2"

GATHER接头 的相关产品
GATHER泵｜GATHER阀 PU2020、PU2013、PU2015
GATHER泵 PU2020、PU2015、PU2013
GATHER阀 Rü-G1/8-V、Rü-G1/4-V、Rü-G3/8-V、Rü-G1/2-V、Rü-G3/4-V
GATHER接头 GATHER接头
GATHER产品常用型号：
DBG 2 DN 6 350 bar 1/4"
DBG 3 DN 10 350 bar 3/8"
DBG 4 DN 12 250 bar 1/2"
DBG 6 DN 20 200 bar 3/4"
DBG 8 DN 25 105 bar 1"
DBG 12 DN 40 60 bar 1.1/2"
DBG 20 DN 65 20 bar 2.1/2"
GATHER快速接头 HKT12N-BR V01/K57222
GATHER快速接头 HKG30N-AL V01/K57359G3A

接头 HKG30F-AL-V01-G3A-KR-LLRG-EN替代A24-H60BS-KR-RG170-EN-143
快速接头 A-24-K60BS-EN-143 DN80
快速接头 A-24-H60BS-KR-RG170-EN-143 DN80
喷涂泵 P522274 70716651 1M-K/9 PTB-NR.02ATEXD034
轧机-支承辊 HKT12N-BR V01/K57222
轧机-支承辊 HKG30N-AL V01/K57359G3A
GATHER快速接头 公头 HKT12N-BR V01/K57222
GATHER快速接头 公头 HKG30N-AL V01/K57359G3A
GATHER快速接头 公头 HKT12N-BR V01/K57222
GATHER快速接头 公头 HKG30N-AL V01/K57359G3A
GATHER快速接头 母头 HKT12F-BR-V01
GATHER快速接头 公头 HKT12N-BR V01/K57222
GATHER快速接头 母头 HKG30F-AL-V01
GATHER快速接头 公头 HKG30N-AL V01/K57359G3A
GATHER快速接头 母头 HKT12F-BR-V01
GATHER快速接头 公头 HKT12N-BR V01/K57222
GATHER快速接头 母头 HKG30F-AL-V01
GATHER快速接头 公头 HKG30N-AL V01/K57359G3A
接管插座 HKT6F-CC-R01-ST3/4 CD01
GATHER接头 HKT6N-CC-R01-AM26.94 2.6X20 CD01
接管插头 HKT6F-LL-R01-ST3/4 CD01
GATHER接头 HKT6N-LL-R01-AN269426X20
GATHER快速接头（轧机-支承辊） HKT12N-BR V01/K57222
GATHER快速接头（轧机-支承辊） HKG30N-AL V01/K57359G3A
GATHER快速接头 公头 HKT12N-BR V01/K57222
GATHER快速接头 公头 HKG30N-AL V01/K57359G3A
GATHER快速接头 A-24-H60BS-KR-RG170-EN-143
GATHER HKG30F-AL-V01-G3A-KR-LLRG-EN替代A24-H60BS-KR-RG170-EN-143
GATHER 管接头 DN80 part NO.21281 HKG30F-AL-V01-G3A-KR-LLRG-EN GATHER INDUSTRIE 进口 原图号A00723.510.07.10.8805_10929220_0060 HKG30F-AL-V01-G3A-KR-LLRG-EN Al
GATHER 管接头 DN40 part NO.21538 HKT12F-BR-V01-G1.1/2A GATHER INDUSTRIE 进口 原图号A00723.510.07.10.8805_10929156_0050 HKT12F-BR-V01-G1.1/2A Messing-FPM
GATHER接头 DN40 part NO.21538 HKT12F-BR-V01-G1.1/2A
GATHER接头 DN80 part NO.21281 HKG30F-AL-V01-G3A-KR-LLRG-EN
快速接头 BG3F-KL-V01-G1/2-LS,DN10 FKM
快速接头 DBG3N-KL-V01/V10-MF22X1.5-SBL,DN10，FKM
