MAHLE德国玛勒集团是世界上最大的过滤器制造商之一。作为拥有万名以上员工的企业集团的一部分，德国MAHLE(玛勒)过滤器公司以其精湛的工艺和广泛的应用领域，在欧美制造业素有盛名。

德国MAHLE过滤产品:
MAHLE滤芯
MAHLE吸油过滤器
MAHLE管路过滤器
MAHLE双联过滤器
MAHLE回油过滤器
MAHLE旁路过滤系统及滤油车
MAHLE自清洗过滤器
MAHLE旋装式过滤器
MAHLE油箱空气过滤器
MAHLE污染发讯器及过滤器附件
MAHLE油品检测仪
MAHLE空气滤清器
MAHLE机油滤清器
MAHLE燃油滤清器
MAHLE汽车空调滤清器
MAHLE过滤介质

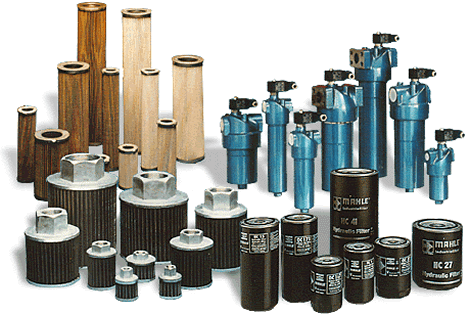

MAHLE德国玛勒产品范围：

1，吸油过滤器
2，回油过滤器
3，吸-回油过滤器
4，低压过滤器
5，高压过滤器
6，高压防护过滤器
7，压差指示器
8，油箱换气过滤器
9，除尘过滤器滤芯，空气过滤器，各种旋装式（Spin-on）滤筒，自清洗过滤器， 压缩空气除油过滤器，双联过滤器，液压、润滑及乳化液过滤器。

1，吸油过滤器
●流量：可达315L/min
●精度：可达30um
●接口形式：管路或法兰连接可选
●可选带自封脚阀的形式
●适合油箱顶安装或油箱侧面安装
●主要应用于液压、润滑等工程机械行业

2，回油过滤器
●流量：可达1000L/min
●压力：1.6Mpa
●精度：可达5um
●接口形式：管路、法兰或软管连接
●适合油箱顶安装，可选带空气过滤器，同时也可选延长管和扩散器等形式

3，吸-回油过滤器
●流量:可达600L/min
●压力：1.0Mpa
●精度：可达12um
●接口形式：管路或法兰连接
●适合油箱顶安装，用于回油及闭式液压系统，带补油泵接口
●主要应用于工程机械行业

4，低压过滤器
●流量：可达2000L/min
●压力：可达10Mpa
●精度：可达5um
●接口形式：管路或法兰连接
●可根据要求选用电子堵塞指示器或目视堵塞指示器

5，高压过滤器
●流量:可达1000L/min
●压力：可达60Mpa
●精度：可达5um
●接口形式：管路或法兰连接
●可选双向过滤器，同时也可根据用户要求选择电子堵塞指示器或目视堵塞指示器

6，高压防护过滤器
●流量：可达100L/min
●压力：可达31.5Mpa
●精度：可达60um
●接口形式：公制螺纹或管路形式连接
●用于高压粗过滤

7，压差指示器
●目视报警压力：0.2...0.5Mpa
●电子报警压力：0.12...0.5Mpa
●用于压力和高压过滤器的堵塞报警
●可选带温度校正，带有两个开关点
8，油箱换气过滤器
●通风量：可达850L/min
●充油量：可达90L/min
●精度：2um
●接口形式：公制螺纹或管路连接
●用于平衡油箱压力变化和指示液位
●可选双单向阀、油标尺和安全型换气过滤器

9，除尘过滤器滤芯，空气过滤器，各种旋装式（Spin-on）滤筒，自清洗过滤器， 压缩空气除油过滤器，双联过滤器，液压、润滑及乳化液过滤器。

MAHLE玛勒滤芯

Filter elements are the heart of any effective hydraulic filtration. Made exclusively at MAHLE industrial filters in ?hringen, our unique Sm-N2 and Sm-x filter element ensure outstanding oil purity in hydraulic and lubrication systems, even in difficult applications. MAHLE hydraulic filter elements are at the forefront of modern hydraulic filtration and exceed all national and international standards. MAHLE hydraulic filter elements are made for MAHLE standard and DIN filter housings, in the dimensions of other filter manufacturers and in customer-specific designs.

MAHLE玛勒吸油过滤器

Suction filters protect the pump of a hydraulic system from rough contamination. They are either installed in front of the pump or - especially maintenance-friendly - accessible from the outside with the clogging indicator built into the suction line.
The broad selection of system-suitable elements permits protection of the system and pump in the fine range from 10 - 25 μm with Mic quality or in the rough range with cleanable wire mesh.
Suction Filter Pi 160
Suction Filter Pi 1710, nominal size up to 480

MAHLE玛勒管路过滤器

Pressure filters are available as full- or partial-flow filters for the pressure ranges low-pressure to 25 (60) bar, medium pressure to 210 bar, high pressure to 450 bar. The housings are of robust, flow-friendly design; the filter elements are made from a broad selection of system-suitable components adapted precisely to meet the specific requirements.
New hydraulic filters in accordance with DIN 24 550 fulfil current market demands.
An extensive accessory programme completes our offering.
Low Pressure Filter Pi 1500, operating pressure 10 (25) bar, nominal size up to 600, according to DIN 24550
Low Pressure Filter Pi 1907, operating pressure 16 bar, nominal size 400 up to 6000
Low Pressure Filter Pi 1975, operating pressure 6 bar, nominal size 50
Low Pressure Filter Pi 220, operating pressure 10 bar, nominal size up to 160
Low Pressure Filter Pi 230, operating pressure 25 (63) bar, nominal size up to 800
Low Pressure Filter Pi 2300, operating pressure 25 (40) bar, nominal size up to 2000, according to DIN 24550
Low Pressure Filter Pi 270, operating pressure 10 bar, nominal size up to 315
Medium Pressure Filter Pi 3000, operating pressure 200 (315) bar, nominal size up to 400, according to DIN 24550
Medium Pressure Filter Pi 340, operating pressure 250 bar, nominal size up to 450
Medium Pressure Filter Pi 360, operating pressure 210 (315) bar, nominal size up to 300
High Pressure Filter Pi 4000, operating pressure 400 bar, nominal size up to 400, according to DIN 24550
High Pressure Filter Pi 410, operating pressure 315 bar, nominal size 20-63
High Pressure Filter Pi 420, operating pressure 400 bar, nominal size up to 450
Low Pressure Filter Pi 150, operating pressure 10 (25) bar, nominal size up to 630

MAHLE玛勒双联过滤器

Since an interruption of production to change the filter element is usually not possible in continuous processes, MAHLE offers the ideal solution with its duplex filter series. Duplex filters with standard integrated clogging indicator work trouble-free around the clock and can be easily serviced or replaced without interruption of operations or switchover breaks.
Low Pressure Duplex Filter Pi 210, operating pressure 25 (63) bar, nominal size up to 450
Low Pressure Duplex Filter Pi 2100, operating pressure 25 (63) bar, nominal size up to 40, 100, 250 according to DIN 24550
Low Pressure Duplex Filter Pi 2100, operating pressure 25 bar, nominal size up to 630 and 1000, according to DIN 24550
Low Pressure Duplex Filter Pi 231
Low Pressure Duplex Filter Pi 5075, operating pressure 16 bar, nominal size 400 up to 6000
Medium Pressure Duplex Filter Pi 370, operating pressure 200 (250) bar, nominal size up to 450
Medium Pressure Duplex Filter Pi 3700, operating pressure 200 (250) bar, nominal size up to 400, according to DIN 24550

MAHLE玛勒回油过滤器

Return-line filters collect all the dirt that is produced in the system and rinsed out of the hydraulic system. This prevents dangerous dirt circulation arising through the tank and pump. These filters are usually installed in a space-saving way directly in the hydraulic tank and so belong to the most widely used filters for mobile machines.
Through the use of modern materials, such as plastic made of glass-fibre-reinforced polyamide as well as aluminium, MAHLE return filters are especially light. Practically all filtration degrees are possible.
Tank Top Return-line Filter Pi 500, nominal size 40 up to 100, according to DIN 24550
Tank Top Return-line Filter Pi 500, nominal size 160-1000, according to DIN 24550
Duplex Tank Top Return-line Filter Pi 510, nominal size 40 up to 1000, according to DIN 24550
Tank Top Return-line Filter Pi 530, nominal size 35 and 50

MAHLE玛勒旁路过滤系统及滤油车

Partial-flow filters are used in stationary designs to filter large quantities of oil, which cannot be cleaned adequately or only very uneconomically with full-flow filters. Through the filter's own circuit, which is optimally adapted to it, outstanding oil cleanliness can be achieved even in very large systems. In mobile design, partial-flow filters can be used very flexibly as flushing, filling or filtering units.
Mobile Filter Unit Pi 8100, flow rates 27 and 55 l/min
External Loop Filter

MAHLE玛勒自清洗过滤器

With their advantage of non-stop operation, MAHLE automatic filters have expanded into new areas of application in automatic purification and disposal systems. They include the regeneration of cooling lubricants, rolling, drawing, washing and similar fluids as well as the filtration of fuel and lubricants of large diesel engines in marine engineering and power plant engineering to name but a few.
Our continuous, further development of materials and manufacturing technologies guarantees economically and technically optimum products of the highest quality. MAHLE industrial filters are therefore the first choice for machine manufacturers as well as for their users.
Model: AF71L, AF71G, AF71H, AF72G, AF73G, AF73S, AF74S, AF93G, AF113G, AF133G, AF1334-parallel, AF153G, AF173G.

MAHLE玛勒旋装式过滤器

Spin-on cartridges are filter elements that are designed as a unit with a housing. Through their compact construction, maintenance-free handling and outstanding value for the money, spin-on cartridges are used with mobile machines and in the stationary area as suction and low-pressure filters up to 25 bar.
Equipped with highly efficient Mic and Sm-x filter inserts, MAHLE spin-on cartridges achieve the same filtration rates in the multi-pass test following ISO 16889 as do standard hydraulic filter elements.
Spin-on Cartridges, operating pressure 10/16/25 bar, nominal size up to 160

MAHLE玛勒油箱空气过滤器

Air breather filters are used for contamination-free air supply to tanks. A co-ordinated modular design permits flexible adaptation to the specified operating conditions. MAHLE offers a large selection of system-suitable filter elements that are corrosion- and impact-resistant and can be supplied with a variety of connection possibilities.
Air Breather Filters Pi 0101 - Pi 0185

MAHLE玛勒污染发讯器及过滤器附件

Filter elements are used economically only when their dirt-holding capacity is completely used. The time when the filter element is exhausted must be reliably shown even after the system is shut down, and display must be as free of disturbances as possible.
Filter housings with contamination indicators fulfil this condition and also simplify maintenance. MAHLE offers a proven, unique modular system of optical and electric contamination indicators and pressure switches for almost all fluid and breather filters.
Contamination Indicators

MAHLE玛勒油品检测仪

The portable contamination measuring system PIC 9100 permits measurement of solid contaminants in hydraulic fluids in accordance with the standards ISO 4406 and NAS 1638.
A highly precise laser measurement system, an integrated suction pump and integrated tank permit measurements on practically all systems and machines. With the optionally available evaluation software, this equipment is an essential instrument for maintenance and service of fluid-technical systems.
Portable Contamination Measuring System Pic 9100, max. operating pressure 315 bar
