Parker 5CNG – 压缩天然气软管
Parflex 5CNG Hose Electrically Conductive Compressed Natural Gas Hose

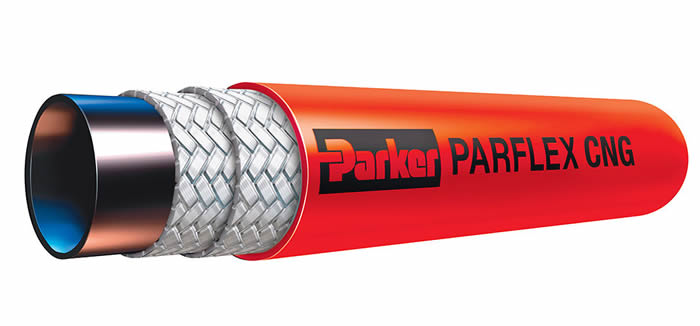

5CNG – Electrically Conductive Compressed Natural Gas Hose
COMPRESSED NATURAL GAS HOSE - ELECTRICALLY CONDUCTIVE - 5CNG
5CNG hose for compressed natural gas conveyance conforms to: NFPA 52, ANSI/IAS NGV 4.2,
ECE R110 (factory built only) and CSA12.52 Class A and Class D

Parker 5CNG 压缩天然气软管构成材料：内胶层：导电尼龙， 适用介质为压缩天然气。 温度范围：-40℃～+82℃， 适用接头：CG系列接头，派克工厂扣压，具体连接形式请咨询派克公司。 5CNG软管恒定工作压力为345bar〔5000psi〕，广泛应用于压缩天然气行业。在CNG加气机，加气站，CNG燃气传输，车用CNG等大量配套。 5CNG软管通过CSA/CGA与ECG R110安全认证， 可提供多联管总成。Parker 5CNG compressed natural gas hose for on-vehicle fuel systems and CNG dispensers is used to transfer compressed natural gas (CNG). 5CNG hose is up to 30% lighter than rigid tubing and is supplied in a single-line or bonded twin-line CNG hose assembly. A twin-line hose assembly can reduce part number complexity and eliminate tangled hoses in a dispenser system.

Parflex 5CNG Hose Electrically Conductive Compressed Natural Gas Hose
Parker 5CNG – 压缩天然气软管

Markets-市场:

- Transportation
- Refueling Stations
- Automotive

Features/Benefits-性能参数:

- Light weight
- Electrically conductive nylon core tube
- Twin-line hose assemblies prevent tangling
- CSA listed
- Available in ” (-4) to 1” (-16)

Applications-应用:

- CNG dispenser
- Fleet transit
- CNG fuel transfer
- Residential CNG refueling

Technical Specifications-技术规格参数:

- Tube: Electrically conductive nylon
- Reinforcement: Fiber
- Cover: Red polyurethane, perforated
- CNG hose must be assembled at the factory or by a Parflex approved facility
- Appropriate wire and vinyl guards must be used on ANSI/CSA compliant single-line and twin-line bonded hose assemblies
-4 to -8 SS wire guards
-12 & -16 Vinyl guards
- Hose I.D. is nominal
- Hose O.D. is maximum

- 规格参数：

构成材料：内胶层：导电尼龙
增强层：纤维
外胶层：红色聚氨酯，表面针刺
适用介质：压缩天然气
温度范围：-40℃～+82℃
适用接头：CG系列接头，派克工厂扣压，具体连接形式请咨询信德迈公司
性 能：恒定工作压力为345bar〔5000psi〕，广泛应用于压缩天然气行业
应 用：CNG加气机，加气站，CNG燃气传输，车用CNG等
优势与优点： CSA/CGA与ECG R110. 安全认证
可提供多联管总成

- 5CNG订货型号

HOSE I.D. (MM) 6 - 25
MAXIMUM WORKING PRESSURE (PSI) 5000
MAXIMUM WORKING PRESSURE (MPA) 34.5
COMPATIBLE FITTINGS CG Series
MINIMUM WORKING TEMPERATURE (F) -40
MINIMUM WORKING TEMPERATURE (C) -40
MAXIMUM WORKING TEMPERATURE (F) 180
MAXIMUM WORKING TEMPERATURE (C) 82
MINIMUM BEND RADIUS (INCH) 2 - 10
MINIMUM BEND RADIUS (MM) 51 - 254
INDUSTRY STANDARDS NFPA 52; ANSI/IAS NGV 4.2; ECE R110 (factory built only); CSA12.52 Class A, Class D
MEDIA Natural Gas
APPLICATION Natural Gas Transfer
HOSE TYPE Conductive
COLOR Red
HOSE I.D. (INCH) 1/4" to 1"
