Parker Skinner CNG Low Pressure Solenoid Valves

CNG Low Pressure Valves Customer Value Natural Gas Solutions
CNG低压阀门客户价值天然气解决方案

派克流体控制部门FCD积极参与为运输市场提供支持替代燃料应用的系统解决方案。派克FCD目前的产品为CNG应用提供高低压阀门。我们的内部设计、测试和验证功能还允许我们提供更复杂、定制的解决方案，以满足独特的客户需求。我们的低压阀门通过了ECER110认证，这使得该阀门适用于车载应用。Parker Fluid Control Division (FCD) is actively involved in providing system solutions for the transportation market that support alternative fuel applications.Parker FCD’s current product offering features both high and low pressure valves for CNG applications. Our in-house design, test, and validation capabilities also allow us to offer more complex, customized solutions to meet unique customer requirements. Our low pressure valves hold the ECE R110 approval, which makes the valve suitable for vehicle on-board applications.

Parker Skinner CNG Low Pressure Solenoid Valves PDF Catalog

产品特点:

- 2 Way Normally Closed
- Brass Body, FKM & ECO Seals
- ECE R110 Approved
- Minimum Pressure Differential is 10PSI and Maximum Differential is 250PSI
- Media Temperature: -40°F to 185°F
- Power Consumption: 10 Watts
- 12VDC and 24VDC
- Process Connections: 3/8” & 1/2” NPT

Key Features

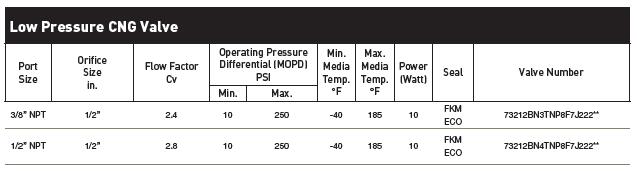

LOW PRESSURE CNG VALVE NUMBER:

7321BN3TNP8F7J222C1
7321BN3TNP8F7J222C2
7321BN4TNP8F7J222C1
7321BN4TNP8F7J222C2

** Valve number ending in “C1” = 12VDC
Valve number ending in “C2” = 24VDC

Parker Fluid Control Division (FCD) is actively involved in providing system solutions for the transportation market that support alternative fuel applications.

Parker FCD’s current product offering features both high and low pressure valves for CNG applications. Our in-house design, test, and validation capabilities also allow us to offer more complex, customized solutions to meet unique customer requirements. Our low pressure valves hold the ECE R110 approval, which makes the valve suitable for vehicle on-board applications.
