Parker UHP PFA/PTFE FM-4系列超高纯流量计
Parker UHP PFA/PTFE FM-4 Series Flowmeter

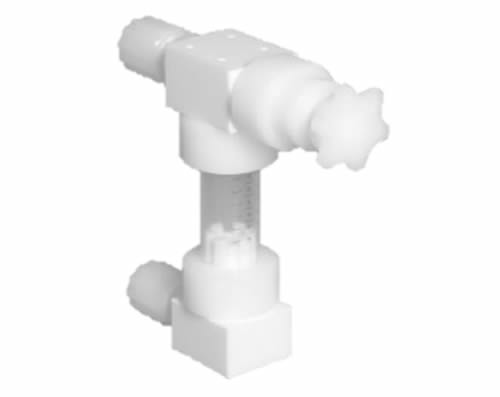

Parker FM-4 Series PFA/PTFE Flowmeter

Parker FM-4 系列PFA/PTFE 流量计用于需要精密液体流量控制的超高纯应用。它提供极强耐腐蚀性，采用无泄漏操作的卡套技术 (最高压力120 psig)。Parker派克FM-4系列是3/4"PFA/PTFE流量计， 非常适合需要对流体进行精确控制和测量的高纯应用。采用PTFE体、高纯PFA桶、精密加工针阀元件。这些特点使流量计具有高循环寿命、优秀的泄露完整性和优异的耐腐蚀性。

并非典型的面对面密封，FM-4系列采用压缩技术将桶与本体进行密封。确保可靠、无泄漏操作，使端口可360°定位，增加灵活性。流量计独特的PTFE浮动设计允许在各种化学品中的连续读出和能见性。

Parker FM-4系列可配备Parflare入口和出口连接方式，节约装配和安装时间，确保洁净至关重要的应用中无泄漏密封性能。

Parker FM-4 系列PFA/PTFE 超高纯半导体流量计
Parker UHP PFA/PTFE FM-4 Series Flowmeter

The is designed for ultra-high purity applications where precise flow control of liquids is required. It offers extreme corrosion resistance and uses compression technology for leak-free operation (up to 120 psig).The Parker FM-4 Series is a 3/4 inch PFA/PTFE Flowmeter that’s ideally suited for high purity applications where precise control and measurement of liquids is required. It utilizes a PTFE body, a high-purity PFA barrel, and precision-machined needle valve components. These features afford the flowmeter high cycle life, excellent leak integrity, and exceptional resistance to aggressive liquids.

Rather than a typical face-to-face seal, the FM-4 Series utilizes compression technology to seal the barrel to the body. This ensures reliable, leak-free operation and enables 360-degree port orientation for increased flexibility. The flowmeter’s unique PTFE float design allows for consistent read out and visibility in a wide range of chemicals.

The FM-4 Series is fitted with Parflare inlet and outlet connection types, which reduce assembly and installation time, while ensuring a leak-tight seal for performance in applications where cleanliness is critical.

市场Markets:

- 半导体 Semiconductor
- 分析试验室 Analytical Laboratory
- 制药 Pharmaceutical
- 生物制药 BioPharm
- 航空航天 Aerospace
- 工业 Industrial

特点和优势:

- PTFE和PFA接液面提供高弯曲寿命和优异的耐腐蚀性
- 压力范围 0-120 psig
- 标准配置为一体式针阀控制流量和面板安装螺母用于安装
- 压缩式桶与本体密封确保零泄漏，允许360°端口定位
- 流量范围:根据结构的不同2 – 5 加仑/分
- 出入口可选Parflare连接方式
- 环境温度范围:0°F 至 +212° F (-17°C 至 +100° C)
- 流体温度范围:0°F 至 +266° F (-17°C 至 +130° C)

应用Applications:

- 腐蚀性和/或特殊化学品, 酸, 碱和泥浆 Corrosive and/or specialty chemicals, acids, bases, and slurries
- 半导体工具 Semiconductor Tools
- CMP/泥浆系统 CMP/Slurry Systems
- 阀组箱 (VMBs) Valve Manifold Boxes (VMBs)

性能特点

主体材料 PFA, PTFE, Polypro, PVDF
压力范围 0 psig-120 psig (8.3 bar)
最高环境温度 (C) 100°C
最高环境温度 (F) 212°F
最低环境温度 (C) -17°C
最低环境温度 (F) 0°F
最高液体温度 (C) 130°C
最高液体温度 (F) 266°F
最低液体温度 (C) -17°C
最低液体温度 (F) 0°F
