PARKER Test Port and Diagnostic Equipment Quick Couplings (SAE J1502 / ISO 15171-1), Push to Connect - PD Series

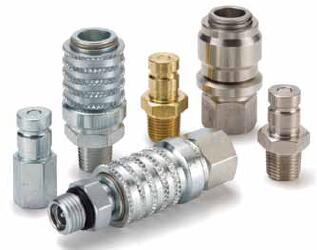

PARKER PD Series quick coupling

PARKER PD Series Nipples (diagnostic test port connectors) up to 6,000 psi, connect with PD Series Couplers. These push to connect quick couplings provide easy connection for mechanical gauges or specialized diagnostic equipment including SensoControl meters and accessories. PD Series Nipples allow test instruments, gauges, transducers, and flow sensors to be quickly and easily connected to system test ports.

Test port Nipples can be permanently mounted on equipment at critical test point locations. Couplers and nipples are available in 1/8"" size with a rated pressure of 6,000 psi when connected. PD Nipples meet or exceed SAE J1502 / ISO 15171-1 design and performance specifications.

Technical Characteristics:
- Size: 1/8""
- Materials: Steel, Stainless Steel, Brass
- Port Ends: Female NPTF, Female UNF, Male NPTF, Male Metric, Male UNF, Triple-Loc, Seal-Loc, Bulkhead
- Seal Options: Nitrile, Ethylene Propylene, Fluorcarbon, Neoprene

Markets:
- Industrial
- Construction
- Molding
- Testing
- Maintenance and Repair, MRO

Features/Benefits:
- Steel nipples are machined from high tensile strength material to be durable with continuous operating pressures up to 6000 psi
- Flush face valves minimize air inclusion and spillage
- SAE J1502 / ISO 15171-1 conformance provides global interchangeability with other test point couplings manufactured to the same specifications
- A variety of end fitting configurations, including bulkhead options, provide versatility for system installation and panel mounting
- Compatible with Parker's SensoControl diagnostic equipment
- Suitable for use with hydraulic or pneumatic systems

Applications:
- Mobile equipment engines
- Cooling systems
- Industrial hydraulic systems
- Fluid or air system maintenance and troubleshooting
- System performance optimization
- System validation
