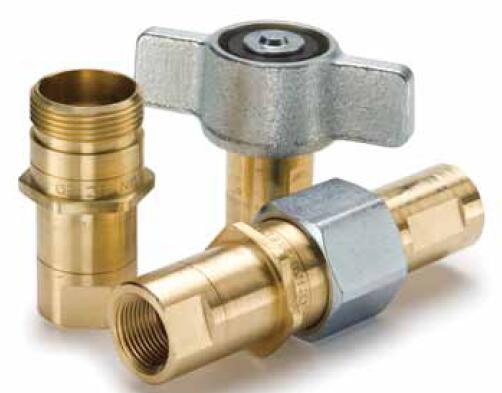

Parker 6100 Series is a thread to connect, low spill coupling that can be connected under pressure
Connect Under Pressure, Hex / Wing Nut Thread to Connect, Low Spill Brass Quick Couplings, up to 3000 psi


Parker's 6100 Series is a thread to connect, low spill coupling that can be connected under pressure. Coupler and nipple bodies are corrosion resistant brass. Couplers are available with a steel hex nut or heavy duty wing nut sleeve. A connection indicator groove on the nipple body visually shows when the connection is complete and valves are fully open. Couplers and nipples are available in a range of sizes. Couplings sets consisting of a coupler, nipple, and mounting flanges are also available. Parker's low spill thread to connect couplers and nipples, wing nut or hex nut style, are ideal for use in applications where a high flow flush valve and connect under pressure is needed. 6100 Series Couplers (hydraulic) 3000 psi connect with 6100 Series Nipples.

Body Size: 3/4 to 1 1/2 inch, 3/4, 1, 1 1/4, 1 1/2 inch
Flow Rate: 12 to 100 Gal/min
Media: Hydraulic
Minimum Operating Temperature: -40 °F
Maximum Operating Temperature: 250 °F, 121 °C
Lock Type: Threads
Thread Size: Female
Connection Type: NPTF
Plating Type: Zinc with clear trivalent chromate on steel sleeve
Application: Hydraulic, connect under pressure, high flow
Coupling Half: Coupler
Seal Material: Nitrile
Maximum Operating Pressure: Up to 3000 psi, Up to 207 bar
Valve Type: Flat Face
Brand: Parker
Fitting Connection Type: Female Thread
Materials of Construction: Brass
Vacuum Pressure Rating: No



Technical Characteristics:
- Sizes: 3/4” thru 1-1/2"
- Materials: Brass with steel sleeve
- Port Ends: Female NPTF
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene

Markets:
- Oil and gas
- Construction
- Testing

Features/Benefits:
- Couplers are available with steel hex or heavy duty wing nut sleeve
- Low spill flush valves
- Bonded valve seal is durable under full pressure connect and disconnect
- Connection indicator groove on the nipple body visually indicates when the connection is complete
- Optional flange for secure bulkhead or panel mounting

Applications:
- Submersible pumps
- Oil field equipment
- Dump trailers
- Engine test stands
- Bulk liquid transfer
- CO2 transfer (special part numbers apply, contact us)



Literature and Reference Materials
6100 Series Catalog
Catalog 3800 Quick Coupling Products



Connect Under Pressure, Hex / Wing Nut Thread to Connect, Low Spill Brass Quick Couplings, up to 3000 psi - 6100 Series Couplers



Part Sleeve Type Connection Thread Size (inch)
6125-08 Wing nut 2001/2/14
6125-12 Wing nut 2003/4/14
6125-16 Wing nut 1 - 11 1/2
6125-20 Wing nut 1 1/4 - 11 1/2
6125-24 Wing nut 1 1/2 - 11 1/2
Aug-35 Hex nut 2001/2/14
Dec-35 Hex nut 2003/4/14
6135-16 Hex nut 1 - 11 1/2
6135-20 Hex nut 1 1/4 - 11 1/2
6135-24 Hex nut 1 1/2 - 11 1/2





Connect Under Pressure, Hex / Wing Nut Thread to Connect, Low Spill Brass Quick Couplings, up to 3000 psi - 6100 Series Nipples





Part Connection Thread Size (inch)
Aug-20 2001/2/14
Dec-20 2003/4/14
6105-16 1 - 11 1/2
6105-20 1 1/4 - 11 1/2
6105-24 1 1/2 - 11 1/2
