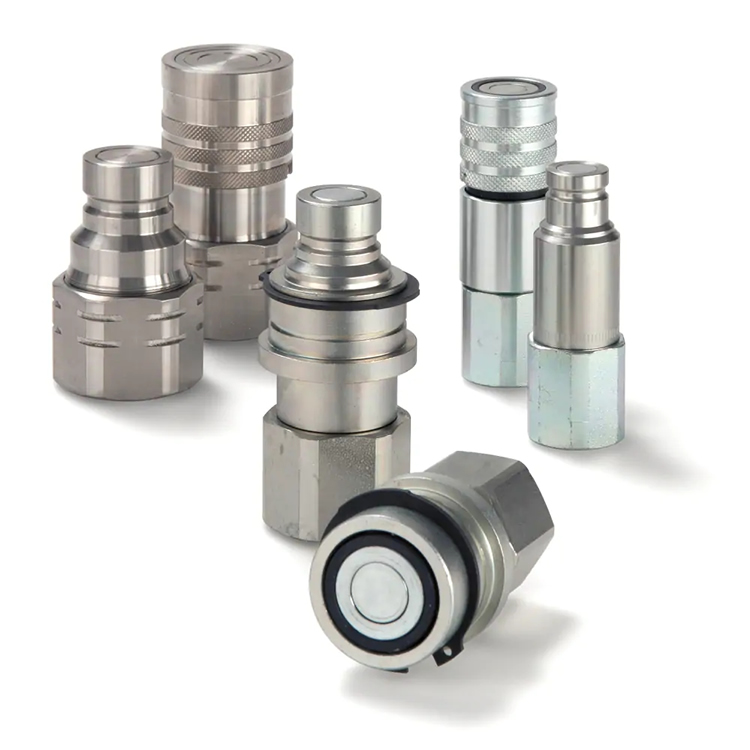

Parker FEM / IF series Flat Face Quick Coupling
平面快速接头

派克 FEM / IF 系列平齐端面液压快换,符合 ISO 16028 标准结构,能与相同标准下的快换进行互换。该系列快换能够在阴接头与阳接头断开时,将液压油的溢流损失降到更低,做到无泄漏断开。由于其阀芯设计结构,该系列快换压降更小,效能更大。FEM / IF 系列标准形式的本体材料是碳钢或者不锈钢。FEM / IF系列液压快换,平齐端面形式,符合 ISO 16028 标准结构;该系列液压快换接头本体尺寸为 1/8" 至 1",平齐端面形式,用于中等压力液压应用场合,耐压可达450 bar。符合 ISO 16028 标准结构。

Parker's Flat Face Quick Coupling FEM / IF series is produced according to the ISO 16028 and is compatible with other series complying with the same standard. These couplings offer a leckage free disconnection with a minimal oil loss during uncoupling. Thanks to the valve design, the coupling has a minimum pressure drop, and thus achieves maximum cost-effectiveness. The standard version of series FEM / IF is available made of steel or stainless steel. Flat Face quick coupling system with body size 1/8" up to 1" for medium pressure applications up to 450 bar. Coupling system with ISO 16028 Profile.

技术规格:

  • 阀体尺寸(英寸): 1
  • 版本: Pressure Eliminator
  • 连接螺纹尺寸(英寸): 1
  • 类型: Coupling
  • 最低运行温度: -25, -30 °C
  • 连接类型: 内螺纹
  • 应用: Medium Pressure
  • 主体尺寸: 1/8 - 1 inch
  • 品牌: Tema
  • 配件连接类型: Female Thread
  • 符合规格: ISO 16028
  • 交换式: ISO 16028
  • 最大运行压力: 200, 250, 315, 450 bar, 2900, 3620, 4560, 6520 psi
  • 最高运行温度: 100, 200 °C, 212, 392 °F
  • 介质: Chemical Fluids, Hydraulic Fluids, Steam, Water
  • 阀门类型: Non-Spill / FlatFace
  • 长度: 35 高达 146 mm
  • 六角螺母尺寸: 17 高达 65 mm
  • 外径: 18,6 高达 60 mm
  • 结构材料: 碳钢,黄铜/碳钢,不锈钢
  • 密封材料: NBR, FKM
  • 工作压力: 200, 250, 315, 450 bar



市场:
- 农业机械
- 汽车
- 石油以及天然气
- 过程控制
- 发电
- 轨道交通
- 市政设施
- 安防
- 工业液压
- 机械工具
- 物料搬运
- 建筑机械

特征/优势:
- 标配套筒锁,可保护其不发生意外断开
- FEC 系列可带背压释放器,能够在静压(可高达工作压力)轻松进行连接
- FEMP 以及 FECP系列,推拉式连接形式,可以用来定制多通道形式或者是快换需要固定的应用场合

应用:
其平齐端面设计,可以在液压系统实现清洁断开/连接形式,同时适用于工程机械液压系统以及工业液压系统
- 拖拉机
- 卡车
- 装载机
- 军用设备
- 液压工具
-压铸机
-注塑机



Minimum Operating Temperature: -25, -30 °C
Connection Type: Female Thread
Application: Medium Pressure
Body Size: 1/8 - 1 inch
Brand: Tema
Fitting Connection Type: Female Thread
Specifications Met: ISO 16028
Interchange Type: ISO 16028
Maximum Operating Pressure: 200, 250, 315, 450 bar, 2900, 3620, 4560, 6520 psi
Maximum Operating Temperature: 212, 392 °F, 100, 200 °C
Media: Chemical Fluids, Hydraulic Fluids, Steam, Water
Valve Type: Non-Spill / FlatFace
Length: 35 up to 146 mm
Hex Size: 17 up to 65 mm
Outside Diameter: 18,6 up to 60 mm
Materials of Construction: Steel, Brass / Steel, Stainless Steel
Seal Material: NBR, FKM
Operating Pressure: 200, 250, 315, 450 bar





Markets:
- Agriculture
- Automotive
- Oil & Gas
- Process
- Power Generation
- Transportation
- Vocational & Municipal
- Defense
- Industrial
- Machine Tooling
- Material Handling
- Construction

Features/Benefits:
- Safety locking feature as standard to prevent unintentional uncoupling
- FEC with the pressure eliminator enable effortless connection under static pressure (up to rated working pressure)
- FEMP and FECP with pushpull features is suitable for multi-plates or when coupling is fixed on an application

Applications:
Easy dry break connection / disconnection in hydraulic systems, both mobile and industrial applications
- Tractors
- Trucks
- Wheel loaders
- Military vehicles
- Hydraulic tools
- Presses
- Molding machines



Literature and Reference Materials
Catalog 3800 Quick Coupling Products
Catalogue Page Parker Tema FEM- / IF-Series





Hydraulic Flat Face Quick Coupling with ISO 16028 Profile, Series FEM / IF



Part Body Size (inch) Type Version Connection Thread Size (inch)
FEC-1001-16FB 1 Coupling Pressure Eliminator 1
FEC-1001-20FB 1 Coupling Pressure Eliminator 1 1/4
FEC-1002-16FB 1 Plug Pressure Eliminator 1
FEC-1002-20FB 1 Plug Pressure Eliminator 1 1/4
FEC-251-4FB 1/4 Coupling Pressure Eliminator 1/4
FEC-251-6FB 1/4 Coupling Pressure Eliminator 3/8
FEC-252-4FB 1/4 Plug Pressure Eliminator 1/4
FEC-252-6FB 1/4 Plug Pressure Eliminator 3/8
FEC-371-6FB 3/8 Coupling Pressure Eliminator 3/8
FEC-371-8FB 3/8 Coupling Pressure Eliminator 1/2
FEC-372-6FB 3/8 Plug Pressure Eliminator 3/8
FEC-372-8FB 3/8 Plug Pressure Eliminator 1/2
FEC-501-12FB 1/2 Coupling Pressure Eliminator 3/4
FEC-501-8FB 1/2 Coupling Pressure Eliminator 1/2
FEC-502-12FB 1/2 Plug Pressure Eliminator 3/4
FEC-502-8FB 1/2 Plug Pressure Eliminator 1/2
FEC-621-12FB 5/8 Coupling Pressure Eliminator 3/4
FEC-622-12FB 5/8 Plug Pressure Eliminator 3/4
FEC-751-12FB 3/4 Coupling Pressure Eliminator 3/4
FEC-751-16FB 3/4 Coupling Pressure Eliminator 1
FEC-752-12FB 3/4 Plug Pressure Eliminator 3/4
FEC-752-16FB 3/4 Plug Pressure Eliminator 1
FECP-1002-16FB 1 Coupling Pressure Eliminator for Multiplate 1
FECP-252-4FB 1/4 Coupling Pressure Eliminator for Multiplate 1/4
FECP-252-6FB 1/4 Coupling Pressure Eliminator for Multiplate 3/8
FECP-372-6FB 3/8 Coupling Pressure Eliminator for Multiplate 3/8
FECP-372-8FB 3/8 Coupling Pressure Eliminator for Multiplate 1/2
FECP-502-12FB 1/2 Coupling Pressure Eliminator for Multiplate 3/4
FECP-502-8FB 1/2 Coupling Pressure Eliminator for Multiplate 1/2
FECP-622-12FB 5/8 Coupling Pressure Eliminator for Multiplate 3/4
FECP-752-12FB 3/4 Coupling Pressure Eliminator for Multiplate 3/4
FECP-752-16FB 3/4 Coupling Pressure Eliminator for Multiplate 1
FEM-1001-16FB 1 Coupling Standard 1
FEM-1001-20FB 1 Coupling Standard 1 1/4
FEM-1002-16FB 1 Plug Standard 1
FEM-1002-20FB 1 Plug Standard 1 1/4
FEM-121-2FB 1/8 Coupling Standard 1/8
FEM-122-2FB 1/8 Plug Standard 1/8
FEM-251-4FB 1/4 Coupling Standard 1/4
FEM-251-6FB 1/4 Coupling Standard 3/8
FEM-252-4FB 1/4 Plug Standard 1/4
FEM-252-6FB 1/4 Plug Standard 3/8
FEM-371-6FB 3/8 Coupling Standard 3/8
FEM-371-8FB 3/8 Coupling Standard 1/2
FEM-372-6FB 3/8 Plug Standard 3/8
FEM-372-8FB 3/8 Plug Standard 1/2
FEM-501-12FB 1/2 Coupling Standard 3/4
FEM-501-8FB 1/2 Coupling Standard 1/2
FEM-502-12FB 1/2 Plug Standard 3/4
FEM-502-8FB 1/2 Plug Standard 1/2
FEM-621-12FB 5/8 Coupling Standard 3/4
FEM-622-12FB 5/8 Plug Standard 3/4
FEM-751-12FB 3/4 Coupling Standard 3/4
FEM-751-16FB 3/4 Coupling Standard 1
FEM-752-12FB 3/4 Plug Standard 3/4
FEM-752-16FB 3/4 Plug Standard 1
FEMP-1001-16FB 1 Coupling for Multiplate 1
FEMP-1002-16FB 1 Plug for Multiplate 1
FEMP-251-4FB 1/4 Coupling for Multiplate 1/4
FEMP-251-6FB 1/4 Coupling for Multiplate 3/8
FEMP-252-4FB 1/4 Plug for Multiplate 1/4
FEMP-371-6FB 3/8 Coupling for Multiplate 3/8
FEMP-371-8FB 3/8 Coupling for Multiplate 1/2
FEMP-372-6FB 3/8 Plug for Multiplate 3/8
FEMP-501-12FB 1/2 Coupling for Multiplate 3/4
FEMP-501-8FB 1/2 Coupling for Multiplate 1/2
FEMP-502-8FB 1/2 Plug for Multiplate 1/2
FEMP-621-12FB 5/8 Coupling for Multiplate 3/4
FEMP-622-12FB 5/8 Plug for Multiplate 3/4
FEMP-751-12FB 3/4 Coupling for Multiplate 3/4
FEMP-751-16FB 3/4 Coupling for Multiplate 1
FEMP-752-12FB 3/4 Plug for Multiplate 3/4
IF10010 RV 1 Coupling Stainless Steel 1
IF10010-125 RV 1 Coupling Stainless Steel 1 1/4
IF10020 RV 1 Plug Stainless Steel 1
IF10020-125 RV 1 Plug Stainless Steel 1 1/4
IF2510 RV 1/4 Coupling Stainless Steel 1/4
IF2520 RV 1/4 Plug Stainless Steel 1/4
IF3810 RV 3/8 Coupling Stainless Steel 3/8
IF3810-50 RV 3/8 Coupling Stainless Steel 1/2
IF3820 RV 3/8 Plug Stainless Steel 3/8
IF3820-50 RV 3/8 Plug Stainless Steel 1/2
IF5010 RV 1/2 Coupling Stainless Steel 1/2
IF5010-75 RV 1/2 Coupling Stainless Steel 3/4
IF5020 RV 1/2 Plug Stainless Steel 1/2
IF5020-75 RV 1/2 Plug Stainless Steel 3/4
IF6310 RV 5/8 Coupling Stainless Steel 3/4
IF6320 RV 5/8 Plug Stainless Steel 3/4
IF7510 RV 3/4 Coupling Stainless Steel 3/4
IF7510-100 RV 3/4 Coupling Stainless Steel 1
IF7520 RV 3/4 Plug Stainless Steel 3/4
IF7520-100 RV 3/4 Plug Stainless Steel 1
