Subsea Couplings

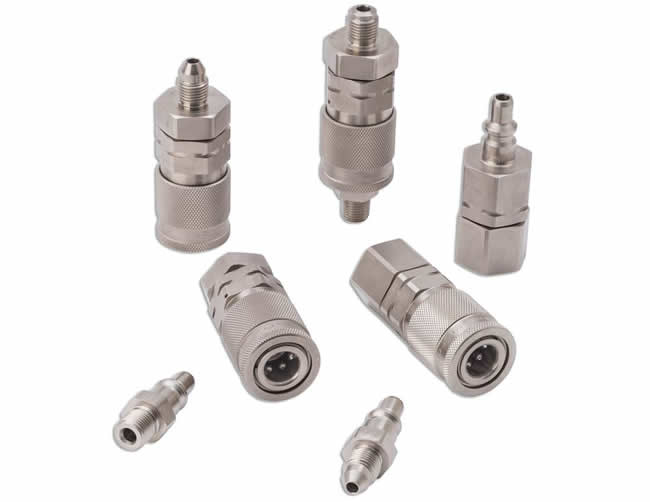

Rogan series quick couplings

Rogan series quick couplings are versatile connecting devices that permit easy and rapid joining of hose assemblies to your system. Couplings are available with multiple connection styles, including Type "M", high pressure, medium pressure and NPT connections. Working pressures range from 15,000 psi to 30,000 psi.

Quick couplings for quick and easy hose assembly connection. Couplings are available in a variety of connection styles with working pressures ranging from 15,000 psi to 30,000 psi.

Rogan Series Quick Couplings PDF Catalog download



技术参数

Application: Marine, Oilfield, Waterblast
Brand: Parker
Diameter: 6, 10 nom
Fitting Connection Type: NPT / NPTF, Type "M", Face Seal, Female Thread, Male Thread, Pipe Thread
Maximum Operating Pressure: 2,070 bar, 30,000 psi, 103 to 207 MPa
Media: Hydraulic Fluid, Water, Lubricants, Chemical Fluids
Seal Material: Buna-N, Viton
Valve Type: Check
Coupling Half: Female, Male
Materials of Construction: Nickel Coated Steel
Connection Type: Type M", High Pressure, Medium Pressure, NPT or Low Angle Face Seal", Male or Female
Connection Size: 1/4 to 1 inch
Overall Length: 1.98 to 4.64 inch, 50.29 to 117.86 mm
Hex Size: .75 to 1.62 inch, 19.05 to 41.15 mm
Flow Diameter: .24 or .40 inch, 6 or 10 mm



Markets:
- Waterblast
- Hydraulics

Features / Benefits:
- Working pressures from 15,000 psi to 30,000 psi
- Couplings with check-valves can withstand the full working pressure in the disconnected condition
- Each coupling is assembled and pressure tested to at least 5,000 psi above its maximum rated working pressure

Applications:
- For hydraulic systems and waterblast applications ranging from 15,000 to 30,000 psi



Literature and Reference Materials

Catalog 4900 - Parflex Ultra High Pressure Thermoplastic Hose, Fittings and Accessories--CAT-4900
Catalog 3800 Quick Coupling Products
Compliance, Certifications, & Safety
Conflict Minerals Declaration
Manufacturers-Directive-Parflex
Parflex Division MSDS
Parflex Division REACH Compliance
Parflex RoHS Certification/WEEE Certification Directive
Parflex Stafford ISO Cert 9001
Proposition 65 Warning Language--Required_Prop_65_Warning



High Pressure Quick Couplings - Rogan Series Order Number

Part Coupling Half Connection Style Thread Type Connection Size (inch) Flow Diameter (inch)
HP006-0-A12 Coupler Type "M" Male 3/4" - 16 UNF 0.24
HP006-0-A9 Coupler Type "M" Male 9/16" - 18 UNF 0.24
HP006-0-HM4 Coupler High Pressure Male 1/4" - 28 UNF-LH 0.24
HP006-0-HM9 Coupler High Pressure Male 9/16" - 18 UNF-LH 0.24
HP006-0-LM6 Coupler Medium Pressure Male 3/8" - 24 UNF-LH 0.24
HP006-0-NFB Coupler NPT Female 1/4" - 18 0.24
HP006-0-NFC Coupler NPT Female 3/8" - 18 0.24
HP006-0-NMB Coupler NPT Male 1/4" - 18 0.24
HP006-0-NMC Coupler NPT Male 3/8" - 18 0.24
HP006-0-NMD Coupler NPT Male 1/2" - 14 0.24
HP006-0-X13 Coupler Low Angle Face Seal Male 9/16" - 18 0.24
HP006-1-A12 Nipple without Check Valve Type "M" Male 3/4" - 16 UNF 0.24
HP006-1-A9 Nipple without Check Valve Type "M" Male 9/16" - 18 UNF 0.24
HP006-1-HM4 Nipple without Check Valve High Pressure Male 1/4" - 28 UNF-LH 0.24
HP006-1-LM6 Nipple without Check Valve Medium Pressure Male 3/8" - 24 UNF-LH 0.24
HP006-1-LM9 Nipple without Check Valve Medium Pressure Male 9/16" - 18 UNF-LH 0.24
HP006-1-NMB Nipple without Check Valve NPT Male 1/4" - 18 0.24
HP006-1-NMC Nipple without Check Valve NPT Male 3/8" - 18 0.24
HP006-1-NMD Nipple without Check Valve NPT Male 1/2" - 14 0.24
HP006-1-X13 Nipple without Check Valve Low Angle Face Seal Male 9/16" - 18 0.24
HP006-2-A12 Nipple with Check Valve Type "M" Male 3/4" - 16 UNF 0.24
HP006-2-A9 Nipple with Check Valve Type "M" Male 9/16" - 18 UNF 0.24
HP006-2-HM4 Nipple with Check Valve High Pressure Male 1/4" - 28 UNF-LH 0.24
HP006-2-LM6 Nipple with Check Valve Medium Pressure Male 3/8" - 24 UNF-LH 0.24
HP006-2-NFB Nipple with Check Valve NPT Female 1/4" - 18 0.24
HP006-2-NFC Nipple with Check Valve NPT Female 3/8" - 18 0.24
HP006-2-NMB Nipple with Check Valve NPT Male 1/4" - 18 0.24
HP006-2-NMC Nipple with Check Valve NPT Male 3/8" - 18 0.24
HP006-2-NMD Nipple with Check Valve NPT Male 1/2" - 14 0.24
HP006-2-X13 Nipple with Check Valve Low Angle Face Seal Male 9/16" - 18 0.24
HP010-0-A12 Coupler Type "M" Male 3/4" - 16 UNF 0.4
HP010-0-A16 Coupler Type "M" Male 1" - 12 UNF 0.4
HP010-0-LM12 Coupler Medium Pressure Male 3/4" - 16 UNF-LH 0.4
HP010-0-NFD Coupler NPT Female 1/2" - 14 0.4
HP010-0-NMD Coupler NPT Male 1/2" - 14 0.4
HP010-0-X23 Coupler Low Angle Face Seal Male 3/4" - 16 0.4
HP010-1-A12 Nipple without Check Valve Type "M" Male 3/4" - 16 UNF 0.4
HP010-1-A16 Nipple without Check Valve Type "M" Male 1" - 12 UNF 0.4
HP010-1-LM12 Nipple without Check Valve Medium Pressure Male 3/4" - 16 UNF-LH 0.4
HP010-1-LM9 Nipple without Check Valve Medium Pressure Male 9/16" - 18 UNF-LH 0.4
HP010-1-NMD Nipple without Check Valve NPT Male 1/2" - 14 0.4
HP010-1-X23 Nipple without Check Valve Low Angle Face Seal Male 3/4" - 16 0.4
HP010-2-A12 Nipple with Check Valve Type "M" Male 3/4" - 16 UNF 0.4
HP010-2-A16 Nipple with Check Valve Type "M" Male 1" - 12 UNF 0.4
HP010-2-NFD Nipple with Check Valve NPT Female 1/2" - 14 0.4
HP010-2-NMD Nipple with Check Valve NPT Male 1/2" - 14 0.4
HP010-2-X23 Nipple with Check Valve Low Angle Face Seal Male 3/4" - 16 0.4
