Parker压力表, ServiceJunior数字压力表,ServiceJunior工具包

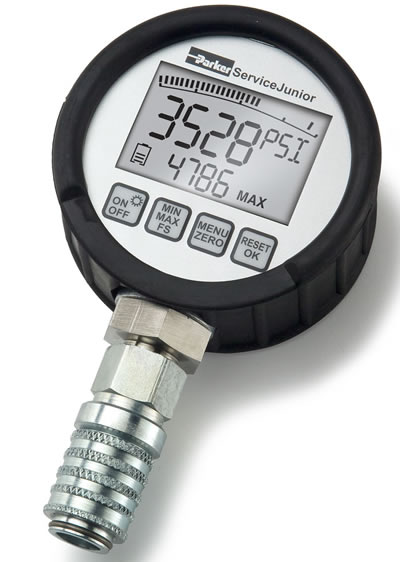

Parker ServiceJunior Digital Pressure Gauge
Parker压力表,parker ServiceJunior数字压力表特点:数码式压力测量,带背光灯;最小/最大值或满量程显示;电池电量显示;刻度显示,带峰值记忆功能;带M16X2碳钢内螺纹接头;电源自动关闭功能。Parker's ServiceJunior diagnostic test kits are ideal to digitally measure pressure and capture min and max fluctuations in any hydraulic or pneumatic system。
Parker ServiceJunior数字压力表 Parker ServiceJunior数字压力表
- 数码式压力测量,带背光灯
- 最小/最大值或满量程显示
- 刻度显示,带峰值记忆功能
- 带M16x2碳钢内螺纹接头
- 电源自动关闭功能
Parker's ServiceJunior digital pressure gauges
PDF Catalog
Part Numbers & Specifications
ServiceJunior
PD Coupler |
ServiceJunior
EMA3 Coupler |
ServiceJunior
1/4" NPT Port |
Measuring Range |
Overload Pressure
(psi) |
Resolution
(psi) |
SCJR-0250-PD |
SCJR-0250-EMA |
SCJR-0250-4MP |
-14.5 to 250 PSI (-1 to 16 bar) |
580 |
0.1 |
SCJR-1500-PD |
SCJR-0250-EMA |
SCJR-0250-4MP |
0 to 1500 PSI (0 to 100 bar) |
2,900 |
1 |
SCJR-5800-PD |
SCJR-0250-EMA |
SCJR-0250-4MP |
0 to 1500 PSI (0 to 400 bar) |
11,600 |
1 |
SCJR-8700-PD* |
SCJR-0250-EMA** |
SCJR-0250-4MP |
0 to 8700 PSI (0 to 600 bar) |
17,400 |
1 |
PD Couplers rated to 6,000 PSI max
** EMA3 Couplers rated to 9,000 PSI max
Accessories
Part Number |
Description |
PD240 |
PD Series Diagnostic Coupler |
SCA-7/16.-EMA-3 |
7/16. -18UNF-2B female to M16.X2.0 EMA3 female swivel |
SCJA-1/4 |
7/16. -18UNF-2B female to 1/4” NPT male adapter |
PDH-19 |
19” PD Hose extension to be used with PD nipple |
PDH-32 |
32” PD Hose extension to be used with PD nipple |
SMA3-400 |
16.” (400 mm) Hose assembly for EMA M16.X2.0 interface |
SCC-110 |
Storage case for one gauge and diagnostic adapters |
SCC-300 |
Storage case for three gauges and diagnostic adapters |
Parker压力表,parker ServiceJunior数字压力表,ServiceJunior工具包主要型号:
SCJN-016-01,SCJN-060-01-VAS-6550,SCJN-1000-01,SCJN-100-01,SCJN-400-01,SCJN-600-01,SCJN-KIT-016,SCJN-KIT-100,SCJN-KIT-400,SCJN-KIT-600,SCJNP-016-01-RC,SCJNP-1000-01-RC,SCJNP-100-01-RC,SCJNP-400-01-RC,SCJNP-600-01-RC,SCJNP-KIT-016-RC,SCJNP-KIT-100-RC
SCJNP-KIT-400-RC,SCJNP-KIT-600-RC
SCM-050-01-PD -14.5 to 435 psi (-1 to 30 Bar)
SCM-050-02-PD 0 to 4350 psi (0 to 300 Bar)
SCM-050-03-PD 0 to 8700 psi (0 to 600 Bar)
SCM-050-01-EMA -14.5 to 435 psi (-1 to 30 Bar)
SCM-050-02-EMA 0 to 4350 psi (0 to 300 Bar)
SCM-050-03-EMA 0 to 8700 psi (0 to 600 Bar)
SCM-050-01-4MP -14.5 to 435 psi (-1 to 30 Bar)
SCM-050-02-4MP 0 to 4350 psi (0 to 300 Bar)
SCM-050-03-4MP 0 to 8700 psi (0 to 600 Bar)
SCJR-5800-EMA
ServiceJunior Digital Pressure Gauge
ServiceJunior Digital Pressure Gauge
PD240: PD Series diagnostic coupler
SCA-7/16-EMA-3: 7/16 -18UNF-2B female to M16X2.0 EMA3 female swivel
SCJA-1/4: 7/16 -18UNF-2B female to ?” NPT male adapter
PDH-19: 19” PD Hose extension to be used with PD nipple interface
SMA3-400: 16” hose assembly for EMA M16X2.0 interface
SCC-110: Storage case for one gauge and diagnostic adapters
SCC-150: Storage case for two gauges and diagnostic adapter
SCJR1-KIT-PD
SCJR1-KIT-EMA
Parker's Service Junior digital gauges
|
|
|
PARKER ServiceJunior Digital Gauge
SCJR-0250-4MP - 1/4" NPT Port. --14.5 to 250 PSI (-1 to 16 bar) |
PARKER ServiceJunior Digital Gauge
SCJR-5800-EMA - with EMA3 Coupler
0 to 5800 PSI (0 to 400 bar) |
PARKER ServiceJunior Digital Gauge
SCJR-8700-4MP - 1/4" NPT Port 0 to 8700 PSI (0 to 600 bar) |
|
|
|
PARKER ServiceJunior Digital Gauge
SCJR-5800-4MP - 1/4" NPT Port - 0 to 5800 PSI (0 to 400 bar) |
PARKER ServiceJunior Digital Gauge Adapter
SCJA-1/4 .
7/16 -18UNF-2B female to 1/4" NPT male adapter |
Parker ServiceJunior Digital Gauge SCJR-8700-EMA - Digital pressure, Measuring Range: 0 to +8700PSI, EMA3 coupler connection |
|
|
|
SCC-110 Parker Gauge Case |
SCJR1-KIT-EMA Parker ServiceJunior EMA Style Kit
SCJR1-KIT-EMA
EMA Style Ser. Man Jr. 2 Gauges |
ServiceJunior Digital Pressure Gauge
SCJR-8700-PD |
Part Numbers
PARKER ServiceJunior Digital Gauge
SCJR-5800-4MP - 1/4" NPT Port - 0 to 5800 PSI (0 to 400 bar)
PARKER ServiceJunior Digital Gauge
SCJR-8700-4MP - 1/4" NPT Port 0 to 8700 PSI (0 to 600 bar)
PARKER ServiceJunior Digital Gauge
SCJR-5800-EMA - with EMA3 Coupler
0 to 5800 PSI (0 to 400 bar)
PARKER ServiceJunior Digital Gauge
SCJR-0250-4MP - 1/4" NPT Port. --14.5 to 250 PSI (-1 to 16 bar)
PARKER ServiceJunior Digital Gauge Adapter
SCJA-1/4 .
7/16 -18UNF-2B female to 1/4" NPT male adapter
Parker ServiceJunior Digital Gauge SCJR-8700-EMA - Digital pressure, Measuring Range: 0 to +8700PSI, EMA3 coupler connection
SCC-110 Parker Gauge Case
SCJR1-KIT-EMA Parker ServiceJunior EMA Style Kit
SCJR1-KIT-EMA
EMA Style Ser. Man Jr. 2 Gauges
ServiceJunior Digital Pressure Gauge
SCJR-0250-PD
SCJR-0250-EMA
SCJR-0250-4MP
SCJR-1500-PD
SCJR-1500-EMA
SCJR-1500-4MP
SCJR-5800-PD
SCJR-5800-EMA
SCJR-5800-4MP
SCJR-8700-PD*
SCJR-8700-EMA**
SCJR-8700-4MP
|
