Parker 3000/5000 PSI – FA21/FA35系列耐火防井喷BOP软管
Parker派克BOP软管,专为承受火烧、耐高温和高压的液压极端应用而设计

Blowout Preventer Hose Fire Rated Hydraulic Hose Assemblies for Land and Topside BOP Applications



Parker派克BOP软管,专为承受火烧、耐高温和高压的液压极端应用而设计,并且该软管被证实确实安全可靠。Parker派克全系列防井喷BOP软管,专为油田深钻和探测应用中极其苛刻的场合而设计。Parker派克公司高性能BOP软管也同时专为承受火烧、耐高温和高压的液压极端应用而设计,并且该软管被证实确实安全可靠。另外FA35系列 BOP 软管表面也可提供金属铠甲的产品形式,其软管总成完全按照美国石油工业API 16D 标准进行测试和标定,并通过了劳氏船级社的批准和认证,同时该软管满足或超过 OD/1000/499 标准规定,即在 1300° F (+705°C) 温度的火焰上燃烧五分钟的耐火实验。根据客户指定的工业技术要求相应选择 3000 或者 5000 PSI 的软管产品。




Parker 3000/5000 PSI – FA21/FA35系列耐火防井喷BOP软管
Blowout Preventer Hose Fire Rated Hydraulic Hose Assemblies for Land and Topside BOP Applications



Parker Hannifin’s complete line of Blowout Preventer hoses (BOP) is developed to meet the most rigorous demands in exploration and deep drilling.Our high-performance BOP hoses are designed for hydraulic use and certified to withstand fire, high heat and pressures in safety critical applications. All Fire Armor BOP hose assemblies are tested and approved by Lloyd’s Register, complying with American Petroleum Industry API 16D guidelines to meet and exceed OD/1000/499 flame testing at 1300 °F for five minutes.Parker’s complete range of BOP hoses are used for hydraulic connections between the well control equipment and the control system. Our products combine our trusted ParLock multi-spiral hose range with Interlock connection and optional stainless steel armor to protect the system from external shock.

市场:
- 油&气Oil & Gas

特性/优点:
- 按单生产的灵活设计完全基于客户自身的具体要求
- 可提供碳钢和不锈钢软管接头
- 全系列尺寸规格从 -6 到 -32 划线尺寸;工作压力从 3000 到 5000 PSI。
- 耐火能力

FA21 HOSE


- 在那些需要耐火的通常应用中,
- 钢丝编织结构能确保所有尺寸规格达到 3000 psi 恒定工作压力的要求
- 劳氏船级社按照 API 16D 标准要求的火烧实验进行检测
- 同时厚壁的红色合成橡胶外胶层表面具有相应的耐火能力
- 同时装配绝缘护套来进一步满足火烧实验的要求
- 最小弯曲半径只有 SAE 标准规定值的一半,确保了软管管路布置的简单高效

Part

Hose I.D. (size)

Maximum Working Pressure (psi)

FA21-12

-12

3000

FA21-16

-16

3000

FA21-6

-6

3000

FA21-8

-8

3000

FA35-12

-12

5000

FA35-16

-16

5000

FA35-20

-20

5000

FA35-24

-24

5000

FA35-32

-32

5000

FA35-8

-8

5000



FA35 HOSE

- 钢丝缠绕结构保证了 5000 PSI 恒定工作压力的特性
- 劳氏船级社完全按照 API 16D 标准规定的火烧实验要求进行认证
- 红色的厚壁合成橡胶外胶层表面也具有相应的耐火烧的能力
- V系列软管接头可同时提供 API 和 NPT 外螺纹连接形式

表面铠甲形式产品 (可选)

- 金属铠甲表面保护软管免受外部损坏、高温和火烧
- 也可提供 304 不锈钢材料的铠甲
- 劳氏船级社完全按照 API 16D 标准规定的火烧实验要求进行严格检测

应用:

- 石油基液压流体和润滑油Petroleum base hydraulic fluids and lubricating oils

匹配扣压的接头系列:
- 43 系列软管接头
- V 系列软管接头

性能特点

流体类型 石油基液压油以及润滑油
HOSE INNER TUBE MATERIAL 合成橡胶
兼容配件 43 Series, VS Series, V4 Series , and V6 Series
MINIMUM BEND RADIUS (MM) 65 - 630
应用 Hydraulic, Oilfield
软管内径(尺寸) -6 to -32
最大工作压力 (BAR) Up to 350
最大工作压力 (PSI) Up to 5000
媒介 Hydraulic Fluids, Lubricants
材料 - 软管加固 钢丝加强
软管盖材料 红色 PKR 橡胶
最低工作温度 (F) -40
最高工作温度 (F) 212
最低工作温度 (C) -40
最高工作温度 (C) 100
软管盖类型 耐火能力



COMPLIANCE, CERTIFICATIONS, & SAFETY
产品技术资料下载:

REACH HPDE Declaration--July 2017
LITERATURE AND REFERENCE MATERIALS
BOP Brochure
How to assembly Parkrimp No-Skive Hose KK1-KK2--WC4400-10_UK
How to make Parkrimp No-Skive hose assemblies with a Parkrimp 2 --WC4400-11_UK
How to order hydraulic hose and fittings
Hydraulic Hose, Fittings and Equipment Quick Reference Guide
Hydraulic Hoses--WC4400-2_UK
Parkrimp No-Skive Crimp Dimensions Wall Chart--WC4400-4/UK-DE-FR
Parkrimp No-Skive Crimp Dimensions – Prensado – Pressatura--WC4400-4_UK_ES_IT

可根据要求提供定制配置和尺寸。有关其他信息,请联系派克低压流体连接件事业部010-84282935或fcg.cnmec@parkerdistribution.com.cn。



Parker launches blowout preventer hydraulic hoses
JUNE 9, 2017 BY MARY GANNON LEAVE A COMMENT

A line of blowout preventer hydraulic hoses was unveiled by Parker Hannifin at OTC last month. Designed for use topside, offshore and inland for oil and gas, these BOP hoses meet the API16D flame test and Lloyd’s Register 1499 test, said Michael Clark, business development manager for Parker Hannifin’s Fluid Connectors Group.

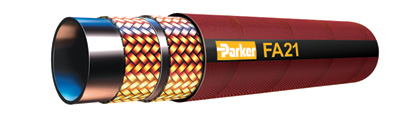

Parker-FA21 blowout preventer hydraulic hosesThey are available in a braided construction with a pressure rating of 3,000 psi, in size 6 to 16 (3/8 to 1 in.) or a spiral construction rated to 5,000 psi in sizes 6 to 32 (3/8 to 2 in.)

Parker had an external lab certify flame tests. The API16D flame test requires the hydraulic BOP hose to be pressurized to working pressure, and it must withstand a flame of 1,300°F for 5 minutes without losing any pressure. Lloyd’s 1499 is a similar test.

“We have three pillars to this offering,” Clark said. “This is how we differentiate ourselves. The first pillar is the product itself. It was imperative for us to meet the flame requirements of the API16D. We did that with special flame resistant materials on the cover.”

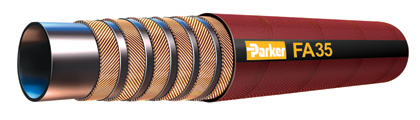

Parker-FA35-BOP-hydraulic-hose Most BOP hoses are wrapped in fiberglass and then covered with stainless steel to meet those flame tests. Although Parker does offer a traditional BOP hose that is wrapped in a stainless-steel cover, the non-armored designs use a special jacketing material to meet the flame resistance tests.

“Some people don’t like change, or they want some protection for external abuse in offshore, so some people still want the stainless steel,” Clark said. “So what we did was we just designed it so it would go right over top of the hose. There is no fiberglass or anything there, so it’s the one hose that’s already rated and we’re just adding to it.”

The second pillar was not only meeting the API16D flame test but also meeting Lloyd’s Type approval, which Clark said is the highest approval you can achieve on a product like a hose. A Type Approval from Lloyd’s Register demonstrates that a product conforms to recognized industry quality standards, International Conventions and/or the LR Rules, through a process of independent design review, sample testing and verification of production controls.

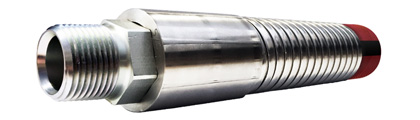

Parker-FA-wArmor-BOP-hydraulic-hose-with-armor“When Lloyd’s does Type Approval, what they do is they come in and they inspect your manufacturing process, and they give you approval on that. They inspect your testing facilities and how you’re running tests to make sure everything’s calibrated and you’re doing everything properly,” he said. “They witness your assembly locations and make sure that they are trained and that they have a quality process in place, and they sign off on that. When those three things are complete, then you can get Lloyds type approval.”

Parker is also in the process of having several key distributors also certified to Lloyd’s Type Approval. Finally, the third pillar is on the preventative maintenance side, which relies on Parker’s PTS Pro (Parker Tracking System), to recommend or schedule maintenance. The PTS system uses coded tracking labels and RFID technology to keep track of a hose assembly, so it is quickly identified for replacement. It allows users to easily maintain a database of their hose assembly types, styles and how long they have been in use.

“BOP’s can go out in the field and we’re seeing a lack of accountability on when they were put into service and when they’re being replaced,” Clark said. “Using the PTS to schedule that maintenance, we can at the very least give our customers a notification saying it’s been in service for whatever length of time they would want to specify, and let them know that it’s time to either inspect or replace that hose. That’s something that separates us from our competition.”
