Parker派克PR系列球阀,旋塞阀
Parker's PR Series Plug Valves
派克 PR系列旋塞阀,闭合严密,大流量,快速旋转四分之一转开关操作,结构紧凑。此款阀门也为用户提供了优异的节流能力。派克的PR系列旋塞阀,结构紧凑,大流量,快速四分之一圈操作并保证关断的气密性。防吹出专利阀座设计确保在工作压力范围内提供可靠的密封性,普通的旋塞阀是无法实现此功能的。除了开关作用外,旋塞设计还可以实现节流作用。阀座和密封材料的多种选择用以满足介质的兼容性要求以及工作温度范围。PTFE 支撑阀体密封材料,确保可靠密封,同时延长了其循环使用寿命。
Parker's PR Series Plug Valves provide positive leak tight shut-off, high flow capacity, and quick quarter-turn operation in a compact, barstock body. This plug valve provides the user the ability to throttle during manual actuation.Parker’s PR Series Plug Valves provide positive leak tight shut-off, high flow capacity, and quick quarter-turn operation in a compact attractive package. The patented blow-out resistant seat design offers reliable sealing technology at all operating pressures not seen in general purpose plug valves. In addition to on-off actuation, the plug design allows forward flow throttling. A broad selection of valve seats and seal materials may be chosen for media compatibility and performance over a broad range of temperatures. The pressure balanced atmospheric seals are backed by PTFE rings to enhance their performance and increase cycle life.

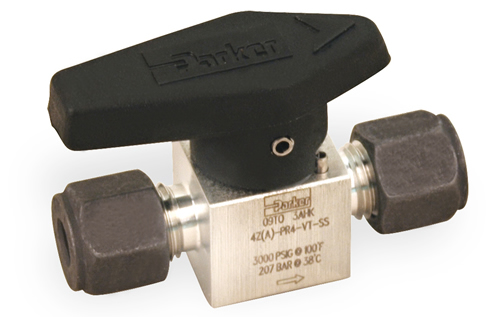

![](v_1/4A_PR4_VT_SS_zm.jpg)
Parker Ball and Plug Valves
Parker PR Series Plug Valve
市场:
- 石油与天然气
- 科研
- 化工
- 大学实验室
特点/优势:
- 获得专利的防吹出阀座设计
- 压力可达3,000 psig (207 bar)CWP
- 四分之一圈操作
- 可靠的简易设计
- 直通流道
- 不锈钢或铜材质阀体
- 多种阀座和密封材料可选:丁腈橡胶,乙丙橡胶,氟橡胶和高氟橡胶。
- PTFE支撑环与密封圈配合使用
- 操作扭矩小
- 压降小
- 具有节流功能
- 手柄限位销
- 带有流向标识的彩色抗裂尼龙手柄
- 易于维护
- 100%出厂检测
- 可选辅件包括锁定装置,下游排放孔以及不锈钢T型手柄
应用:
- 控制盘Control Panels
- R&D实验室R&D Labs
- 特种气体系统Specialty Gas Systems
- 化学品输送Chemical delivery
- 加气站Fill stations
性能特点
连接1尺寸 1/8" to 1/2"
连接2尺寸 1/8" to 1/2"
连接器1类型 双卡套,单卡套,NPT内螺纹,NPT外螺纹
连接器2类型 双卡套,单卡套,NPT内螺纹,NPT外螺纹
流体容量(CV) .22, 1.24, 1.02, 1.18, 3.19
密封材料 丁腈橡胶
挡圈材料 聚四氟乙烯
最大操作压力(PSI) 3,000
最大操作压力(BAR) 207
阀体材料 316不锈钢,铜

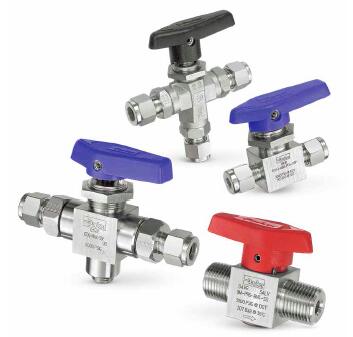

![](v_1/PR.jpg)
资料与样本
球阀和旋塞阀 Catalog 4121-BV-CH(内容主要包括:仪表级、球阀、旋塞阀) --15-09-B ING-CH-58P-0254
